List of products by manufacturer FAULTRAP

AR22 - EV Charger Fuse 1000VDC 40A

AR22 - EV Charger Fuse 1000VDC 40A

Reference 334.609.76.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 40
Weight (g) 60
Format Cylindrical
Pre-arcing I2t value (A2s) 415
Total I2t value (A2s) 3300
Homologations IEC
Power loss (W) 6,6
Fuses dimension 22x65
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Series name AR22
Product available on request Ask for more information
ZLYF - Fuse base NH3 1000VAC/1500VDC 1 pole

ZLYF - Fuse base NH3 1000VAC/1500VDC 1 pole

Reference 309.027.11.0.0 - Manufacturer FAULTRAP
Rated current In (A) 630
Rated Voltage Un AC (V) 1000
Weight (g) 918
Format NH knife contact
Dimension NH3
Homologations IEC
Rated Voltage Un DC (V) 1500
Number of phase 1
Distance (mm) 210
Max power dissipation (W) 60
Series name ZLYF
Product available on request Ask for more information
ZVJM - Fuse holder 10x38 690VAC-1000VDC 4P

ZVJM - Fuse holder 10x38 690VAC-1000VDC 4P

Reference 188.120.82.0.0 - Manufacturer FAULTRAP
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Weight (g) 248
Format Cylindrical
Homologations IEC
Power loss (W) 4
Fuses dimension 10x38
Rated Voltage Un DC (V) 1000
Number of phase 4
Series name ZVJM
Price List €7.23/pc
Quantity
ZYCY - Fuse holder 10x38 for PCB

ZYCY - Fuse holder 10x38 for PCB

Reference 244.488.24.0.0 - Manufacturer FAULTRAP
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Format Cylindrical
Homologations IEC
Fuses dimension 10x38
Rated Voltage Un DC (V) 1000
Number of phase 1
Series name ZYCY
Product available on request Ask for more information
ZMMN - Fuse base NH1XL 1500VDC

ZMMN - Fuse base NH1XL 1500VDC

Reference 446.287.28.0.0 - Manufacturer FAULTRAP
Rated current In (A) 250
Rated Voltage Un AC (V) 1500
Weight (g) 710
Homologations IEC
Fuses format NH knife contact
Fuses dimension NH1XL
Rated Voltage Un DC (V) 1500
Number of phase 1
Distance (mm) 232
Max power dissipation (W) 32
Series name ZMMN
Price List €97.91/pc
Quantity
lock Datasheet
ZVJM - Fuse holder 10x38 690VAC-1000VDC 3P with ind

ZVJM - Fuse holder 10x38 690VAC-1000VDC 3P with ind

Reference 346.127.98.0.0 - Manufacturer FAULTRAP
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Weight (g) 194
Format Cylindrical
Homologations IEC
Power loss (W) 4
Fuses dimension 10x38
Rated Voltage Un DC (V) 1000
Number of phase 3
Series name ZVJM
Price List €25.52/pc
Quantity
ZVJM - Fuse holder 10x38 690VAC-1000VDC 1P with ind

ZVJM - Fuse holder 10x38 690VAC-1000VDC 1P with ind

Reference 421.781.29.0.0 - Manufacturer FAULTRAP
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Weight (g) 64
Format Cylindrical
Homologations IEC
Fuses dimension 10x38
Rated Voltage Un DC (V) 1000
Number of phase 1
Max power dissipation (W) 4,3
Series name ZVJM
Price List €8.73/pc
Quantity
ZOIG - Fuse base metal/ceramic NH2XL 1500V

ZOIG - Fuse base metal/ceramic NH2XL 1500V

Reference 429.543.63.0.0 - Manufacturer FAULTRAP
Rated current In (A) 400
Rated Voltage Un AC (V) 1000
Weight (g) 750
Format NH knife contact
Dimension NH2XL
Homologations IEC
Rated Voltage Un DC (V) 1500
Number of phase 1
Distance (mm) 258
Max power dissipation (W) 45
Series name ZOIG
Price List €27.68/pc
Quantity
lock Datasheet
ZVJM - Fuse holder 10x38 690VAC-1000VDC 2P

ZVJM - Fuse holder 10x38 690VAC-1000VDC 2P

Reference 793.159.36.0.0 - Manufacturer FAULTRAP
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Weight (g) 124
Homologations IEC
Fuses format Cylindrical
Fuses dimension 10x38mm
Rated Voltage Un DC (V) 1000
Number of phase 2
Max power dissipation (W) 4,3
Series name ZVJM
Price List €8.19/pc
Quantity
lock Datasheet
ZPYT - Fuse holder 22x65 1000VAC/1500VDC 3P

ZPYT - Fuse holder 22x65 1000VAC/1500VDC 3P

Reference 942.799.14.0.0 - Manufacturer FAULTRAP
Rated current In (A) 100
Rated Voltage Un AC (V) 1000
Weight (g) 560
Homologations IEC
Fuses format Cylindrical
Fuses dimension 22x65mm
Rated Voltage Un DC (V) 1500
Number of phase 3
Max power dissipation (W) 12
Series name ZPYT
Price List €28.42/pc
Quantity
ZPYT - Fuse holder 22x65 1250VAC/1500VDC IEC/UL 1P

ZPYT - Fuse holder 22x65 1250VAC/1500VDC IEC/UL 1P

Reference 845.025.35.0.0 - Manufacturer FAULTRAP
Rated current In (A) 100
Rated Voltage Un AC (V) 1250
Weight (g) 186
Fuses format Cylindrical
Fuses dimension 22x65mm
Rated Voltage Un DC (V) 1500
Number of phase 1
Max power dissipation (W) 12
Series name ZPYT
Price List €8.70/pc
Quantity
ZVJM - Fuse holder 10x38 690VAC-1000VDC 3P

ZVJM - Fuse holder 10x38 690VAC-1000VDC 3P

Reference 609.223.86.0.0 - Manufacturer FAULTRAP
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Weight (g) 187
Homologations IEC
Power loss (W) 4
Fuses format Cylindrical
Fuses dimension 10x38mm
Rated Voltage Un DC (V) 1000
Number of phase 3
Series name ZVJM
Price List €12.68/pc
Quantity
lock Datasheet
ZVJM - Fuse holder 10x38 690VAC-1000VDC 1P

ZVJM - Fuse holder 10x38 690VAC-1000VDC 1P

Reference 832.456.76.0.0 - Manufacturer FAULTRAP
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Weight (g) 62
Homologations IEC
Fuses format Cylindrical
Fuses dimension 10x38mm
Rated Voltage Un DC (V) 1000
Number of phase 1
Max power dissipation (W) 4
Series name ZVJM
Price List €3.35/pc
Quantity
lock Datasheet
ZFYJ - Fuse base NH2XL/NH3L 400A 1500VDC

ZFYJ - Fuse base NH2XL/NH3L 400A 1500VDC

Reference 255.167.93.0.0 - Manufacturer FAULTRAP
Rated current In (A) 400
Rated Voltage Un AC (V) 1000
Weight (g) 764
Format NH knife contact
Dimension NH2XL
Homologations IEC
Rated Voltage Un DC (V) 1500
Number of phase 1
Distance (mm) 267
Max power dissipation (W) 45
Series name ZFYJ
Price List €113.65/pc
Quantity
lock Datasheet
ZJLR - Fuse base NH1 1500VDC 1P

ZJLR - Fuse base NH1 1500VDC 1P

Reference 447.520.55.0.0 - Manufacturer FAULTRAP
Rated current In (A) 250
Rated Voltage Un AC (V) 1000
Weight (g) 610
Homologations IEC
Fuses format NH knife contact
Fuses dimension NH1
Rated Voltage Un DC (V) 1500
Number of phase 1
Distance (mm) 175
Max power dissipation (W) 32
Series name ZJLR
Price List €28.39/pc
Quantity
lock Datasheet
ZLIY - Fuse base metal/ceramic NH3L 1500V

ZLIY - Fuse base metal/ceramic NH3L 1500V

Reference 837.607.45.0.0 - Manufacturer FAULTRAP
Rated current In (A) 630
Weight (g) 1018
Homologations IEC
Fuses format NH knife contact
Fuses dimension NH3L
Rated Voltage Un DC (V) 1500
Number of phase 1
Distance (mm) 267
Max power dissipation (W) 60
Series name ZLIY
Price List €152.66/pc
Quantity
lock Datasheet
ZVJM - Fuse holder 10x38 690VAC-1000VDC 2P with ind

ZVJM - Fuse holder 10x38 690VAC-1000VDC 2P with ind

Reference 543.991.81.0.0 - Manufacturer FAULTRAP
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Weight (g) 129
Homologations IEC
Fuses format Cylindrical
Fuses dimension 10x38mm
Rated Voltage Un DC (V) 1000
Number of phase 2
Max power dissipation (W) 4,3
Series name ZVJM
Price List €3.51/pc
Quantity
lock Datasheet
AR22 - EV Charger Fuse 1000VDC 50A

AR22 - EV Charger Fuse 1000VDC 50A

Reference 260.036.14.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Weight (g) 60
Format Cylindrical
Pre-arcing I2t value (A2s) 737
Total I2t value (A2s) 6600
Homologations IEC
Power loss (W) 9
Fuses dimension 22x65
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Series name AR22
Product available on request Ask for more information
AR22 - EV Charger Fuse 1000VDC 70A

AR22 - EV Charger Fuse 1000VDC 70A

Reference 529.658.33.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 70
Weight (g) 60
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 2000
Total I2t value (A2s) 12300
Homologations IEC
Power loss (W) 12,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Series name AR22
Price List €11.89/pc
Quantity
AR22 - EV Charger Fuse 1000VDC 60A

AR22 - EV Charger Fuse 1000VDC 60A

Reference 595.927.40.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 60
Weight (g) 60
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 1300
Total I2t value (A2s) 9800
Homologations IEC
Power loss (W) 9,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Series name AR22
Product available on request Ask for more information

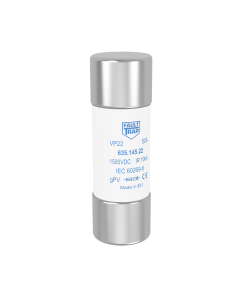

VP22 - Fuse 22x65mm 1500VDC gPV IEC 50A

VP22 - Fuse 22x65mm 1500VDC gPV IEC 50A

Reference 635.145.22.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 50
Voltage of total I2t test 1500
Weight (g) 60
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 740
Total I2t value (A2s) 6550
Homologations IEC
Power loss (W) 9
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 10000
Time costant L/R (ms) 3
Series name VP22
Product available on request Ask for more information
VP22 - Fuse 22x65mm 1500VDC gPV/800VAC gR IEC 40A

VP22 - Fuse 22x65mm 1500VDC gPV/800VAC gR IEC 40A

Reference 360.932.23.0.0 - Manufacturer FAULTRAP
Rated current In (A) 40
Rated Voltage Un AC (V) 800
Voltage of total I2t test 1500
Weight (g) 60
Format Cylindrical
Pre-arcing I2t value (A2s) 420
Total I2t value (A2s) 3650
Homologations IEC
Power loss (W) 7
Fuses dimension 22x65
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 10000
Time costant L/R (ms) 3
Series name VP22
Price List €15.74/pc
Quantity
VP22 - Fuse 22x65mm 1500VDC gPV IEC 32A

VP22 - Fuse 22x65mm 1500VDC gPV IEC 32A

Reference 845.638.80.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 32
Voltage of total I2t test 1500
Weight (g) 60
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 190
Total I2t value (A2s) 1650
Homologations IEC
Power loss (W) 6,3
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 10000
Time costant L/R (ms) 3
Series name VP22
Product available on request Ask for more information
BSDC - Fuse 2x38x73mm 1000VDC BS aBat 500A

BSDC - Fuse 2x38x73mm 1000VDC BS aBat 500A

Reference 233.082.62.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 500
Voltage of total I2t test 1018
Weight (g) 455
Format Screw fixing
Pre-arcing I2t value (A2s) 84000
Total I2t value (A2s) 319000
Homologations IEC
Power loss (W) 78
Fuses dimension 38x73
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name BSDC
Price List €128.01/pc
Quantity
lock Datasheet
BSDC - Fuse 38x73mm 1000VDC BS aBat 250A

BSDC - Fuse 38x73mm 1000VDC BS aBat 250A

Reference 631.812.67.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 250
Voltage of total I2t test 1018
Weight (g) 225
Format Screw fixing
Dimension 38x73mm
Pre-arcing I2t value (A2s) 21000
Total I2t value (A2s) 79800
Homologations IEC
Power loss (W) 39
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name BSDC
Product available on request Ask for more information
BSDC - Fuse 2x38x73mm 1000VDC BS aBat 600A

BSDC - Fuse 2x38x73mm 1000VDC BS aBat 600A

Reference 780.625.28.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 600
Voltage of total I2t test 1018
Weight (g) 458
Format Screw fixing
Dimension 38x73mm
Pre-arcing I2t value (A2s) 183000
Total I2t value (A2s) 695000
Homologations IEC
Power loss (W) 120
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name BSDC
Price List €128.01/pc
Quantity
lock Datasheet
BSDC - Fuse 38x73mm 1000VDC BS aBat 300A

BSDC - Fuse 38x73mm 1000VDC BS aBat 300A

Reference 760.312.32.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 300
Voltage of total I2t test 1018
Weight (g) 229
Format Screw fixing
Dimension 38x73mm
Pre-arcing I2t value (A2s) 46000
Total I2t value (A2s) 175000
Homologations IEC
Power loss (W) 52
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name BSDC
Product available on request Ask for more information
24E1 - Fuse BS 17,2x42 aR 240V 32A

24E1 - Fuse BS 17,2x42 aR 240V 32A

Reference 111.513.22.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 32
Rated Voltage Un AC (V) 240
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 240
Format BS
Pre-arcing I2t value (A2s) 39,1
Total I2t value (A2s) 390
Homologations IEC
Power loss (W) 5,1
Fuses dimension 17,2x42
Rated Voltage Un DC (V) 150
Series name 24E1
Product available on request Ask for more information
69E1 - Fuse BS 17,2x63,5 aR 690V 45A

69E1 - Fuse BS 17,2x63,5 aR 690V 45A

Reference 109.463.20.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 45
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 690
Weight (g) 40,5
Format BS
Pre-arcing I2t value (A2s) 114
Total I2t value (A2s) 724
Homologations IEC
Power loss (W) 13,8
Fuses dimension 17,2x63,5
Rated Voltage Un DC (V) 500
Series name 69E1
Price List €15.97/pc
Quantity
A145 - Fuse 14x51 690VAC aR 40A

A145 - Fuse 14x51 690VAC aR 40A

Reference 130.888.58.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 40
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Cylindrical
Pre-arcing I2t value (A2s) 142
Total I2t value (A2s) 1100
Homologations IEC
Power loss (W) 11
Fuses dimension 14x51
Series name A145
Price List €4.66/pc
Quantity
69E1 - Fuse BS 17,2x63,5 aR 690V 35A

69E1 - Fuse BS 17,2x63,5 aR 690V 35A

Reference 118.456.44.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 35
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 690
Weight (g) 40,5
Format BS
Pre-arcing I2t value (A2s) 69
Total I2t value (A2s) 286
Homologations IEC
Power loss (W) 11,6
Fuses dimension 17,2x63,5
Rated Voltage Un DC (V) 500
Series name 69E1
Price List €15.22/pc
Quantity
PV22 - Fuse 22x65mm 1500VDC gPV UL 40A

PV22 - Fuse 22x65mm 1500VDC gPV UL 40A

Reference 197.414.07.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 40
Voltage of total I2t test 1500
Format Cylindrical
Pre-arcing I2t value (A2s) 425
Total I2t value (A2s) 3500
Homologations UL
Power loss (W) 9
Fuses dimension 22x65
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 10000
Time costant L/R (ms) 3
Series name PV22
Price List €8.32/pc
Quantity
A145 - Fuse 14x51 690VAC aR 10A

A145 - Fuse 14x51 690VAC aR 10A

Reference 157.396.21.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 10
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Cylindrical
Pre-arcing I2t value (A2s) 8
Total I2t value (A2s) 40
Homologations IEC
Power loss (W) 2,8
Fuses dimension 14x51
Series name A145
Price List €3.74/pc
Quantity
24E1 - Fuse BS 17,2x42 aR 240V 10A

24E1 - Fuse BS 17,2x42 aR 240V 10A

Reference 154.059.27.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 10
Rated Voltage Un AC (V) 240
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 240
Format BS
Pre-arcing I2t value (A2s) 3,5
Total I2t value (A2s) 17,6
Homologations IEC
Power loss (W) 2,3
Fuses dimension 17,2x42
Rated Voltage Un DC (V) 150
Series name 24E1
Product available on request Ask for more information
V108 - Fuse 10x85 1500VDC gPV UL 12A

V108 - Fuse 10x85 1500VDC gPV UL 12A

Reference 148.029.72.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 12
Voltage of total I2t test 1500
Weight (g) 12
Format Cylindrical
Pre-arcing I2t value (A2s) 21
Total I2t value (A2s) 173
Power loss (W) 3,31
Fuses dimension 10x85
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 20000
Series name V108
Price List €11.31/pc
Quantity
V108 - Fuse 10x85 1500VDC gPV UL 30A

V108 - Fuse 10x85 1500VDC gPV UL 30A

Reference 232.383.85.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 30
Voltage of total I2t test 1500
Weight (g) 12
Format Cylindrical
Pre-arcing I2t value (A2s) 265,42
Total I2t value (A2s) 980
Power loss (W) 7,12
Fuses dimension 10x85
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 20000
Series name V108
Price List €12.82/pc
Quantity
V108 - Fuse 10x85 1500VDC gPV UL 16A

V108 - Fuse 10x85 1500VDC gPV UL 16A

Reference 328.230.50.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 16
Voltage of total I2t test 1500
Weight (g) 12
Format Cylindrical
Pre-arcing I2t value (A2s) 43,8
Total I2t value (A2s) 316
Power loss (W) 3,8
Fuses dimension 10x85
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 20000
Series name V108
Price List €13.14/pc
Quantity
69E1 - Fuse BS 17,2x63,5 aR 690V 100A

69E1 - Fuse BS 17,2x63,5 aR 690V 100A

Reference 392.742.56.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 100
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 690
Weight (g) 40,5
Format BS
Pre-arcing I2t value (A2s) 813
Total I2t value (A2s) 3173
Homologations IEC
Power loss (W) 28,5
Fuses dimension 17,2x63,5
Rated Voltage Un DC (V) 500
Series name 69E1
Price List €18.05/pc
Quantity
V103 - Fuse 10x38 1000VDC gPV 4A

V103 - Fuse 10x38 1000VDC gPV 4A

Reference 238.967.87.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 4
Voltage of total I2t test 1000
Format Cylindrical
Pre-arcing I2t value (A2s) 10,1
Total I2t value (A2s) 24
Power loss (W) 1,69
Fuses dimension 10x38
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name V103
Price List €8.73/pc
Quantity
lock Datasheet
24E1 - Fuse BS 17,2x42 aR 240V 160A

24E1 - Fuse BS 17,2x42 aR 240V 160A

Reference 247.730.22.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 160
Rated Voltage Un AC (V) 240
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 240
Weight (g) 29,5
Format BS
Pre-arcing I2t value (A2s) 990
Total I2t value (A2s) 8590
Homologations IEC
Power loss (W) 21,9
Fuses dimension 17,2x42
Rated Voltage Un DC (V) 150
Series name 24E1
Price List €42.91/pc
Quantity
V108 - Fuse 10x85 1500VDC gPV UL 32A

V108 - Fuse 10x85 1500VDC gPV UL 32A

Reference 210.825.49.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 32
Voltage of total I2t test 1500
Weight (g) 12
Format Cylindrical
Pre-arcing I2t value (A2s) 299,64
Total I2t value (A2s) 4286
Power loss (W) 7,72
Fuses dimension 10x85
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 20000
Series name V108
Price List €26.74/pc
Quantity
24E1 - Fuse BS 17,2x42 aR 240V 50A

24E1 - Fuse BS 17,2x42 aR 240V 50A

Reference 501.146.66.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Rated Voltage Un AC (V) 240
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 240
Weight (g) 29,5
Format BS
Dimension 17,2x42mm
Pre-arcing I2t value (A2s) 89
Total I2t value (A2s) 1180
Homologations IEC
Power loss (W) 8,2
Rated Voltage Un DC (V) 150
Series name 24E1
Price List €3.16/pc
Quantity
lock Datasheet
PV22 - Fuse 22x65mm 1500VDC gPV UL 50A

PV22 - Fuse 22x65mm 1500VDC gPV UL 50A

Reference 660.156.22.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 50
Voltage of total I2t test 1500
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 685
Total I2t value (A2s) 5600
Homologations UL
Power loss (W) 11
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 10000
Time costant L/R (ms) 3
Series name PV22
Price List €181.17/pc
Quantity
24E1 - Fuse BS 17,2x42 aR 240V 180A

24E1 - Fuse BS 17,2x42 aR 240V 180A

Reference 264.624.65.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 180
Rated Voltage Un AC (V) 240
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 240
Weight (g) 29,5
Format BS
Pre-arcing I2t value (A2s) 1550
Total I2t value (A2s) 13440
Homologations IEC
Power loss (W) 26,3
Fuses dimension 17,2x42
Rated Voltage Un DC (V) 150
Series name 24E1
Price List €31.10/pc
Quantity
A145 - Fuse 14x51 690VAC aR 25A

A145 - Fuse 14x51 690VAC aR 25A

Reference 836.007.31.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 25
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Cylindrical
Dimension 14x51mm
Pre-arcing I2t value (A2s) 36
Total I2t value (A2s) 355
Homologations IEC
Power loss (W) 8,5
Series name A145
Price List €1.31/pc
Quantity
69E1 - Fuse BS 17,2x63,5 aR 690V 80A

69E1 - Fuse BS 17,2x63,5 aR 690V 80A

Reference 366.116.92.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 80
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 690
Weight (g) 40,5
Format BS
Pre-arcing I2t value (A2s) 566
Total I2t value (A2s) 2546
Homologations IEC
Power loss (W) 22
Fuses dimension 17,2x63,5
Rated Voltage Un DC (V) 500
Series name 69E1
Price List €16.80/pc
Quantity
V103 - Fuse 10x38 1000VDC gPV 10A

V103 - Fuse 10x38 1000VDC gPV 10A

Reference 620.307.82.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 10
Voltage of total I2t test 1000
Format Cylindrical
Dimension 10x38mm
Pre-arcing I2t value (A2s) 7,5
Total I2t value (A2s) 67
Power loss (W) 2,27
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name V103
Price List €0.46/pc
Quantity
lock Datasheet
A145 - Fuse 14x51 690VAC aR 50A

A145 - Fuse 14x51 690VAC aR 50A

Reference 428.327.05.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Cylindrical
Pre-arcing I2t value (A2s) 277
Total I2t value (A2s) 1990
Homologations IEC
Power loss (W) 13
Fuses dimension 14x51
Series name A145
Price List €8.91/pc
Quantity

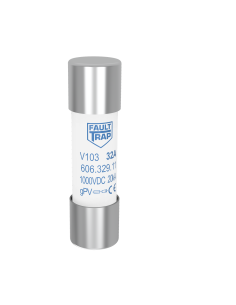

V103 - Fuse 10x38 1000VDC gPV 15A

V103 - Fuse 10x38 1000VDC gPV 15A

Reference 501.308.83.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 15
Voltage of total I2t test 1000
Format Cylindrical
Dimension 10x38mm
Pre-arcing I2t value (A2s) 23,5
Total I2t value (A2s) 211
Power loss (W) 2,55
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name V103
Price List €0.54/pc
Quantity
lock Datasheet
V103 - Fuse 10x38 1000VDC gPV 5A

V103 - Fuse 10x38 1000VDC gPV 5A

Reference 762.911.81.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 5
Voltage of total I2t test 1000
Format Cylindrical
Dimension 10x38mm
Pre-arcing I2t value (A2s) 19,8
Total I2t value (A2s) 47,5
Power loss (W) 1,82
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name V103
Price List €0.46/pc
Quantity
lock Datasheet
V103 - Fuse 10x38 1000VDC gPV 16A

V103 - Fuse 10x38 1000VDC gPV 16A

Reference 495.336.25.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 16
Voltage of total I2t test 1000
Format Cylindrical
Dimension 10x38mm
Pre-arcing I2t value (A2s) 26,2
Total I2t value (A2s) 230
Power loss (W) 2,74
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name V103
Price List €0.99/pc
Quantity
lock Datasheet
24E1 - Fuse BS 17,2x42 aR 240V 125A

24E1 - Fuse BS 17,2x42 aR 240V 125A

Reference 431.404.30.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 125
Rated Voltage Un AC (V) 240
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 240
Weight (g) 29,5
Format BS
Pre-arcing I2t value (A2s) 693
Total I2t value (A2s) 6430
Homologations IEC
Power loss (W) 15,6
Fuses dimension 17,2x42
Rated Voltage Un DC (V) 150
Series name 24E1
Price List €39.17/pc
Quantity
V103 - Fuse 10x38 1000VDC gPV 3A

V103 - Fuse 10x38 1000VDC gPV 3A

Reference 437.204.41.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 3
Voltage of total I2t test 1000
Format Cylindrical
Dimension 10x38mm
Pre-arcing I2t value (A2s) 4,2
Total I2t value (A2s) 10,3
Power loss (W) 1,48
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name V103
Price List €0.46/pc
Quantity
lock Datasheet
V103 - Fuse 10x38 1000VDC gPV 8A

V103 - Fuse 10x38 1000VDC gPV 8A

Reference 436.063.08.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 8
Voltage of total I2t test 1000
Format Cylindrical
Dimension 10x38mm
Pre-arcing I2t value (A2s) 3,2
Total I2t value (A2s) 30,4
Power loss (W) 2,1
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name V103
Price List €0.46/pc
Quantity
lock Datasheet
24E1 - Fuse BS 17,2x42 aR 240V 25A

24E1 - Fuse BS 17,2x42 aR 240V 25A

Reference 445.514.11.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 25
Rated Voltage Un AC (V) 240
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 240
Format BS
Dimension 17,2x42mm
Pre-arcing I2t value (A2s) 34,3
Total I2t value (A2s) 188
Homologations IEC
Power loss (W) 4,2
Rated Voltage Un DC (V) 150
Series name 24E1
Price List €2.26/pc
Quantity
PV22 - Fuse 22x65mm 1500VDC gPV UL 80A

PV22 - Fuse 22x65mm 1500VDC gPV UL 80A

Reference 323.123.63.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 80
Voltage of total I2t test 1500
Format Cylindrical
Pre-arcing I2t value (A2s) 3000
Total I2t value (A2s) 14900
Homologations UL
Power loss (W) 14,9
Fuses dimension 22x65
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 10000
Time costant L/R (ms) 3
Series name PV22
Price List €12.33/pc
Quantity
V103 - Fuse 10x38 1000VDC gPV 6A

V103 - Fuse 10x38 1000VDC gPV 6A

Reference 595.846.83.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 6
Voltage of total I2t test 1000
Format Cylindrical
Dimension 10x38mm
Pre-arcing I2t value (A2s) 31
Total I2t value (A2s) 86,8
Power loss (W) 1,91
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name V103
Price List €0.46/pc
Quantity
lock Datasheet
24E1 - Fuse BS 17,2x42 aR 240V 100A

24E1 - Fuse BS 17,2x42 aR 240V 100A

Reference 468.548.44.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 100
Rated Voltage Un AC (V) 240
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 240
Weight (g) 29,5
Format BS
Dimension 17,2x42mm
Pre-arcing I2t value (A2s) 546
Total I2t value (A2s) 3950
Homologations IEC
Power loss (W) 15,5
Rated Voltage Un DC (V) 150
Series name 24E1
Price List €3.32/pc
Quantity
lock Datasheet
24E1 - Fuse BS 17,2x42 aR 240V 12A

24E1 - Fuse BS 17,2x42 aR 240V 12A

Reference 433.865.33.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 12
Rated Voltage Un AC (V) 240
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 240
Format BS
Pre-arcing I2t value (A2s) 6,4
Total I2t value (A2s) 24
Homologations IEC
Power loss (W) 2,5
Fuses dimension 17,2x42
Rated Voltage Un DC (V) 150
Series name 24E1
Product available on request Ask for more information
V103 - Fuse 10x38 1000VDC gPV 2A

V103 - Fuse 10x38 1000VDC gPV 2A

Reference 511.778.03.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 2
Voltage of total I2t test 1000
Format Cylindrical
Dimension 10x38mm
Pre-arcing I2t value (A2s) 1,25
Total I2t value (A2s) 3,2
Power loss (W) 1,16
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name V103
Price List €0.46/pc
Quantity
lock Datasheet
PV22 - Fuse 22x65mm 1500VDC gPV UL 60A

PV22 - Fuse 22x65mm 1500VDC gPV UL 60A

Reference 593.887.15.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 60
Voltage of total I2t test 1500
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 1220
Total I2t value (A2s) 7500
Homologations UL
Power loss (W) 12
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 10000
Time costant L/R (ms) 3
Series name PV22
Price List €200.20/pc
Quantity
A145 - Fuse 14x51 690VAC aR 32A

A145 - Fuse 14x51 690VAC aR 32A

Reference 591.013.43.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Cylindrical
Dimension 14x51mm
Pre-arcing I2t value (A2s) 70
Total I2t value (A2s) 650
Homologations IEC
Power loss (W) 10
Series name A145
Price List €2.72/pc
Quantity
24E1 - Fuse BS 17,2x42 aR 240V 16A

24E1 - Fuse BS 17,2x42 aR 240V 16A

Reference 494.447.15.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 16
Rated Voltage Un AC (V) 240
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 240
Format BS
Dimension 17,2x42mm
Pre-arcing I2t value (A2s) 22,5
Total I2t value (A2s) 78
Homologations IEC
Power loss (W) 2,9
Rated Voltage Un DC (V) 150
Series name 24E1
Product available on request Ask for more information
69E1 - Fuse BS 17,2x63,5 aR 690V 50A

69E1 - Fuse BS 17,2x63,5 aR 690V 50A

Reference 519.190.10.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 690
Weight (g) 40,5
Format BS
Dimension 17,2x63,5mm
Pre-arcing I2t value (A2s) 203
Total I2t value (A2s) 793
Homologations IEC
Power loss (W) 14
Rated Voltage Un DC (V) 500
Series name 69E1
Price List €5.02/pc
Quantity
lock Datasheet
69E1 - Fuse BS 17,2x63,5 aR 690V 40A

69E1 - Fuse BS 17,2x63,5 aR 690V 40A

Reference 607.017.53.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 40
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 690
Weight (g) 40,5
Format BS
Dimension 17,2x63,5mm
Pre-arcing I2t value (A2s) 90
Total I2t value (A2s) 340
Homologations IEC
Power loss (W) 12,4
Rated Voltage Un DC (V) 500
Series name 69E1
Price List €5.02/pc
Quantity
lock Datasheet
A145 - Fuse 14x51 690VAC aR 20A

A145 - Fuse 14x51 690VAC aR 20A

Reference 599.888.65.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 20
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Cylindrical
Dimension 14x51mm
Pre-arcing I2t value (A2s) 23
Total I2t value (A2s) 200
Homologations IEC
Power loss (W) 6,3
Series name A145
Price List €1.31/pc
Quantity
V108 - Fuse 10x85 1500VDC gPV UL 20A

V108 - Fuse 10x85 1500VDC gPV UL 20A

Reference 752.519.86.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 20
Voltage of total I2t test 1500
Weight (g) 12
Format Cylindrical
Dimension 10x85mm
Pre-arcing I2t value (A2s) 103,68
Total I2t value (A2s) 541
Power loss (W) 4,66
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 20000
Series name V108
Price List €4.34/pc
Quantity
PV22 - Fuse 22x65mm 1500VDC gPV UL 25A

PV22 - Fuse 22x65mm 1500VDC gPV UL 25A

Reference 568.895.42.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 25
Voltage of total I2t test 1500
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 130
Total I2t value (A2s) 1400
Homologations UL
Power loss (W) 6,5
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 10000
Time costant L/R (ms) 3
Series name PV22
Product available on request Ask for more information
24E1 - Fuse BS 17,2x42 aR 240V 20A

24E1 - Fuse BS 17,2x42 aR 240V 20A

Reference 805.424.77.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 20
Rated Voltage Un AC (V) 240
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 240
Weight (g) 29,5
Format BS
Dimension 17,2x42mm
Pre-arcing I2t value (A2s) 29
Total I2t value (A2s) 116
Homologations IEC
Power loss (W) 3,8
Rated Voltage Un DC (V) 150
Series name 24E1
Product available on request Ask for more information
24E1 - Fuse BS 17,2x42 aR 240V 80A

24E1 - Fuse BS 17,2x42 aR 240V 80A

Reference 774.862.12.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 80
Rated Voltage Un AC (V) 240
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 240
Weight (g) 29,5
Format BS
Dimension 17,2x42mm
Pre-arcing I2t value (A2s) 268
Total I2t value (A2s) 2255
Homologations IEC
Power loss (W) 12,5
Rated Voltage Un DC (V) 150
Series name 24E1
Price List €3.16/pc
Quantity
lock Datasheet
69E1 - Fuse BS 17,2x63,5 aR 690V 63A

69E1 - Fuse BS 17,2x63,5 aR 690V 63A

Reference 907.073.30.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 63
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 690
Weight (g) 40,5
Format BS
Dimension 17,2x63,5mm
Pre-arcing I2t value (A2s) 457
Total I2t value (A2s) 1937
Homologations IEC
Power loss (W) 15
Rated Voltage Un DC (V) 500
Series name 69E1
Price List €4.44/pc
Quantity
lock Datasheet
69E1 - Fuse BS 17,2x63,5 aR 690V 90A

69E1 - Fuse BS 17,2x63,5 aR 690V 90A

Reference 929.654.98.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 90
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 690
Weight (g) 40,5
Format BS
Dimension 17,2x63,5mm
Pre-arcing I2t value (A2s) 683
Total I2t value (A2s) 2863
Homologations IEC
Power loss (W) 25
Rated Voltage Un DC (V) 500
Series name 69E1
Price List €3.53/pc
Quantity
lock Datasheet
V108 - Fuse 10x85 1500VDC gPV UL 25A

V108 - Fuse 10x85 1500VDC gPV UL 25A

Reference 984.545.26.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 25
Voltage of total I2t test 1500
Weight (g) 12
Format Cylindrical
Dimension 10x85mm
Pre-arcing I2t value (A2s) 175.22
Total I2t value (A2s) 827
Power loss (W) 5.59
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 20000
Series name V108
Price List €2.37/pc
Quantity
V108 - Fuse 10x85 1500VDC gPV UL 15A

V108 - Fuse 10x85 1500VDC gPV UL 15A

Reference 803.035.83.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 15
Voltage of total I2t test 1500
Weight (g) 12
Format Cylindrical
Dimension 10x85mm
Pre-arcing I2t value (A2s) 37,32
Total I2t value (A2s) 314
Power loss (W) 3,71
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 20000
Series name V108
Price List €1.83/pc
Quantity
V108 - Fuse 10x85 1500VDC gPV UL 10A

V108 - Fuse 10x85 1500VDC gPV UL 10A

Reference 685.060.16.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 10
Voltage of total I2t test 1500
Weight (g) 12
Format Cylindrical
Dimension 10x85mm
Pre-arcing I2t value (A2s) 12,7
Total I2t value (A2s) 102
Power loss (W) 2,99
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 20000
Series name V108
Price List €1.70/pc
Quantity
A145 - Fuse 14x51 690VAC aR 16A

A145 - Fuse 14x51 690VAC aR 16A

Reference 659.899.80.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 16
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 5,4
Format Cylindrical
Dimension 14x51mm
Pre-arcing I2t value (A2s) 13
Total I2t value (A2s) 120
Homologations IEC
Power loss (W) 16
Series name A145
Price List €0.98/pc
Quantity
PV22 - Fuse 22x65mm 1500VDC gPV UL 30A

PV22 - Fuse 22x65mm 1500VDC gPV UL 30A

Reference 693.945.08.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 30
Voltage of total I2t test 1500
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 230
Total I2t value (A2s) 1800
Homologations UL
Power loss (W) 7
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 10000
Time costant L/R (ms) 3
Series name PV22
Product available on request Ask for more information
24E1 - Fuse BS 17,2x42 aR 240V 6A

24E1 - Fuse BS 17,2x42 aR 240V 6A

Reference 877.567.82.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 6
Rated Voltage Un AC (V) 240
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 240
Weight (g) 29,5
Format BS
Dimension 17,2x42mm
Pre-arcing I2t value (A2s) 2
Total I2t value (A2s) 9
Homologations IEC
Power loss (W) 1,9
Rated Voltage Un DC (V) 150
Series name 24E1
Product available on request Ask for more information
24E1 - Fuse BS 17,2x42 aR 240V 35A

24E1 - Fuse BS 17,2x42 aR 240V 35A

Reference 600.633.93.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 35
Rated Voltage Un AC (V) 240
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 240
Format BS
Dimension 17,2x42mm
Pre-arcing I2t value (A2s) 48,5
Total I2t value (A2s) 545
Homologations IEC
Power loss (W) 5,5
Rated Voltage Un DC (V) 150
Series name 24E1
Price List €2.48/pc
Quantity
PV22 - Fuse 22x65mm 1500VDC gPV UL 70A

PV22 - Fuse 22x65mm 1500VDC gPV UL 70A

Reference 904.864.77.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 70
Voltage of total I2t test 1500
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 2010
Total I2t value (A2s) 10500
Homologations UL
Power loss (W) 13
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 10000
Time costant L/R (ms) 3
Series name PV22
Price List €21.09/pc
Quantity
lock Datasheet
24E1 - Fuse BS 17,2x42 aR 240V 63A

24E1 - Fuse BS 17,2x42 aR 240V 63A

Reference 911.778.86.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 63
Rated Voltage Un AC (V) 240
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 240
Weight (g) 29,5
Format BS
Dimension 17,2x42mm
Pre-arcing I2t value (A2s) 145
Total I2t value (A2s) 1660
Homologations IEC
Power loss (W) 10,7
Rated Voltage Un DC (V) 150
Series name 24E1
Price List €2.61/pc
Quantity
lock Datasheet
V103 - Fuse 10x38 1000VDC gPV 20A

V103 - Fuse 10x38 1000VDC gPV 20A

Reference 442.488.31.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 20
Voltage of total I2t test 1000
Format Cylindrical
Dimension 10x38mm
Pre-arcing I2t value (A2s) 35,5
Total I2t value (A2s) 330
Power loss (W) 2,79
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name V103
Price List €0.56/pc
Quantity
lock Datasheet
A145 - Fuse 14x51 690VAC aR 12A

A145 - Fuse 14x51 690VAC aR 12A

Reference 658.591.15.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 12
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Cylindrical
Dimension 14x51mm
Pre-arcing I2t value (A2s) 9
Total I2t value (A2s) 78
Homologations IEC
Power loss (W) 3,6
Series name A145
Price List €0.98/pc
Quantity
V103 - Fuse 10x38 1000VDC gPV 12A

V103 - Fuse 10x38 1000VDC gPV 12A

Reference 799.317.97.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 12
Voltage of total I2t test 1000
Format Cylindrical
Dimension 10x38mm
Pre-arcing I2t value (A2s) 12,5
Total I2t value (A2s) 113
Power loss (W) 2,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name V103
Price List €0.51/pc
Quantity
lock Datasheet
X800 - Fuse 22x65mm 800VAC gG 6A

X800 - Fuse 22x65mm 800VAC gG 6A

Reference 291.515.94.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 6
Rated Voltage Un AC (V) 800
Rated break.capacity I1 AC (A) 80000
Voltage of total I2t test 800
Weight (g) 0
Format Cylindrical
Pre-arcing I2t value (A2s) 120
Total I2t value (A2s) 2040
Homologations IEC
Power loss (W) 1,5
Fuses dimension 22x65
Series name X800
Price List €16.99/pc
Quantity
lock Datasheet
B200 - Fuse 2x38x73mm 1000VDC BS aBat 600A

B200 - Fuse 2x38x73mm 1000VDC BS aBat 600A

Reference 214.295.79.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 600
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 150000
Total I2t value (A2s) 570000
Homologations IEC
Power loss (W) 85,5
Fuses dimension 38x73
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name B200
Price List €68.61/pc
Quantity
B200 - Fuse 38x73mm 1000VDC BS aBat 200A

B200 - Fuse 38x73mm 1000VDC BS aBat 200A

Reference 203.757.17.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 200
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 11400
Total I2t value (A2s) 43500
Homologations IEC
Power loss (W) 32
Fuses dimension 38x73
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name B200
Product available on request Ask for more information
B200 - Fuse 38x73mm 1000VDC BS aBat 100A

B200 - Fuse 38x73mm 1000VDC BS aBat 100A

Reference 343.173.19.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 100
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 2050
Total I2t value (A2s) 7800
Homologations IEC
Power loss (W) 17
Fuses dimension 38x73
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name B200
Product available on request Ask for more information
B200 - Fuse 38x73mm 1000VDC BS aBat 250A

B200 - Fuse 38x73mm 1000VDC BS aBat 250A

Reference 624.140.70.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 250
Voltage of total I2t test 1000
Format Screw fixing
Dimension 38x73mm
Pre-arcing I2t value (A2s) 21000
Total I2t value (A2s) 79800
Homologations IEC
Power loss (W) 39
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name B200
Price List €59.99/pc
Quantity
X800 - Fuse 22x65mm 800VAC gG 10A

X800 - Fuse 22x65mm 800VAC gG 10A

Reference 658.578.76.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 10
Rated Voltage Un AC (V) 800
Rated break.capacity I1 AC (A) 80000
Voltage of total I2t test 800
Weight (g) 0
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 140
Total I2t value (A2s) 1680
Homologations IEC
Power loss (W) 1,4
Series name X800
Price List €31.48/pc
Quantity
lock Datasheet
X800 - Fuse 22x65mm 800VAC gG 8A

X800 - Fuse 22x65mm 800VAC gG 8A

Reference 941.257.57.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 8
Rated Voltage Un AC (V) 800
Rated break.capacity I1 AC (A) 80000
Voltage of total I2t test 800
Weight (g) 0
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 241
Total I2t value (A2s) 4100
Homologations IEC
Power loss (W) 1,9
Series name X800
Price List €14.85/pc
Quantity
lock Datasheet
B200 - Fuse 38x73mm 1000VDC BS aBat 160A

B200 - Fuse 38x73mm 1000VDC BS aBat 160A

Reference 363.540.92.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 160
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 6800
Total I2t value (A2s) 26000
Homologations IEC
Power loss (W) 26
Fuses dimension 38x73
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name B200
Price List €40.63/pc
Quantity
X800 - Fuse 22x65mm 800VAC gG 40A

X800 - Fuse 22x65mm 800VAC gG 40A

Reference 354.281.83.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 40
Rated Voltage Un AC (V) 800
Rated break.capacity I1 AC (A) 80000
Voltage of total I2t test 800
Weight (g) 0
Format Cylindrical
Pre-arcing I2t value (A2s) 1460
Total I2t value (A2s) 9800
Homologations IEC
Power loss (W) 4
Fuses dimension 22x65
Series name X800
Price List €37.81/pc
Quantity
lock Datasheet
B200 - Fuse 38x73mm 1000VDC BS aBat 300A

B200 - Fuse 38x73mm 1000VDC BS aBat 300A

Reference 534.886.60.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 300
Voltage of total I2t test 1000
Format Screw fixing
Dimension 38x73mm
Pre-arcing I2t value (A2s) 37500
Total I2t value (A2s) 145000
Homologations IEC
Power loss (W) 43
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name B200
Price List €34.24/pc
Quantity
B200 - Fuse 38x73mm 1000VDC BS aBat 63A

B200 - Fuse 38x73mm 1000VDC BS aBat 63A

Reference 250.111.16.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 63
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 750
Total I2t value (A2s) 2850
Homologations IEC
Power loss (W) 11
Fuses dimension 38x73
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name B200
Product available on request Ask for more information
X800 - Fuse 22x65mm 800VAC gG 4A

X800 - Fuse 22x65mm 800VAC gG 4A

Reference 413.870.21.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 4
Rated Voltage Un AC (V) 800
Rated break.capacity I1 AC (A) 80000
Voltage of total I2t test 800
Weight (g) 0
Format Cylindrical
Pre-arcing I2t value (A2s) 31
Total I2t value (A2s) 560
Homologations IEC
Power loss (W) 1,3
Fuses dimension 22x65
Series name X800
Price List €16.99/pc
Quantity
lock Datasheet
B200 - Fuse 2x38x73mm 1000VDC BS aBat 500A

B200 - Fuse 2x38x73mm 1000VDC BS aBat 500A

Reference 519.586.15.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 500
Voltage of total I2t test 1000
Format Screw fixing
Dimension 38x73mm
Pre-arcing I2t value (A2s) 84000
Total I2t value (A2s) 319000
Homologations IEC
Power loss (W) 78
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name B200
Product available on request Ask for more information
X800 - Fuse 22x65mm 800VAC gG 50A

X800 - Fuse 22x65mm 800VAC gG 50A

Reference 778.571.19.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 50
Rated Voltage Un AC (V) 800
Rated break.capacity I1 AC (A) 80000
Voltage of total I2t test 800
Weight (g) 0
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 2600
Total I2t value (A2s) 21650
Homologations IEC
Power loss (W) 5,2
Series name X800
Price List €32.97/pc
Quantity
lock Datasheet
X800 - Fuse 22x65mm 800VAC gG 2A

X800 - Fuse 22x65mm 800VAC gG 2A

Reference 977.978.94.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 2
Rated Voltage Un AC (V) 800
Rated break.capacity I1 AC (A) 80000
Voltage of total I2t test 800
Weight (g) 0
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 2,5
Total I2t value (A2s) 45
Homologations IEC
Power loss (W) 1,1
Series name X800
Price List €14.85/pc
Quantity
lock Datasheet
X800 - Fuse 22x65mm 800VAC gG 32A

X800 - Fuse 22x65mm 800VAC gG 32A

Reference 525.272.76.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 32
Rated Voltage Un AC (V) 800
Rated break.capacity I1 AC (A) 80000
Voltage of total I2t test 800
Weight (g) 0
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 650
Total I2t value (A2s) 4950
Homologations IEC
Power loss (W) 3,9
Series name X800
Price List €27.62/pc
Quantity
lock Datasheet
X800 - Fuse 22x65mm 800VAC gG 63A

X800 - Fuse 22x65mm 800VAC gG 63A

Reference 771.575.29.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 63
Rated Voltage Un AC (V) 800
Rated break.capacity I1 AC (A) 80000
Voltage of total I2t test 800
Weight (g) 0
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 4050
Total I2t value (A2s) 34300
Homologations IEC
Power loss (W) 6,5
Series name X800
Price List €38.02/pc
Quantity
lock Datasheet
B200 - Fuse 38x73mm 1000VDC BS aBat 125A

B200 - Fuse 38x73mm 1000VDC BS aBat 125A

Reference 698.861.52.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 125
Voltage of total I2t test 1000
Format Screw fixing
Dimension 38x73mm
Pre-arcing I2t value (A2s) 3400
Total I2t value (A2s) 13000
Homologations IEC
Power loss (W) 21
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name B200
Product available on request Ask for more information
X800 - Fuse 22x65mm 800VAC gG 25A

X800 - Fuse 22x65mm 800VAC gG 25A

Reference 950.132.78.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 25
Rated Voltage Un AC (V) 800
Rated break.capacity I1 AC (A) 80000
Voltage of total I2t test 800
Weight (g) 0
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 1150
Total I2t value (A2s) 19750
Homologations IEC
Power loss (W) 3,7
Series name X800
Price List €32.97/pc
Quantity
lock Datasheet
X800 - Fuse 22x65mm 800VAC gG 16A

X800 - Fuse 22x65mm 800VAC gG 16A

Reference 920.752.40.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 16
Rated Voltage Un AC (V) 800
Rated break.capacity I1 AC (A) 80000
Voltage of total I2t test 800
Weight (g) 0
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 380
Total I2t value (A2s) 4180
Homologations IEC
Power loss (W) 2,2
Series name X800
Price List €35.64/pc
Quantity
lock Datasheet
B200 - Fuse 38x73mm 1000VDC BS aBat 80A

B200 - Fuse 38x73mm 1000VDC BS aBat 80A

Reference 780.431.03.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 80
Voltage of total I2t test 1000
Format Screw fixing
Dimension 38x73mm
Pre-arcing I2t value (A2s) 1300
Total I2t value (A2s) 5000
Homologations IEC
Power loss (W) 14
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name B200
Product available on request Ask for more information
AR22 - EV Charger Fuse 1000VDC 80A

AR22 - EV Charger Fuse 1000VDC 80A

Reference 408.534.01.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 80
Weight (g) 60
Format Cylindrical
Pre-arcing I2t value (A2s) 2950
Total I2t value (A2s) 15400
Homologations IEC
Power loss (W) 14,5
Fuses dimension 22x65
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Series name AR22
Price List €27.62/pc
Quantity
X800 - Fuse 22x65mm 800VAC gG 20A

X800 - Fuse 22x65mm 800VAC gG 20A

Reference 349.165.25.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 20
Rated Voltage Un AC (V) 800
Rated break.capacity I1 AC (A) 80000
Voltage of total I2t test 800
Weight (g) 0
Format Cylindrical
Pre-arcing I2t value (A2s) 650
Total I2t value (A2s) 11760
Homologations IEC
Power loss (W) 3
Fuses dimension 22x65
Series name X800
Price List €35.64/pc
Quantity
lock Datasheet
B100 - Fuse 1000VDC aBat 800A - 152,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 800A - 152,7mm - Tin Plated

Reference 161.186.65.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 800
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 185000
Total I2t value (A2s) 550000
Power loss (W) 150
Fuses dimension 63,5x130,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 8000
Product available on request Ask for more information
B200 - Fuse 38x73mm 1000VDC Axial aBat 80A

B200 - Fuse 38x73mm 1000VDC Axial aBat 80A

Reference 190.739.88.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 80
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 1300
Total I2t value (A2s) 5000
Homologations IEC
Power loss (W) 14
Fuses dimension 38x73
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name B200
Product available on request Ask for more information
B200 - Fuse 38x73mm 1000VDC aBat Axial 200A

B200 - Fuse 38x73mm 1000VDC aBat Axial 200A

Reference 289.725.19.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 200
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 11400
Total I2t value (A2s) 43500
Homologations IEC
Power loss (W) 32
Fuses dimension 38x73
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name B200
Product available on request Ask for more information
B200 - Fuse 38x73mm 1000VDC Axial aBat 160A

B200 - Fuse 38x73mm 1000VDC Axial aBat 160A

Reference 322.658.05.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 160
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 6800
Total I2t value (A2s) 26000
Homologations IEC
Power loss (W) 26
Fuses dimension 38x73
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name B200
Product available on request Ask for more information
B200 - Fuse 38x73mm 1000VDC Axial aBat 100A

B200 - Fuse 38x73mm 1000VDC Axial aBat 100A

Reference 358.375.52.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 100
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 2050
Total I2t value (A2s) 7800
Homologations IEC
Power loss (W) 17
Fuses dimension 38x73
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name B200
Product available on request Ask for more information
B200 - Fuse 38x73mm 1000VDC Axial aBat 63A

B200 - Fuse 38x73mm 1000VDC Axial aBat 63A

Reference 545.739.52.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 63
Voltage of total I2t test 1000
Format Screw fixing
Dimension 38x73mm
Pre-arcing I2t value (A2s) 750
Total I2t value (A2s) 2850
Homologations IEC
Power loss (W) 11
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name B200
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 900A - 152,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 900A - 152,7mm - Tin Plated

Reference 919.035.31.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 900
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x203,2mm
Pre-arcing I2t value (A2s) 267000
Total I2t value (A2s) 813000
Power loss (W) 170
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Min breaking current (A) 9000
Series name B100
Product available on request Ask for more information
B200 - Fuse 38x73mm 1000VDC aBat Axial 300A

B200 - Fuse 38x73mm 1000VDC aBat Axial 300A

Reference 305.921.98.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 300
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 37500
Total I2t value (A2s) 145000
Homologations IEC
Power loss (W) 43
Fuses dimension 38x73
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name B200
Product available on request Ask for more information
B200 - Fuse 38x73mm 1000VDC Axial aBat 250A

B200 - Fuse 38x73mm 1000VDC Axial aBat 250A

Reference 656.906.03.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 250
Voltage of total I2t test 1000
Format Screw fixing
Dimension 38x73mm
Pre-arcing I2t value (A2s) 21000
Total I2t value (A2s) 79800
Homologations IEC
Power loss (W) 39
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name B200
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 1100A - 132,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 1100A - 132,7mm - Tin Plated

Reference 337.617.32.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1100
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 508000
Total I2t value (A2s) 1620000
Power loss (W) 180
Fuses dimension 63,5x167
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 11000
Price List €296.41/pc
Quantity
B100 - Fuse 1000VDC aBat 1000A - 152,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 1000A - 152,7mm - Tin Plated

Reference 374.723.64.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1000
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 373500
Total I2t value (A2s) 1095000
Power loss (W) 175
Fuses dimension 63,5x130,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 10000
Price List €221.86/pc
Quantity
B100 - Fuse 1000VDC aBat 600A - 152,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 600A - 152,7mm - Tin Plated

Reference 855.334.24.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 600
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x203,2mm
Pre-arcing I2t value (A2s) 93300
Total I2t value (A2s) 281000
Power loss (W) 115
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 6000
Price List €175.82/pc
Quantity
B100 - Fuse 1000VDC aBat 900A - 132,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 900A - 132,7mm - Tin Plated

Reference 236.250.74.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 900
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 267000
Total I2t value (A2s) 813000
Power loss (W) 170
Fuses dimension 63,5x167
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 9000
Price List €216.51/pc
Quantity
B200 - Fuse 38x73mm 1000VDC Axial aBat 125A

B200 - Fuse 38x73mm 1000VDC Axial aBat 125A

Reference 601.893.44.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 125
Voltage of total I2t test 1000
Format Screw fixing
Dimension 38x73mm
Pre-arcing I2t value (A2s) 3400
Total I2t value (A2s) 13000
Homologations IEC
Power loss (W) 21
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name B200
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 600A - 132,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 600A - 132,7mm - Tin Plated

Reference 998.060.37.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 600
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x167mm
Pre-arcing I2t value (A2s) 93300
Total I2t value (A2s) 281000
Power loss (W) 115
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Min breaking current (A) 6000
Series name B100
Price List €191.56/pc
Quantity
lock Datasheet
B100 - Fuse 1000VDC aBat 1100A - 152,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 1100A - 152,7mm - Tin Plated

Reference 939.403.04.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1100
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x203,2mm
Pre-arcing I2t value (A2s) 508000
Total I2t value (A2s) 1620000
Power loss (W) 180
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Min breaking current (A) 11000
Series name B100
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 1000A - 132,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 1000A - 132,7mm - Tin Plated

Reference 459.971.59.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1000
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x167mm
Pre-arcing I2t value (A2s) 373500
Total I2t value (A2s) 1095000
Power loss (W) 175
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 10000
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 800A - 132,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 800A - 132,7mm - Tin Plated

Reference 788.866.95.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 800
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x167mm
Pre-arcing I2t value (A2s) 185000
Total I2t value (A2s) 185000
Power loss (W) 150
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 8000
Price List €218.59/pc
Quantity
VP22 - Fuse 22x65mm 1500VDC gPV IEC 35A

VP22 - Fuse 22x65mm 1500VDC gPV IEC 35A

Reference 794.621.04.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 35
Voltage of total I2t test 1500
Weight (g) 60
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 270
Total I2t value (A2s) 2300
Homologations IEC
Power loss (W) 6,5
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 10000
Time costant L/R (ms) 3
Series name VP22
Price List €18.41/pc
Quantity
B025 - Fuse 1000VDC aBat 200A - 100,3mm - Tin Plated

B025 - Fuse 1000VDC aBat 200A - 100,3mm - Tin Plated

Reference 116.278.54.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 200
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 10400
Total I2t value (A2s) 23000
Power loss (W) 30
Fuses dimension 38,10x72,20
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B025
Min breaking current (A) 1600
Price List €78.11/pc
Quantity
B025 - Fuse 1000VDC aBat 63A - 100,3mm - Tin Plated

B025 - Fuse 1000VDC aBat 63A - 100,3mm - Tin Plated

Reference 121.227.80.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 63
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 740
Total I2t value (A2s) 1700
Power loss (W) 10
Fuses dimension 38,10x72,20
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B025
Min breaking current (A) 504
Price List €50.49/pc
Quantity
B025 - Fuse 1000VDC aBat 80A - 100,3mm - Tin Plated

B025 - Fuse 1000VDC aBat 80A - 100,3mm - Tin Plated

Reference 173.505.07.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 80
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 1300
Total I2t value (A2s) 2900
Power loss (W) 12,5
Fuses dimension 38,10x72,20
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B025
Min breaking current (A) 640
Product available on request Ask for more information
B025 - Fuse 1000VDC aBat 250A - 100,3mm - Tin Plated

B025 - Fuse 1000VDC aBat 250A - 100,3mm - Tin Plated

Reference 173.672.39.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 250
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 15500
Total I2t value (A2s) 34000
Power loss (W) 39
Fuses dimension 38,10x72,20
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B025
Min breaking current (A) 2000
Price List €80.78/pc
Quantity
E103 - Fuse 10x38 1000VDC aBAT 20A

E103 - Fuse 10x38 1000VDC aBAT 20A

Reference 180.809.48.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 20
Format Cylindrical
Homologations IEC
Power loss (W) 2,6
Fuses dimension 10x38
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name E103
Product available on request Ask for more information
SH10 - Stud fuse holder 1000VAC/DC 800A UNC

SH10 - Stud fuse holder 1000VAC/DC 800A UNC

Reference 149.421.47.0.0 - Manufacturer FAULTRAP
Rated current In (A) 800
Rated Voltage Un AC (V) 1000
Weight (g) 80
Homologations IEC
Rated Voltage Un DC (V) 1000
Series name SH10
Price List €2.12/pc
Quantity
B050 - Fuse 1000VDC aBat 350A - 97,6mm - Tin Plated

B050 - Fuse 1000VDC aBat 350A - 97,6mm - Tin Plated

Reference 189.186.07.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 350
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 33600
Total I2t value (A2s) 88000
Power loss (W) 48
Fuses dimension 50,8x72,2
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 3500
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 450A - 97,6mm - Tin Plated

B050 - Fuse 1000VDC aBat 450A - 97,6mm - Tin Plated

Reference 265.639.01.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 450
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 62000
Total I2t value (A2s) 162000
Power loss (W) 60
Fuses dimension 50,8x72,2
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 4500
Price List €136.92/pc
Quantity
lock Datasheet
E103 - Fuse 10x38 1000VDC aBAT 8A

E103 - Fuse 10x38 1000VDC aBAT 8A

Reference 279.440.74.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 8
Format Cylindrical
Homologations IEC
Power loss (W) 2,1
Fuses dimension 10x38
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name E103
Product available on request Ask for more information
E103 - Fuse 10x38 1000VDC aBAT 25A

E103 - Fuse 10x38 1000VDC aBAT 25A

Reference 308.969.02.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 25
Format Cylindrical
Homologations IEC
Power loss (W) 3,5
Fuses dimension 10x38
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name E103
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 400A - 97,6mm - Tin Plated

B050 - Fuse 1000VDC aBat 400A - 97,6mm - Tin Plated

Reference 376.618.78.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 400
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 44300
Total I2t value (A2s) 115500
Power loss (W) 55
Fuses dimension 50,8x72,2
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 4000
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 300A - 97,6mm - Tin Plated

B050 - Fuse 1000VDC aBat 300A - 97,6mm - Tin Plated

Reference 387.422.61.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 300
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 22300
Total I2t value (A2s) 58000
Power loss (W) 42
Fuses dimension 50,8x72,2
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 3000
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 250A - 97,6mm - Tin Plated

B050 - Fuse 1000VDC aBat 250A - 97,6mm - Tin Plated

Reference 405.911.03.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 250
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 15000
Total I2t value (A2s) 40000
Power loss (W) 36
Fuses dimension 50,8x72,2
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 2500
Product available on request Ask for more information
E103 - Fuse 10x38 1000VDC aBAT 15A

E103 - Fuse 10x38 1000VDC aBAT 15A

Reference 452.763.64.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 15
Format Cylindrical
Dimension 10x38mm
Homologations IEC
Power loss (W) 3,4
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name E103
Product available on request Ask for more information
B025 - Fuse 1000VDC aBat 100A - 100,3mm - Tin Plated

B025 - Fuse 1000VDC aBat 100A - 100,3mm - Tin Plated

Reference 453.311.13.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 100
Voltage of total I2t test 1000
Format Screw fixing
Dimension 38,10x72,20mm
Pre-arcing I2t value (A2s) 2100
Total I2t value (A2s) 4700
Power loss (W) 15,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B025
Min breaking current (A) 800
Product available on request Ask for more information
ZRDU - Fuse holder 10x85 1250VAC/1500VDC IEC 1500VDC UL 1P

ZRDU - Fuse holder 10x85 1250VAC/1500VDC IEC 1500VDC UL 1P

Reference 463.991.81.0.0 - Manufacturer FAULTRAP
Rated current In (A) 32
Rated Voltage Un AC (V) 1250
Weight (g) 102
Fuses format Cylindrical
Fuses dimension 10/14x85mm 10x85mm
Rated Voltage Un DC (V) 1500
Number of phase 1
Max power dissipation (W) 8,5
Series name ZRDU
Price List €13.33/pc
Quantity
lock Datasheet
E103 - Fuse 10x38 1000VDC aBAT 6A

E103 - Fuse 10x38 1000VDC aBAT 6A

Reference 466.184.77.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 6
Format Cylindrical
Dimension 10x38mm
Homologations IEC
Power loss (W) 1,9
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name E103
Product available on request Ask for more information
ZRDU - Fuse holder 10x85 1500VDC IEC/UL 3P

ZRDU - Fuse holder 10x85 1500VDC IEC/UL 3P

Reference 474.281.28.0.0 - Manufacturer FAULTRAP
Rated current In (A) 32
Rated Voltage Un AC (V) 1000
Weight (g) 308
Fuses format Cylindrical
Fuses dimension 10/14x85mm 10x85mm
Rated Voltage Un DC (V) 1500
Number of phase 3
Max power dissipation (W) 8,5
Series name ZRDU
Price List €12.19/pc
Quantity
lock Datasheet
E103 - Fuse 10x38 1000VDC aBAT 30A

E103 - Fuse 10x38 1000VDC aBAT 30A

Reference 487.979.16.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 30
Format Cylindrical
Dimension 10x38mm
Homologations IEC
Power loss (W) 4,1
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name E103
Product available on request Ask for more information
B025 - Fuse 1000VDC aBat 125A - 100,3mm - Tin Plated

B025 - Fuse 1000VDC aBat 125A - 100,3mm - Tin Plated

Reference 499.212.47.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 125
Voltage of total I2t test 1000
Format Screw fixing
Dimension 38,10x72,20mm
Pre-arcing I2t value (A2s) 3500
Total I2t value (A2s) 8000
Power loss (W) 19
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B025
Min breaking current (A) 1000
Price List €39.00/pc
Quantity
PV22 - Fuse 22x65mm 1500VDC gPV UL 75A

PV22 - Fuse 22x65mm 1500VDC gPV UL 75A

Reference 554.542.31.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 75
Voltage of total I2t test 1500
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 2480
Total I2t value (A2s) 12500
Homologations UL
Power loss (W) 13,5
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 10000
Time costant L/R (ms) 3
Series name PV22
Price List €21.98/pc
Quantity
lock Datasheet
V103 - Fuse 10x38 1000VDC gPV 32A

V103 - Fuse 10x38 1000VDC gPV 32A

Reference 606.329.11.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 32
Voltage of total I2t test 1000
Format Cylindrical
Dimension 10x38mm
Pre-arcing I2t value (A2s) 208
Total I2t value (A2s) 2460
Power loss (W) 3,8
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name V103
Price List €1.70/pc
Quantity
lock Datasheet
69E1 - Fuse BS 17,2x63,5 aR 690V 110A

69E1 - Fuse BS 17,2x63,5 aR 690V 110A

Reference 616.958.39.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 110
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 690
Format BS
Dimension 17,2x63,5mm
Pre-arcing I2t value (A2s) 1106
Total I2t value (A2s) 4506
Homologations IEC
Power loss (W) 30
Rated Voltage Un DC (V) 500
Series name 69E1
Price List €5.02/pc
Quantity
lock Datasheet
E103 - Fuse 10x38 1000VDC aBAT 12A

E103 - Fuse 10x38 1000VDC aBAT 12A

Reference 619.828.62.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 12
Format Cylindrical
Dimension 10x38mm
Homologations IEC
Power loss (W) 2,7
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name E103
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 500A - 97,6mm - Tin Plated

B050 - Fuse 1000VDC aBat 500A - 97,6mm - Tin Plated

Reference 625.302.58.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 500
Voltage of total I2t test 1000
Format Screw fixing
Dimension 50,8x72,2mm
Pre-arcing I2t value (A2s) 78500
Total I2t value (A2s) 204000
Power loss (W) 66
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 5000
Product available on request Ask for more information
E103 - Fuse 10x38 700VDC aBAT 50A

E103 - Fuse 10x38 700VDC aBAT 50A

Reference 638.553.07.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 50
Format Cylindrical
Dimension 10x38mm
Homologations IEC
Power loss (W) 6,4
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 20000
Series name E103
Price List €3.92/pc
Quantity
B025 - Fuse 1000VDC aBat 160A - 100,3mm - Tin Plated

B025 - Fuse 1000VDC aBat 160A - 100,3mm - Tin Plated

Reference 810.190.09.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 160
Voltage of total I2t test 1000
Format Screw fixing
Dimension 38,10x72,20mm
Pre-arcing I2t value (A2s) 5400
Total I2t value (A2s) 12000
Power loss (W) 25,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B025
Min breaking current (A) 1280
Price List €82.15/pc
Quantity
69E1 - Fuse BS 17,2x63,5 aR 690V 75A

69E1 - Fuse BS 17,2x63,5 aR 690V 75A

Reference 841.422.80.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 75
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 690
Format BS
Dimension 17,2x63,5mm
Pre-arcing I2t value (A2s) 565
Total I2t value (A2s) 2245
Homologations IEC
Power loss (W) 19,5
Rated Voltage Un DC (V) 500
Series name 69E1
Price List €4.97/pc
Quantity
V103 - Fuse 10x38 1000VDC gPV 30A

V103 - Fuse 10x38 1000VDC gPV 30A

Reference 843.944.51.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 30
Voltage of total I2t test 1000
Format Cylindrical
Dimension 10x38mm
Pre-arcing I2t value (A2s) 172
Total I2t value (A2s) 1750
Power loss (W) 3,45
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name V103
Price List €1.62/pc
Quantity
lock Datasheet
B050 - Fuse 1000VDC aBat 600A - 97,6mm - Tin Plated

B050 - Fuse 1000VDC aBat 600A - 97,6mm - Tin Plated

Reference 865.632.53.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 600
Voltage of total I2t test 1000
Format Screw fixing
Dimension 50,8x72,2mm
Pre-arcing I2t value (A2s) 134000
Total I2t value (A2s) 350000
Power loss (W) 79
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 6000
Price List €146.42/pc
Quantity
lock Datasheet
E103 - Fuse 10x38 1000VDC aBAT 10A

E103 - Fuse 10x38 1000VDC aBAT 10A

Reference 869.033.78.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 10
Format Cylindrical
Dimension 10x38mm
Homologations IEC
Power loss (W) 2,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name E103
Product available on request Ask for more information
B025 - Fuse 1000VDC aBat 300A - 100,3mm - Tin Plated

B025 - Fuse 1000VDC aBat 300A - 100,3mm - Tin Plated

Reference 942.895.54.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 300
Voltage of total I2t test 1000
Format Screw fixing
Dimension 38,10x72,20mm
Pre-arcing I2t value (A2s) 23300
Total I2t value (A2s) 51000
Power loss (W) 47
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Min breaking current (A) 2400
Series name B025
Price List €81.08/pc
Quantity
E103 - Fuse 10x38 700VDC aBAT 40A

E103 - Fuse 10x38 700VDC aBAT 40A

Reference 971.827.03.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 40
Format Cylindrical
Dimension 10x38mm
Homologations IEC
Power loss (W) 4.6
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 20000
Series name E103
Price List €4.60/pc
Quantity
E103 - Fuse 10x38 700VDC aBAT 35A

E103 - Fuse 10x38 700VDC aBAT 35A

Reference 977.799.61.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 35
Format Cylindrical
Dimension 10x38mm
Homologations IEC
Power loss (W) 4.4
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 20000
Series name E103
Product available on request Ask for more information
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 200A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 200A

Reference 149.583.52.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 200
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 5370
Total I2t value (A2s) 19600
Homologations IEC
Power loss (W) 48,5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2A
Price List €58.21/pc
Quantity
C200 - Fuse 690VAC aR M10 800A

C200 - Fuse 690VAC aR M10 800A

Reference 204.841.59.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 800
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 660
Format Screw fixing
Dimension SQB2
Pre-arcing I2t value (A2s) 115200
Total I2t value (A2s) 553000
Homologations IEC
Power loss (W) 92
Series name C200
Product available on request Ask for more information
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 315A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 315A

Reference 301.249.46.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 315
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 16450
Total I2t value (A2s) 60000
Homologations IEC
Power loss (W) 70
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2A
Price List €61.78/pc
Quantity
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 250A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 250A

Reference 306.749.97.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 250
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 10150
Total I2t value (A2s) 37100
Homologations IEC
Power loss (W) 57
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2A
Price List €58.81/pc
Quantity
SP22 - Fuse 500VAC 80mm SPD protection 22x58 25kA 10/350us

SP22 - Fuse 500VAC 80mm SPD protection 22x58 25kA 10/350us

Reference 310.865.56.0.0 - Manufacturer FAULTRAP
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 550
Format Screw fixing
Pre-arcing I2t value (A2s) 197000
Total I2t value (A2s) 430000
Homologations IEC
Fuses dimension 22x58
Series name SP22
Price List €16.93/pc
Quantity
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 25A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 25A

Reference 324.047.75.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 25
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 55
Total I2t value (A2s) 200
Homologations IEC
Power loss (W) 4,6
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2A
Product available on request Ask for more information
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 80A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 80A

Reference 331.496.30.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 80
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 750
Total I2t value (A2s) 2800
Homologations IEC
Power loss (W) 17
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2A
Price List €44.91/pc
Quantity
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 40A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 40A

Reference 373.304.38.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 40
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 230
Total I2t value (A2s) 840
Homologations IEC
Power loss (W) 7,2
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2A
Product available on request Ask for more information
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 63A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 63A

Reference 385.249.54.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 63
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 520
Total I2t value (A2s) 1900
Homologations IEC
Power loss (W) 9,5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2A
Price List €43.56/pc
Quantity
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 160A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 160A

Reference 436.100.15.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 160
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 3020
Total I2t value (A2s) 11100
Homologations IEC
Power loss (W) 37,5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Price List €14.26/pc
Quantity
C200 - Fuse 690VAC aR M10 900A

C200 - Fuse 690VAC aR M10 900A

Reference 489.764.23.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 900
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 660
Format Screw fixing
Dimension SQB2 screw M10
Pre-arcing I2t value (A2s) 170000
Total I2t value (A2s) 935000
Homologations IEC
Power loss (W) 100
Series name C200
Product available on request Ask for more information
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 100A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 100A

Reference 563.521.70.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 100
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 1340
Total I2t value (A2s) 5000
Homologations IEC
Power loss (W) 19
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Price List €12.02/pc
Quantity
lock Datasheet
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 125A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 125A

Reference 640.594.60.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 125
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 2100
Total I2t value (A2s) 7700
Homologations IEC
Power loss (W) 27.5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Price List €12.49/pc
Quantity
lock Datasheet
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 50A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 50A

Reference 845.374.39.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 330
Total I2t value (A2s) 1200
Homologations IEC
Power loss (W) 9
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Price List €11.24/pc
Quantity
lock Datasheet
C200 - Fuse 690VAC aR M10 700A

C200 - Fuse 690VAC aR M10 700A

Reference 881.120.73.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 700
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 660
Format Screw fixing
Dimension SQB2 screw M10
Pre-arcing I2t value (A2s) 74000
Total I2t value (A2s) 407000
Homologations IEC
Power loss (W) 86
Series name C200
Product available on request Ask for more information
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 32A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 32A

Reference 981.100.50.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 80
Total I2t value (A2s) 300
Homologations IEC
Power loss (W) 7
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Product available on request Ask for more information
C200 - Fuse 660VAC aR M10 1000A

C200 - Fuse 660VAC aR M10 1000A

Reference 983.677.94.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 1000
Rated Voltage Un AC (V) 660
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 726
Format Screw fixing
Dimension SQB2 screw M10
Pre-arcing I2t value (A2s) 226000
Total I2t value (A2s) 1250000
Homologations IEC
Power loss (W) 110
Series name C200
Product available on request Ask for more information
ZPYT - Fuse holder 22x65 1250VAC/1500VDC 2P

ZPYT - Fuse holder 22x65 1250VAC/1500VDC 2P

Reference 656.687.70.0.0 - Manufacturer FAULTRAP
Rated current In (A) 100
Rated Voltage Un AC (V) 1250
Weight (g) 373
Homologations IEC
Fuses format Cylindrical
Fuses dimension 22x65mm
Rated Voltage Un DC (V) 1500
Number of phase 2
Max power dissipation (W) 12
Series name ZPYT
Price List €18.77/pc
Quantity
UR22 - Fuse 690V AC 22x58 fixing 80mm 40A

UR22 - Fuse 690V AC 22x58 fixing 80mm 40A

Reference 100.913.34.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 40
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Screw fixing
Pre-arcing I2t value (A2s) 148
Total I2t value (A2s) 640
Homologations IEC
Power loss (W) 9,6
Fuses dimension 22x58
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 500V AC 22x58 fixing on pcb 135A

UR22 - Fuse 500V AC 22x58 fixing on pcb 135A

Reference 114.304.22.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 135
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 500
Format Cylindrical
Pre-arcing I2t value (A2s) 3640
Total I2t value (A2s) 17800
Homologations IEC
Power loss (W) 28,6
Fuses dimension 22x58
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 fixing 80mm 50A

UR22 - Fuse 690V AC 22x58 fixing 80mm 50A

Reference 123.063.29.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Screw fixing
Pre-arcing I2t value (A2s) 195
Total I2t value (A2s) 955
Homologations IEC
Power loss (W) 13,3
Fuses dimension 22x58
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 fixing 80mm 12A

UR22 - Fuse 690V AC 22x58 fixing 80mm 12A

Reference 157.322.07.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 12
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Screw fixing
Pre-arcing I2t value (A2s) 8,5
Total I2t value (A2s) 37
Homologations IEC
Power loss (W) 3,5
Fuses dimension 22x58
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 fixing on pcb 25A

UR22 - Fuse 690V AC 22x58 fixing on pcb 25A

Reference 178.821.86.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 25
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Cylindrical
Pre-arcing I2t value (A2s) 33
Total I2t value (A2s) 147
Homologations IEC
Power loss (W) 7,6
Fuses dimension 22x58
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 fixing 80mm 100A

UR22 - Fuse 690V AC 22x58 fixing 80mm 100A

Reference 180.960.54.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 100
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Screw fixing
Pre-arcing I2t value (A2s) 2150
Total I2t value (A2s) 9345
Homologations IEC
Power loss (W) 19,1
Fuses dimension 22x58
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 fixing on pcb 80A

UR22 - Fuse 690V AC 22x58 fixing on pcb 80A

Reference 265.359.20.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 80
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Cylindrical
Pre-arcing I2t value (A2s) 1055
Total I2t value (A2s) 4620
Homologations IEC
Power loss (W) 16,3
Fuses dimension 22x58
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 fixing on pcb 40A

UR22 - Fuse 690V AC 22x58 fixing on pcb 40A

Reference 306.349.41.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 40
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Cylindrical
Pre-arcing I2t value (A2s) 148
Total I2t value (A2s) 640
Homologations IEC
Power loss (W) 9,6
Fuses dimension 22x58
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 cylindrical 32A

UR22 - Fuse 690V AC 22x58 cylindrical 32A

Reference 355.124.10.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 32
Rated Voltage Un AC (V) 550
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 550
Format Cylindrical
Pre-arcing I2t value (A2s) 65
Total I2t value (A2s) 330
Power loss (W) 9
Fuses dimension 22x58
Series name UR22
Price List €12.72/pc
Quantity
lock Datasheet
UR22 - Fuse 690V AC 22x58 fixing 80mm 20A

UR22 - Fuse 690V AC 22x58 fixing 80mm 20A

Reference 356.896.34.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 20
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Screw fixing
Pre-arcing I2t value (A2s) 21
Total I2t value (A2s) 96
Homologations IEC
Power loss (W) 6,1
Fuses dimension 22x58
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 500V AC 22x58 fixing on pcb 150A

UR22 - Fuse 500V AC 22x58 fixing on pcb 150A

Reference 361.190.77.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 150
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 500
Format Cylindrical
Pre-arcing I2t value (A2s) 4850
Total I2t value (A2s) 23500
Homologations IEC
Power loss (W) 31,9
Fuses dimension 22x58
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 cylindrical 50A

UR22 - Fuse 690V AC 22x58 cylindrical 50A

Reference 384.770.34.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Rated Voltage Un AC (V) 550
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 550
Format Cylindrical
Pre-arcing I2t value (A2s) 195
Total I2t value (A2s) 955
Power loss (W) 13,3
Fuses dimension 22x58
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 cylindrical 63A

UR22 - Fuse 690V AC 22x58 cylindrical 63A

Reference 394.522.47.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 63
Rated Voltage Un AC (V) 550
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 550
Format Cylindrical
Pre-arcing I2t value (A2s) 540
Total I2t value (A2s) 2370
Power loss (W) 13,4
Fuses dimension 22x58
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 cylindrical 25A

UR22 - Fuse 690V AC 22x58 cylindrical 25A

Reference 399.213.34.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 25
Rated Voltage Un AC (V) 550
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 550
Format Cylindrical
Pre-arcing I2t value (A2s) 33
Total I2t value (A2s) 147
Power loss (W) 7,6
Fuses dimension 22x58
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 fixing 80mm 16A

UR22 - Fuse 690V AC 22x58 fixing 80mm 16A

Reference 481.114.32.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 16
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Screw fixing
Dimension 22x58mm
Pre-arcing I2t value (A2s) 12,5
Total I2t value (A2s) 56
Homologations IEC
Power loss (W) 5,1
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 cylindrical 80A

UR22 - Fuse 690V AC 22x58 cylindrical 80A

Reference 487.974.34.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 80
Rated Voltage Un AC (V) 550
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 550
Format Cylindrical
Dimension 22x58mm
Pre-arcing I2t value (A2s) 1055
Total I2t value (A2s) 4620
Power loss (W) 16,3
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 500V AC 22x58 cylindrical 150A

UR22 - Fuse 500V AC 22x58 cylindrical 150A

Reference 498.425.72.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 150
Rated Voltage Un AC (V) 550
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 550
Format Cylindrical
Dimension 22x58mm
Pre-arcing I2t value (A2s) 4850
Total I2t value (A2s) 23500
Power loss (W) 31,9
Series name UR22
Price List €21.38/pc
Quantity
lock Datasheet
UR22 - Fuse 690V AC 22x58 fixing 80mm 25A

UR22 - Fuse 690V AC 22x58 fixing 80mm 25A

Reference 501.647.06.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 25
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Screw fixing
Dimension 22x58mm
Pre-arcing I2t value (A2s) 33
Total I2t value (A2s) 147
Homologations IEC
Power loss (W) 7,6
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 fixing on pcb 100A

UR22 - Fuse 690V AC 22x58 fixing on pcb 100A

Reference 518.975.84.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 100
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Cylindrical
Dimension 22x58mm
Pre-arcing I2t value (A2s) 2150
Total I2t value (A2s) 9345
Power loss (W) 19,1
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 cylindrical 16A

UR22 - Fuse 690V AC 22x58 cylindrical 16A

Reference 556.714.47.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 16
Rated Voltage Un AC (V) 550
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 550
Format Cylindrical
Dimension 22x58mm
Pre-arcing I2t value (A2s) 12,5
Total I2t value (A2s) 56
Power loss (W) 3,5
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 fixing 80mm 63A

UR22 - Fuse 690V AC 22x58 fixing 80mm 63A

Reference 593.818.70.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 63
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Screw fixing
Dimension 22x58mm
Pre-arcing I2t value (A2s) 540
Total I2t value (A2s) 2370
Homologations IEC
Power loss (W) 13,4
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 fixing on pcb 32A

UR22 - Fuse 690V AC 22x58 fixing on pcb 32A

Reference 637.218.29.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Cylindrical
Dimension 22x58mm
Pre-arcing I2t value (A2s) 65
Total I2t value (A2s) 330
Homologations IEC
Power loss (W) 9
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 cylindrical 40A

UR22 - Fuse 690V AC 22x58 cylindrical 40A

Reference 641.430.00.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 40
Rated Voltage Un AC (V) 550
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 550
Format Cylindrical
Dimension 22x58mm
Pre-arcing I2t value (A2s) 148
Total I2t value (A2s) 640
Power loss (W) 9,6
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 fixing 80mm 32A

UR22 - Fuse 690V AC 22x58 fixing 80mm 32A

Reference 677.334.80.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Screw fixing
Dimension 22x58mm
Pre-arcing I2t value (A2s) 65
Total I2t value (A2s) 330
Homologations IEC
Power loss (W) 9
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 500V AC 22x58 cylindrical 135A

UR22 - Fuse 500V AC 22x58 cylindrical 135A

Reference 719.479.82.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 135
Rated Voltage Un AC (V) 550
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 550
Format Cylindrical
Dimension 22x58mm
Pre-arcing I2t value (A2s) 3640
Total I2t value (A2s) 17800
Power loss (W) 28,6
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 500V AC 22x58 fixing on pcb 125A

UR22 - Fuse 500V AC 22x58 fixing on pcb 125A

Reference 743.702.10.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 125
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 500
Format Cylindrical
Dimension 22x58mm
Pre-arcing I2t value (A2s) 3100
Total I2t value (A2s) 15000
Power loss (W) 26
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 cylindrical 12A

UR22 - Fuse 690V AC 22x58 cylindrical 12A

Reference 754.812.07.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 12
Rated Voltage Un AC (V) 550
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 550
Format Cylindrical
Dimension 22x58mm
Pre-arcing I2t value (A2s) 8,5
Total I2t value (A2s) 37
Power loss (W) 3,5
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 fixing on pcb 12A

UR22 - Fuse 690V AC 22x58 fixing on pcb 12A

Reference 804.062.20.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 12
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Cylindrical
Dimension 22x58mm
Pre-arcing I2t value (A2s) 8,5
Total I2t value (A2s) 37
Homologations IEC
Power loss (W) 3,5
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 cylindrical 100A

UR22 - Fuse 690V AC 22x58 cylindrical 100A

Reference 810.153.18.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 100
Rated Voltage Un AC (V) 550
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 550
Format Cylindrical
Dimension 22x58mm
Pre-arcing I2t value (A2s) 2150
Total I2t value (A2s) 9345
Power loss (W) 19,1
Series name UR22
Price List €17.82/pc
Quantity
lock Datasheet
UR22 - Fuse 690V AC 22x58 fixing on pcb 20A

UR22 - Fuse 690V AC 22x58 fixing on pcb 20A

Reference 832.525.27.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 20
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 760
Format Cylindrical
Dimension 22x58mm
Pre-arcing I2t value (A2s) 21
Total I2t value (A2s) 96
Homologations IEC
Power loss (W) 6,1
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 cylindrical 20A

UR22 - Fuse 690V AC 22x58 cylindrical 20A

Reference 838.770.26.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 20
Rated Voltage Un AC (V) 550
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 550
Format Cylindrical
Dimension 22x58mm
Pre-arcing I2t value (A2s) 21
Total I2t value (A2s) 96
Power loss (W) 6,1
Series name UR22
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 700A - 132,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 700A - 132,7mm - Tin Plated

Reference 847.598.69.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 700
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x167mm
Pre-arcing I2t value (A2s) 143600
Total I2t value (A2s) 431000
Power loss (W) 128
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 7000
Price List €181.76/pc
Quantity
UR22 - Fuse 500V AC 22x58 fixing 80mm 135A

UR22 - Fuse 500V AC 22x58 fixing 80mm 135A

Reference 861.706.36.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 135
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 500
Format Screw fixing
Dimension 22x58mm
Pre-arcing I2t value (A2s) 3640
Total I2t value (A2s) 17800
Homologations IEC
Power loss (W) 28,6
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 fixing on pcb 50A

UR22 - Fuse 690V AC 22x58 fixing on pcb 50A

Reference 874.869.63.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Cylindrical
Dimension 22x58mm
Pre-arcing I2t value (A2s) 195
Total I2t value (A2s) 955
Homologations IEC
Power loss (W) 13,3
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 500V AC 22x58 fixing 80mm 125A

UR22 - Fuse 500V AC 22x58 fixing 80mm 125A

Reference 881.999.47.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 125
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 500
Format Screw fixing
Dimension 22x58mm
Pre-arcing I2t value (A2s) 3100
Total I2t value (A2s) 15000
Homologations IEC
Power loss (W) 26
Series name UR22
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 700A - 152,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 700A - 152,7mm - Tin Plated

Reference 886.466.75.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 700
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x130,5mm
Pre-arcing I2t value (A2s) 143600
Total I2t value (A2s) 431000
Power loss (W) 128
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 7000
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 fixing on pcb 63A

UR22 - Fuse 690V AC 22x58 fixing on pcb 63A

Reference 919.847.75.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 63
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Cylindrical
Dimension 22x58mm
Pre-arcing I2t value (A2s) 540
Total I2t value (A2s) 2370
Homologations IEC
Power loss (W) 12,7
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 500V AC 22x58 cylindrical 125A

UR22 - Fuse 500V AC 22x58 cylindrical 125A

Reference 926.959.14.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 125
Rated Voltage Un AC (V) 550
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 550
Format Cylindrical
Dimension 22x58mm
Pre-arcing I2t value (A2s) 3100
Total I2t value (A2s) 15000
Power loss (W) 26
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 500V AC 22x58 fixing 80mm 150A

UR22 - Fuse 500V AC 22x58 fixing 80mm 150A

Reference 928.681.71.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 150
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 500
Format Screw fixing
Dimension 22x58mm
Pre-arcing I2t value (A2s) 4850
Total I2t value (A2s) 23500
Homologations IEC
Power loss (W) 31,9
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 fixing 80mm 80A

UR22 - Fuse 690V AC 22x58 fixing 80mm 80A

Reference 944.514.36.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 80
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Screw fixing
Dimension 22x58mm
Pre-arcing I2t value (A2s) 1055
Total I2t value (A2s) 4620
Homologations IEC
Power loss (W) 16,3
Series name UR22
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 fixing on pcb 16A

UR22 - Fuse 690V AC 22x58 fixing on pcb 16A

Reference 968.375.45.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 16
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Cylindrical
Dimension 22x58mm
Pre-arcing I2t value (A2s) 12,5
Total I2t value (A2s) 56
Homologations IEC
Power loss (W) 5,1
Series name UR22
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 300A - 118,85mm - Tin Plated

B050 - Fuse 1000VDC aBat 300A - 118,85mm - Tin Plated

Reference 122.473.58.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 300
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 22300
Total I2t value (A2s) 58000
Power loss (W) 42
Fuses dimension 50,8x72,2
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 3000
Product available on request Ask for more information
NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 100A

NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 100A

Reference 146.054.81.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 100
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 1340
Total I2t value (A2s) 5000
Power loss (W) 19
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2B
Product available on request Ask for more information
NR2B - Fuse DIN00 80mm aR 690VAC with ind. lug 400A

NR2B - Fuse DIN00 80mm aR 690VAC with ind. lug 400A

Reference 152.430.74.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 400
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 33600
Total I2t value (A2s) 252000
Power loss (W) 89
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2B
Price List €81.86/pc
Quantity
NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 40A

NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 40A

Reference 177.747.74.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 40
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 230
Total I2t value (A2s) 840
Power loss (W) 7.2
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2B
Product available on request Ask for more information
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 25A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 25A

Reference 180.375.44.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 25
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 55
Total I2t value (A2s) 200
Homologations IEC
Power loss (W) 4,6
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2A
Price List €9.98/pc
Quantity
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 160A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 160A

Reference 193.430.72.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 160
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 3020
Total I2t value (A2s) 11100
Homologations IEC
Power loss (W) 37,5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2A
Price List €12.02/pc
Quantity
B050 - Fuse 1000VDC aBat 400A - 118,85mm - Tin Plated

B050 - Fuse 1000VDC aBat 400A - 118,85mm - Tin Plated

Reference 209.159.68.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 400
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 44300
Total I2t value (A2s) 115500
Power loss (W) 55
Fuses dimension 50,8x72,2
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 4000
Product available on request Ask for more information
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 40A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 40A

Reference 214.646.89.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 40
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 230
Total I2t value (A2s) 840
Homologations IEC
Power loss (W) 7,2
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2A
Price List €9.98/pc
Quantity
NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 80A

NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 80A

Reference 245.542.07.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 80
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 750
Total I2t value (A2s) 2800
Power loss (W) 17
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2B
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 250A - 118,85mm - Tin Plated

B050 - Fuse 1000VDC aBat 250A - 118,85mm - Tin Plated

Reference 267.812.88.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 250
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 15000
Total I2t value (A2s) 40000
Power loss (W) 36
Fuses dimension 50,8x72,2
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 2500
Product available on request Ask for more information
NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 40A

NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 40A

Reference 302.935.93.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 40
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 230
Total I2t value (A2s) 840
Power loss (W) 7.2
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2B
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 750A - 132,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 750A - 132,7mm - Tin Plated

Reference 309.341.47.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 750
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 166000
Total I2t value (A2s) 500000
Power loss (W) 140
Fuses dimension 63,5x167
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 7500
Product available on request Ask for more information
V103 - Fuse 10x38 1000VDC gPV 25A

V103 - Fuse 10x38 1000VDC gPV 25A

Reference 309.409.87.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 25
Voltage of total I2t test 1000
Format Cylindrical
Pre-arcing I2t value (A2s) 125
Total I2t value (A2s) 1205
Power loss (W) 2,95
Fuses dimension 10x38
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name V103
Price List €21.09/pc
Quantity
lock Datasheet
NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 63A

NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 63A

Reference 329.443.55.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 63
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 520
Total I2t value (A2s) 1900
Power loss (W) 9.5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2B
Product available on request Ask for more information
NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 25A

NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 25A

Reference 352.831.93.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 25
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 55
Total I2t value (A2s) 200
Power loss (W) 4.6
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2B
Product available on request Ask for more information
NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 160A

NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 160A

Reference 382.074.88.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 160
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 3020
Total I2t value (A2s) 11100
Power loss (W) 37.5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2B
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 630A - 132,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 630A - 132,7mm - Tin Plated

Reference 428.074.55.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 630
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 108000
Total I2t value (A2s) 324000
Power loss (W) 120
Fuses dimension 63,5x167
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 6300
Product available on request Ask for more information
NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 200A

NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 200A

Reference 456.865.11.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 200
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 5370
Total I2t value (A2s) 19600
Power loss (W) 48.5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2B
Product available on request Ask for more information
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 200A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 200A

Reference 456.980.23.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 200
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 5370
Total I2t value (A2s) 19600
Homologations IEC
Power loss (W) 48,5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Price List €12.91/pc
Quantity
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 100A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 100A

Reference 471.346.95.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 100
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 1340
Total I2t value (A2s) 5000
Homologations IEC
Power loss (W) 19
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Price List €11.63/pc
Quantity
lock Datasheet
NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 25A

NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 25A

Reference 509.191.68.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 25
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 55
Total I2t value (A2s) 200
Power loss (W) 4.6
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2B
Product available on request Ask for more information
P103 - Fuse 550V DC EV with pins 50 AMP

P103 - Fuse 550V DC EV with pins 50 AMP

Reference 515.316.40.0.0 - Manufacturer FAULTRAP
Rated current In (A) 50
Voltage of total I2t test 550
Dimension 10x38mm
Pre-arcing I2t value (A2s) 385
Total I2t value (A2s) 1200
Homologations IEC
Power loss (W) 8,8
Rated Voltage Un DC (V) 550
Rated break.capacity I1 DC (A) 20000
Time costant L/R (ms) 2
Series name P103
Product available on request Ask for more information
NR2B - Fuse 00/80 aR 690VAC with ind. w/o lug 400A

NR2B - Fuse 00/80 aR 690VAC with ind. w/o lug 400A

Reference 531.773.36.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 400
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 27210
Total I2t value (A2s) 156000
Power loss (W) 89
Time costant L/R (ms) 2
Series name NR2B
Price List €25.57/pc
Quantity
P103 - Fuse 550V DC EV with pins 12 AMP

P103 - Fuse 550V DC EV with pins 12 AMP

Reference 534.021.43.0.0 - Manufacturer FAULTRAP
Rated current In (A) 12
Voltage of total I2t test 550
Dimension 10x38mm
Pre-arcing I2t value (A2s) 9
Total I2t value (A2s) 45
Homologations IEC
Power loss (W) 2,9
Rated Voltage Un DC (V) 550
Rated break.capacity I1 DC (A) 20000
Time costant L/R (ms) 2
Series name P103
Product available on request Ask for more information
P103 - Fuse 550V DC EV with pins 25 AMP

P103 - Fuse 550V DC EV with pins 25 AMP

Reference 539.088.71.0.0 - Manufacturer FAULTRAP
Rated current In (A) 25
Voltage of total I2t test 550
Dimension 10x38mm
Pre-arcing I2t value (A2s) 64
Total I2t value (A2s) 220
Homologations IEC
Power loss (W) 3,95
Rated Voltage Un DC (V) 550
Rated break.capacity I1 DC (A) 20000
Time costant L/R (ms) 2
Series name P103
Product available on request Ask for more information
NR2B - Fuse00/80 aR 700VDC/690VAC with ind. w/o lug 63A

NR2B - Fuse00/80 aR 700VDC/690VAC with ind. w/o lug 63A

Reference 555.565.09.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 63
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 520
Total I2t value (A2s) 1900
Power loss (W) 9.5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2B
Product available on request Ask for more information
NR2B - Fuse 00/80 aR 690VAC with ind. w/o lug 350A

NR2B - Fuse 00/80 aR 690VAC with ind. w/o lug 350A

Reference 564.272.99.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 350
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 21500
Total I2t value (A2s) 110000
Power loss (W) 80
Time costant L/R (ms) 2
Series name NR2B
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 750A - 152,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 750A - 152,7mm - Tin Plated

Reference 584.668.83.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 750
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x130,5mm
Pre-arcing I2t value (A2s) 166000
Total I2t value (A2s) 500000
Power loss (W) 140
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 7500
Product available on request Ask for more information
NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 50A

NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 50A

Reference 593.732.55.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 330
Total I2t value (A2s) 1200
Power loss (W) 9
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2B
Product available on request Ask for more information
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 50A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 50A

Reference 600.836.00.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 330
Total I2t value (A2s) 1200
Homologations IEC
Power loss (W) 9
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Price List €10.58/pc
Quantity
lock Datasheet
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 315A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 315A

Reference 602.872.34.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 315
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 16450
Total I2t value (A2s) 60000
Homologations IEC
Power loss (W) 70
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Price List €13.46/pc
Quantity
lock Datasheet
NR2B - Fuse DIN00 80mm aR 690VAC with ind. lug 350A

NR2B - Fuse DIN00 80mm aR 690VAC with ind. lug 350A

Reference 605.274.36.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 350
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 110000
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 21500
Total I2t value (A2s) 161000
Power loss (W) 80
Time costant L/R (ms) 2
Series name NR2B
Product available on request Ask for more information
A145 - Fuse 14x51 500VAC aR 63A

A145 - Fuse 14x51 500VAC aR 63A

Reference 616.546.40.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 63
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Cylindrical
Dimension 14x51mm
Pre-arcing I2t value (A2s) 408
Total I2t value (A2s) 2930
Homologations IEC
Power loss (W) 16
Series name A145
Product available on request Ask for more information
NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 160A

NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 160A

Reference 617.386.84.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 160
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 3020
Total I2t value (A2s) 11100
Power loss (W) 37.5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2B
Product available on request Ask for more information
NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 125A

NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 125A

Reference 642.654.54.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 125
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 2100
Total I2t value (A2s) 7700
Power loss (W) 27.5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2B
Product available on request Ask for more information
P103 - Fuse 550V DC EV with pins 40 AMP

P103 - Fuse 550V DC EV with pins 40 AMP

Reference 645.069.92.0.0 - Manufacturer FAULTRAP
Rated current In (A) 40
Voltage of total I2t test 550
Dimension 10x38mm
Pre-arcing I2t value (A2s) 195
Total I2t value (A2s) 650
Homologations IEC
Power loss (W) 7,9
Rated Voltage Un DC (V) 550
Rated break.capacity I1 DC (A) 20000
Time costant L/R (ms) 2
Series name P103
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 500A - 118,85mm - Tin Plated

B050 - Fuse 1000VDC aBat 500A - 118,85mm - Tin Plated

Reference 655.460.05.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 500
Voltage of total I2t test 1000
Format Screw fixing
Dimension 50,8x72,2mm
Pre-arcing I2t value (A2s) 78500
Total I2t value (A2s) 204000
Power loss (W) 66
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 5000
Price List €122.07/pc
Quantity
lock Datasheet
B050 - Fuse 1000VDC aBat 600A - 118,85mm - Tin Plated

B050 - Fuse 1000VDC aBat 600A - 118,85mm - Tin Plated

Reference 656.768.70.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 600
Voltage of total I2t test 1000
Format Screw fixing
Dimension 50,8x72,2mm
Pre-arcing I2t value (A2s) 134000
Total I2t value (A2s) 350000
Power loss (W) 79
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 6000
Product available on request Ask for more information
NR2A - Fuse DIN000 80mm aR 500VAC no ind 350A

NR2A - Fuse DIN000 80mm aR 500VAC no ind 350A

Reference 657.589.99.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 350
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 500
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 21500
Total I2t value (A2s) 92500
Homologations IEC
Power loss (W) 80
Time costant L/R (ms) 2
Series name NR2A
Product available on request Ask for more information
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 80A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 80A

Reference 663.878.32.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 80
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 750
Total I2t value (A2s) 2800
Homologations IEC
Power loss (W) 17
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Price List €12.47/pc
Quantity
lock Datasheet
P103 - Fuse 550V DC EV with pins 10 AMP

P103 - Fuse 550V DC EV with pins 10 AMP

Reference 679.360.73.0.0 - Manufacturer FAULTRAP
Rated current In (A) 10
Voltage of total I2t test 550
Dimension 10x38mm
Pre-arcing I2t value (A2s) 7
Total I2t value (A2s) 40
Homologations IEC
Power loss (W) 1,97
Rated Voltage Un DC (V) 550
Rated break.capacity I1 DC (A) 20000
Time costant L/R (ms) 2
Series name P103
Product available on request Ask for more information
NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 315A

NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 315A

Reference 712.042.86.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 315
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 16450
Total I2t value (A2s) 60000
Power loss (W) 70
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2B
Product available on request Ask for more information
A800 - Fuse 22x65 800V SPD protection 8/20 30kA 10/350 8kA

A800 - Fuse 22x65 800V SPD protection 8/20 30kA 10/350 8kA

Reference 721.081.58.0.0 - Manufacturer FAULTRAP
Rated Voltage Un AC (V) 800
Rated break.capacity I1 AC (A) 80000
Voltage of total I2t test 880
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 36000
Total I2t value (A2s) 250000
Homologations IEC
Series name A800
Price List €16.34/pc
Quantity
NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 315A

NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 315A

Reference 732.361.29.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 315
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 16450
Total I2t value (A2s) 60000
Power loss (W) 70
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2B
Product available on request Ask for more information
NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 180A

NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 180A

Reference 733.030.55.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 180
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 4120
Total I2t value (A2s) 15100
Power loss (W) 42.5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2B
Product available on request Ask for more information
NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 100A

NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 100A

Reference 733.837.25.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 100
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 1340
Total I2t value (A2s) 5000
Power loss (W) 19
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2B
Product available on request Ask for more information
NR2B - Fuse 00/80 aR 700VDC/690VACwith ind. w/o lug 80A

NR2B - Fuse 00/80 aR 700VDC/690VACwith ind. w/o lug 80A

Reference 740.833.15.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 80
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 750
Total I2t value (A2s) 2800
Power loss (W) 17
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2B
Product available on request Ask for more information
P103 - Fuse 550V DC EV with pins 35 AMP

P103 - Fuse 550V DC EV with pins 35 AMP

Reference 761.166.28.0.0 - Manufacturer FAULTRAP
Rated current In (A) 35
Voltage of total I2t test 550
Dimension 10x38mm
Pre-arcing I2t value (A2s) 125
Total I2t value (A2s) 395
Homologations IEC
Power loss (W) 6,8
Rated Voltage Un DC (V) 550
Rated break.capacity I1 DC (A) 20000
Time costant L/R (ms) 2
Series name P103
Product available on request Ask for more information
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 32A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 32A

Reference 765.929.08.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 80
Total I2t value (A2s) 300
Homologations IEC
Power loss (W) 7
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Price List €10.45/pc
Quantity
lock Datasheet
B050 - Fuse 1000VDC aBat 350A - 118,85mm - Tin Plated

B050 - Fuse 1000VDC aBat 350A - 118,85mm - Tin Plated

Reference 768.151.83.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 350
Voltage of total I2t test 1000
Format Screw fixing
Dimension 50,8x72,2mm
Pre-arcing I2t value (A2s) 33600
Total I2t value (A2s) 88000
Power loss (W) 48
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 3500
Product available on request Ask for more information
NR2A - Fuse DIN000 80mm aR 500VAC ind. micro 350A

NR2A - Fuse DIN000 80mm aR 500VAC ind. micro 350A

Reference 768.569.77.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 350
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 500
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 21500
Total I2t value (A2s) 92500
Homologations IEC
Power loss (W) 80
Time costant L/R (ms) 2
Series name NR2A
Product available on request Ask for more information
NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 250A

NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 250A

Reference 793.395.76.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 250
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 10150
Total I2t value (A2s) 37100
Power loss (W) 57
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2B
Product available on request Ask for more information
P103 - Fuse 550V DC EV with pins 20 AMP

P103 - Fuse 550V DC EV with pins 20 AMP

Reference 833.004.58.0.0 - Manufacturer FAULTRAP
Rated current In (A) 20
Voltage of total I2t test 550
Dimension 10x38mm
Pre-arcing I2t value (A2s) 33
Total I2t value (A2s) 140
Homologations IEC
Power loss (W) 3,9
Rated Voltage Un DC (V) 550
Rated break.capacity I1 DC (A) 20000
Time costant L/R (ms) 2
Series name P103
Product available on request Ask for more information
NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 50A

NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 50A

Reference 859.192.76.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 330
Total I2t value (A2s) 1200
Power loss (W) 9
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2B
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 630A - 152,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 630A - 152,7mm - Tin Plated

Reference 867.290.88.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 630
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x203,2mm
Pre-arcing I2t value (A2s) 108000
Total I2t value (A2s) 324000
Power loss (W) 120
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 6300
Product available on request Ask for more information
NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 180A

NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 180A

Reference 868.707.36.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 180
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 4120
Total I2t value (A2s) 15100
Power loss (W) 42.5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2B
Product available on request Ask for more information
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 63A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 63A

Reference 869.557.46.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 63
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 520
Total I2t value (A2s) 1900
Homologations IEC
Power loss (W) 9.5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Price List €10.72/pc
Quantity
lock Datasheet
B050 - Fuse 1000VDC aBat 450A - 118,85mm - Tin Plated

B050 - Fuse 1000VDC aBat 450A - 118,85mm - Tin Plated

Reference 886.009.48.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 450
Voltage of total I2t test 1000
Format Screw fixing
Dimension 50,8x72,2mm
Pre-arcing I2t value (A2s) 62000
Total I2t value (A2s) 162000
Power loss (W) 60
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 4500
Product available on request Ask for more information
NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 32A

NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 32A

Reference 886.723.70.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 80
Total I2t value (A2s) 300
Power loss (W) 7
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2B
Product available on request Ask for more information
NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 250A

NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 250A

Reference 934.169.73.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 250
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 10150
Total I2t value (A2s) 37100
Power loss (W) 57
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2B
Product available on request Ask for more information
NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 32A

NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 32A

Reference 953.799.47.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 80
Total I2t value (A2s) 300
Power loss (W) 7
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2B
Product available on request Ask for more information
NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 200A

NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 200A

Reference 969.788.60.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 200
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 5370
Total I2t value (A2s) 19600
Power loss (W) 48.5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2B
Product available on request Ask for more information
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 125A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 125A

Reference 969.839.51.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 125
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 2100
Total I2t value (A2s) 7700
Homologations IEC
Power loss (W) 27.5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Price List €12.49/pc
Quantity
lock Datasheet
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 250A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 250A

Reference 977.316.49.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 250
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 10150
Total I2t value (A2s) 37100
Homologations IEC
Power loss (W) 57
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Price List €13.59/pc
Quantity
lock Datasheet
P103 - Fuse 550V DC EV with pins 30 AMP

P103 - Fuse 550V DC EV with pins 30 AMP

Reference 984.198.45.0.0 - Manufacturer FAULTRAP
Rated current In (A) 30
Voltage of total I2t test 550
Dimension 10x38mm
Pre-arcing I2t value (A2s) 100
Total I2t value (A2s) 355
Homologations IEC
Power loss (W) 6.4
Rated Voltage Un DC (V) 550
Rated break.capacity I1 DC (A) 20000
Time costant L/R (ms) 2
Series name P103
Product available on request Ask for more information
NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 125A

NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 125A

Reference 993.324.88.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 125
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 2100
Total I2t value (A2s) 7700
Power loss (W) 27.5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2B
Product available on request Ask for more information
P103 - Fuse 550V DC EV with pins 15AMP

P103 - Fuse 550V DC EV with pins 15AMP

Reference 996.763.58.0.0 - Manufacturer FAULTRAP
Rated current In (A) 15
Voltage of total I2t test 550
Dimension 10x38mm
Pre-arcing I2t value (A2s) 15
Total I2t value (A2s) 75
Homologations IEC
Power loss (W) 2.9
Rated Voltage Un DC (V) 550
Rated break.capacity I1 DC (A) 20000
Time costant L/R (ms) 2
Series name P103
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 1400A

B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 1400A

Reference 122.820.87.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1400
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 977000
Total I2t value (A2s) 5390000
Homologations IEC
Power loss (W) 325
Fuses dimension 103x144
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 250000
Time costant L/R (ms) 3
Series name B500
Min breaking current (A) 16000
Product available on request Ask for more information
DC22 - Fuse 1000VDC aBat 22x65mm 50A

DC22 - Fuse 1000VDC aBat 22x65mm 50A

Reference 128.721.89.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 50
Format Cylindrical
Pre-arcing I2t value (A2s) 380
Total I2t value (A2s) 1710
Homologations IEC
Power loss (W) 11,8
Fuses dimension 22x65
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Series name DC22
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 900A

B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 900A

Reference 129.490.94.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 900
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 344000
Total I2t value (A2s) 1900000
Homologations IEC
Power loss (W) 250
Fuses dimension 103x144
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 250000
Time costant L/R (ms) 3
Series name B500
Min breaking current (A) 10000
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 900A

B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 900A

Reference 130.246.84.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 900
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 344000
Total I2t value (A2s) 1900000
Homologations IEC
Power loss (W) 250
Fuses dimension 103x144
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 250000
Time costant L/R (ms) 3
Series name B500
Min breaking current (A) 10000
Product available on request Ask for more information
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 180A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 180A

Reference 143.745.86.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 180
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 4120
Total I2t value (A2s) 15100
Homologations IEC
Power loss (W) 42,5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2A
Product available on request Ask for more information
10TD - Fuse 10x38 500VAC aM/aR 1A

10TD - Fuse 10x38 500VAC aM/aR 1A

Reference 154.406.51.0.0 - Manufacturer FAULTRAP
Rated current In (A) 1
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 50000
Voltage of total I2t test 500
Format Cylindrical
Pre-arcing I2t value (A2s) 9.6
Total I2t value (A2s) 22
Power loss (W) 0
Fuses dimension 10x38
Series name 10TD
Product available on request Ask for more information
NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 125A

NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 125A

Reference 180.801.43.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 125
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 2100
Total I2t value (A2s) 7700
Homologations IEC
Power loss (W) 27,5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2A
Price List €12.15/pc
Quantity
DC22 - Fuse 1000VDC aBat 22x65mm 40A

DC22 - Fuse 1000VDC aBat 22x65mm 40A

Reference 183.616.47.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 40
Format Cylindrical
Pre-arcing I2t value (A2s) 255
Total I2t value (A2s) 1150
Homologations IEC
Power loss (W) 8,8
Fuses dimension 22x65
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Series name DC22
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 1500A

B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 1500A

Reference 194.777.19.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1500
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 1156000
Total I2t value (A2s) 6270000
Homologations IEC
Power loss (W) 350
Fuses dimension 103x144
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 250000
Time costant L/R (ms) 3
Series name B500
Min breaking current (A) 17000
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 1600A

B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 1600A

Reference 217.929.54.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1600
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 1300600
Total I2t value (A2s) 7100000
Homologations IEC
Power loss (W) 390
Fuses dimension 103x144
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 250000
Time costant L/R (ms) 3
Series name B500
Min breaking current (A) 18000
Product available on request Ask for more information
DC22 - Fuse 1000VDC aBat 22x65mm 125A

DC22 - Fuse 1000VDC aBat 22x65mm 125A

Reference 229.163.75.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 125
Format Cylindrical
Pre-arcing I2t value (A2s) 3550
Total I2t value (A2s) 15600
Homologations IEC
Power loss (W) 29,5
Fuses dimension 22x65
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Series name DC22
Product available on request Ask for more information
NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 63A

NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 63A

Reference 247.278.11.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 63
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 520
Total I2t value (A2s) 1900
Homologations IEC
Power loss (W) 9,5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2A
Product available on request Ask for more information
DC22 - Fuse 1000VDC aBat 22x65mm 63A

DC22 - Fuse 1000VDC aBat 22x65mm 63A

Reference 264.044.65.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 63
Format Cylindrical
Pre-arcing I2t value (A2s) 750
Total I2t value (A2s) 3305
Homologations IEC
Power loss (W) 12,5
Fuses dimension 22x65
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Series name DC22
Price List €21.98/pc
Quantity
M100 - Fuse 1000V DC 10x38 8A

M100 - Fuse 1000V DC 10x38 8A

Reference 264.442.90.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 8
Format Cylindrical
Homologations UL
Power loss (W) 1,5
Fuses dimension 10x38
Rated Voltage Un DC (V) 1000
Series name M100
Product available on request Ask for more information
NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 80A

NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 80A

Reference 298.939.97.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 80
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 750
Total I2t value (A2s) 2800
Homologations IEC
Power loss (W) 17
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2A
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 1500A

B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 1500A

Reference 323.237.51.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1400
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 977000
Total I2t value (A2s) 5390000
Homologations IEC
Power loss (W) 325
Fuses dimension 103x144
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 250000
Time costant L/R (ms) 3
Series name B500
Min breaking current (A) 16000
Product available on request Ask for more information
B301 - Fuse 1000VDC aBat 2xM12 900A

B301 - Fuse 1000VDC aBat 2xM12 900A

Reference 334.701.97.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 900
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 233900
Total I2t value (A2s) 814000
Homologations IEC
Power loss (W) 180
Fuses dimension 89x106,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name B301
Min breaking current (A) 7200
Product available on request Ask for more information
DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 125A

DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 125A

Reference 334.771.49.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 125
Format Cylindrical
Pre-arcing I2t value (A2s) 3550
Total I2t value (A2s) 15600
Homologations IEC
Power loss (W) 29,5
Fuses dimension 22x65
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Series name DC22
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 800A

B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 800A

Reference 345.879.76.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 800
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 272000
Total I2t value (A2s) 1452000
Homologations IEC
Power loss (W) 213
Fuses dimension 103x144
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 250000
Time costant L/R (ms) 3
Series name B500
Min breaking current (A) 9000
Product available on request Ask for more information
BPF3 - Fuse 1500VDC aBat M12 700A

BPF3 - Fuse 1500VDC aBat M12 700A

Reference 362.785.61.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 700
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 215000
Total I2t value (A2s) 1225500
Homologations IEC
Power loss (W) 170
Fuses dimension 76x140
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF3
Min breaking current (A) 7000
Product available on request Ask for more information
NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 180A

NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 180A

Reference 367.466.71.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 180
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 4120
Total I2t value (A2s) 15100
Homologations IEC
Power loss (W) 42,5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2A
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 1600A

B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 1600A

Reference 372.494.14.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1600
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 1300600
Total I2t value (A2s) 7100000
Homologations IEC
Power loss (W) 390
Fuses dimension 103x144
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 250000
Time costant L/R (ms) 3
Series name B500
Min breaking current (A) 18000
Product available on request Ask for more information
DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 40A

DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 40A

Reference 390.020.12.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 40
Format Cylindrical
Pre-arcing I2t value (A2s) 255
Total I2t value (A2s) 1150
Homologations IEC
Power loss (W) 8,8
Fuses dimension 22x65
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Series name DC22
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 1800A

B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 1800A

Reference 395.882.51.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1800
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 1615000
Total I2t value (A2s) 8720000
Homologations IEC
Power loss (W) 430
Fuses dimension 103x144
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 250000
Time costant L/R (ms) 3
Series name B500
Min breaking current (A) 19800
Product available on request Ask for more information
DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 50A

DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 50A

Reference 396.327.33.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 50
Format Cylindrical
Pre-arcing I2t value (A2s) 380
Total I2t value (A2s) 1710
Homologations IEC
Power loss (W) 11,8
Fuses dimension 22x65
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Series name DC22
Product available on request Ask for more information
DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 100A

DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 100A

Reference 398.993.93.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 100
Format Cylindrical
Pre-arcing I2t value (A2s) 2100
Total I2t value (A2s) 9250
Homologations IEC
Power loss (W) 22,8
Fuses dimension 22x65
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Series name DC22
Product available on request Ask for more information
B400 - Fuse 1000V DC aBat DC 4xM10 1800A

B400 - Fuse 1000V DC aBat DC 4xM10 1800A

Reference 404.300.20.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1800
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 1493000
Total I2t value (A2s) 4480000
Homologations IEC
Power loss (W) 298
Fuses dimension 103x106,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B400
Product available on request Ask for more information
DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 25A

DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 25A

Reference 409.364.53.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 25
Format Cylindrical
Pre-arcing I2t value (A2s) 95
Total I2t value (A2s) 430
Homologations IEC
Power loss (W) 4,9
Fuses dimension 22x65
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Series name DC22
Product available on request Ask for more information
BPF3 - Fuse 1500VDC aBat M12 800A

BPF3 - Fuse 1500VDC aBat M12 800A

Reference 412.662.20.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 800
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 320000
Total I2t value (A2s) 1825000
Homologations IEC
Power loss (W) 190
Fuses dimension 76x140
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF3
Min breaking current (A) 8000
Product available on request Ask for more information
DC22 - Fuse 1000VDC aBat 22x65mm 100A

DC22 - Fuse 1000VDC aBat 22x65mm 100A

Reference 415.002.48.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 100
Format Cylindrical
Pre-arcing I2t value (A2s) 2100
Total I2t value (A2s) 9250
Homologations IEC
Power loss (W) 22,8
Fuses dimension 22x65
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Series name DC22
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 2000A

B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 2000A

Reference 439.181.95.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 2000
Voltage of total I2t test 1500
Format Screw fixing
Dimension 103x144mm
Pre-arcing I2t value (A2s) 2798000
Total I2t value (A2s) 13650000
Homologations IEC
Power loss (W) 445
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 250000
Time costant L/R (ms) 3
Series name B500
Min breaking current (A) 25000
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 1100A

B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 1100A

Reference 443.411.69.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1100
Voltage of total I2t test 1500
Format Screw fixing
Dimension 103x144mm
Pre-arcing I2t value (A2s) 498000
Total I2t value (A2s) 2761000
Homologations IEC
Power loss (W) 290
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 250000
Time costant L/R (ms) 3
Series name B500
Min breaking current (A) 12000
Product available on request Ask for more information
10TD - Fuse 10x38 500VAC aM/aR 12A

10TD - Fuse 10x38 500VAC aM/aR 12A

Reference 445.872.40.0.0 - Manufacturer FAULTRAP
Rated current In (A) 12
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 50000
Voltage of total I2t test 500
Format Cylindrical
Dimension 10x38mm
Pre-arcing I2t value (A2s) 385
Total I2t value (A2s) 1160
Power loss (W) 0
Series name 10TD
Product available on request Ask for more information
NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 25A

NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 25A

Reference 474.918.90.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 25
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 55
Total I2t value (A2s) 200
Homologations IEC
Power loss (W) 4,6
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Product available on request Ask for more information
10TD - Fuse 10x38 500VAC aM/aR 6A

10TD - Fuse 10x38 500VAC aM/aR 6A

Reference 476.305.98.0.0 - Manufacturer FAULTRAP
Rated current In (A) 6
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 50000
Voltage of total I2t test 500
Format Cylindrical
Dimension 10x38mm
Pre-arcing I2t value (A2s) 125
Total I2t value (A2s) 295
Power loss (W) 0
Series name 10TD
Product available on request Ask for more information
NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 200A

NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 200A

Reference 480.504.71.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 200
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 5370
Total I2t value (A2s) 19600
Homologations IEC
Power loss (W) 48.5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Price List €14.85/pc
Quantity
lock Datasheet
B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 1250A

B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 1250A

Reference 484.196.45.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1250
Voltage of total I2t test 1500
Format Screw fixing
Dimension 103x144mm
Pre-arcing I2t value (A2s) 718000
Total I2t value (A2s) 3912000
Homologations IEC
Power loss (W) 300
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 250000
Time costant L/R (ms) 3
Series name B500
Min breaking current (A) 14000
Product available on request Ask for more information
10TD - Fuse 10x38 500VAC aM/aR 2A

10TD - Fuse 10x38 500VAC aM/aR 2A

Reference 501.790.29.0.0 - Manufacturer FAULTRAP
Rated current In (A) 2
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 50000
Voltage of total I2t test 500
Format Cylindrical
Dimension 10x38mm
Pre-arcing I2t value (A2s) 41
Total I2t value (A2s) 98
Power loss (W) 0
Series name 10TD
Product available on request Ask for more information
DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 20A

DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 20A

Reference 518.297.67.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 20
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 48
Total I2t value (A2s) 220
Homologations IEC
Power loss (W) 4,4
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Series name DC22
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 1100A

B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 1100A

Reference 523.117.34.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1100
Voltage of total I2t test 1500
Format Screw fixing
Dimension 103x144mm
Pre-arcing I2t value (A2s) 498000
Total I2t value (A2s) 2761000
Homologations IEC
Power loss (W) 290
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 250000
Time costant L/R (ms) 3
Series name B500
Min breaking current (A) 12000
Product available on request Ask for more information
B400 - Fuse 1000V DC aBat DC 4xM10 1500A

B400 - Fuse 1000V DC aBat DC 4xM10 1500A

Reference 536.862.15.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1500
Voltage of total I2t test 1000
Format Screw fixing
Dimension 103x106,5mm
Pre-arcing I2t value (A2s) 731600
Total I2t value (A2s) 2195000
Homologations IEC
Power loss (W) 15000
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B400
Product available on request Ask for more information
10TD - Fuse 10x38 500VAC aM/aR 8A

10TD - Fuse 10x38 500VAC aM/aR 8A

Reference 548.262.29.0.0 - Manufacturer FAULTRAP
Rated current In (A) 8
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 50000
Voltage of total I2t test 500
Format Cylindrical
Dimension 10x38mm
Pre-arcing I2t value (A2s) 225
Total I2t value (A2s) 525
Power loss (W) 0
Series name 10TD
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 1000A

B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 1000A

Reference 548.650.95.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1000
Voltage of total I2t test 1500
Format Screw fixing
Dimension 103x144mm
Pre-arcing I2t value (A2s) 404000
Total I2t value (A2s) 2210000
Homologations IEC
Power loss (W) 260
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 250000
Time costant L/R (ms) 3
Series name B500
Min breaking current (A) 11000
Product available on request Ask for more information
B400 - Fuse 1000V DC aBat DC 4xM10 2000A

B400 - Fuse 1000V DC aBat DC 4xM10 2000A

Reference 563.710.48.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 2000
Voltage of total I2t test 1000
Format Screw fixing
Dimension 103x106,5mm
Pre-arcing I2t value (A2s) 2150000
Total I2t value (A2s) 6450000
Homologations IEC
Power loss (W) 322
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B400
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 630A

B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 630A

Reference 570.142.90.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 630
Voltage of total I2t test 1500
Format Screw fixing
Dimension 103x144mm
Pre-arcing I2t value (A2s) 145000
Total I2t value (A2s) 772800
Homologations IEC
Power loss (W) 170
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 250000
Time costant L/R (ms) 3
Series name B500
Min breaking current (A) 6900
Product available on request Ask for more information
B301 - Fuse 1000VDC aBat 2xM12 800A

B301 - Fuse 1000VDC aBat 2xM12 800A

Reference 577.531.20.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 800
Voltage of total I2t test 1000
Format Screw fixing
Dimension 89x106,5mm
Pre-arcing I2t value (A2s) 149700
Total I2t value (A2s) 520000
Homologations IEC
Power loss (W) 170
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name B301
Min breaking current (A) 6400
Price List €229.58/pc
Quantity
AB22 - Fuse 22x65 1000VDC aBat 50A

AB22 - Fuse 22x65 1000VDC aBat 50A

Reference 589.678.93.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 50
Rated Voltage Un AC (V) 1000
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 700
Total I2t value (A2s) 3900
Homologations IEC
Power loss (W) 10
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 10000
Series name AB22
Product available on request Ask for more information
AB22 - Fuse 22x65 1000VDC aBat 100A

AB22 - Fuse 22x65 1000VDC aBat 100A

Reference 594.242.76.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 100
Rated Voltage Un AC (V) 1000
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 4520
Total I2t value (A2s) 25000
Homologations IEC
Power loss (W) 18
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 10000
Series name AB22
Product available on request Ask for more information
10TD - Fuse 10x38 500VAC aM/aR 4A

10TD - Fuse 10x38 500VAC aM/aR 4A

Reference 598.660.25.0.0 - Manufacturer FAULTRAP
Rated current In (A) 4
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 50000
Voltage of total I2t test 500
Format Cylindrical
Dimension 10x38mm
Pre-arcing I2t value (A2s) 92
Total I2t value (A2s) 211
Power loss (W) 0
Series name 10TD
Product available on request Ask for more information
DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 80A

DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 80A

Reference 607.699.67.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 80
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 1350
Total I2t value (A2s) 5950
Homologations IEC
Power loss (W) 16,3
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Series name DC22
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 750A

B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 750A

Reference 609.756.44.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 750
Voltage of total I2t test 1500
Format Screw fixing
Dimension 103x144mm
Pre-arcing I2t value (A2s) 228000
Total I2t value (A2s) 1264000
Homologations IEC
Power loss (W) 205
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 250000
Time costant L/R (ms) 3
Series name B500
Min breaking current (A) 8700
Product available on request Ask for more information
DC22 - Fuse 1000VDC aBat 22x65mm 32A

DC22 - Fuse 1000VDC aBat 22x65mm 32A

Reference 615.757.72.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 32
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 155
Total I2t value (A2s) 700
Homologations IEC
Power loss (W) 6,9
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Series name DC22
Product available on request Ask for more information
DC22 - Fuse 1000VDC aBat 22x65mm 80A

DC22 - Fuse 1000VDC aBat 22x65mm 80A

Reference 616.545.00.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 80
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 1350
Total I2t value (A2s) 5950
Homologations IEC
Power loss (W) 16,3
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Series name DC22
Product available on request Ask for more information
NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 32A

NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 32A

Reference 622.337.77.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 80
Total I2t value (A2s) 300
Homologations IEC
Power loss (W) 7
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Product available on request Ask for more information
BPF3 - Fuse 1500VDC aBat M12 900A

BPF3 - Fuse 1500VDC aBat M12 900A

Reference 623.631.19.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 900
Voltage of total I2t test 1500
Format Screw fixing
Dimension 76x140mm
Pre-arcing I2t value (A2s) 254000
Total I2t value (A2s) 889000
Homologations IEC
Power loss (W) 240
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF3
Min breaking current (A) 9000
Product available on request Ask for more information
NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 250A

NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 250A

Reference 639.596.77.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 250
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 10150
Total I2t value (A2s) 37100
Homologations IEC
Power loss (W) 57
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Price List €15.30/pc
Quantity
lock Datasheet
AB22 - Fuse 22x65 1000VDC aBat 70A

AB22 - Fuse 22x65 1000VDC aBat 70A

Reference 648.814.66.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 70
Rated Voltage Un AC (V) 1000
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 2100
Total I2t value (A2s) 11550
Homologations IEC
Power loss (W) 12
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 10000
Series name AB22
Product available on request Ask for more information
10TD - Fuse 10x38 400VAC aM/aR 20A

10TD - Fuse 10x38 400VAC aM/aR 20A

Reference 651.340.87.0.0 - Manufacturer FAULTRAP
Rated current In (A) 20
Rated Voltage Un AC (V) 400
Rated break.capacity I1 AC (A) 50000
Voltage of total I2t test 400
Format Cylindrical
Dimension 10x38mm
Pre-arcing I2t value (A2s) 960
Total I2t value (A2s) 2460
Power loss (W) 0
Series name 10TD
Product available on request Ask for more information
BPF3 - Fuse 1500VDC aBat M12 1400A

BPF3 - Fuse 1500VDC aBat M12 1400A

Reference 659.248.56.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1400
Voltage of total I2t test 1500
Format Screw fixing
Dimension 76x140mm
Homologations IEC
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF3
Min breaking current (A) 14000
Product available on request Ask for more information
B300 - Fuse 1000V DC aBat DC 2xM12 1250A

B300 - Fuse 1000V DC aBat DC 2xM12 1250A

Reference 678.183.99.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1250
Voltage of total I2t test 1000
Format Screw fixing
Dimension 89x106,5mm
Pre-arcing I2t value (A2s) 537500
Total I2t value (A2s) 1620000
Power loss (W) 235
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B300
Product available on request Ask for more information
B300 - Fuse 1000V DC aBat DC 2xM12 1000A

B300 - Fuse 1000V DC aBat DC 2xM12 1000A

Reference 695.363.75.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1000
Voltage of total I2t test 1000
Format Screw fixing
Dimension 89x106,5mm
Pre-arcing I2t value (A2s) 267000
Total I2t value (A2s) 801000
Power loss (W) 200
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B300
Product available on request Ask for more information
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 180A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 180A

Reference 696.362.07.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 180
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 4120
Total I2t value (A2s) 15100
Homologations IEC
Power loss (W) 42.5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 1800A

B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 1800A

Reference 697.280.78.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1800
Voltage of total I2t test 1500
Format Screw fixing
Dimension 103x144mm
Pre-arcing I2t value (A2s) 1615000
Total I2t value (A2s) 8720000
Homologations IEC
Power loss (W) 430
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 250000
Time costant L/R (ms) 3
Series name B500
Min breaking current (A) 19800
Product available on request Ask for more information
DC22 - Fuse 1000VDC aBat 22x65mm 25A

DC22 - Fuse 1000VDC aBat 22x65mm 25A

Reference 701.823.85.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 25
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 95
Total I2t value (A2s) 430
Homologations IEC
Power loss (W) 4,9
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Series name DC22
Product available on request Ask for more information
DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 32A

DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 32A

Reference 706.803.00.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 32
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 155
Total I2t value (A2s) 700
Homologations IEC
Power loss (W) 6,9
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Series name DC22
Product available on request Ask for more information
DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 63A

DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 63A

Reference 725.960.68.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 63
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 750
Total I2t value (A2s) 3305
Homologations IEC
Power loss (W) 12,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Series name DC22
Price List €26.43/pc
Quantity
NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 160A

NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 160A

Reference 736.402.52.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 160
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 3020
Total I2t value (A2s) 11100
Homologations IEC
Power loss (W) 37.5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Price List €12.91/pc
Quantity
lock Datasheet
NR2A-Fuse 000/80 aR 500VAC with ind. w/o lug 350A

NR2A-Fuse 000/80 aR 500VAC with ind. w/o lug 350A

Reference 736.827.54.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 350
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 21500
Total I2t value (A2s) 92500
Homologations IEC
Power loss (W) 80
Time costant L/R (ms) 2
Series name NR2A
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 800A

B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 800A

Reference 745.237.55.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 800
Voltage of total I2t test 1500
Format Screw fixing
Dimension 103x144mm
Pre-arcing I2t value (A2s) 272000
Total I2t value (A2s) 1452000
Homologations IEC
Power loss (W) 213
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 250000
Time costant L/R (ms) 3
Series name B500
Min breaking current (A) 9000
Product available on request Ask for more information
EV65.1000 - Fuse 1000VDC 22x65 fixing 87mm 60A

EV65.1000 - Fuse 1000VDC 22x65 fixing 87mm 60A

Reference 135.908.34.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 60
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 1220
Total I2t value (A2s) 4100
Homologations UL
Power loss (W) 12
Fuses dimension 22x65
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65.1000
Product available on request Ask for more information
EV65.1000 - Fuse 1000VDC 22x65 fixing 87mm 50A

EV65.1000 - Fuse 1000VDC 22x65 fixing 87mm 50A

Reference 144.436.69.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 50
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 685
Total I2t value (A2s) 2800
Homologations UL
Power loss (W) 11
Fuses dimension 22x65
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65.1000
Product available on request Ask for more information
EV65.1000 - Fuse 1000VDC 22x65 cylindrical 30A

EV65.1000 - Fuse 1000VDC 22x65 cylindrical 30A

Reference 247.896.25.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 30
Voltage of total I2t test 1000
Format Cylindrical
Pre-arcing I2t value (A2s) 230
Total I2t value (A2s) 910
Homologations UL
Power loss (W) 7
Fuses dimension 22x65
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65.1000
Product available on request Ask for more information
EV65.1000 - Fuse 1000VDC 22x65 fixing 87mm 80A

EV65.1000 - Fuse 1000VDC 22x65 fixing 87mm 80A

Reference 316.274.93.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 80
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 3000
Total I2t value (A2s) 8750
Homologations UL
Power loss (W) 14,9
Fuses dimension 22x65
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65.1000
Product available on request Ask for more information
EV65.1000 - Fuse 1000VDC 22x65 cylindrical 25A

EV65.1000 - Fuse 1000VDC 22x65 cylindrical 25A

Reference 449.320.75.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 25
Voltage of total I2t test 1000
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 130
Total I2t value (A2s) 650
Homologations UL
Power loss (W) 6,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65
Product available on request Ask for more information
EV65.1000 - Fuse 1000VDC 22x65 cylindrical 80A

EV65.1000 - Fuse 1000VDC 22x65 cylindrical 80A

Reference 587.419.17.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 80
Voltage of total I2t test 1000
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 3000
Total I2t value (A2s) 8750
Homologations UL
Power loss (W) 14,9
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65
Product available on request Ask for more information
EV65.1000 - Fuse 1000VDC 22x65 fixing 87mm 40A

EV65.1000 - Fuse 1000VDC 22x65 fixing 87mm 40A

Reference 624.134.80.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 40
Voltage of total I2t test 1000
Format Screw fixing
Dimension 22x65mm
Pre-arcing I2t value (A2s) 425
Total I2t value (A2s) 1750
Homologations UL
Power loss (W) 9
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65
Product available on request Ask for more information
EV65.1000 - Fuse 1000VDC 22x65 fixing 87mm 75A

EV65.1000 - Fuse 1000VDC 22x65 fixing 87mm 75A

Reference 680.838.47.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 75
Voltage of total I2t test 1000
Format Screw fixing
Dimension 22x65mm
Pre-arcing I2t value (A2s) 2480
Total I2t value (A2s) 7300
Homologations UL
Power loss (W) 13,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65
Product available on request Ask for more information
EV65.1000 - Fuse 1000VDC 22x65 cylindrical 60A

EV65.1000 - Fuse 1000VDC 22x65 cylindrical 60A

Reference 745.686.61.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 60
Voltage of total I2t test 1000
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 1220
Total I2t value (A2s) 4100
Homologations UL
Power loss (W) 12
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65
Product available on request Ask for more information
EV65.1000 - Fuse 1000VDC 22x65 cylindrical 70A

EV65.1000 - Fuse 1000VDC 22x65 cylindrical 70A

Reference 754.158.47.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 70
Voltage of total I2t test 1000
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 2010
Total I2t value (A2s) 6050
Homologations UL
Power loss (W) 13
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65
Product available on request Ask for more information
B400 - Fuse 1000V DC aBat DC 4xM10 1600A

B400 - Fuse 1000V DC aBat DC 4xM10 1600A

Reference 763.062.87.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1600
Voltage of total I2t test 1000
Format Screw fixing
Dimension 103x106,5mm
Pre-arcing I2t value (A2s) 955600
Total I2t value (A2s) 2870000
Homologations IEC
Power loss (W) 280
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B400
Product available on request Ask for more information
M100 - Fuse 1000V DC 10x38 15A

M100 - Fuse 1000V DC 10x38 15A

Reference 764.033.13.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 15
Format Cylindrical
Dimension 10,3x53,5mm
Homologations UL
Power loss (W) 3,05
Rated Voltage Un DC (V) 1000
Series name M100
Product available on request Ask for more information
NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 40A

NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 40A

Reference 764.389.01.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 40
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 230
Total I2t value (A2s) 840
Homologations IEC
Power loss (W) 7,2
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Product available on request Ask for more information
EV65.1000 - Fuse 1000VDC 22x65 fixing 87mm 30A

EV65.1000 - Fuse 1000VDC 22x65 fixing 87mm 30A

Reference 766.286.13.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 30
Voltage of total I2t test 1000
Format Screw fixing
Dimension 22x65mm
Pre-arcing I2t value (A2s) 230
Total I2t value (A2s) 910
Homologations UL
Power loss (W) 7
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 1000A

B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 1000A

Reference 771.687.08.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1000
Voltage of total I2t test 1500
Format Screw fixing
Dimension 103x144mm
Pre-arcing I2t value (A2s) 404000
Total I2t value (A2s) 2210000
Homologations IEC
Power loss (W) 260
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 250000
Time costant L/R (ms) 3
Series name B500
Min breaking current (A) 11000
Product available on request Ask for more information
NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 100A

NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 100A

Reference 773.800.56.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 100
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 1340
Total I2t value (A2s) 5000
Homologations IEC
Power loss (W) 19
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Product available on request Ask for more information
BPF3 - Fuse 1500VDC aBat M12 1250A

BPF3 - Fuse 1500VDC aBat M12 1250A

Reference 776.448.92.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1250
Voltage of total I2t test 1500
Format Screw fixing
Dimension 76x140mm
Pre-arcing I2t value (A2s) 678400
Total I2t value (A2s) 2375000
Homologations IEC
Power loss (W) 305
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF3
Min breaking current (A) 12500
Product available on request Ask for more information
EV65.1000 - Fuse 1000VDC 22x65 fixing 87mm 70A

EV65.1000 - Fuse 1000VDC 22x65 fixing 87mm 70A

Reference 784.537.01.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 70
Voltage of total I2t test 1000
Format Screw fixing
Dimension 22x65mm
Pre-arcing I2t value (A2s) 2010
Total I2t value (A2s) 6050
Homologations UL
Power loss (W) 13
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65
Product available on request Ask for more information
10TD - Fuse 10x38 400VAC aM/aR 32A

10TD - Fuse 10x38 400VAC aM/aR 32A

Reference 801.116.71.0.0 - Manufacturer FAULTRAP
Rated current In (A) 400
Rated Voltage Un AC (V) 32
Rated break.capacity I1 AC (A) 50000
Voltage of total I2t test 400
Format Cylindrical
Dimension 10x38mm
Pre-arcing I2t value (A2s) 2540
Total I2t value (A2s) 6110
Power loss (W) 0
Series name 10TD
Product available on request Ask for more information
B300 - Fuse 1000V DC aBat DC 2xM12 1500A

B300 - Fuse 1000V DC aBat DC 2xM12 1500A

Reference 810.052.92.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1500
Voltage of total I2t test 1000
Format Screw fixing
Dimension 89x106,5mm
Pre-arcing I2t value (A2s) 858600
Total I2t value (A2s) 2576000
Power loss (W) 285
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B300
Product available on request Ask for more information
EV65.1000 - Fuse 1000VDC 22x65 fixing 87mm 25A

EV65.1000 - Fuse 1000VDC 22x65 fixing 87mm 25A

Reference 811.498.79.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 25
Voltage of total I2t test 1000
Format Screw fixing
Dimension 22x65mm
Pre-arcing I2t value (A2s) 130
Total I2t value (A2s) 650
Homologations UL
Power loss (W) 6,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65
Product available on request Ask for more information
BPF3 - Fuse 1500VDC aBat M12 1100A

BPF3 - Fuse 1500VDC aBat M12 1100A

Reference 811.782.46.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1100
Voltage of total I2t test 1500
Format Screw fixing
Dimension 76x140mm
Pre-arcing I2t value (A2s) 452000
Total I2t value (A2s) 1582000
Homologations IEC
Power loss (W) 280
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF3
Min breaking current (A) 11000
Product available on request Ask for more information
10TD - Fuse 10x38 400VAC aM/aR 25A

10TD - Fuse 10x38 400VAC aM/aR 25A

Reference 828.304.38.0.0 - Manufacturer FAULTRAP
Rated current In (A) 25
Rated Voltage Un AC (V) 400
Rated break.capacity I1 AC (A) 50000
Voltage of total I2t test 400
Format Cylindrical
Dimension 10x38mm
Pre-arcing I2t value (A2s) 1320
Total I2t value (A2s) 3670
Power loss (W) 0
Series name 10TD
Product available on request Ask for more information
NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 315A

NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 315A

Reference 834.560.26.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 315
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 16450
Total I2t value (A2s) 60000
Homologations IEC
Power loss (W) 70
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Price List €15.74/pc
Quantity
lock Datasheet
B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 1250A

B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 1250A

Reference 841.376.18.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1250
Voltage of total I2t test 1500
Format Screw fixing
Dimension 103x144mm
Pre-arcing I2t value (A2s) 718000
Total I2t value (A2s) 3912000
Homologations IEC
Power loss (W) 300
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 250000
Time costant L/R (ms) 3
Series name B500
Min breaking current (A) 14000
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 630A

B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 630A

Reference 842.982.93.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 630
Voltage of total I2t test 1500
Format Screw fixing
Dimension 103x144mm
Pre-arcing I2t value (A2s) 145000
Total I2t value (A2s) 772800
Homologations IEC
Power loss (W) 170
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 250000
Time costant L/R (ms) 3
Series name B500
Min breaking current (A) 6900
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 2000A

B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 2000A

Reference 853.941.31.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 2000
Voltage of total I2t test 1500
Format Screw fixing
Dimension 103x144mm
Pre-arcing I2t value (A2s) 2798000
Total I2t value (A2s) 13650000
Homologations IEC
Power loss (W) 445
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 250000
Time costant L/R (ms) 3
Series name B500
Min breaking current (A) 25000
Product available on request Ask for more information
10TD - Fuse 10x38 500VAC aM/aR 16A

10TD - Fuse 10x38 500VAC aM/aR 16A

Reference 863.903.84.0.0 - Manufacturer FAULTRAP
Rated current In (A) 16
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 50000
Voltage of total I2t test 500
Format Cylindrical
Dimension 10x38mm
Pre-arcing I2t value (A2s) 560
Total I2t value (A2s) 2060
Power loss (W) 0
Series name 10TD
Product available on request Ask for more information
AB22 - Fuse 22x65 1000VDC aBat 40A

AB22 - Fuse 22x65 1000VDC aBat 40A

Reference 873.361.63.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 40
Rated Voltage Un AC (V) 1000
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 415
Total I2t value (A2s) 2300
Homologations IEC
Power loss (W) 8,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 10000
Series name AB22
Product available on request Ask for more information
EV65.1000 - Fuse 1000VDC 22x65 cylindrical 40A

EV65.1000 - Fuse 1000VDC 22x65 cylindrical 40A

Reference 893.574.49.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 40
Voltage of total I2t test 1000
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 425
Total I2t value (A2s) 1750
Homologations UL
Power loss (W) 9
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65
Product available on request Ask for more information
BPF3 - Fuse 1500VDC aBat M12 1000A

BPF3 - Fuse 1500VDC aBat M12 1000A

Reference 900.131.26.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1000
Voltage of total I2t test 1500
Format Screw fixing
Dimension 76x140mm
Pre-arcing I2t value (A2s) 342200
Total I2t value (A2s) 1197700
Homologations IEC
Power loss (W) 260
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF3
Min breaking current (A) 10000
Product available on request Ask for more information
DC22 - Fuse 1000VDC aBat 22x65mm 20A

DC22 - Fuse 1000VDC aBat 22x65mm 20A

Reference 903.248.36.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 20
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 48
Total I2t value (A2s) 220
Power loss (W) 4.4
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Series name DC22
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 750A

B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 750A

Reference 909.634.43.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 750
Voltage of total I2t test 1500
Format Screw fixing
Dimension 89x144mm
Pre-arcing I2t value (A2s) 228000
Total I2t value (A2s) 1264000
Homologations IEC
Power loss (W) 205
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Min breaking current (A) 8700
Series name B500
Product available on request Ask for more information
10TD - Fuse 10x38 500VAC aM/aR 10A

10TD - Fuse 10x38 500VAC aM/aR 10A

Reference 922.606.35.0.0 - Manufacturer FAULTRAP
Rated current In (A) 10
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 50000
Voltage of total I2t test 500
Format Cylindrical
Dimension 10x38mm
Pre-arcing I2t value (A2s) 305
Total I2t value (A2s) 900
Power loss (W) 0
Series name 10TD
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 700A

B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 700A

Reference 929.737.75.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 700
Voltage of total I2t test 1500
Format Screw fixing
Dimension 89x144mm
Pre-arcing I2t value (A2s) 208000
Total I2t value (A2s) 1169000
Homologations IEC
Power loss (W) 185
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Min breaking current (A) 8000
Series name B500
Product available on request Ask for more information
EV65.1000 - Fuse 1000VDC 22x65 cylindrical 75A

EV65.1000 - Fuse 1000VDC 22x65 cylindrical 75A

Reference 938.403.22.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 75
Voltage of total I2t test 1000
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 2480
Total I2t value (A2s) 7300
Homologations UL
Power loss (W) 13,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65
Product available on request Ask for more information
B300 - Fuse 1000V DC aBat DC 2xM12 1100A

B300 - Fuse 1000V DC aBat DC 2xM12 1100A

Reference 942.974.93.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1100
Voltage of total I2t test 1000
Format Screw fixing
Dimension 89x106,5mm
Pre-arcing I2t value (A2s) 373200
Total I2t value (A2s) 1120000
Power loss (W) 210
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B300
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 700A

B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 700A

Reference 946.887.63.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 700
Voltage of total I2t test 1500
Format Screw fixing
Dimension 89x144mm
Pre-arcing I2t value (A2s) 208000
Total I2t value (A2s) 1169000
Homologations IEC
Power loss (W) 185
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Min breaking current (A) 8000
Series name B100
Product available on request Ask for more information
EV65.1000 - Fuse 1000VDC 22x65 cylindrical 50A

EV65.1000 - Fuse 1000VDC 22x65 cylindrical 50A

Reference 968.836.79.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 50
Voltage of total I2t test 1000
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 685
Total I2t value (A2s) 2800
Homologations UL
Power loss (W) 11
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65
Product available on request Ask for more information
AB22 - Fuse 22x65 1000VDC aBat 40A

AB22 - Fuse 22x65 1000VDC aBat 40A

Reference 972.091.49.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 60
Rated Voltage Un AC (V) 1000
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 1270
Total I2t value (A2s) 7000
Homologations IEC
Power loss (W) 0
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 10000
Series name AB22
Product available on request Ask for more information
NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 50A

NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 50A

Reference 974.055.30.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 330
Total I2t value (A2s) 1200
Homologations IEC
Power loss (W) 9
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Product available on request Ask for more information
B300 - Fuse 1000V DC aBat DC 2xM12 1400A

B300 - Fuse 1000V DC aBat DC 2xM12 1400A

Reference 979.833.74.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1400
Voltage of total I2t test 1000
Format Screw fixing
Dimension 89x106,5mm
Pre-arcing I2t value (A2s) 731600
Total I2t value (A2s) 2195000
Power loss (W) 262
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B300
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 1500A

B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 1500A

Reference 980.290.26.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1500
Voltage of total I2t test 1500
Format Screw fixing
Dimension 89x144mm
Pre-arcing I2t value (A2s) 1156000
Total I2t value (A2s) 6270000
Homologations IEC
Power loss (W) 350
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Min breaking current (A) 17000
Series name B500
Product available on request Ask for more information
AB22 - Fuse 22x65 1000VDC aBat 40A

AB22 - Fuse 22x65 1000VDC aBat 40A

Reference 993.797.75.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 80
Rated Voltage Un AC (V) 1000
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 3030
Total I2t value (A2s) 16600
Homologations IEC
Power loss (W) 3
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 10000
Series name AB22
Product available on request Ask for more information
B025 - Fuse 1000VDC aBat 80A - 100,3mm - Silver Plated

B025 - Fuse 1000VDC aBat 80A - 100,3mm - Silver Plated

Reference 118.783.40.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 80
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 1300
Total I2t value (A2s) 2900
Power loss (W) 12,5
Fuses dimension 38,10x72,20
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B025
Min breaking current (A) 640
Product available on request Ask for more information
T500 - Fuse 500VDC aBat d:38mm axial 80mm 350A

T500 - Fuse 500VDC aBat d:38mm axial 80mm 350A

Reference 121.209.35.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 350
Voltage of total I2t test 500
Format Screw fixing
Pre-arcing I2t value (A2s) 33600
Total I2t value (A2s) 50000
Power loss (W) 40
Fuses dimension 38x80
Rated Voltage Un DC (V) 500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name T500
Product available on request Ask for more information
T500 - Fuse 500VDC aBat d:38mm axial 80mm 300A

T500 - Fuse 500VDC aBat d:38mm axial 80mm 300A

Reference 124.111.98.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 300
Voltage of total I2t test 500
Format Screw fixing
Pre-arcing I2t value (A2s) 23300
Total I2t value (A2s) 34500
Power loss (W) 31
Fuses dimension 38x80
Rated Voltage Un DC (V) 500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name T500
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 750A - 132,7mm - Silver Plated

B100 - Fuse 1000VDC aBat 750A - 132,7mm - Silver Plated

Reference 157.565.30.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 750
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 166000
Total I2t value (A2s) 500000
Power loss (W) 140
Fuses dimension 63,5x167
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 7500
Product available on request Ask for more information
B025 - Fuse 1000VDC aBat 125A - 100,3mm - Silver Plated

B025 - Fuse 1000VDC aBat 125A - 100,3mm - Silver Plated

Reference 157.806.86.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 125
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 3500
Total I2t value (A2s) 8000
Power loss (W) 19
Fuses dimension 38,10x72,20
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B025
Min breaking current (A) 1000
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 750A - 2xM12 - Silver Plated

B100 - Fuse 1000VDC aBat 750A - 2xM12 - Silver Plated

Reference 168.384.52.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 750
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 166000
Total I2t value (A2s) 500000
Power loss (W) 140
Fuses dimension 63,5x106,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 7500
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 1000A - 132,7mm - Silver Plated

B100 - Fuse 1000VDC aBat 1000A - 132,7mm - Silver Plated

Reference 202.728.65.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1000
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 373500
Total I2t value (A2s) 1095000
Power loss (W) 175
Fuses dimension 63,5x167
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 10000
Product available on request Ask for more information
T500 - Fuse 500VDC aBat d:38mm axial 80mm 200A

T500 - Fuse 500VDC aBat d:38mm axial 80mm 200A

Reference 224.219.21.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 200
Voltage of total I2t test 500
Format Screw fixing
Pre-arcing I2t value (A2s) 10400
Total I2t value (A2s) 15500
Power loss (W) 19
Fuses dimension 38x80
Rated Voltage Un DC (V) 500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name T500
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 700A - 152,7mm - Silver Plated

B100 - Fuse 1000VDC aBat 700A - 152,7mm - Silver Plated

Reference 224.928.92.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 700
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 143600
Total I2t value (A2s) 431000
Power loss (W) 128
Fuses dimension 63,5x130,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 7000
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 1000A - 152,7mm - Silver Plated

B100 - Fuse 1000VDC aBat 1000A - 152,7mm - Silver Plated

Reference 225.952.24.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1000
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 373500
Total I2t value (A2s) 1095000
Power loss (W) 175
Fuses dimension 63,5x130,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 10000
Product available on request Ask for more information
B025 - Fuse 1000VDC aBat 200A - 100,3mm - Silver Plated

B025 - Fuse 1000VDC aBat 200A - 100,3mm - Silver Plated

Reference 290.646.80.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 200
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 10400
Total I2t value (A2s) 23000
Power loss (W) 30
Fuses dimension 38,10x72,20
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B025
Min breaking current (A) 1600
Product available on request Ask for more information
T500 - Fuse 500VDC aBat d:38mm axial 80mm 125A

T500 - Fuse 500VDC aBat d:38mm axial 80mm 125A

Reference 297.366.16.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 125
Voltage of total I2t test 500
Format Screw fixing
Pre-arcing I2t value (A2s) 3500
Total I2t value (A2s) 5300
Power loss (W) 12
Fuses dimension 38x80
Rated Voltage Un DC (V) 500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name T500
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 800A - 132,7mm - Silver Plated

B100 - Fuse 1000VDC aBat 800A - 132,7mm - Silver Plated

Reference 331.431.55.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 800
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 185000
Total I2t value (A2s) 185000
Power loss (W) 150
Fuses dimension 63,5x167
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 8000
Product available on request Ask for more information
NRAB - Fuse 690V AC aR NH00 with indicator 80A

NRAB - Fuse 690V AC aR NH00 with indicator 80A

Reference 341.251.07.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 80
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 770
Format NH knife contact
Dimension NH00
Pre-arcing I2t value (A2s) 750
Total I2t value (A2s) 3600
Homologations IEC
Power loss (W) 17
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NRAB
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 800A - 2xM12 - Silver Plated

B100 - Fuse 1000VDC aBat 800A - 2xM12 - Silver Plated

Reference 354.675.90.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 800
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 185000
Total I2t value (A2s) 550000
Power loss (W) 150
Fuses dimension 63,5x106,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 8000
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 800A - 152,7mm - Silver Plated

B100 - Fuse 1000VDC aBat 800A - 152,7mm - Silver Plated

Reference 365.771.61.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 800
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 185000
Total I2t value (A2s) 550000
Power loss (W) 150
Fuses dimension 63,5x130,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 8000
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 900A - 132,7mm - Silver Plated

B100 - Fuse 1000VDC aBat 900A - 132,7mm - Silver Plated

Reference 374.004.92.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 900
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 267000
Total I2t value (A2s) 813000
Power loss (W) 170
Fuses dimension 63,5x167
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 9000
Product available on request Ask for more information
NRAB - Fuse 690V AC aR NH00 with indicator 40A

NRAB - Fuse 690V AC aR NH00 with indicator 40A

Reference 383.177.16.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 40
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 770
Format NH knife contact
Dimension NH00
Pre-arcing I2t value (A2s) 230
Total I2t value (A2s) 1100
Homologations IEC
Power loss (W) 7,2
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NRAB
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat double body 1600A - Silver Plated

B100 - Fuse 1000VDC aBat double body 1600A - Silver Plated

Reference 407.568.47.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1600
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 740000
Total I2t value (A2s) 2200000
Power loss (W) 315
Fuses dimension 63,5x130,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 16000
Product available on request Ask for more information
T500 - Fuse 500VDC aBat d:38mm axial 80mm 63A

T500 - Fuse 500VDC aBat d:38mm axial 80mm 63A

Reference 438.828.81.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 63
Voltage of total I2t test 500
Format Screw fixing
Dimension 38x80mm
Pre-arcing I2t value (A2s) 740
Total I2t value (A2s) 1150
Power loss (W) 6
Rated Voltage Un DC (V) 500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name T500
Product available on request Ask for more information
NRAB - Fuse 690V AC aR NH00 with indicator 63A

NRAB - Fuse 690V AC aR NH00 with indicator 63A

Reference 444.949.61.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 63
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 770
Format NH knife contact
Dimension NH00
Pre-arcing I2t value (A2s) 520
Total I2t value (A2s) 2500
Homologations IEC
Power loss (W) 9,5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NRAB
Product available on request Ask for more information
T500 - Fuse 500VDC aBat d:38mm axial 80mm 80A

T500 - Fuse 500VDC aBat d:38mm axial 80mm 80A

Reference 449.701.36.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 80
Voltage of total I2t test 500
Format Screw fixing
Dimension 38x80mm
Pre-arcing I2t value (A2s) 1300
Total I2t value (A2s) 2000
Power loss (W) 7,5
Rated Voltage Un DC (V) 500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name T500
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 900A - 152,7mm - Silver Plated

B100 - Fuse 1000VDC aBat 900A - 152,7mm - Silver Plated

Reference 456.383.65.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 900
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x203,2mm
Pre-arcing I2t value (A2s) 267000
Total I2t value (A2s) 813000
Power loss (W) 170
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 9000
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 750A - 152,7mm - Silver Plated

B100 - Fuse 1000VDC aBat 750A - 152,7mm - Silver Plated

Reference 456.954.32.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 750
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x130,5mm
Pre-arcing I2t value (A2s) 166000
Total I2t value (A2s) 500000
Power loss (W) 140
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 7500
Product available on request Ask for more information
NRAB - Fuse 690V AC aR NH00 with indicator 25A

NRAB - Fuse 690V AC aR NH00 with indicator 25A

Reference 458.370.74.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 25
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 770
Format NH knife contact
Dimension NH00
Pre-arcing I2t value (A2s) 55
Total I2t value (A2s) 265
Homologations IEC
Power loss (W) 4,6
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NRAB
Product available on request Ask for more information
B025 - Fuse 1000VDC aBat 300A - 100,3mm - Silver Plated

B025 - Fuse 1000VDC aBat 300A - 100,3mm - Silver Plated

Reference 460.577.02.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 300
Voltage of total I2t test 1000
Format Screw fixing
Dimension 38,10x72,20mm
Pre-arcing I2t value (A2s) 23300
Total I2t value (A2s) 51000
Power loss (W) 47
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B025
Min breaking current (A) 2400
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat double body 1500A - Silver Plated

B100 - Fuse 1000VDC aBat double body 1500A - Silver Plated

Reference 484.188.72.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1500
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x130,5mm
Pre-arcing I2t value (A2s) 664000
Total I2t value (A2s) 2000000
Power loss (W) 294
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 15000
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 600A - 132,7mm - Silver Plated

B100 - Fuse 1000VDC aBat 600A - 132,7mm - Silver Plated

Reference 501.997.14.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 600
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x167mm
Pre-arcing I2t value (A2s) 93300
Total I2t value (A2s) 281000
Power loss (W) 115
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 6000
Product available on request Ask for more information
S276 - Fuse 27x60mm 500VAC gS PCB 100A

S276 - Fuse 27x60mm 500VAC gS PCB 100A

Reference 514.799.27.0.0 - Manufacturer FAULTRAP
Rated current In (A) 100
Rated Voltage Un AC (V) 500
Voltage of total I2t test 550
Format Cylindrical
Dimension 27x60mm
Pre-arcing I2t value (A2s) 3750
Total I2t value (A2s) 19900
Power loss (W) 11
Rated break.capacity I1 DC (A) 100000
Series name S276
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat double body 1800A - Silver Plated

B100 - Fuse 1000VDC aBat double body 1800A - Silver Plated

Reference 525.258.81.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1800
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x130,5mm
Pre-arcing I2t value (A2s) 1068000
Total I2t value (A2s) 3252000
Power loss (W) 357
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 18000
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 1100A - 2xM12 - Silver Plated

B100 - Fuse 1000VDC aBat 1100A - 2xM12 - Silver Plated

Reference 535.280.03.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1100
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x106,5mm
Pre-arcing I2t value (A2s) 508000
Total I2t value (A2s) 1620000
Power loss (W) 180
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 11000
Product available on request Ask for more information
T500 - Fuse 500VDC aBat d:38mm axial 80mm 400A

T500 - Fuse 500VDC aBat d:38mm axial 80mm 400A

Reference 537.194.16.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 400
Voltage of total I2t test 500
Format Screw fixing
Dimension 38x80mm
Pre-arcing I2t value (A2s) 45750
Total I2t value (A2s) 68000
Power loss (W) 50
Rated Voltage Un DC (V) 500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name T500
Product available on request Ask for more information
NR2A - Fuse DIN000 80mm aR 500VAC with ind. lug 400A

NR2A - Fuse DIN000 80mm aR 500VAC with ind. lug 400A

Reference 550.216.44.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 400
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 500
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 33600
Total I2t value (A2s) 145000
Homologations IEC
Power loss (W) 93.5
Time costant L/R (ms) 2
Series name NR2A
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat double body 1250A - Silver Plated

B100 - Fuse 1000VDC aBat double body 1250A - Silver Plated

Reference 553.360.42.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1250
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x130,5mm
Pre-arcing I2t value (A2s) 432000
Total I2t value (A2s) 1296000
Power loss (W) 252
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 12600
Product available on request Ask for more information
B025 - Fuse 1000VDC aBat 100A - 100,3mm - Silver Plated

B025 - Fuse 1000VDC aBat 100A - 100,3mm - Silver Plated

Reference 556.611.90.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 100
Voltage of total I2t test 1000
Format Screw fixing
Dimension 38,10x72,20mm
Pre-arcing I2t value (A2s) 2100
Total I2t value (A2s) 4700
Power loss (W) 15,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B025
Min breaking current (A) 800
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 1100A - 152,7mm - Silver Plated

B100 - Fuse 1000VDC aBat 1100A - 152,7mm - Silver Plated

Reference 566.054.78.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1100
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x203,2mm
Pre-arcing I2t value (A2s) 508000
Total I2t value (A2s) 1620000
Power loss (W) 180
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 11000
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 1000A - 2xM12 - Silver Plated

B100 - Fuse 1000VDC aBat 1000A - 2xM12 - Silver Plated

Reference 572.424.17.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1000
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x106,5mm
Pre-arcing I2t value (A2s) 373500
Total I2t value (A2s) 1095000
Power loss (W) 175
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 10000
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 600A - 2xM12 - Silver Plated

B100 - Fuse 1000VDC aBat 600A - 2xM12 - Silver Plated

Reference 589.230.62.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 600
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x106,5mm
Pre-arcing I2t value (A2s) 93300
Total I2t value (A2s) 281000
Power loss (W) 115
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 6000
Product available on request Ask for more information
NRAB - Fuse 690V AC aR NH00 with indicator 160A

NRAB - Fuse 690V AC aR NH00 with indicator 160A

Reference 604.113.40.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 160
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 770
Format NH knife contact
Dimension NH00
Pre-arcing I2t value (A2s) 3020
Total I2t value (A2s) 14700
Homologations IEC
Power loss (W) 37,5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NRAB
Product available on request Ask for more information
NRAB - Fuse 690V AC aR NH00 with indicator 100A

NRAB - Fuse 690V AC aR NH00 with indicator 100A

Reference 610.941.98.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 100
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 770
Format NH knife contact
Dimension NH00
Pre-arcing I2t value (A2s) 1340
Total I2t value (A2s) 6500
Homologations IEC
Power loss (W) 19
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NRAB
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 600A - 152,7mm - Silver Plated

B100 - Fuse 1000VDC aBat 600A - 152,7mm - Silver Plated

Reference 611.956.12.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 600
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x203,2mm
Pre-arcing I2t value (A2s) 93300
Total I2t value (A2s) 281000
Power loss (W) 115
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 6000
Product available on request Ask for more information
C300 - Fuse 660VAC aR M12 1250A

C300 - Fuse 660VAC aR M12 1250A

Reference 613.574.19.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 1250
Rated Voltage Un AC (V) 660
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 660
Format Screw fixing
Dimension SQB3 screw M12
Pre-arcing I2t value (A2s) 275000
Total I2t value (A2s) 1650000
Homologations IEC
Power loss (W) 153
Series name C300
Product available on request Ask for more information
NR2A-Fuse 000/80 aR 500VAC with ind. w/o lug 400A

NR2A-Fuse 000/80 aR 500VAC with ind. w/o lug 400A

Reference 613.917.51.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 400
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 500
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 33600
Total I2t value (A2s) 145000
Homologations IEC
Power loss (W) 93.5
Time costant L/R (ms) 2
Series name NR2A
Price List €16.47/pc
Quantity
NRAB - Fuse 690V AC aR NH00 with indicator 250A

NRAB - Fuse 690V AC aR NH00 with indicator 250A

Reference 633.071.01.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 250
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 770
Format NH knife contact
Dimension NH00
Pre-arcing I2t value (A2s) 10150
Total I2t value (A2s) 49500
Homologations IEC
Power loss (W) 57
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NRAB
Product available on request Ask for more information
C300 - Fuse 660VAC aR M12 1400A

C300 - Fuse 660VAC aR M12 1400A

Reference 644.795.05.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 1400
Rated Voltage Un AC (V) 660
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 660
Format Screw fixing
Dimension SQB3 screw M12
Pre-arcing I2t value (A2s) 375000
Total I2t value (A2s) 2140000
Homologations IEC
Power loss (W) 168
Series name C300
Product available on request Ask for more information
S276 - Fuse 27x60mm 500VAC gS PCB 160A

S276 - Fuse 27x60mm 500VAC gS PCB 160A

Reference 646.629.30.0.0 - Manufacturer FAULTRAP
Rated current In (A) 160
Rated Voltage Un AC (V) 500
Voltage of total I2t test 550
Format Cylindrical
Dimension 27x60mm
Pre-arcing I2t value (A2s) 18500
Total I2t value (A2s) 100000
Homologations IEC
Power loss (W) 13
Rated break.capacity I1 DC (A) 100000
Series name S276
Product available on request Ask for more information
T500 - Fuse 500VDC aBat d:38mm axial 80mm 100A

T500 - Fuse 500VDC aBat d:38mm axial 80mm 100A

Reference 658.741.73.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 100
Voltage of total I2t test 500
Format Screw fixing
Dimension 38x80mm
Pre-arcing I2t value (A2s) 2100
Total I2t value (A2s) 3200
Power loss (W) 9,5
Rated Voltage Un DC (V) 500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name T500
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 630A - 132,7mm - Silver Plated

B100 - Fuse 1000VDC aBat 630A - 132,7mm - Silver Plated

Reference 679.983.97.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 630
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x167mm
Pre-arcing I2t value (A2s) 108000
Total I2t value (A2s) 324000
Power loss (W) 120
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 6300
Product available on request Ask for more information
S276 - Fuse 27x60mm 500VAC gS PCB 125A

S276 - Fuse 27x60mm 500VAC gS PCB 125A

Reference 727.422.00.0.0 - Manufacturer FAULTRAP
Rated current In (A) 125
Rated Voltage Un AC (V) 500
Voltage of total I2t test 550
Format Cylindrical
Dimension 27x60mm
Pre-arcing I2t value (A2s) 10400
Total I2t value (A2s) 55000
Power loss (W) 10
Rated break.capacity I1 DC (A) 100000
Series name S276
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat double body 2000A - Silver Plated

B100 - Fuse 1000VDC aBat double body 2000A - Silver Plated

Reference 735.676.55.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 2000
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x130,5mm
Pre-arcing I2t value (A2s) 1494000
Total I2t value (A2s) 4380000
Power loss (W) 368
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 20000
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 1100A - 132,7mm - Silver Plated

B100 - Fuse 1000VDC aBat 1100A - 132,7mm - Silver Plated

Reference 757.962.17.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1100
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x167mm
Pre-arcing I2t value (A2s) 508000
Total I2t value (A2s) 1620000
Power loss (W) 180
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 11000
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat double body 1400A - Silver Plated

B100 - Fuse 1000VDC aBat double body 1400A - Silver Plated

Reference 763.542.13.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1400
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x130,5mm
Pre-arcing I2t value (A2s) 574400
Total I2t value (A2s) 1724000
Power loss (W) 269
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 14000
Product available on request Ask for more information
B025 - Fuse 1000VDC aBat 63A - 100,3mm - Silver Plated

B025 - Fuse 1000VDC aBat 63A - 100,3mm - Silver Plated

Reference 787.177.81.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 63
Voltage of total I2t test 1000
Format Screw fixing
Dimension 38,10x72,20mm
Pre-arcing I2t value (A2s) 740
Total I2t value (A2s) 1700
Power loss (W) 10
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B025
Min breaking current (A) 504
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 630A - 152,7mm - Silver Plated

B100 - Fuse 1000VDC aBat 630A - 152,7mm - Silver Plated

Reference 812.809.96.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 630
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x203,2mm
Pre-arcing I2t value (A2s) 108000
Total I2t value (A2s) 324000
Power loss (W) 120
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 6300
Product available on request Ask for more information
NRAB - Fuse 690V AC aR NH00 with indicator 200A

NRAB - Fuse 690V AC aR NH00 with indicator 200A

Reference 813.675.13.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 200
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 770
Format NH knife contact
Dimension NH00
Pre-arcing I2t value (A2s) 5370
Total I2t value (A2s) 26200
Homologations IEC
Power loss (W) 48,5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NRAB
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 630A - 2xM12 - Silver Plated

B100 - Fuse 1000VDC aBat 630A - 2xM12 - Silver Plated

Reference 829.815.86.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 630
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x106,5mm
Pre-arcing I2t value (A2s) 108000
Total I2t value (A2s) 324000
Power loss (W) 120
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 6300
Product available on request Ask for more information
NRAB - Fuse 690V AC aR NH00 with indicator 125A

NRAB - Fuse 690V AC aR NH00 with indicator 125A

Reference 846.037.33.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 125
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 770
Format NH knife contact
Dimension NH00
Pre-arcing I2t value (A2s) 2100
Total I2t value (A2s) 10200
Homologations IEC
Power loss (W) 27,5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NRAB
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 700A - 132,7mm - Silver Plated

B100 - Fuse 1000VDC aBat 700A - 132,7mm - Silver Plated

Reference 848.406.90.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 700
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x167mm
Pre-arcing I2t value (A2s) 143600
Total I2t value (A2s) 431000
Power loss (W) 128
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 7000
Product available on request Ask for more information
B025 - Fuse 1000VDC aBat 160A - 100,3mm - Silver Plated

B025 - Fuse 1000VDC aBat 160A - 100,3mm - Silver Plated

Reference 876.179.40.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 160
Voltage of total I2t test 1000
Format Screw fixing
Dimension 38,10x72,20mm
Pre-arcing I2t value (A2s) 5400
Total I2t value (A2s) 12000
Power loss (W) 25,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B025
Min breaking current (A) 1280
Product available on request Ask for more information
T500 - Fuse 500VDC aBat d:38mm axial 80mm 250A

T500 - Fuse 500VDC aBat d:38mm axial 80mm 250A

Reference 886.506.55.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 250
Voltage of total I2t test 500
Format Screw fixing
Dimension 38x80mm
Pre-arcing I2t value (A2s) 15500
Total I2t value (A2s) 23000
Power loss (W) 25
Rated Voltage Un DC (V) 500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name T500
Product available on request Ask for more information
NRAB - Fuse 690V AC aR NH00 with indicator 180A

NRAB - Fuse 690V AC aR NH00 with indicator 180A

Reference 893.247.32.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 180
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 770
Format NH knife contact
Dimension NH00
Pre-arcing I2t value (A2s) 4120
Total I2t value (A2s) 20100
Homologations IEC
Power loss (W) 42,5
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NRAB
Product available on request Ask for more information
NRAB - Fuse 690V AC aR NH00 with indicator 315A

NRAB - Fuse 690V AC aR NH00 with indicator 315A

Reference 921.181.61.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 315
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 770
Format NH knife contact
Dimension NH00
Pre-arcing I2t value (A2s) 16450
Total I2t value (A2s) 80300
Power loss (W) 70
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NRAB
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 900A - 2xM12 - Silver Plated

B100 - Fuse 1000VDC aBat 900A - 2xM12 - Silver Plated

Reference 934.823.06.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 900
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x106,5mm
Pre-arcing I2t value (A2s) 267000
Total I2t value (A2s) 813000
Power loss (W) 170
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Min breaking current (A) 9000
Series name B100
Product available on request Ask for more information
NRAB - Fuse 690V AC aR NH00 with indicator 32A

NRAB - Fuse 690V AC aR NH00 with indicator 32A

Reference 974.010.13.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 770
Format NH knife contact
Dimension NH00
Pre-arcing I2t value (A2s) 80
Total I2t value (A2s) 390
Power loss (W) 7
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NRAB
Product available on request Ask for more information
NRAB - Fuse 690V AC aR NH00 with indicator 50A

NRAB - Fuse 690V AC aR NH00 with indicator 50A

Reference 977.886.78.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 770
Format NH knife contact
Dimension NH00
Pre-arcing I2t value (A2s) 330
Total I2t value (A2s) 1600
Power loss (W) 9
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NRAB
Product available on request Ask for more information
C300 - Fuse 660VAC aR M12 1100A

C300 - Fuse 660VAC aR M12 1100A

Reference 980.066.34.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 1100
Rated Voltage Un AC (V) 660
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 726
Format Screw fixing
Dimension SQB3 screw M12
Pre-arcing I2t value (A2s) 200800
Total I2t value (A2s) 1150000
Homologations IEC
Power loss (W) 136
Series name C300
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 700A - 2xM12 - Silver Plated

B100 - Fuse 1000VDC aBat 700A - 2xM12 - Silver Plated

Reference 984.935.68.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 700
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x106,5mm
Pre-arcing I2t value (A2s) 143600
Total I2t value (A2s) 431000
Power loss (W) 128
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Min breaking current (A) 7000
Series name B100
Product available on request Ask for more information
T500 - Fuse 500VDC aBat d:38mm axial 80mm 160A

T500 - Fuse 500VDC aBat d:38mm axial 80mm 160A

Reference 988.896.44.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 160
Voltage of total I2t test 500
Format Screw fixing
Dimension 38x80mm
Pre-arcing I2t value (A2s) 5400
Total I2t value (A2s) 8100
Homologations IEC
Power loss (W) 16
Rated Voltage Un DC (V) 500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name T500
Product available on request Ask for more information
NR2A - Fuse DIN000 80mm aR 500VAC no ind 400A

NR2A - Fuse DIN000 80mm aR 500VAC no ind 400A

Reference 995.090.15.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 400
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 500
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 33600
Total I2t value (A2s) 145000
Homologations IEC
Power loss (W) 93.5
Time costant L/R (ms) 2
Series name NR2A
Product available on request Ask for more information
B025 - Fuse 1000VDC aBat 250A - 100,3mm - Silver Plated

B025 - Fuse 1000VDC aBat 250A - 100,3mm - Silver Plated

Reference 997.607.45.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 250
Voltage of total I2t test 1000
Format Screw fixing
Dimension 38,10x72,20mm
Pre-arcing I2t value (A2s) 15500
Total I2t value (A2s) 34000
Power loss (W) 39
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Min breaking current (A) 2000
Series name B025
Product available on request Ask for more information
C300 - Fuse 660VAC aR M12 1000A

C300 - Fuse 660VAC aR M12 1000A

Reference 998.554.76.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 1000
Rated Voltage Un AC (V) 660
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 726
Format Screw fixing
Dimension SQB3 screw M12
Pre-arcing I2t value (A2s) 140000
Total I2t value (A2s) 840000
Homologations IEC
Power loss (W) 132
Series name C300
Product available on request Ask for more information
BPF1 - Fuse 1500VDC aBat d:50mm axial 168mm 630A

BPF1 - Fuse 1500VDC aBat d:50mm axial 168mm 630A

Reference 135.742.09.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 630
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 242250
Total I2t value (A2s) 8479000
Homologations IEC
Power loss (W) 105
Fuses dimension 50x168
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF1
Product available on request Ask for more information
BPF3 - Fuse 1500VDC aBat d:76mm axial 171mm 1250A

BPF3 - Fuse 1500VDC aBat d:76mm axial 171mm 1250A

Reference 194.159.80.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1250
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 1150000
Total I2t value (A2s) 6555000
Homologations IEC
Power loss (W) 250
Fuses dimension 76x171
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF3
Product available on request Ask for more information
BPF1 - Fuse 1500VDC aBat d:50mm axial 168mm 450A

BPF1 - Fuse 1500VDC aBat d:50mm axial 168mm 450A

Reference 195.587.43.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 450
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 110650
Total I2t value (A2s) 387300
Homologations IEC
Power loss (W) 74,5
Fuses dimension 50x168
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF1
Product available on request Ask for more information
BPF3 - Fuse 1500VDC aBat d:76mm axial 171mm 1000A

BPF3 - Fuse 1500VDC aBat d:76mm axial 171mm 1000A

Reference 203.035.01.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1000
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 590000
Total I2t value (A2s) 3365000
Homologations IEC
Power loss (W) 230
Fuses dimension 76x171
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF3
Product available on request Ask for more information
BPF3 - Fuse 1500VDC aBat d:76mm axial 171mm 750A

BPF3 - Fuse 1500VDC aBat d:76mm axial 171mm 750A

Reference 215.557.23.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 750
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 260000
Total I2t value (A2s) 1485000
Homologations IEC
Power loss (W) 180
Fuses dimension 76x171
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF3
Product available on request Ask for more information
BPF1 - Fuse 1500VDC aBat d:50mm M8 630A

BPF1 - Fuse 1500VDC aBat d:50mm M8 630A

Reference 219.625.98.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 630
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 242250
Total I2t value (A2s) 847900
Homologations IEC
Power loss (W) 105
Fuses dimension 50x168
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF1
Product available on request Ask for more information
BPF1 - Fuse 1500VDC aBat d:50mm M8 500A

BPF1 - Fuse 1500VDC aBat d:50mm M8 500A

Reference 253.583.66.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 500
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 134400
Total I2t value (A2s) 470400
Homologations IEC
Power loss (W) 87
Fuses dimension 50x168
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF1
Product available on request Ask for more information
BPF3 - Fuse 1500VDC aBat d:76mm axial 171mm 1100A

BPF3 - Fuse 1500VDC aBat d:76mm axial 171mm 1100A

Reference 270.898.07.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1100
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 790000
Total I2t value (A2s) 4505000
Homologations IEC
Power loss (W) 245
Fuses dimension 76x171
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF3
Product available on request Ask for more information
BPF1 - Fuse 1500VDC aBat d:50mm M8 250A

BPF1 - Fuse 1500VDC aBat d:50mm M8 250A

Reference 338.784.83.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 250
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 22300
Total I2t value (A2s) 78050
Homologations IEC
Power loss (W) 47,5
Fuses dimension 50x168
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF1
Product available on request Ask for more information
BPF1 - Fuse 1500VDC aBat d:50mm M8 350A

BPF1 - Fuse 1500VDC aBat d:50mm M8 350A

Reference 369.817.45.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 350
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 50200
Total I2t value (A2s) 175700
Homologations IEC
Power loss (W) 64
Fuses dimension 50x168
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF1
Product available on request Ask for more information
BPF1 - Fuse 1500VDC aBat d:50mm M8 450A

BPF1 - Fuse 1500VDC aBat d:50mm M8 450A

Reference 370.113.25.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 450
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 110650
Total I2t value (A2s) 387300
Homologations IEC
Power loss (W) 74,5
Fuses dimension 50x168
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF1
Product available on request Ask for more information
BPF1 - Fuse 1500VDC aBat d:50mm axial 168mm 500A

BPF1 - Fuse 1500VDC aBat d:50mm axial 168mm 500A

Reference 374.951.63.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 500
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 134400
Total I2t value (A2s) 470400
Homologations IEC
Power loss (W) 87
Fuses dimension 50x168
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF1
Product available on request Ask for more information
BPF3 - Fuse 1500VDC aBat d:76mm axial 171mm 700A

BPF3 - Fuse 1500VDC aBat d:76mm axial 171mm 700A

Reference 380.116.54.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 700
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 215000
Total I2t value (A2s) 1225500
Homologations IEC
Power loss (W) 170
Fuses dimension 76x171
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF3
Product available on request Ask for more information
BPF1 - Fuse 1500VDC aBat d:50mm axial 168mm 350A

BPF1 - Fuse 1500VDC aBat d:50mm axial 168mm 350A

Reference 504.960.60.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 350
Voltage of total I2t test 1500
Format Screw fixing
Dimension 50x168mm
Pre-arcing I2t value (A2s) 50200
Total I2t value (A2s) 175700
Homologations IEC
Power loss (W) 64
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF1
Product available on request Ask for more information
BPF3 - Fuse 1500VDC aBat d:76mm axial 171mm 800A

BPF3 - Fuse 1500VDC aBat d:76mm axial 171mm 800A

Reference 571.524.50.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 800
Voltage of total I2t test 1500
Format Screw fixing
Dimension 76x171mm
Pre-arcing I2t value (A2s) 183000
Total I2t value (A2s) 640500
Homologations IEC
Power loss (W) 220
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF3
Product available on request Ask for more information
BPF3 - Fuse 1500VDC aBat M12 750A

BPF3 - Fuse 1500VDC aBat M12 750A

Reference 629.830.04.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 750
Voltage of total I2t test 1500
Format Screw fixing
Dimension 76x140mm
Pre-arcing I2t value (A2s) 157700
Total I2t value (A2s) 552000
Homologations IEC
Power loss (W) 205
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF3
Product available on request Ask for more information
BPF1 - Fuse 1500VDC aBat d:50mm axial 168mm 250A

BPF1 - Fuse 1500VDC aBat d:50mm axial 168mm 250A

Reference 664.460.52.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 250
Voltage of total I2t test 1500
Format Screw fixing
Dimension 50x168mm
Pre-arcing I2t value (A2s) 22300
Total I2t value (A2s) 78050
Homologations IEC
Power loss (W) 47,5
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF1
Product available on request Ask for more information
BPF1 - Fuse 1500VDC aBat d:50mm axial 168mm 400A

BPF1 - Fuse 1500VDC aBat d:50mm axial 168mm 400A

Reference 721.754.28.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 400
Voltage of total I2t test 1500
Format Screw fixing
Dimension 50x168mm
Pre-arcing I2t value (A2s) 73750
Total I2t value (A2s) 258150
Homologations IEC
Power loss (W) 70,5
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF1
Product available on request Ask for more information
BPF3 - Fuse 1500VDC aBat d:76mm axial 171mm 900A

BPF3 - Fuse 1500VDC aBat d:76mm axial 171mm 900A

Reference 755.769.25.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 900
Voltage of total I2t test 1500
Format Screw fixing
Dimension 76x171mm
Pre-arcing I2t value (A2s) 254000
Total I2t value (A2s) 889000
Homologations IEC
Power loss (W) 240
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF3
Product available on request Ask for more information
BPF1 - Fuse 1500VDC aBat d:50mm axial 168mm 315A

BPF1 - Fuse 1500VDC aBat d:50mm axial 168mm 315A

Reference 802.183.96.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 315
Voltage of total I2t test 1500
Format Screw fixing
Dimension 50x168mm
Pre-arcing I2t value (A2s) 37250
Total I2t value (A2s) 130400
Homologations IEC
Power loss (W) 59,5
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF1
Product available on request Ask for more information
BPF1 - Fuse 1500VDC aBat d:50mm M8 315A

BPF1 - Fuse 1500VDC aBat d:50mm M8 315A

Reference 812.427.91.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 315
Voltage of total I2t test 1500
Format Screw fixing
Dimension 50x168mm
Pre-arcing I2t value (A2s) 37250
Total I2t value (A2s) 130400
Homologations IEC
Power loss (W) 59,5
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF1
Product available on request Ask for more information
BPF1 - Fuse 1500VDC aBat d:50mm M8 400A

BPF1 - Fuse 1500VDC aBat d:50mm M8 400A

Reference 939.180.20.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 400
Voltage of total I2t test 1500
Format Screw fixing
Dimension 50x140mm
Pre-arcing I2t value (A2s) 44300
Total I2t value (A2s) 155100
Homologations IEC
Power loss (W) 85
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF1
Product available on request Ask for more information
EV65.1500 - Fusibile 1500VDC 22x65 interasse 87mm 75A

EV65.1500 - Fusibile 1500VDC 22x65 interasse 87mm 75A

Reference 128.153.37.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 75
Voltage of total I2t test 1500
Format Screw fixing
Dimension 22x65mm
Pre-arcing I2t value (A2s) 2480
Total I2t value (A2s) 12500
Homologations UL
Power loss (W) 13.5
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2.5
Series name EV65
Product available on request Ask for more information
EV65.1500 - Fusibile 1500VDC 22x65 interasse 87mm 75A

EV65.1500 - Fusibile 1500VDC 22x65 interasse 87mm 75A

Reference 128.153.37.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 75
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 2480
Total I2t value (A2s) 12500
Homologations UL
Power loss (W) 13,5
Fuses dimension 22x65
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65.1500
Product available on request Ask for more information
EV65.1500 - Fuse 1500VDC 22x65 cylindrical 25A

EV65.1500 - Fuse 1500VDC 22x65 cylindrical 25A

Reference 149.229.21.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 25
Voltage of total I2t test 1500
Format Cylindrical
Pre-arcing I2t value (A2s) 130
Total I2t value (A2s) 1400
Homologations UL
Power loss (W) 6,5
Fuses dimension 22x65
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65.1500
Product available on request Ask for more information
EV65.1500 - Fuse 1500VDC 22x65 cylindrical 50A

EV65.1500 - Fuse 1500VDC 22x65 cylindrical 50A

Reference 185.429.21.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 50
Voltage of total I2t test 1500
Format Cylindrical
Pre-arcing I2t value (A2s) 685
Total I2t value (A2s) 5600
Homologations UL
Power loss (W) 11
Fuses dimension 22x65
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65.1500
Product available on request Ask for more information
EV65.1500 - Fuse 1500VDC 22x65 fixing 87mm 30A

EV65.1500 - Fuse 1500VDC 22x65 fixing 87mm 30A

Reference 212.960.15.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 30
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 230
Total I2t value (A2s) 1800
Homologations UL
Power loss (W) 7
Fuses dimension 22x65
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65.1500
Product available on request Ask for more information
EV65.1500 - Fuse 1500VDC 22x65 fixing 87mm 40A

EV65.1500 - Fuse 1500VDC 22x65 fixing 87mm 40A

Reference 230.877.90.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 40
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 425
Total I2t value (A2s) 3500
Homologations UL
Power loss (W) 9
Fuses dimension 22x65
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65.1500
Product available on request Ask for more information
EV65.1500 - Fuse 1500VDC 22x65 fixing 87mm 50A

EV65.1500 - Fuse 1500VDC 22x65 fixing 87mm 50A

Reference 233.209.87.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 50
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 685
Total I2t value (A2s) 5600
Homologations UL
Power loss (W) 11
Fuses dimension 22x65
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65.1500
Product available on request Ask for more information
EV65.1500 - Fuse 1500VDC 22x65 cylindrical 60A

EV65.1500 - Fuse 1500VDC 22x65 cylindrical 60A

Reference 384.236.42.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 60
Voltage of total I2t test 1500
Format Cylindrical
Pre-arcing I2t value (A2s) 1220
Total I2t value (A2s) 7500
Homologations UL
Power loss (W) 12
Fuses dimension 22x65
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65.1500
Product available on request Ask for more information
EV65.1500 - Fuse 1500VDC 22x65 cylindrical 30A

EV65.1500 - Fuse 1500VDC 22x65 cylindrical 30A

Reference 449.934.82.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 30
Voltage of total I2t test 1500
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 230
Total I2t value (A2s) 1800
Homologations UL
Power loss (W) 7
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65
Product available on request Ask for more information
EV65.1500 - Fuse 1500VDC 22x65 cylindrical 70A

EV65.1500 - Fuse 1500VDC 22x65 cylindrical 70A

Reference 463.473.97.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 70
Voltage of total I2t test 1500
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 2010
Total I2t value (A2s) 10500
Homologations UL
Power loss (W) 13
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65
Product available on request Ask for more information
EV65.1500 - Fuse 1500VDC 22x65 cylindrical 40A

EV65.1500 - Fuse 1500VDC 22x65 cylindrical 40A

Reference 490.719.58.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 40
Voltage of total I2t test 1500
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 425
Total I2t value (A2s) 3500
Homologations UL
Power loss (W) 9
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65
Product available on request Ask for more information
EV65.1500 - Fuse 1500VDC 22x65 fixing 87mm 70A

EV65.1500 - Fuse 1500VDC 22x65 fixing 87mm 70A

Reference 571.669.13.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 70
Voltage of total I2t test 1500
Format Screw fixing
Dimension 22x65mm
Pre-arcing I2t value (A2s) 2010
Total I2t value (A2s) 10500
Homologations UL
Power loss (W) 13
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65
Product available on request Ask for more information
EV65.1500 - Fuse 1500VDC 22x65 fixing 87mm 80A

EV65.1500 - Fuse 1500VDC 22x65 fixing 87mm 80A

Reference 741.636.74.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 80
Voltage of total I2t test 1500
Format Screw fixing
Dimension 22x65mm
Pre-arcing I2t value (A2s) 3000
Total I2t value (A2s) 14900
Homologations UL
Power loss (W) 14,9
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65
Product available on request Ask for more information
EV65.1500 - Fuse 1500VDC 22x65 fixing 87mm 25A

EV65.1500 - Fuse 1500VDC 22x65 fixing 87mm 25A

Reference 753.060.54.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 25
Voltage of total I2t test 1500
Format Screw fixing
Dimension 22x65mm
Pre-arcing I2t value (A2s) 130
Total I2t value (A2s) 1400
Homologations UL
Power loss (W) 6,5
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65
Product available on request Ask for more information
EV65.1500 - Fuse 1500VDC 22x65 cylindrical 80A

EV65.1500 - Fuse 1500VDC 22x65 cylindrical 80A

Reference 812.048.37.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 80
Voltage of total I2t test 1500
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 3000
Total I2t value (A2s) 14900
Homologations UL
Power loss (W) 14,9
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65
Product available on request Ask for more information
EV65.1500 - Fuse 1500VDC 22x65 fixing 87mm 60A

EV65.1500 - Fuse 1500VDC 22x65 fixing 87mm 60A

Reference 845.787.94.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 60
Voltage of total I2t test 1500
Format Screw fixing
Dimension 22x65mm
Pre-arcing I2t value (A2s) 1220
Total I2t value (A2s) 7500
Homologations UL
Power loss (W) 12
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65
Product available on request Ask for more information
EV65.1500 - Fuse 1500VDC 22x65 cylindrical 75A

EV65.1500 - Fuse 1500VDC 22x65 cylindrical 75A

Reference 942.825.21.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 75
Voltage of total I2t test 1500
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 2480
Total I2t value (A2s) 12500
Homologations UL
Power loss (W) 13,5
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 25000
Time costant L/R (ms) 2,5
Series name EV65
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 300A - 97,6mm - Silver Plated

B050 - Fuse 1000VDC aBat 300A - 97,6mm - Silver Plated

Reference 149.115.43.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 300
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 22300
Total I2t value (A2s) 58000
Power loss (W) 42
Fuses dimension 50,8x72,2
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 3000
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 250A - 97,6mm - Silver Plated

B050 - Fuse 1000VDC aBat 250A - 97,6mm - Silver Plated

Reference 160.833.51.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 250
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 15000
Total I2t value (A2s) 40000
Power loss (W) 36
Fuses dimension 50,8x72,2
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 2500
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 600A - 118,85mm - Silver Plated

B050 - Fuse 1000VDC aBat 600A - 118,85mm - Silver Plated

Reference 183.055.24.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 600
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 134000
Total I2t value (A2s) 350000
Power loss (W) 79
Fuses dimension 50,8x72,2
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 6000
Product available on request Ask for more information
G108 - Fuse 1000V AC gG 10x85mm 6A

G108 - Fuse 1000V AC gG 10x85mm 6A

Reference 189.356.82.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 6
Rated Voltage Un AC (V) 1000
Rated break.capacity I1 AC (A) 30000
Voltage of total I2t test 1000
Format Cylindrical
Pre-arcing I2t value (A2s) 195
Total I2t value (A2s) 3510
Homologations IEC
Power loss (W) 1,35
Fuses dimension 10x85
Series name G108
Price List €1.97/pc
Quantity
B050 - Fuse 1000VDC aBat 400A - 97,6mm - Silver Plated

B050 - Fuse 1000VDC aBat 400A - 97,6mm - Silver Plated

Reference 236.941.35.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 400
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 44300
Total I2t value (A2s) 115500
Power loss (W) 55
Fuses dimension 50,8x72,2
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 4000
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 400A - 118,85mm - Silver Plated

B050 - Fuse 1000VDC aBat 400A - 118,85mm - Silver Plated

Reference 302.343.96.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 400
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 44300
Total I2t value (A2s) 115500
Power loss (W) 55
Fuses dimension 50,8x72,2
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 4000
Product available on request Ask for more information
G108 - Fuse 1000V AC gG 10x85mm 4A

G108 - Fuse 1000V AC gG 10x85mm 4A

Reference 311.354.04.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 4
Rated Voltage Un AC (V) 1000
Rated break.capacity I1 AC (A) 30000
Voltage of total I2t test 1000
Format Cylindrical
Pre-arcing I2t value (A2s) 80
Total I2t value (A2s) 1440
Homologations IEC
Power loss (W) 0,9
Fuses dimension 10x85
Series name G108
Price List €1.97/pc
Quantity
B050 - Fuse 1000VDC aBat 350A - 97,6mm - Silver Plated

B050 - Fuse 1000VDC aBat 350A - 97,6mm - Silver Plated

Reference 346.112.03.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 350
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 33600
Total I2t value (A2s) 88000
Power loss (W) 48
Fuses dimension 50,8x72,2
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 3500
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 450A - 97,6mm - Silver Plated

B050 - Fuse 1000VDC aBat 450A - 97,6mm - Silver Plated

Reference 382.300.08.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 450
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 62000
Total I2t value (A2s) 162000
Power loss (W) 60
Fuses dimension 50,8x72,2
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 4500
Product available on request Ask for more information
X100 - Fuse 22x65mm 1000VAC gG 6A

X100 - Fuse 22x65mm 1000VAC gG 6A

Reference 399.505.59.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 6
Rated Voltage Un AC (V) 1000
Rated break.capacity I1 AC (A) 50000
Voltage of total I2t test 1000
Format Cylindrical
Pre-arcing I2t value (A2s) 120
Total I2t value (A2s) 4150
Homologations IEC
Power loss (W) 1,5
Fuses dimension 22x65
Series name X100
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 500A - 97,6mm - Silver Plated

B050 - Fuse 1000VDC aBat 500A - 97,6mm - Silver Plated

Reference 424.266.51.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 500
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 78500
Total I2t value (A2s) 204000
Power loss (W) 66
Fuses dimension 50,8x72,2
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 5000
Product available on request Ask for more information
X100 - Fuse 22x65mm 1000VAC gG 2A

X100 - Fuse 22x65mm 1000VAC gG 2A

Reference 504.060.13.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 2
Rated Voltage Un AC (V) 1000
Rated break.capacity I1 AC (A) 50000
Voltage of total I2t test 1000
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 1,1
Total I2t value (A2s) 87,5
Homologations IEC
Power loss (W) 1,1
Series name X100
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 300A - 118,85mm - Silver Plated

B050 - Fuse 1000VDC aBat 300A - 118,85mm - Silver Plated

Reference 549.374.02.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 300
Voltage of total I2t test 1000
Format Screw fixing
Dimension 50,8x72,2mm
Pre-arcing I2t value (A2s) 22300
Total I2t value (A2s) 58000
Power loss (W) 42
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 3000
Product available on request Ask for more information
X100 - Fuse 22x65mm 1000VAC gG 4A

X100 - Fuse 22x65mm 1000VAC gG 4A

Reference 597.742.13.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 4
Rated Voltage Un AC (V) 1000
Rated break.capacity I1 AC (A) 50000
Voltage of total I2t test 1000
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 31
Total I2t value (A2s) 800
Homologations IEC
Power loss (W) 1,3
Series name X100
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 350A - 118,85mm - Silver Plated

B050 - Fuse 1000VDC aBat 350A - 118,85mm - Silver Plated

Reference 672.889.04.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 350
Voltage of total I2t test 1000
Format Screw fixing
Dimension 50,8x72,2mm
Pre-arcing I2t value (A2s) 33600
Total I2t value (A2s) 88000
Power loss (W) 48
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 3500
Product available on request Ask for more information
G108 - Fuse 1000V AC gG 10x85mm 3A

G108 - Fuse 1000V AC gG 10x85mm 3A

Reference 677.846.19.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 3
Rated Voltage Un AC (V) 1000
Rated break.capacity I1 AC (A) 30000
Voltage of total I2t test 1000
Format Cylindrical
Dimension 10x85mm
Pre-arcing I2t value (A2s) 20
Total I2t value (A2s) 360
Homologations IEC
Power loss (W) 1,1
Series name G108
Price List €2.04/pc
Quantity
X100 - Fuse 22x65mm 1000VAC gG 8A

X100 - Fuse 22x65mm 1000VAC gG 8A

Reference 699.108.71.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 8
Rated Voltage Un AC (V) 1000
Rated break.capacity I1 AC (A) 50000
Voltage of total I2t test 1000
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 241
Total I2t value (A2s) 8500
Homologations IEC
Power loss (W) 1,9
Series name X100
Product available on request Ask for more information
G108 - Fuse 1000V AC gG 10x85mm 2A

G108 - Fuse 1000V AC gG 10x85mm 2A

Reference 737.739.33.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 2
Rated Voltage Un AC (V) 1000
Rated break.capacity I1 AC (A) 30000
Voltage of total I2t test 1000
Format Cylindrical
Dimension 10x85mm
Pre-arcing I2t value (A2s) 5
Total I2t value (A2s) 90
Homologations IEC
Power loss (W) 0,85
Series name G108
Price List €2.04/pc
Quantity
B050 - Fuse 1000VDC aBat 500A - 118,85mm - Silver Plated

B050 - Fuse 1000VDC aBat 500A - 118,85mm - Silver Plated

Reference 749.643.83.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 500
Voltage of total I2t test 1000
Format Screw fixing
Dimension 50,8x72,2mm
Pre-arcing I2t value (A2s) 78500
Total I2t value (A2s) 204000
Power loss (W) 66
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 5000
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 250A - 118,85mm - Silver Plated

B050 - Fuse 1000VDC aBat 250A - 118,85mm - Silver Plated

Reference 874.107.39.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 250
Voltage of total I2t test 1000
Format Screw fixing
Dimension 50,8x72,2mm
Pre-arcing I2t value (A2s) 15000
Total I2t value (A2s) 40000
Power loss (W) 36
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 2500
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 450A - 132,75mm - Silver Plated

B050 - Fuse 1000VDC aBat 450A - 132,75mm - Silver Plated

Reference 912.206.14.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 450
Voltage of total I2t test 1000
Format Screw fixing
Dimension 50,8x72,2mm
Pre-arcing I2t value (A2s) 62000
Total I2t value (A2s) 162000
Power loss (W) 60
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Min breaking current (A) 4500
Series name B050
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 600A - 97,6mm - Silver Plated

B050 - Fuse 1000VDC aBat 600A - 97,6mm - Silver Plated

Reference 977.020.16.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 600
Voltage of total I2t test 1000
Format Screw fixing
Dimension 50,8x72,2mm
Pre-arcing I2t value (A2s) 134000
Total I2t value (A2s) 350000
Power loss (W) 79
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Min breaking current (A) 6000
Series name B050
Product available on request Ask for more information
C100 - Fuse 690V aR size 1 M8 550A

C100 - Fuse 690V aR size 1 M8 550A

Reference 114.997.24.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 550
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 690
Format Screw fixing
Dimension SQB2
Pre-arcing I2t value (A2s) 33000
Total I2t value (A2s) 230000
Homologations IEC
Power loss (W) 84
Series name C100
Product available on request Ask for more information
C100 - Fuse 690V aR size 1 M8 160A

C100 - Fuse 690V aR size 1 M8 160A

Reference 115.115.26.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 160
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 690
Format Screw fixing
Dimension SQB2
Pre-arcing I2t value (A2s) 1100
Total I2t value (A2s) 7500
Homologations IEC
Power loss (W) 24
Series name C100
Product available on request Ask for more information
G103 - Fuse 500V 10x38 gG 2A

G103 - Fuse 500V 10x38 gG 2A

Reference 161.846.26.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 2
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 500
Format Cylindrical
Pre-arcing I2t value (A2s) 2,7
Total I2t value (A2s) 17,5
Homologations IEC
Power loss (W) o,6
Fuses dimension 10x38
Series name G103
Product available on request Ask for more information
G103 - Fuse 500V 10x38 gG 1A

G103 - Fuse 500V 10x38 gG 1A

Reference 167.818.84.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 1
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 500
Format Cylindrical
Pre-arcing I2t value (A2s) 2,4
Total I2t value (A2s) 15,5
Homologations IEC
Power loss (W) 1,9
Fuses dimension 10x38
Series name G103
Product available on request Ask for more information
C100 - Fuse 690V aR size 1 M8 50A

C100 - Fuse 690V aR size 1 M8 50A

Reference 171.033.15.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 690
Format Screw fixing
Dimension SQB2
Pre-arcing I2t value (A2s) 77
Total I2t value (A2s) 510
Homologations IEC
Power loss (W) 8
Series name C100
Product available on request Ask for more information
G276 - Fuse 500V AC gG /550V gR 27x60 PCB 100A

G276 - Fuse 500V AC gG /550V gR 27x60 PCB 100A

Reference 171.902.24.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 100
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 500
Format Cylindrical
Pre-arcing I2t value (A2s) 23650
Total I2t value (A2s) 84000
Homologations IEC
Power loss (W) 8
Fuses dimension 27x60
Series name G276
Product available on request Ask for more information
G103 - Fuse 500V 10x38 gG 20A

G103 - Fuse 500V 10x38 gG 20A

Reference 178.800.45.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 20
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 500
Format Cylindrical
Pre-arcing I2t value (A2s) 33,5
Total I2t value (A2s) 242
Homologations IEC
Power loss (W) 1,9
Fuses dimension 10x38
Series name G103
Product available on request Ask for more information
G103 - Fuse 500V 10x38 gG 12A

G103 - Fuse 500V 10x38 gG 12A

Reference 181.299.73.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 12
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 500
Format Cylindrical
Pre-arcing I2t value (A2s) 13
Total I2t value (A2s) 106
Homologations IEC
Power loss (W) 1,2
Fuses dimension 10x38
Series name G103
Product available on request Ask for more information
C100 - Fuse 690V aR size 1 M8 100A

C100 - Fuse 690V aR size 1 M8 100A

Reference 217.505.16.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 100
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 690
Format Screw fixing
Dimension SQB2
Pre-arcing I2t value (A2s) 360
Total I2t value (A2s) 2450
Homologations IEC
Power loss (W) 15
Series name C100
Product available on request Ask for more information
BP22 -Fuse 22x65mm cylindrical 32A

BP22 -Fuse 22x65mm cylindrical 32A

Reference 220.758.52.0.0 - Manufacturer FAULTRAP
Rated current In (A) 32
Format Cylindrical
Total I2t value (A2s) 210
Power loss (W) 5,7
Fuses dimension 22x65
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Series name BP22
Product available on request Ask for more information
G103 - Fuse 500V 10x38 gG 32A

G103 - Fuse 500V 10x38 gG 32A

Reference 236.479.64.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 32
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 500
Format Cylindrical
Pre-arcing I2t value (A2s) 93,5
Total I2t value (A2s) 578
Homologations IEC
Power loss (W) 2,7
Fuses dimension 10x38
Series name G103
Product available on request Ask for more information
BP22 -Fuse 22x65mm cylindrical 35A

BP22 -Fuse 22x65mm cylindrical 35A

Reference 237.887.48.0.0 - Manufacturer FAULTRAP
Rated current In (A) 35
Format Cylindrical
Total I2t value (A2s) 265
Power loss (W) 6,1
Fuses dimension 22x65
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Series name BP22
Product available on request Ask for more information
C100 - Fuse 690V aR size 1 M8 315A

C100 - Fuse 690V aR size 1 M8 315A

Reference 285.250.19.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 315
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 690
Format Screw fixing
Dimension SQB2
Pre-arcing I2t value (A2s) 6800
Total I2t value (A2s) 46000
Homologations IEC
Power loss (W) 48
Series name C100
Product available on request Ask for more information
20PV22 - Fuse 2000V DC 22x85mm gPV in-line alluminum 60A

20PV22 - Fuse 2000V DC 22x85mm gPV in-line alluminum 60A

Reference 100.942.90.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 60
Voltage of total I2t test 2000
Format Cylindrical in-line
Pre-arcing I2t value (A2s) 1450
Homologations IEC
Power loss (W) 13,9
Fuses dimension 22x85
Rated Voltage Un DC (V) 2000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 3
Series name 20PV22
Product available on request Ask for more information
V108 - Fuse 10x85 1500VDC gPV In-line 3A

V108 - Fuse 10x85 1500VDC gPV In-line 3A

Reference 105.250.53.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 3
Voltage of total I2t test 1500
Format Cylindrical
Pre-arcing I2t value (A2s) 5,25
Total I2t value (A2s) 12
Power loss (W) 1,89
Fuses dimension 10x85
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 20000
Series name V108
Product available on request Ask for more information
20PV22 - Fuse 2000VDC gPV 22x85 inline 60A 6/8 AWG

20PV22 - Fuse 2000VDC gPV 22x85 inline 60A 6/8 AWG

Reference 110.602.39 .0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 60
Voltage of total I2t test 2000
Format Cylindrical in-line
Pre-arcing I2t value (A2s) 1450
Homologations IEC
Power loss (W) 13,9
Fuses dimension 22x85
Rated Voltage Un DC (V) 2000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 3
Series name 20PV22
Product available on request Ask for more information
C200 - Fuse 690VAC aR M10 6300A

C200 - Fuse 690VAC aR M10 6300A

Reference 111.779.56.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 630
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 660
Format Screw fixing
Dimension SQB2
Pre-arcing I2t value (A2s) 55500
Total I2t value (A2s) 305000
Homologations IEC
Power loss (W) 80
Series name C200
Product available on request Ask for more information
BPF1 - Fuse 1500VDC aBat d:50mm M8 200A

BPF1 - Fuse 1500VDC aBat d:50mm M8 200A

Reference 115.193.15.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 200
Voltage of total I2t test 1500
Format Screw fixing
Pre-arcing I2t value (A2s) 12550
Total I2t value (A2s) 43950
Homologations IEC
Power loss (W) 40
Fuses dimension 50x168
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 3
Series name BPF1
Product available on request Ask for more information
20PV22 - Fuse 2000VDC gPV 22x85 60A

20PV22 - Fuse 2000VDC gPV 22x85 60A

Reference 140.737.12 .0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 60
Voltage of total I2t test 2000
Format Cylindrical
Pre-arcing I2t value (A2s) 1450
Homologations IEC
Power loss (W) 13,9
Fuses dimension 22x85
Rated Voltage Un DC (V) 2000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 3
Series name 20PV22
Product available on request Ask for more information
V108 - Fuse 10x85 1500VDC gPV In-line 12A

V108 - Fuse 10x85 1500VDC gPV In-line 12A

Reference 143.250.67.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 12
Voltage of total I2t test 1500
Format Cylindrical
Pre-arcing I2t value (A2s) 21
Total I2t value (A2s) 173
Homologations IEC
Power loss (W) 3,31
Fuses dimension 10x85
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 20000
Series name V108
Product available on request Ask for more information
20PV10 - Fuse 2000VDC gPV 10x85 1A

20PV10 - Fuse 2000VDC gPV 10x85 1A

Reference 148.405.23.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 1
Format Cylindrical
Pre-arcing I2t value (A2s) 0,7
Homologations IEC
Power loss (W) 0,8
Fuses dimension 10x85
Rated Voltage Un DC (V) 2000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 3
Series name 20PV10
Product available on request Ask for more information
20PV27 - Fuse 2000VDC gPV 27x85 inline 80A

20PV27 - Fuse 2000VDC gPV 27x85 inline 80A

Reference 166.238.86.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 80
Format Cylindrical in-line
Pre-arcing I2t value (A2s) 2500
Homologations IEC
Power loss (W) 19,7
Fuses dimension 27x85
Rated Voltage Un DC (V) 2000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 3
Series name 20PV27
Product available on request Ask for more information
20PV14 - Fuse 2000VDC gPV 14x85 inline 12A

20PV14 - Fuse 2000VDC gPV 14x85 inline 12A

Reference 170.071.20.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 2000
Format Cylindrical in-line
Pre-arcing I2t value (A2s) 25
Homologations IEC
Power loss (W) 3,9
Fuses dimension 14x85
Rated Voltage Un DC (V) 12
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 3
Series name 20PV14
Product available on request Ask for more information
20PV10 - Fuse 2000VDC gPV 10x85 4A

20PV10 - Fuse 2000VDC gPV 10x85 4A

Reference 171.064.59.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 4
Format Cylindrical
Pre-arcing I2t value (A2s) 19
Homologations IEC
Power loss (W) 1,8
Fuses dimension 10x85
Rated Voltage Un DC (V) 2000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 3
Series name 20PV10
Product available on request Ask for more information
20PV22 - Fuse 2000VDC gPV 22x85 inline 50A 6/8 AWG

20PV22 - Fuse 2000VDC gPV 22x85 inline 50A 6/8 AWG

Reference 180.780.89 .0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 50
Voltage of total I2t test 2000
Format Cylindrical in-line
Pre-arcing I2t value (A2s) 815
Homologations IEC
Power loss (W) 12,7
Fuses dimension 22x85
Rated Voltage Un DC (V) 2000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 3
Series name 20PV22
Product available on request Ask for more information
20PV10 - Fuse 2000VDC gPV 10x85 inline 5A

20PV10 - Fuse 2000VDC gPV 10x85 inline 5A

Reference 199.448.53.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 5
Format Cylindrical in-line
Pre-arcing I2t value (A2s) 42
Homologations IEC
Power loss (W) 2
Fuses dimension 10x85
Rated Voltage Un DC (V) 2000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 3
Series name 20PV10
Product available on request Ask for more information
20PV22 - Fuse 2000VDC gPV 22x85 inline 45A 6/8 AWG

20PV22 - Fuse 2000VDC gPV 22x85 inline 45A 6/8 AWG

Reference 212.218.36 .0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 45
Voltage of total I2t test 2000
Format Cylindrical in-line
Pre-arcing I2t value (A2s) 600
Homologations IEC
Power loss (W) 11,9
Fuses dimension 22x85
Rated Voltage Un DC (V) 2000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 3
Series name 20PV22
Product available on request Ask for more information
20PV22 - Fuse 2000VDC gPV 22x85 inline 65A 6/8 AWG

20PV22 - Fuse 2000VDC gPV 22x85 inline 65A 6/8 AWG

Reference 213.415.06 .0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 65
Voltage of total I2t test 2000
Format Cylindrical in-line
Pre-arcing I2t value (A2s) 1660
Homologations IEC
Power loss (W) 15,4
Fuses dimension 22x85
Rated Voltage Un DC (V) 2000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 3
Series name 20PV22
Product available on request Ask for more information
20PV22 - Fuse 2000VDC gPV 22x85 40A

20PV22 - Fuse 2000VDC gPV 22x85 40A

Reference 226.616.51 .0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 40
Voltage of total I2t test 2000
Format Cylindrical
Pre-arcing I2t value (A2s) 415
Homologations IEC
Power loss (W) 11,3
Fuses dimension 22x85
Rated Voltage Un DC (V) 2000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 3
Series name 20PV22
Product available on request Ask for more information
20PV22 - Fuse 2000VDC gPV 22x85 55A

20PV22 - Fuse 2000VDC gPV 22x85 55A

Reference 276.236.15 .0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 55
Voltage of total I2t test 2000
Format Cylindrical
Pre-arcing I2t value (A2s) 1065
Homologations IEC
Power loss (W) 13,5
Fuses dimension 22x85
Rated Voltage Un DC (V) 2000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 3
Series name 20PV22
Product available on request Ask for more information
20PV22 - Fuse 2000VDC gPV 22x85 45A

20PV22 - Fuse 2000VDC gPV 22x85 45A

Reference 279.406.19 .0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 45
Voltage of total I2t test 2000
Format Cylindrical
Pre-arcing I2t value (A2s) 600
Homologations IEC
Power loss (W) 11,9
Fuses dimension 22x85
Rated Voltage Un DC (V) 2000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 3
Series name 20PV22
Product available on request Ask for more information
20PV22 - Fuse 2000V DC 22x85mm gPV in-line alluminum 35A

20PV22 - Fuse 2000V DC 22x85mm gPV in-line alluminum 35A

Reference 291.978.89.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 35
Voltage of total I2t test 2000
Format Cylindrical in-line
Pre-arcing I2t value (A2s) 265
Homologations IEC
Power loss (W) 10,7
Fuses dimension 22x85
Rated Voltage Un DC (V) 2000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 3
Series name 20PV22
Product available on request Ask for more information
20PV14 - Fuse 2000VDC gPV 14x8 25A

20PV14 - Fuse 2000VDC gPV 14x8 25A

Reference 304.185.41 .0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 2000
Format Cylindrical
Pre-arcing I2t value (A2s) 125
Homologations IEC
Power loss (W) 7,3
Fuses dimension 14x85
Rated Voltage Un DC (V) 25
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 3
Series name 20PV14
Product available on request Ask for more information
20PV27 - Fuse 2000VDC gPV 27x85 80A

20PV27 - Fuse 2000VDC gPV 27x85 80A

Reference 308.291.60 .0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 80
Format Cylindrical
Pre-arcing I2t value (A2s) 2500
Homologations IEC
Power loss (W) 19,7
Fuses dimension 27x85
Rated Voltage Un DC (V) 2000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 3
Series name 20PV27
Product available on request Ask for more information
G276 - Fuse 500V AC gG /550V gR 27x60 100A

G276 - Fuse 500V AC gG /550V gR 27x60 100A

Reference 321.659.62.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 100
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 500
Format Cylindrical
Pre-arcing I2t value (A2s) 23650
Total I2t value (A2s) 84000
Homologations IEC
Power loss (W) 8
Fuses dimension 27x60
Series name G276
Product available on request Ask for more information
V108 - Fuse 10x85 1500VDC gPV In-line 1A

V108 - Fuse 10x85 1500VDC gPV In-line 1A

Reference 321.975.48.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 1
Voltage of total I2t test 1500
Format Cylindrical
Pre-arcing I2t value (A2s) 3,18
Total I2t value (A2s) 4,5
Power loss (W) 1,72
Fuses dimension 10x85
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 20000
Series name V108
Product available on request Ask for more information
V108 - Fuse 10x85 1500VDC gPV UL 2A

V108 - Fuse 10x85 1500VDC gPV UL 2A

Reference 322.946.60.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 2
Voltage of total I2t test 1500
Weight (g) 12
Format Cylindrical
Pre-arcing I2t value (A2s) 4,15
Total I2t value (A2s) 10
Power loss (W) 1,66
Fuses dimension 10x85
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 20000
Series name V108
Price List €1.88/pc
Quantity
C100 - Fuse 690V aR size 1 M8 80A

C100 - Fuse 690V aR size 1 M8 80A

Reference 328.484.93.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 80
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 690
Format Screw fixing
Dimension SQB2
Pre-arcing I2t value (A2s) 185
Total I2t value (A2s) 1250
Homologations IEC
Power loss (W) 12
Series name C100
Product available on request Ask for more information
20PV10 - Fuse 2000VDC gPV 10x85 3A

20PV10 - Fuse 2000VDC gPV 10x85 3A

Reference 332.186.86.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 3
Format Cylindrical
Pre-arcing I2t value (A2s) 5
Homologations IEC
Power loss (W) 1,8
Fuses dimension 10x85
Rated Voltage Un DC (V) 2000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 3
Series name 20PV10
Product available on request Ask for more information
AR22 - EV Charger Fuse 1000VDC Screw fixing 70A

AR22 - EV Charger Fuse 1000VDC Screw fixing 70A

Reference 334.412.08.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 70
Weight (g) 60
Format Screw fixing
Pre-arcing I2t value (A2s) 2000
Total I2t value (A2s) 12300
Homologations IEC
Power loss (W) 12,5
Fuses dimension 22x65
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Series name AR22
Product available on request Ask for more information
G276 - Fuse 500V AC gG /550V gR 27x60 125A

G276 - Fuse 500V AC gG /550V gR 27x60 125A

Reference 344.575.93.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 125
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 500
Format Cylindrical
Pre-arcing I2t value (A2s) 42000
Total I2t value (A2s) 150000
Homologations IEC
Power loss (W) 9,5
Fuses dimension 27x60
Series name G276
Product available on request Ask for more information
AR22 - EV Charger Fuse 1000VDC Screw fixing 80A

AR22 - EV Charger Fuse 1000VDC Screw fixing 80A

Reference 345.127.77.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 80
Weight (g) 60
Format Screw fixing
Pre-arcing I2t value (A2s) 2950
Total I2t value (A2s) 15400
Homologations IEC
Power loss (W) 14,5
Fuses dimension 22x65
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Series name AR22
Product available on request Ask for more information
20PV14 - Fuse 2000VDC gPV 14x8 15A

20PV14 - Fuse 2000VDC gPV 14x8 15A

Reference 355.645.52 .0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 2000
Format Cylindrical
Pre-arcing I2t value (A2s) 39
Homologations IEC
Power loss (W) 4,9
Fuses dimension 14x85
Rated Voltage Un DC (V) 15
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 3
Series name 20PV14
Product available on request Ask for more information
AR22 - EV Charger Fuse 1000VDC Screw fixing 40A

AR22 - EV Charger Fuse 1000VDC Screw fixing 40A

Reference 377.835.06.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 40
Weight (g) 60
Format Screw fixing
Pre-arcing I2t value (A2s) 415
Total I2t value (A2s) 3300
Homologations IEC
Power loss (W) 6,6
Fuses dimension 22x65
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Series name AR22
Product available on request Ask for more information
20PV22 - Fuse 2000V DC 22x85mm gPV in-line alluminum 40A

20PV22 - Fuse 2000V DC 22x85mm gPV in-line alluminum 40A

Reference 380.581.64.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 40
Voltage of total I2t test 2000
Format Cylindrical in-line
Pre-arcing I2t value (A2s) 415
Homologations IEC
Power loss (W) 11,3
Fuses dimension 22x85
Rated Voltage Un DC (V) 2000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 3
Series name 20PV22
Product available on request Ask for more information
20PV3-Fuse 2000VDC gPV size 3 US knives 450A

20PV3-Fuse 2000VDC gPV size 3 US knives 450A

Reference 380.994.11.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 450
Voltage of total I2t test 2000
Format Screw fixing
Pre-arcing I2t value (A2s) 900
Total I2t value (A2s) 182900
Homologations IEC
Power loss (W) 86,5
Fuses dimension 76x176
Rated Voltage Un DC (V) 2000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 3
Series name 20PV3
Product available on request Ask for more information
G103 - Fuse 500V 10x38 gG 0,5A

G103 - Fuse 500V 10x38 gG 0,5A

Reference 409.742.78.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 0,5
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 500
Format Cylindrical
Pre-arcing I2t value (A2s) 2
Total I2t value (A2s) 14,5
Homologations IEC
Power loss (W) 1,3
Fuses dimension 10x38
Series name G103
Product available on request Ask for more information
BP22 -Fuse 22x65mm cylindrical 20A

BP22 -Fuse 22x65mm cylindrical 20A

Reference 424.889.96.0.0 - Manufacturer FAULTRAP
Rated current In (A) 20
Format Cylindrical
Total I2t value (A2s) 53
Power loss (W) 4,3
Fuses dimension 22x65
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Series name BP22
Product available on request Ask for more information
B400 - Fuse 1000V DC aBat DC 2xM12 2000A

B400 - Fuse 1000V DC aBat DC 2xM12 2000A

Reference 427.856.27.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 2000
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 2150000
Total I2t value (A2s) 6450000
Homologations IEC
Power loss (W) 322
Fuses dimension 103x106,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B400
Product available on request Ask for more information
G103 - Fuse 500V 10x38 gG 6A

G103 - Fuse 500V 10x38 gG 6A

Reference 427.887.60.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 6
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 500
Format Cylindrical
Pre-arcing I2t value (A2s) 4,3
Total I2t value (A2s) 31
Homologations IEC
Power loss (W) 0,9
Fuses dimension 10x38
Series name G103
Product available on request Ask for more information
G103 - Fuse 500V 10x38 gG 16A

G103 - Fuse 500V 10x38 gG 16A

Reference 428.910.91.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 16
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 500
Format Cylindrical
Pre-arcing I2t value (A2s) 21,5
Total I2t value (A2s) 145
Homologations IEC
Power loss (W) 1,4
Fuses dimension 10x38
Series name G103
Product available on request Ask for more information
Product added to compare.
Product added to wishlist
