Fuses

Showing 1-24 of 11319 item(s)

NR2B - Fuse DIN00 80mm aR 690VAC with ind. lug 400A

Reference 152.430.74.0.0 - Manufacturer FAULTRAP

Class	aR
Rated current In (A)	400
Rated Voltage Un AC (V)	690
Dimension	000
Applicable standards	IEC, UL
Power loss (W)	89
Time costant L/R (ms)	2
Series name	NR2B
Melting I²t value (A²s)	33600
Fuse Connection/Terminal type	Screw fixing
Fixing connection centres (mm)	80
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	252000
Rated breaking capacity I1 AC (kA)	200000

Price List €80.45/pc

Quantity

lock Datasheet

V108 - Fuse 10x85 1500VDC gPV UL 30A

Reference 232.383.85.0.0 - Manufacturer FAULTRAP

Class	gPV
Rated current In (A)	30
Applicable standards	IEC, UL
Power loss (W)	7,12
Rated Voltage Un DC (V)	1500
Series name	V108
Rated breaking capacity I1 DC (kA)	20000
Fuse Dimension (mm)	10x85
Melting I²t value (A²s)	265,42
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	1500
Total clearing I²t @Un AC (A²s)	980
Weight (gr)	12

Price List €13.25/pc

Quantity

lock Datasheet

24E1 - Fuse BS 17,2x42 aR 240V 160A

Reference 247.730.22.0.0 - Manufacturer FAULTRAP

Class	aR
Rated current In (A)	160
Rated Voltage Un AC (V)	240
Applicable standards	IEC
Power loss (W)	21,9
Rated Voltage Un DC (V)	150
Series name	24E1
Rated breaking capacity I1 DC (kA)	20
Fuse Dimension (mm)	17x56
Melting I²t value (A²s)	990
Fuse Connection/Terminal type	Screw fixing
Total clearing I²t @Un AC (A²s)	8590
Rated breaking capacity I1 AC (kA)	100
Weight (gr)	29,5

Price List €31.93/pc

Quantity

lock Datasheet

69E1 - Fuse BS 17,2x63,5 aR 690V 80A

Reference 366.116.92.0.0 - Manufacturer FAULTRAP

Class	aR
Rated current In (A)	80
Rated Voltage Un AC (V)	690
Applicable standards	IEC
Power loss (W)	22
Rated Voltage Un DC (V)	500
Series name	69E1
Rated breaking capacity I1 DC (kA)	50
Fuse Dimension (mm)	17x77
Melting I²t value (A²s)	566
Fuse Connection/Terminal type	Screw fixing
Fixing connection centres (mm)	63.5
Total clearing I²t @Un AC (A²s)	2546
Rated breaking capacity I1 AC (kA)	100
Weight (gr)	40,5

Price List €16.25/pc

Quantity

lock Datasheet

NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 200A

Reference 456.865.11.0.0 - Manufacturer FAULTRAP

Class	aR
Rated current In (A)	200
Rated Voltage Un AC (V)	690
Dimension	000
Applicable standards	IEC, UL
Power loss (W)	48.5
Rated Voltage Un DC (V)	700
Time costant L/R (ms)	2
Series name	NR2B
Rated breaking capacity I1 DC (kA)	30000
Melting I²t value (A²s)	5370
Fuse Connection/Terminal type	Screw fixing
Fixing connection centres (mm)	80
Voltage of total clearing I2t test	700
Total clearing I²t @Un AC (A²s)	19600
Rated breaking capacity I1 AC (kA)	200000

Price List €60.82/pc

Quantity

lock Datasheet

24E1 - Fuse BS 17,2x42 aR 240V 50A

Reference 501.146.66.0.0 - Manufacturer FAULTRAP

Class	aR
Rated current In (A)	50
Rated Voltage Un AC (V)	240
Applicable standards	IEC
Power loss (W)	8.2
Rated Voltage Un DC (V)	150
Series name	24E1
Rated breaking capacity I1 DC (kA)	20
Fuse Dimension (mm)	17x56
Melting I²t value (A²s)	89
Fuse Connection/Terminal type	Screw fixing
Total clearing I²t @Un AC (A²s)	1180
Rated breaking capacity I1 AC (kA)	100
Weight (gr)	29,5

Price List €15.07/pc

Quantity

lock Datasheet

V103 - Fuse 10x38 1000VDC gPV 15A

Reference 501.308.83.0.0 - Manufacturer FAULTRAP

Class	gPV
Rated current In (A)	15
Applicable standards	IEC, UL
Power loss (W)	2,55
Rated Voltage Un DC (V)	1000
Series name	V103
Rated breaking capacity I1 DC (kA)	20000
Fuse Dimension (mm)	10x38
Melting I²t value (A²s)	23,5
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	1000
Total clearing I²t @Un AC (A²s)	211

Price List €10.48/pc

Quantity

lock Datasheet

NR2B - Fuse 00/80 aR 690VAC with ind. w/o lug 400A

Reference 531.773.36.0.0 - Manufacturer FAULTRAP

Class	aR
Rated current In (A)	400
Rated Voltage Un AC (V)	690
Dimension	000
Applicable standards	IEC, UL
Power loss (W)	89
Time costant L/R (ms)	2
Series name	NR2B
Melting I²t value (A²s)	27210
Fuse Connection/Terminal type	Screw fixing
Fixing connection centres (mm)	80
Voltage of total clearing I2t test	690
Total clearing I²t @Un AC (A²s)	156000
Rated breaking capacity I1 AC (kA)	200000

Price List €47.20/pc

Quantity

lock Datasheet

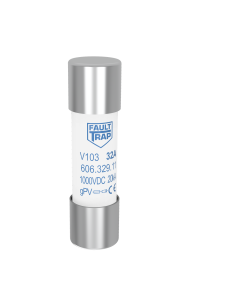

V103 - Fuse 10x38 1000VDC gPV 32A

Reference 606.329.11.0.0 - Manufacturer FAULTRAP

Class	gPV
Rated current In (A)	32
Applicable standards	IEC, UL
Power loss (W)	3,8
Rated Voltage Un DC (V)	1000
Series name	V103
Rated breaking capacity I1 DC (kA)	20000
Fuse Dimension (mm)	10x38
Melting I²t value (A²s)	208
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	1000
Total clearing I²t @Un AC (A²s)	2460

Price List €3.94/pc

Quantity

lock Datasheet

NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 315A

Reference 712.042.86.0.0 - Manufacturer FAULTRAP

Class	aR
Rated current In (A)	315
Rated Voltage Un AC (V)	690
Dimension	000
Applicable standards	IEC, UL
Power loss (W)	70
Rated Voltage Un DC (V)	700
Time costant L/R (ms)	2
Series name	NR2B
Rated breaking capacity I1 DC (kA)	30000
Melting I²t value (A²s)	16450
Fuse Connection/Terminal type	Screw fixing
Fixing connection centres (mm)	80
Voltage of total clearing I2t test	700
Total clearing I²t @Un AC (A²s)	60000
Rated breaking capacity I1 AC (kA)	200000

Price List €62.83/pc

Quantity

lock Datasheet

NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 250A

Reference 934.169.73.0.0 - Manufacturer FAULTRAP

Class	aR
Rated current In (A)	250
Rated Voltage Un AC (V)	690
Dimension	000
Applicable standards	IEC, UL
Power loss (W)	57
Rated Voltage Un DC (V)	700
Time costant L/R (ms)	2
Series name	NR2B
Rated breaking capacity I1 DC (kA)	30000
Melting I²t value (A²s)	10150
Fuse Connection/Terminal type	Screw fixing
Fixing connection centres (mm)	80
Voltage of total clearing I2t test	700
Total clearing I²t @Un AC (A²s)	37100
Rated breaking capacity I1 AC (kA)	200000

Price List €59.20/pc

Quantity

lock Datasheet

Fuse NH2 800V gS 280A

Reference 4002280. .0 - Manufacturer NIKDIM

Class	gS
Rated current In (A)	280
Rated Voltage Un AC (V)	800
Dimension	NH2
Applicable standards	IEC
Fuse Connection/Terminal type	NH knife contact

Price List €111.18/pc

Quantity

lock Datasheet

Fuse 1500V DC gR NH3L 400A

Reference 2024336.400.0 - Manufacturer SIBA

Class	gBat, gR
Rated current In (A)	400
Dimension	NH3L
Applicable standards	IEC, UL
Power loss (W)	66
Rated Voltage Un DC (V)	1500
Time costant L/R (ms)	3
Rated breaking capacity I1 DC (kA)	260000
Melting I²t value (A²s)	106000
Fuse Connection/Terminal type	NH knife
Voltage of total clearing I2t test	1500
Total clearing I²t @Un AC (A²s)	745000

Price List €96.58/pc

Quantity

lock Datasheet

C200 - Fuse 690VAC aR M10 900A

Reference 489.764.23.0.0 - Manufacturer FAULTRAP

Class	aR
Rated Voltage Un AC (V)	690
Dimension	SQB2
Applicable standards	IEC
Series name	C200
Fixing dimensions	M10
Fuse Connection/Terminal type	Screw fixing
Rated breaking capacity I1 AC (kA)	200

Product available on request Ask for more information

Fuse 1100V DC 14x65 gPV IEC 60269-6 8A

Reference 5023526.8.0 - Manufacturer SIBA

Class	gPV
Rated current In (A)	8
Applicable standards	IEC
Power loss (W)	2,6
Rated Voltage Un DC (V)	1100
Rated breaking capacity I1 DC (kA)	30000
Fuse Dimension (mm)	14x65
Melting I²t value (A²s)	5
Fuse Connection/Terminal type	Cylindrical
Voltage of total clearing I2t test	1100
Total clearing I²t @Un AC (A²s)	22

Product available on request Ask for more information

C200 - Fuse 690VAC aR M10 700A

Reference 881.120.73.0.0 - Manufacturer FAULTRAP

Class	aR
Rated Voltage Un AC (V)	690
Dimension	SQB2
Applicable standards	IEC
Series name	C200
Fixing dimensions	M10
Fuse Connection/Terminal type	Screw fixing
Rated breaking capacity I1 AC (kA)	200

Product available on request Ask for more information

C200 - Fuse 690VAC aR M10 1000A

Reference 983.677.94.0.0 - Manufacturer FAULTRAP

Class	aR
Rated Voltage Un AC (V)	690
Dimension	SQB2
Applicable standards	IEC
Series name	C200
Fixing dimensions	M10
Fuse Connection/Terminal type	Screw fixing
Rated breaking capacity I1 AC (kA)	200
