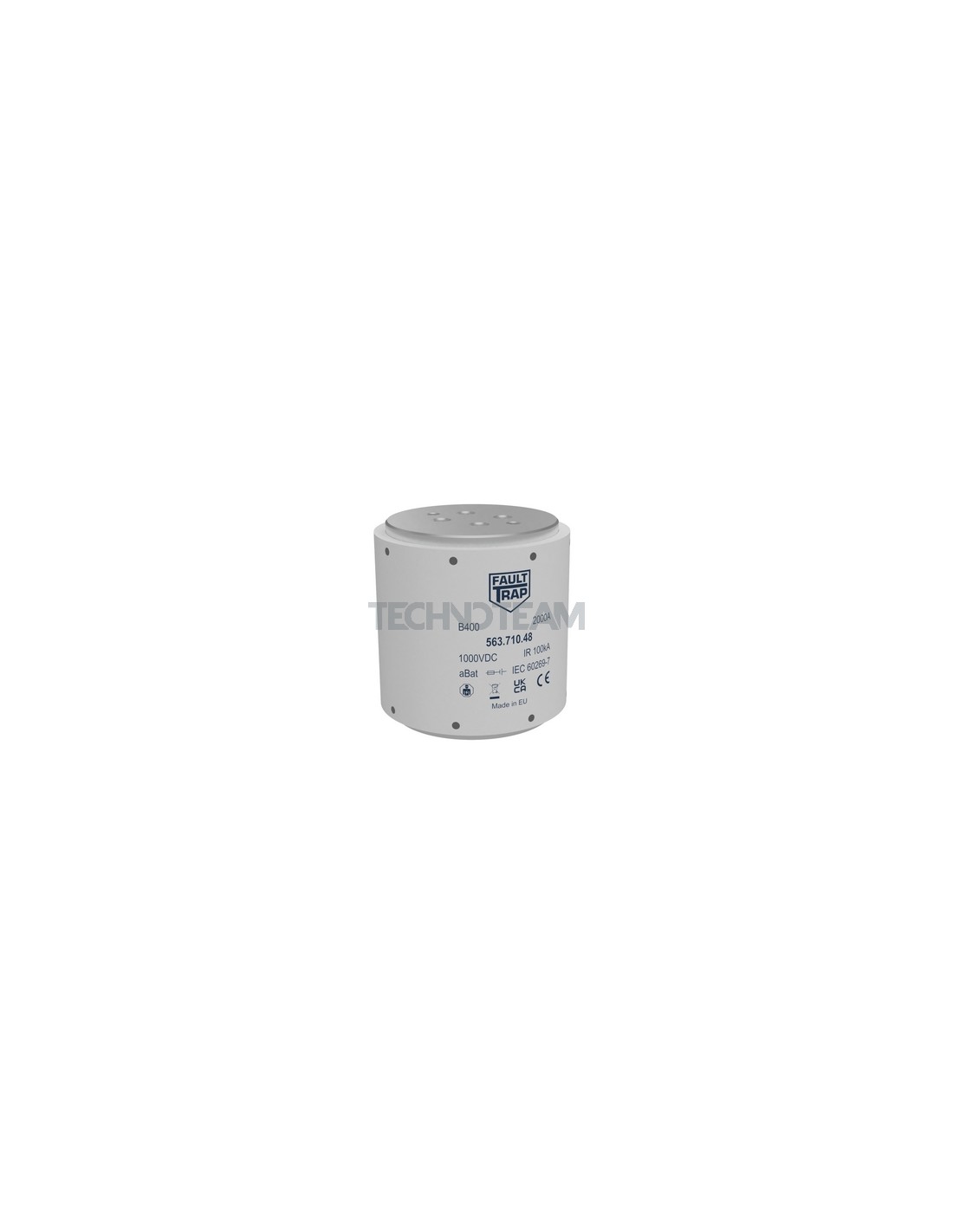

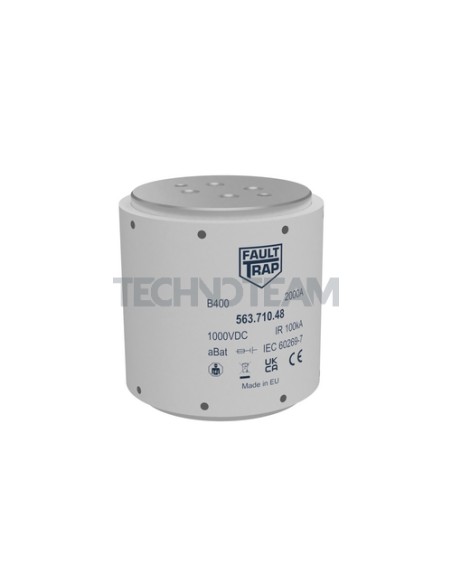

B400 - Fuse 1000V DC aBat DC 4xM10 1800A
B400 - Fuse 1000V DC aBat DC 4xM10 1800A

B400 - Fuse 1000V DC aBat DC 4xM10 1800A

Reference: 404.300.20.0.0  -  Manufacturer: FAULTRAP
Product available on request
Ask for more information

Product Details

Class
aBat
Rated current In (A)
1800
Applicable standards
IEC
Power loss (W)
298
Rated Voltage Un DC (V)
1000
Time costant L/R (ms)
2
Series name
B400
Rated breaking capacity I1 DC (kA)
100000
Fuse Dimension (mm)
103x106,5
Fixing dimensions
M10
Melting I²t value (A²s)
1493000
Fuse Connection/Terminal type
Screw fixing
