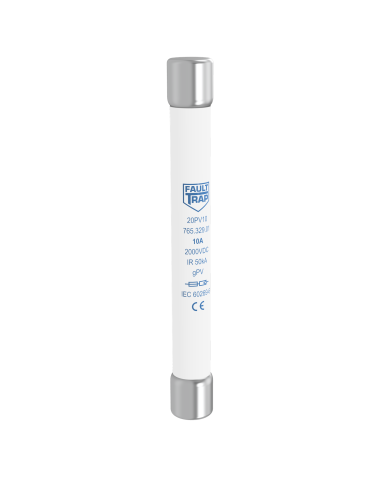

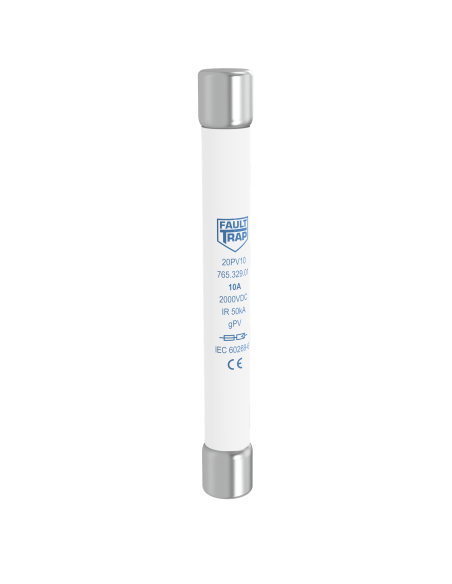

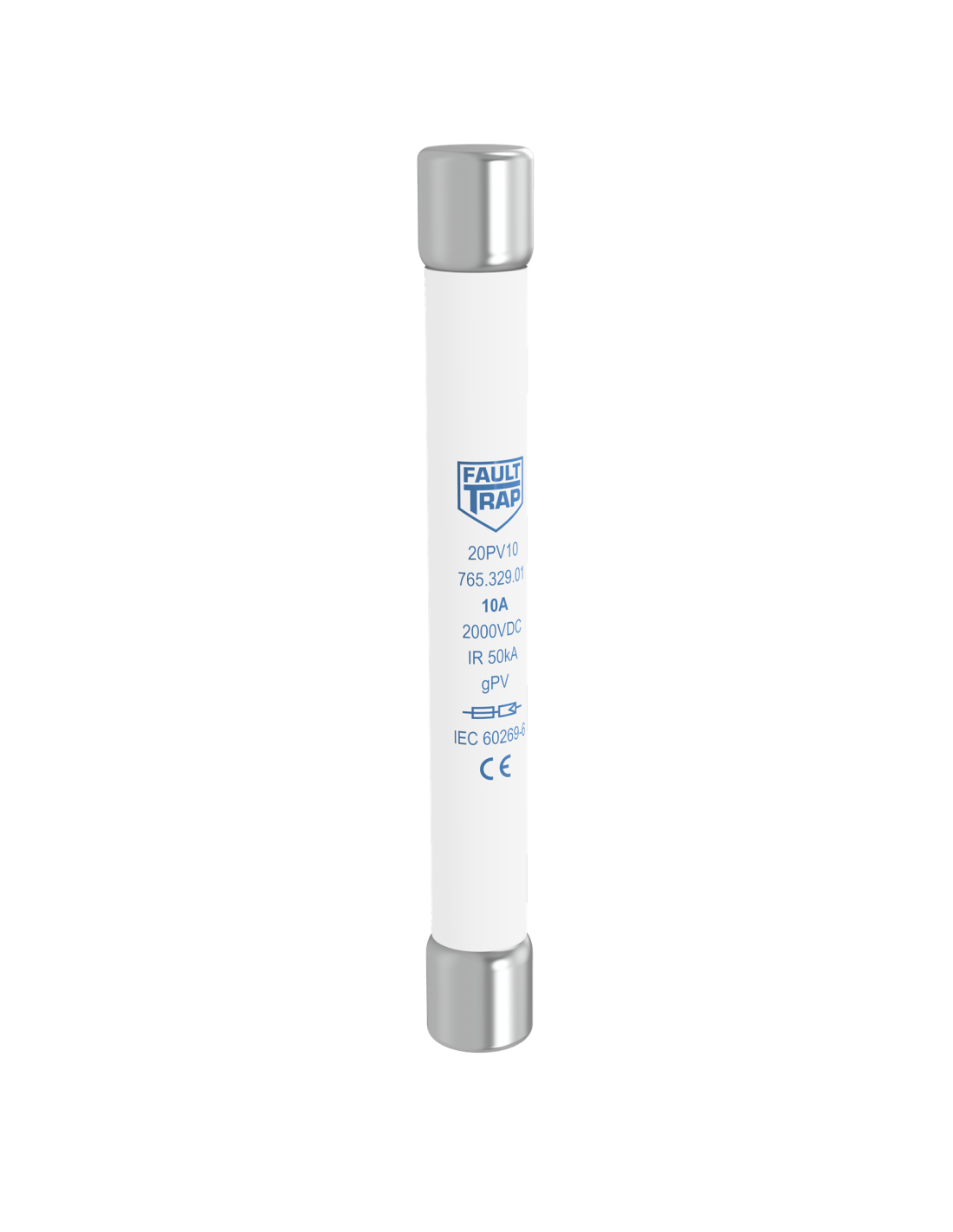

20PV10 - Fuse 2000VDC gPV 10x85 10A
20PV10 - Fuse 2000VDC gPV 10x85 10A

20PV10 - Fuse 2000VDC gPV 10x85 10A

Reference: 765.329.01.0.0  -  Manufacturer: FAULTRAP
Product available on request
Ask for more information

Product Details

Class
gPV
Rated current In (A)
10
Applicable standards
IEC
Power loss (W)
2,6
Rated Voltage Un DC (V)
2000
Time costant L/R (ms)
1-3
Series name
20PV10
Rated breaking capacity I1 DC (kA)
50
Fuse Dimension (mm)
10x85
Melting I²t value (A²s)
400
Fuse Connection/Terminal type
Cylindrical
