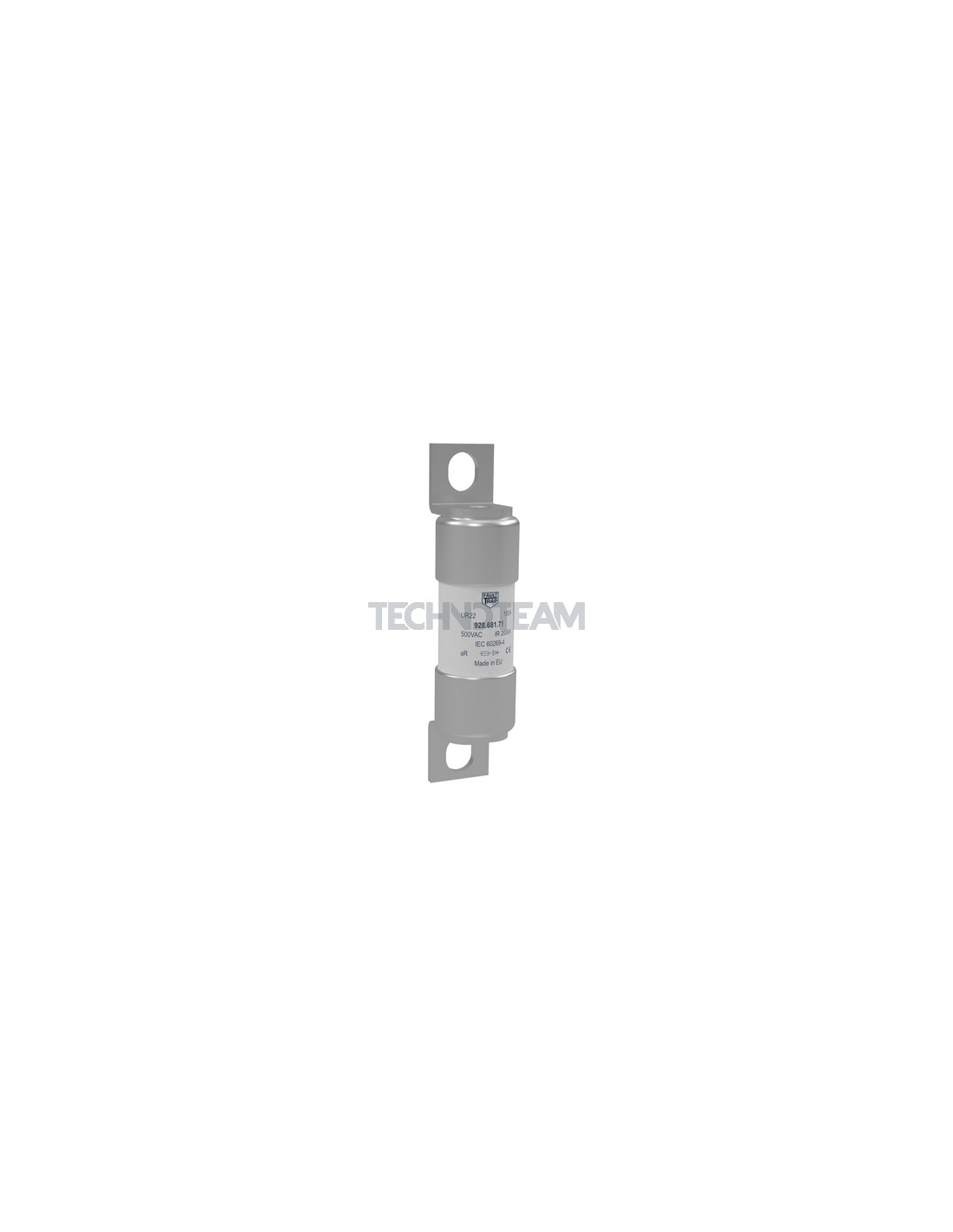

UR22 - Fuse 500V AC 22x58 fixing 80mm 135A
UR22 - Fuse 500V AC 22x58 fixing 80mm 135A

UR22 - Fuse 500V AC 22x58 fixing 80mm 135A

Reference: 861.706.36.0.0  -  Manufacturer: FAULTRAP
Product available on request
Ask for more information

Product Details

Class
aR
Rated current In (A)
135
Rated Voltage Un AC (V)
500
Applicable standards
IEC
Power loss (W)
28,6
Series name
UR22
Fuse Dimension (mm)
22x58
Melting I²t value (A²s)
3640
Fuse Connection/Terminal type
Screw fixing
Voltage of total clearing I2t test
500
Total clearing I²t @Un AC (A²s)
17800
Rated breaking capacity I1 AC (kA)
200000
