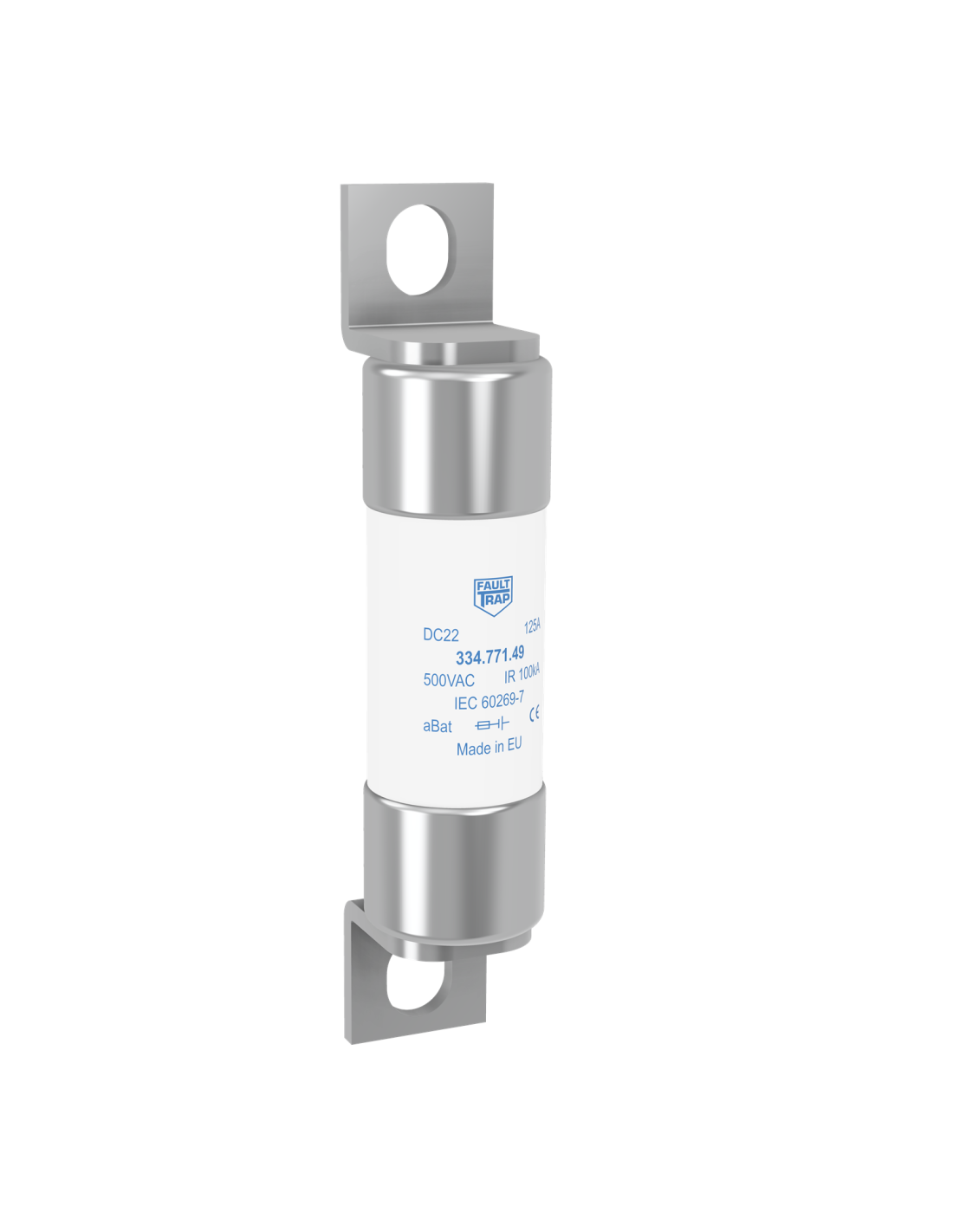

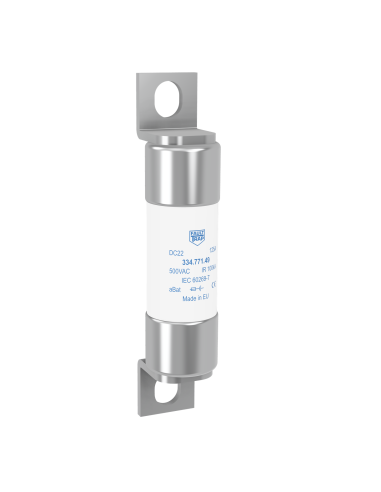

DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 32A
DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 32A

DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 32A

Reference: 706.803.00.0.0  -  Manufacturer: FAULTRAP
Product available on request
Ask for more information

Product Details

Class
aBat
Rated current In (A)
32
Applicable standards
IEC
Power loss (W)
6,9
Rated Voltage Un DC (V)
1000
Time costant L/R (ms)
1-3
Series name
DC22
Rated breaking capacity I1 DC (kA)
100
Fuse Dimension (mm)
22x65
Melting I²t value (A²s)
155
Fuse Connection/Terminal type
Screw fixing
Fixing connection centres (mm)
87
Total clearing I²t @Un DC (A²s)
700
