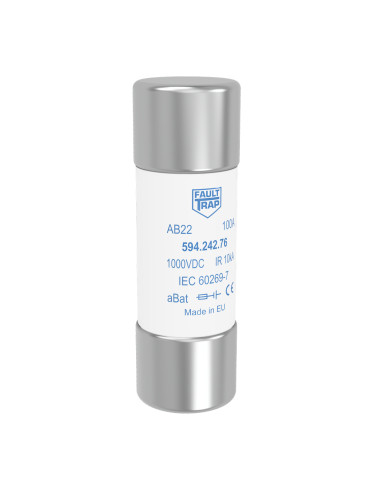

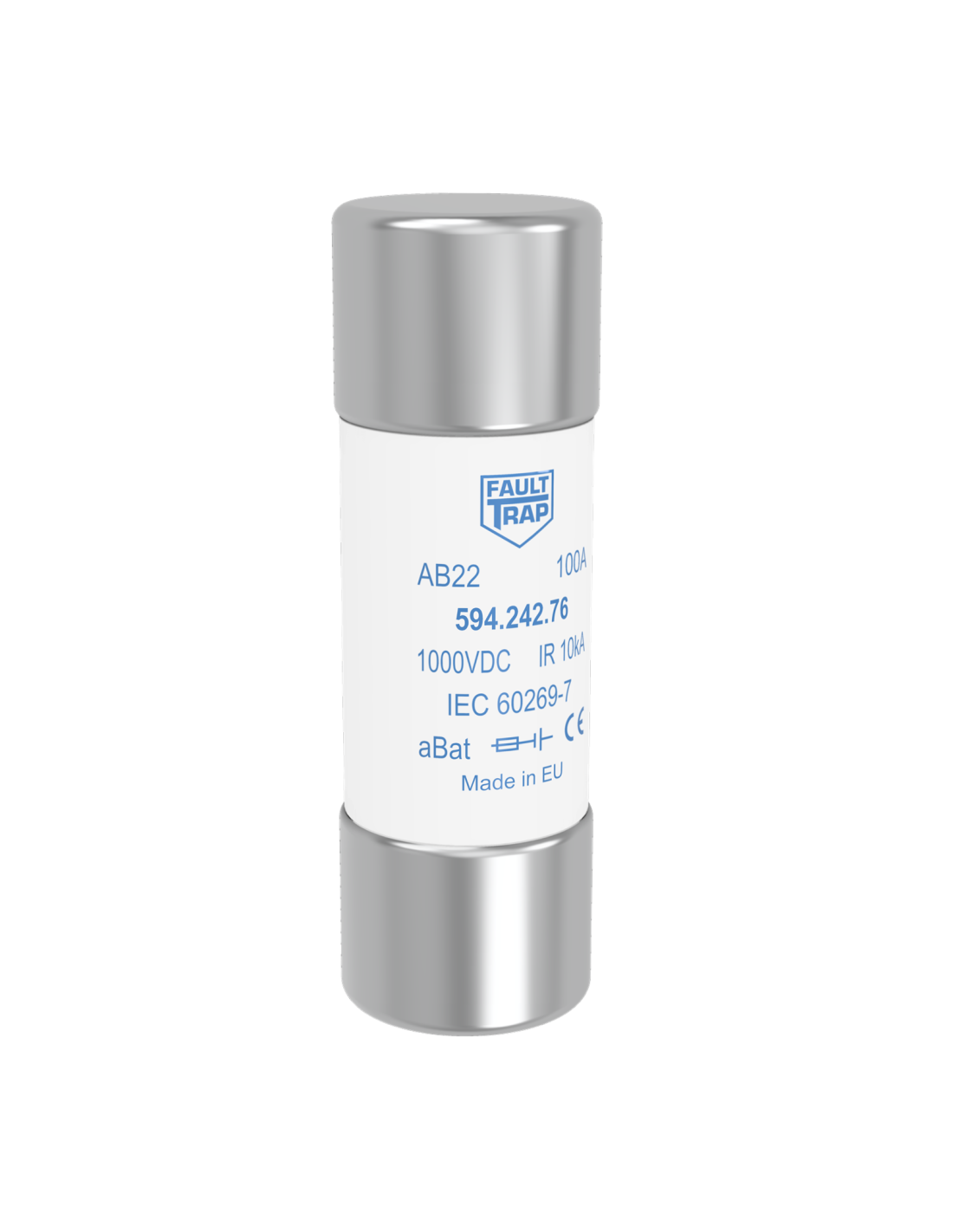

AB22 - Fuse 22x65 1000VDC aBat 100A
AB22 - Fuse 22x65 1000VDC aBat 100A

AB22 - Fuse 22x65 1000VDC aBat 100A

Reference: 594.242.76.0.0  -  Manufacturer: FAULTRAP
Product available on request
Ask for more information

Product Details

Class
aBat
Rated current In (A)
100
Applicable standards
IEC
Power loss (W)
18
Rated Voltage Un DC (V)
1000
Time costant L/R (ms)
1-3
Series name
AB22
Rated breaking capacity I1 DC (kA)
10
Fuse Dimension (mm)
22x65
Melting I²t value (A²s)
4520
Minimum breaking current (A)
800
Fuse Connection/Terminal type
Cylindrical
Total clearing I²t @Un DC (A²s)
25000
