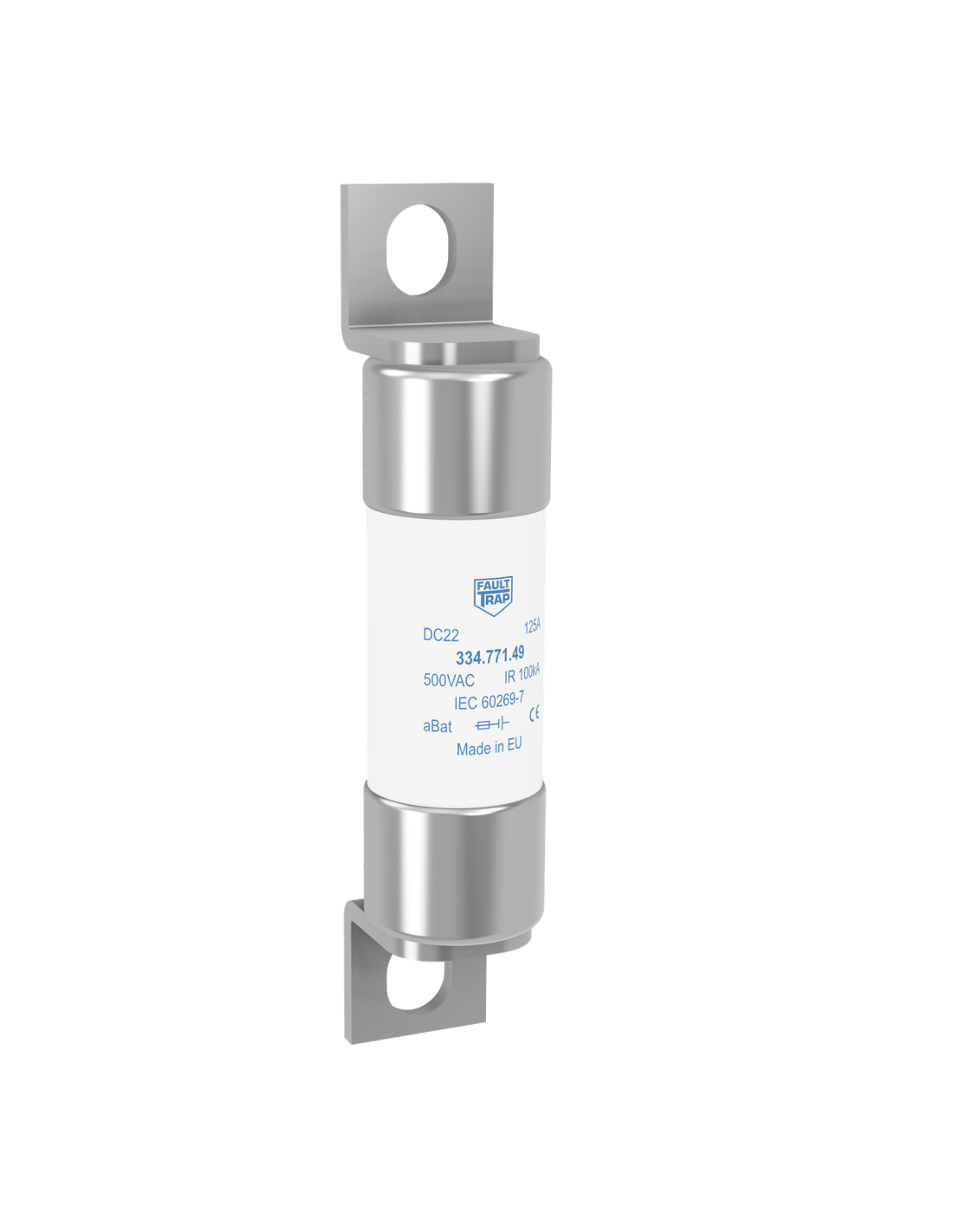

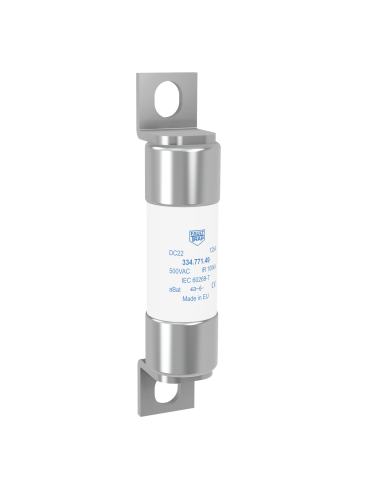

DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 125A
DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 125A

DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 125A

Reference: 334.771.49.0.0  -  Manufacturer: FAULTRAP
Product available on request
Ask for more information

Product Details

Class
aBat
Rated current In (A)
125
Applicable standards
IEC
Power loss (W)
29.5
Rated Voltage Un DC (V)
1000
Time costant L/R (ms)
1-3
Series name
DC22
Rated breaking capacity I1 DC (kA)
100
Fuse Dimension (mm)
22x65
Melting I²t value (A²s)
3550
Fuse Connection/Terminal type
Screw fixing
Fixing connection centres (mm)
87
Total clearing I²t @Un DC (A²s)
15600
