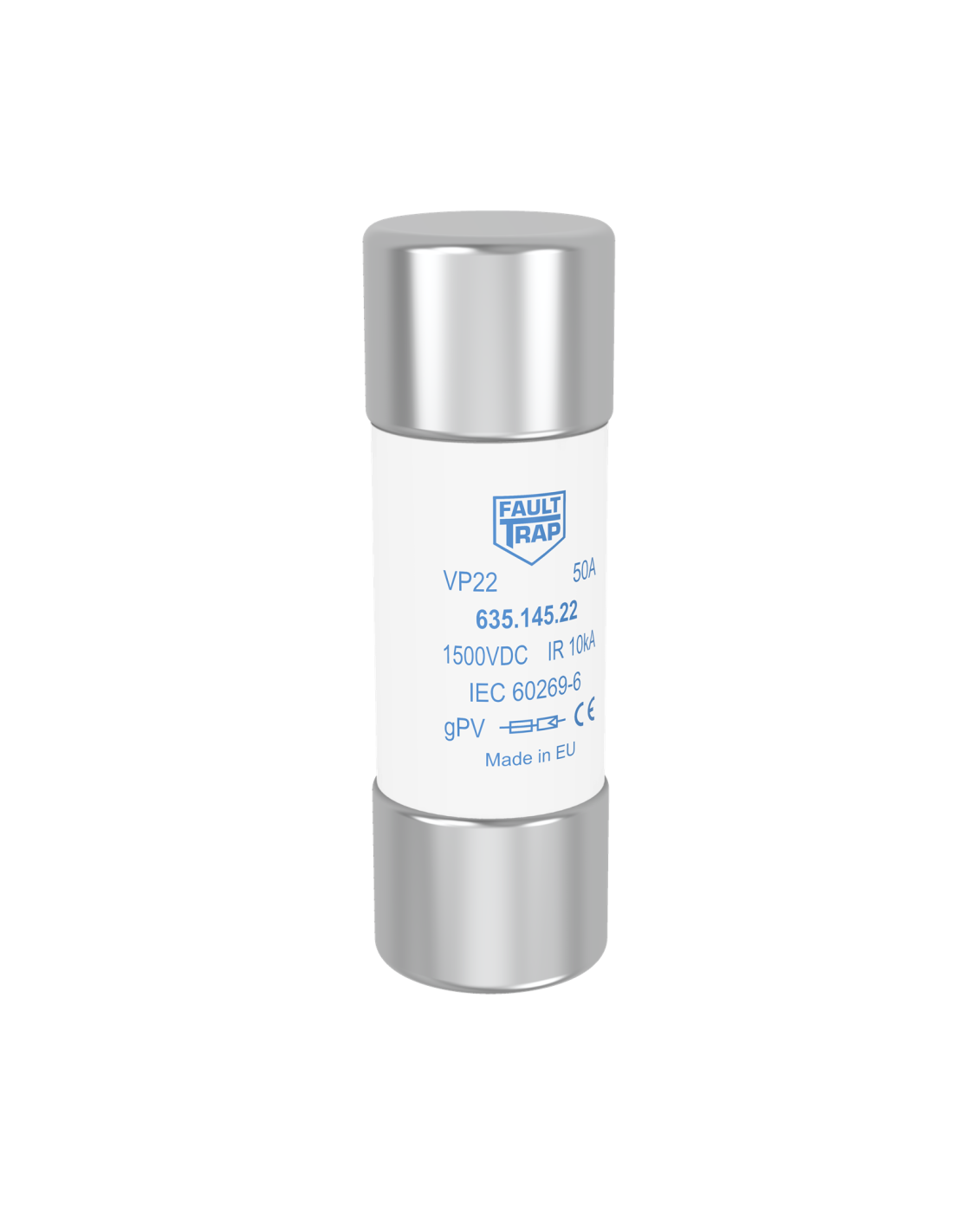

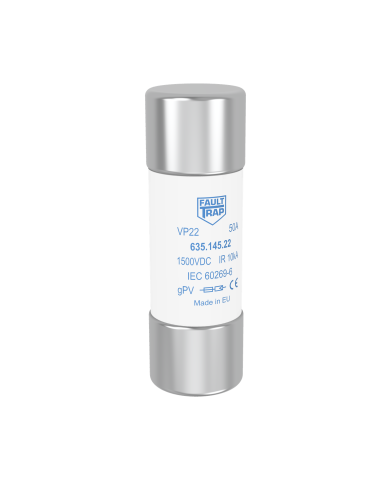

VP22 - Fuse 22x65mm 1500VDC gPV/800VAC gR IEC 50A
VP22 - Fuse 22x65mm 1500VDC gPV/800VAC gR IEC 50A

VP22 - Fuse 22x65mm 1500VDC gPV/800VAC gR IEC 50A

Reference: 635.145.22.0.0  -  Manufacturer: FAULTRAP
Product available on request
Ask for more information

Product Details

Class
gPV, gR
Rated current In (A)
50
Rated Voltage Un AC (V)
800
Applicable standards
IEC
Power loss (W)
9
Rated Voltage Un DC (V)
1500
Time costant L/R (ms)
1-3
Series name
VP22
Rated breaking capacity I1 DC (kA)
10
Fuse Dimension (mm)
22x65
Melting I²t value (A²s)
740
Fuse Connection/Terminal type
Cylindrical
Total clearing I²t @Un DC (A²s)
6550
Total clearing I²t @Un AC (A²s)
4100
Rated breaking capacity I1 AC (kA)
100
