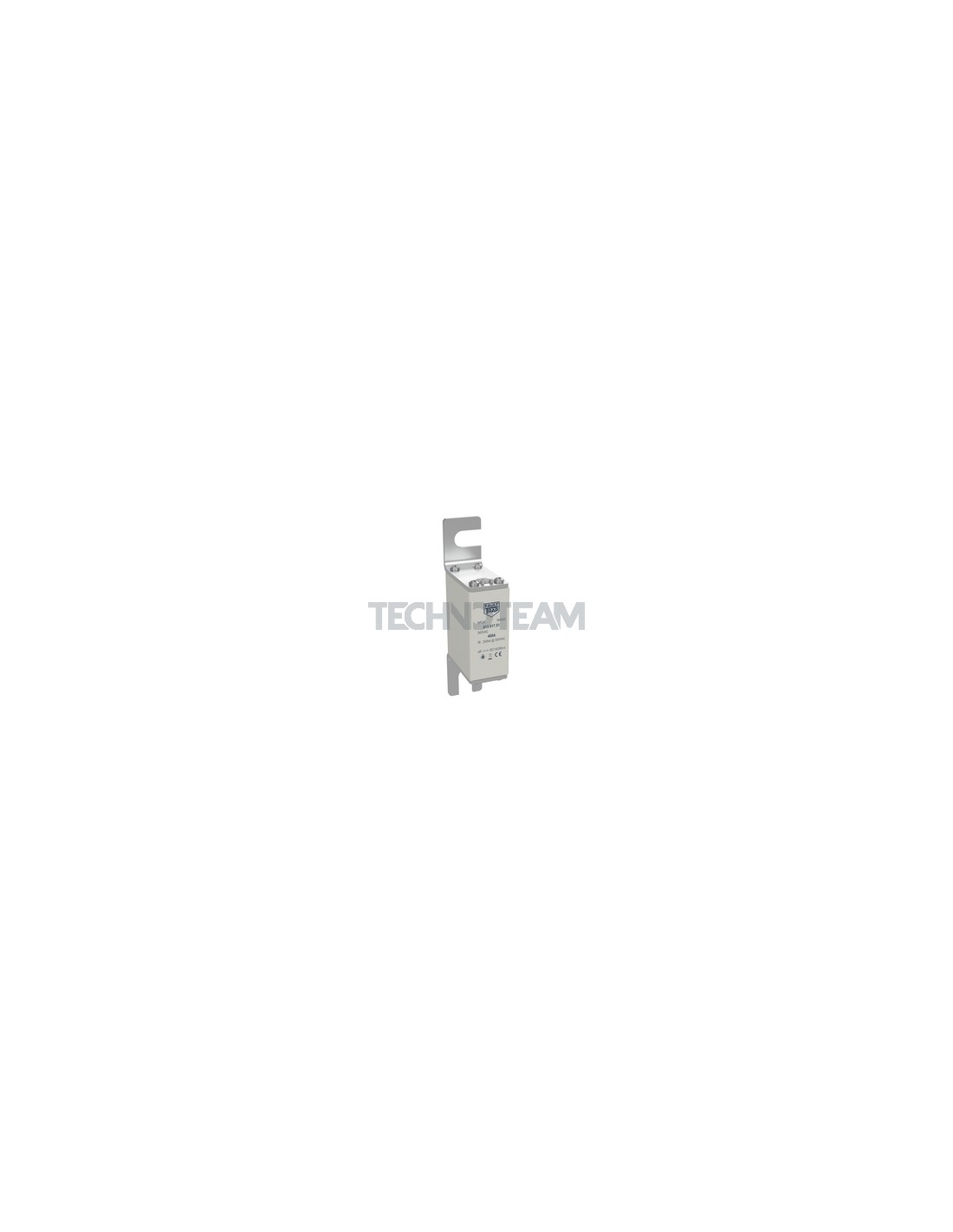

NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 63A
NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 63A

NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 63A

Reference: 247.278.11.0.0  -  Manufacturer: FAULTRAP
Product available on request
Ask for more information

Product Details

Class
aR
Rated current In (A)
63
Rated Voltage Un AC (V)
690
Dimension
000
Applicable standards
IEC
Power loss (W)
9.5
Rated Voltage Un DC (V)
700
Time costant L/R (ms)
2
Series name
NR2A
Rated breaking capacity I1 DC (kA)
30000
Melting I²t value (A²s)
520
Fuse Connection/Terminal type
Screw fixing
Fixing connection centres (mm)
80
Voltage of total clearing I2t test
700
Total clearing I²t @Un AC (A²s)
1900
Rated breaking capacity I1 AC (kA)
200000
