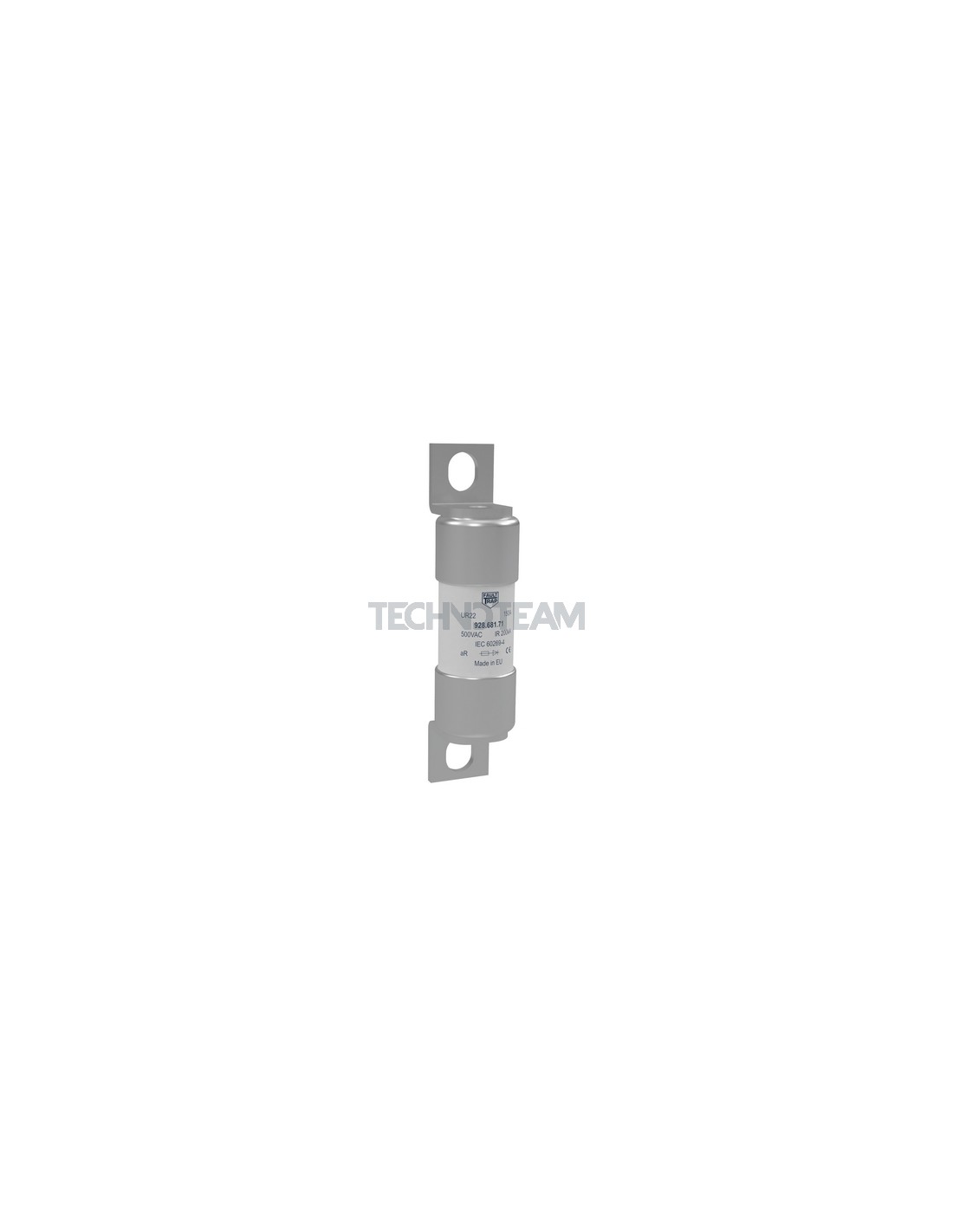

UR22 - Fuse 690V AC 22x58 fixing 80mm 25A
UR22 - Fuse 690V AC 22x58 fixing 80mm 25A

UR22 - Fuse 690V AC 22x58 fixing 80mm 25A

Reference: 501.647.06.0.0  -  Manufacturer: FAULTRAP
Product available on request
Ask for more information

Product Details

Class
aR
Rated current In (A)
25
Rated Voltage Un AC (V)
690
Applicable standards
IEC
Power loss (W)
7,6
Series name
UR22
Fuse Dimension (mm)
22x58
Melting I²t value (A²s)
33
Fuse Connection/Terminal type
Screw fixing
Voltage of total clearing I2t test
690
Total clearing I²t @Un AC (A²s)
147
Rated breaking capacity I1 AC (kA)
200000
