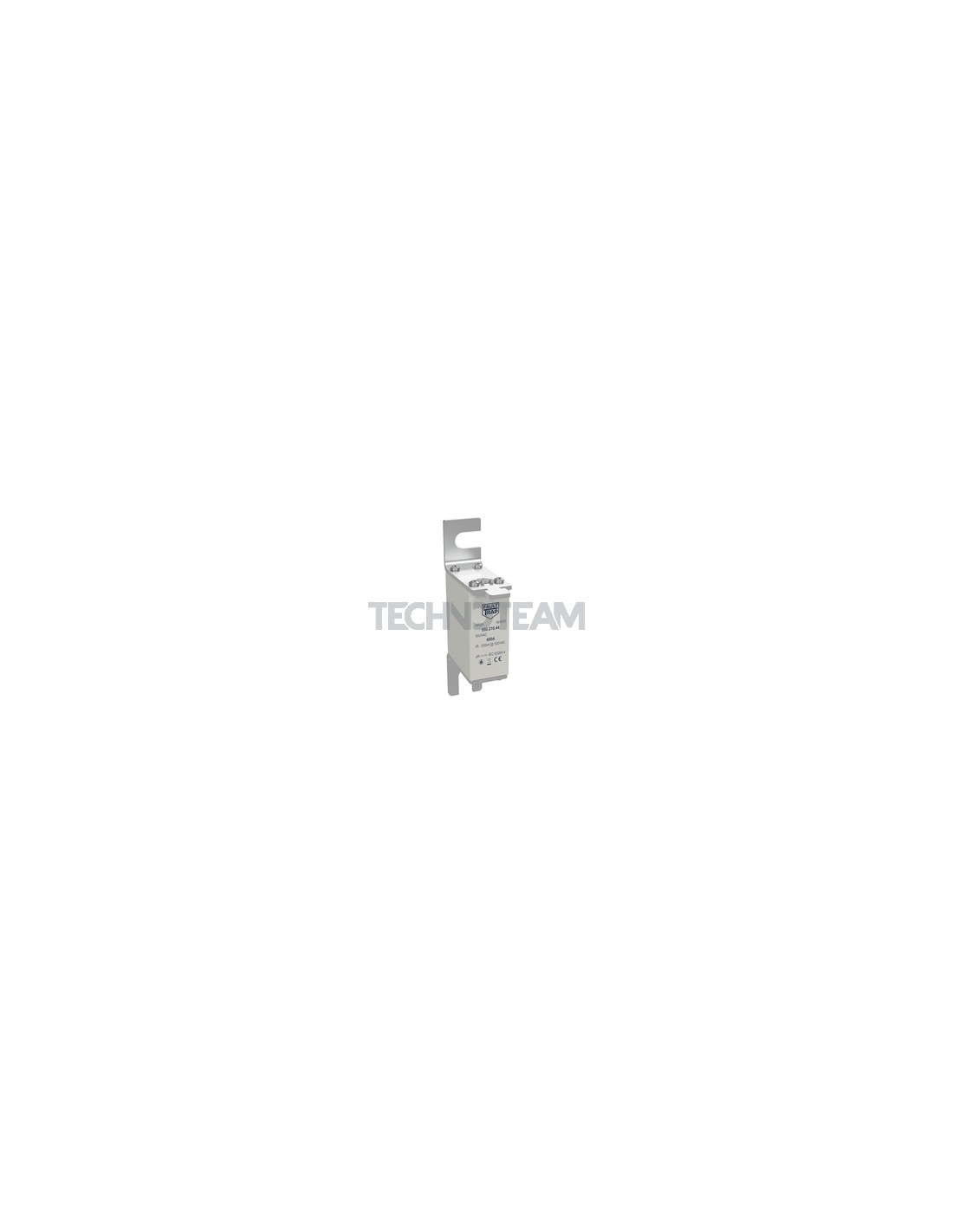

NR2A - Fuse DIN000 80mm aR 500VAC with ind. lug 400A
NR2A - Fuse DIN000 80mm aR 500VAC with ind. lug 400A

NR2A - Fuse DIN000 80mm aR 500VAC with ind. lug 400A

Reference: 550.216.44.0.0  -  Manufacturer: FAULTRAP
Product available on request
Ask for more information

Product Details

Class
aR
Rated current In (A)
400
Rated Voltage Un AC (V)
500
Dimension
000
Applicable standards
IEC
Power loss (W)
93.5
Time costant L/R (ms)
2
Series name
NR2A
Melting I²t value (A²s)
33600
Fuse Connection/Terminal type
Screw fixing
Fixing connection centres (mm)
80
Voltage of total clearing I2t test
500
Total clearing I²t @Un AC (A²s)
145000
Rated breaking capacity I1 AC (kA)
200000
