List of products by manufacturer FAULTRAP

E103 - Fuse 10x38 1000VDC aBAT 30A

E103 - Fuse 10x38 1000VDC aBAT 30A

Reference 487.979.16.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 30
Format Cylindrical
Dimension 10x38mm
Homologations IEC
Power loss (W) 4,1
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name E103
Product available on request Ask for more information
PV22 - Fuse 22x65mm 1500VDC gPV UL 30A

PV22 - Fuse 22x65mm 1500VDC gPV UL 30A

Reference 693.945.08.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 30
Voltage of total I2t test 1500
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 230
Total I2t value (A2s) 1800
Homologations UL
Power loss (W) 7
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 10000
Time costant L/R (ms) 3
Series name PV22
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 800A - 152,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 800A - 152,7mm - Tin Plated

Reference 161.186.65.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 800
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 185000
Total I2t value (A2s) 550000
Power loss (W) 150
Fuses dimension 63,5x130,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 8000
Product available on request Ask for more information
A145 - Fuse 14x51 690VAC aR 25A

A145 - Fuse 14x51 690VAC aR 25A

Reference 836.007.31.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 25
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 690
Format Cylindrical
Dimension 14x51mm
Pre-arcing I2t value (A2s) 36
Total I2t value (A2s) 355
Homologations IEC
Power loss (W) 8,5
Series name A145
Price List €1.31/pc
Quantity
B200 - Fuse 38x73mm 1000VDC Axial aBat 250A

B200 - Fuse 38x73mm 1000VDC Axial aBat 250A

Reference 656.906.03.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 250
Voltage of total I2t test 1000
Format Screw fixing
Dimension 38x73mm
Pre-arcing I2t value (A2s) 21000
Total I2t value (A2s) 79800
Homologations IEC
Power loss (W) 39
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 50000
Time costant L/R (ms) 2
Series name B200
Product available on request Ask for more information
PV22 - Fuse 22x65mm 1500VDC gPV UL 60A

PV22 - Fuse 22x65mm 1500VDC gPV UL 60A

Reference 593.887.15.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 60
Voltage of total I2t test 1500
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 1220
Total I2t value (A2s) 7500
Homologations UL
Power loss (W) 12
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 10000
Time costant L/R (ms) 3
Series name PV22
Price List €200.20/pc
Quantity
X800 - Fuse 22x65mm 800VAC gG 63A

X800 - Fuse 22x65mm 800VAC gG 63A

Reference 771.575.29.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 63
Rated Voltage Un AC (V) 800
Rated break.capacity I1 AC (A) 80000
Voltage of total I2t test 800
Weight (g) 0
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 4050
Total I2t value (A2s) 34300
Homologations IEC
Power loss (W) 6,5
Series name X800
Price List €38.02/pc
Quantity
lock Datasheet
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 80A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 80A

Reference 331.496.30.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 80
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000
Pre-arcing I2t value (A2s) 750
Total I2t value (A2s) 2800
Homologations IEC
Power loss (W) 17
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Distance (mm) 80
Series name NR2A
Price List €44.91/pc
Quantity
ZVJM - Fuse holder 10x38 690VAC-1000VDC 2P

ZVJM - Fuse holder 10x38 690VAC-1000VDC 2P

Reference 793.159.36.0.0 - Manufacturer FAULTRAP
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Weight (g) 124
Homologations IEC
Fuses format Cylindrical
Fuses dimension 10x38mm
Rated Voltage Un DC (V) 1000
Number of phase 2
Max power dissipation (W) 4,3
Series name ZVJM
Price List €8.19/pc
Quantity
lock Datasheet

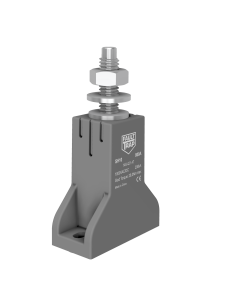

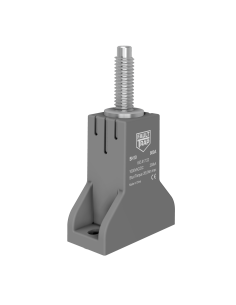

SH10 - Stud fuse holder 1000VAC/DC 800A UNC

SH10 - Stud fuse holder 1000VAC/DC 800A UNC

Reference 149.421.47.0.0 - Manufacturer FAULTRAP
Rated current In (A) 800
Rated Voltage Un AC (V) 1000
Weight (g) 80
Homologations IEC
Rated Voltage Un DC (V) 1000
Series name SH10
Price List €2.12/pc
Quantity
VP22 - Fuse 22x65mm 1500VDC gPV IEC 50A

VP22 - Fuse 22x65mm 1500VDC gPV IEC 50A

Reference 635.145.22.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 50
Voltage of total I2t test 1500
Weight (g) 60
Format Cylindrical
Dimension 22x65mm
Pre-arcing I2t value (A2s) 740
Total I2t value (A2s) 6550
Homologations IEC
Power loss (W) 9
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 10000
Time costant L/R (ms) 3
Series name VP22
Product available on request Ask for more information
G103 - Fuse 500V 10x38 gG 16A

G103 - Fuse 500V 10x38 gG 16A

Reference 428.910.91.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 16
Rated Voltage Un AC (V) 500
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 500
Format Cylindrical
Pre-arcing I2t value (A2s) 21,5
Total I2t value (A2s) 145
Homologations IEC
Power loss (W) 1,4
Fuses dimension 10x38
Series name G103
Product available on request Ask for more information
V108 - Fuse 10x85 1500VDC gPV UL 16A

V108 - Fuse 10x85 1500VDC gPV UL 16A

Reference 328.230.50.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 16
Voltage of total I2t test 1500
Weight (g) 12
Format Cylindrical
Pre-arcing I2t value (A2s) 43,8
Total I2t value (A2s) 316
Power loss (W) 3,8
Fuses dimension 10x85
Rated Voltage Un DC (V) 1500
Rated break.capacity I1 DC (A) 20000
Series name V108
Price List €13.14/pc
Quantity
V103 - Fuse 10x38 1000VDC gPV 3A

V103 - Fuse 10x38 1000VDC gPV 3A

Reference 437.204.41.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 3
Voltage of total I2t test 1000
Format Cylindrical
Dimension 10x38mm
Pre-arcing I2t value (A2s) 4,2
Total I2t value (A2s) 10,3
Power loss (W) 1,48
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 20000
Series name V103
Price List €0.46/pc
Quantity
lock Datasheet
X800 - Fuse 22x65mm 800VAC gG 6A

X800 - Fuse 22x65mm 800VAC gG 6A

Reference 291.515.94.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 6
Rated Voltage Un AC (V) 800
Rated break.capacity I1 AC (A) 80000
Voltage of total I2t test 800
Weight (g) 0
Format Cylindrical
Pre-arcing I2t value (A2s) 120
Total I2t value (A2s) 2040
Homologations IEC
Power loss (W) 1,5
Fuses dimension 22x65
Series name X800
Price List €16.99/pc
Quantity
lock Datasheet
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 50A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC with ind. lug 50A

Reference 845.374.39.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 200000
Voltage of total I2t test 700
Format Screw fixing
Dimension 000-80mm
Pre-arcing I2t value (A2s) 330
Total I2t value (A2s) 1200
Homologations IEC
Power loss (W) 9
Rated Voltage Un DC (V) 700
Rated break.capacity I1 DC (A) 30000
Time costant L/R (ms) 2
Series name NR2A
Price List €11.24/pc
Quantity
lock Datasheet
ZYCY - Fuse holder 10x38 for PCB

ZYCY - Fuse holder 10x38 for PCB

Reference 244.488.24.0.0 - Manufacturer FAULTRAP
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Format Cylindrical
Homologations IEC
Fuses dimension 10x38
Rated Voltage Un DC (V) 1000
Number of phase 1
Series name ZYCY
Product available on request Ask for more information
24E1 - Fuse BS 17,2x42 aR 240V 20A

24E1 - Fuse BS 17,2x42 aR 240V 20A

Reference 805.424.77.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 20
Rated Voltage Un AC (V) 240
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 240
Weight (g) 29,5
Format BS
Dimension 17,2x42mm
Pre-arcing I2t value (A2s) 29
Total I2t value (A2s) 116
Homologations IEC
Power loss (W) 3,8
Rated Voltage Un DC (V) 150
Series name 24E1
Product available on request Ask for more information
B025 - Fuse 1000VDC aBat 160A - 100,3mm - Tin Plated

B025 - Fuse 1000VDC aBat 160A - 100,3mm - Tin Plated

Reference 810.190.09.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 160
Voltage of total I2t test 1000
Format Screw fixing
Dimension 38,10x72,20mm
Pre-arcing I2t value (A2s) 5400
Total I2t value (A2s) 12000
Power loss (W) 25,5
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B025
Min breaking current (A) 1280
Price List €82.15/pc
Quantity
69E1 - Fuse BS 17,2x63,5 aR 690V 45A

69E1 - Fuse BS 17,2x63,5 aR 690V 45A

Reference 109.463.20.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 45
Rated Voltage Un AC (V) 690
Rated break.capacity I1 AC (A) 100000
Voltage of total I2t test 690
Weight (g) 40,5
Format BS
Pre-arcing I2t value (A2s) 114
Total I2t value (A2s) 724
Homologations IEC
Power loss (W) 13,8
Fuses dimension 17,2x63,5
Rated Voltage Un DC (V) 500
Series name 69E1
Price List €15.97/pc
Quantity
B050 - Fuse 1000VDC aBat 400A - 97,6mm - Tin Plated

B050 - Fuse 1000VDC aBat 400A - 97,6mm - Tin Plated

Reference 376.618.78.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 400
Voltage of total I2t test 1000
Format Screw fixing
Pre-arcing I2t value (A2s) 44300
Total I2t value (A2s) 115500
Power loss (W) 55
Fuses dimension 50,8x72,2
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B050
Min breaking current (A) 4000
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 1000A - 132,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 1000A - 132,7mm - Tin Plated

Reference 459.971.59.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1000
Voltage of total I2t test 1000
Format Screw fixing
Dimension 63,5x167mm
Pre-arcing I2t value (A2s) 373500
Total I2t value (A2s) 1095000
Power loss (W) 175
Rated Voltage Un DC (V) 1000
Rated break.capacity I1 DC (A) 100000
Time costant L/R (ms) 2
Series name B100
Min breaking current (A) 10000
Product available on request Ask for more information
