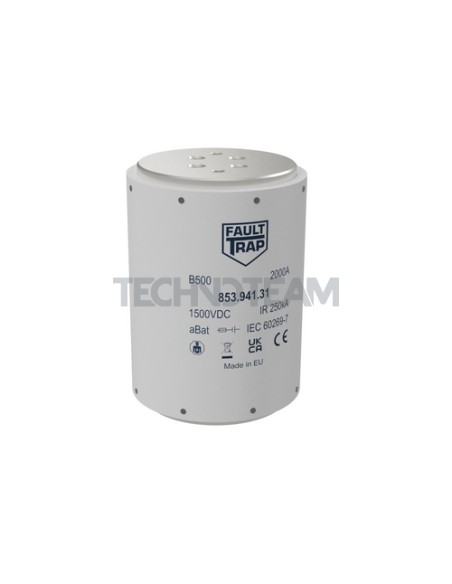

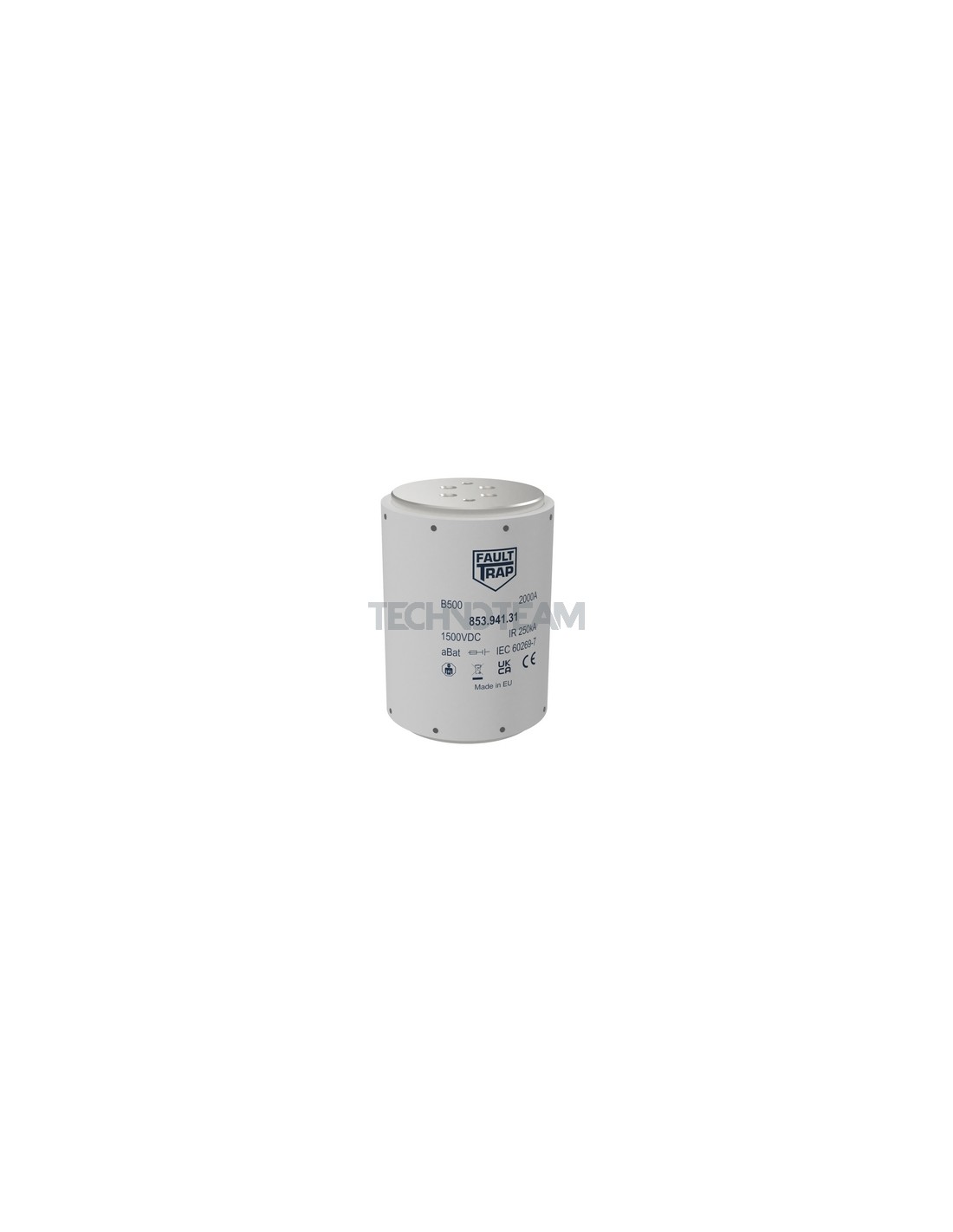

B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 1250A
B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 1250A

B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 1250A

Reference: 841.376.18.0.0  -  Manufacturer: FAULTRAP
Product available on request
Ask for more information

Product Details

Class
aBat
Rated current In (A)
1250
Applicable standards
IEC
Power loss (W)
300
Rated Voltage Un DC (V)
1500
Time costant L/R (ms)
3
Series name
B500
Rated breaking capacity I1 DC (kA)
250000
Fuse Dimension (mm)
103x144
Fixing dimensions
M10
Melting I²t value (A²s)
718000
Minimum breaking current (A)
14000
Fuse Connection/Terminal type
Screw fixing
Voltage of total clearing I2t test
1500
Total clearing I²t @Un AC (A²s)
3912000
