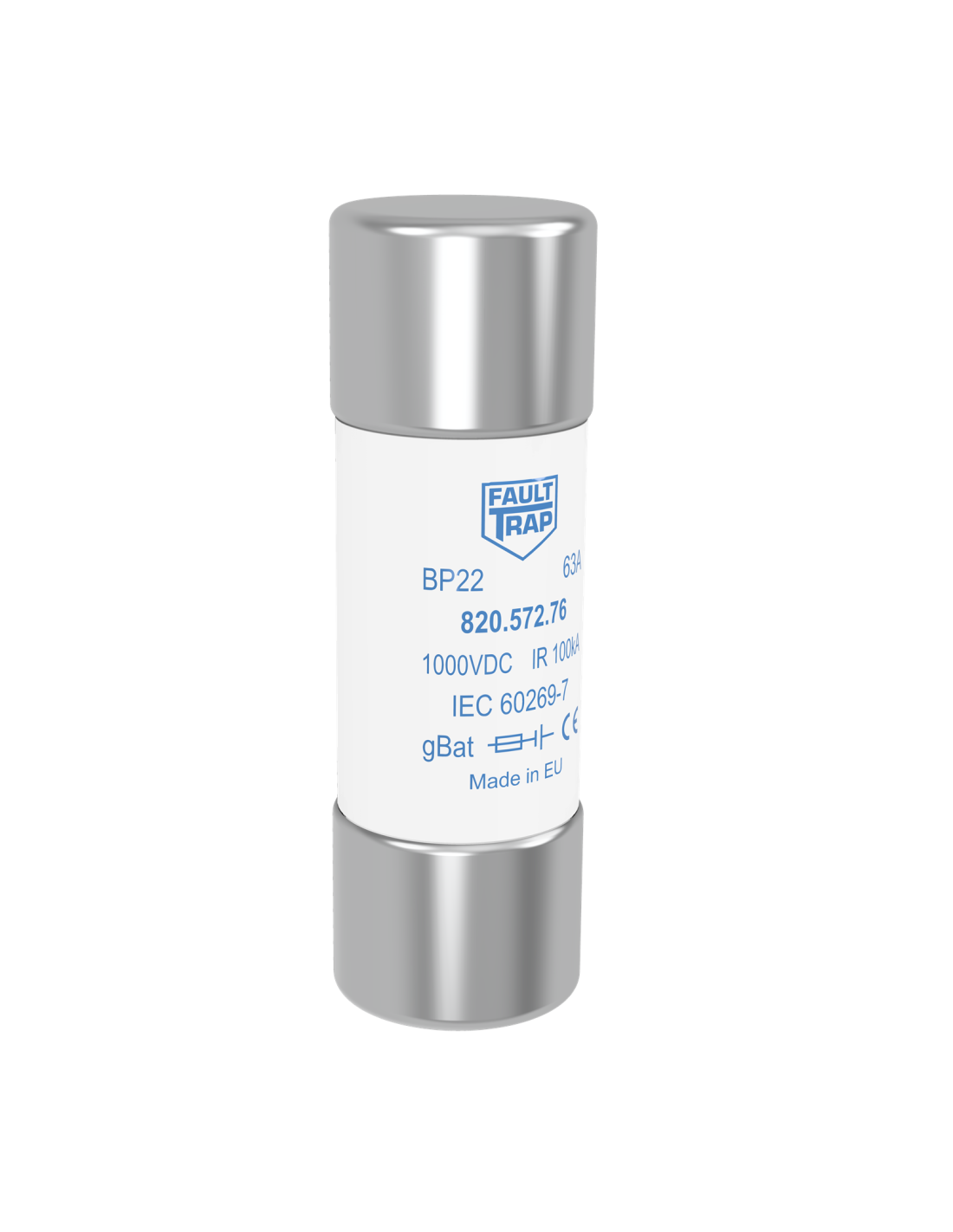

BP22 -Fuse 22x65mm cylindrical 63A
BP22 -Fuse 22x65mm cylindrical 63A

BP22 -Fuse 22x65mm cylindrical 63A

Reference: 820.572.76.0.0  -  Manufacturer: FAULTRAP
Product available on request
Ask for more information

Product Details

Class
gBat, gR
Rated current In (A)
63
Applicable standards
IEC, UL
Power loss (W)
1,6
Rated Voltage Un DC (V)
1000
Series name
BP22
Rated breaking capacity I1 DC (kA)
100000
Fuse Dimension (mm)
22x65
Fuse Connection/Terminal type
Cylindrical
Total clearing I²t @Un AC (A²s)
1660
