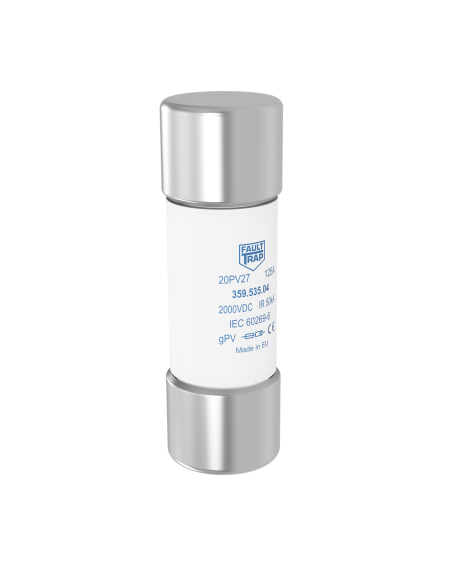

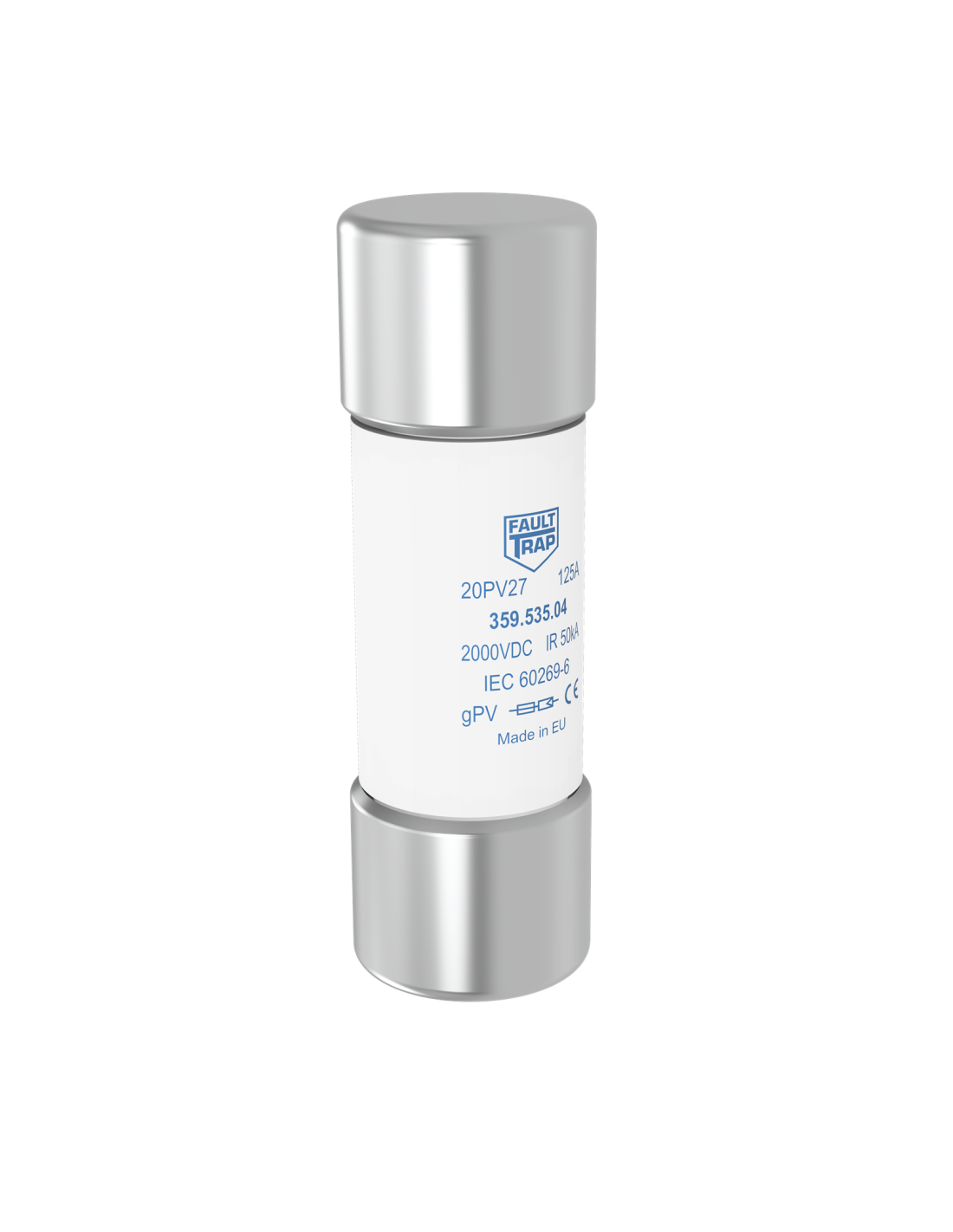

20PV27 - Fuse 2000VDC gPV 27x85mm 125A
20PV27 - Fuse 2000VDC gPV 27x85mm 125A

20PV27 - Fuse 2000VDC gPV 27x85mm 125A

Reference: 359.535.04.0.0  -  Manufacturer: FAULTRAP
Product available on request
Ask for more information

Product Details

Class
gPV
Rated current In (A)
125
Applicable standards
IEC
Power loss (W)
23.4
Rated Voltage Un DC (V)
2000
Time costant L/R (ms)
1-3
Series name
20PV27
Rated breaking capacity I1 DC (kA)
50
Fuse Dimension (mm)
27x85
Melting I²t value (A²s)
11220
Fuse Connection/Terminal type
Cylindrical
