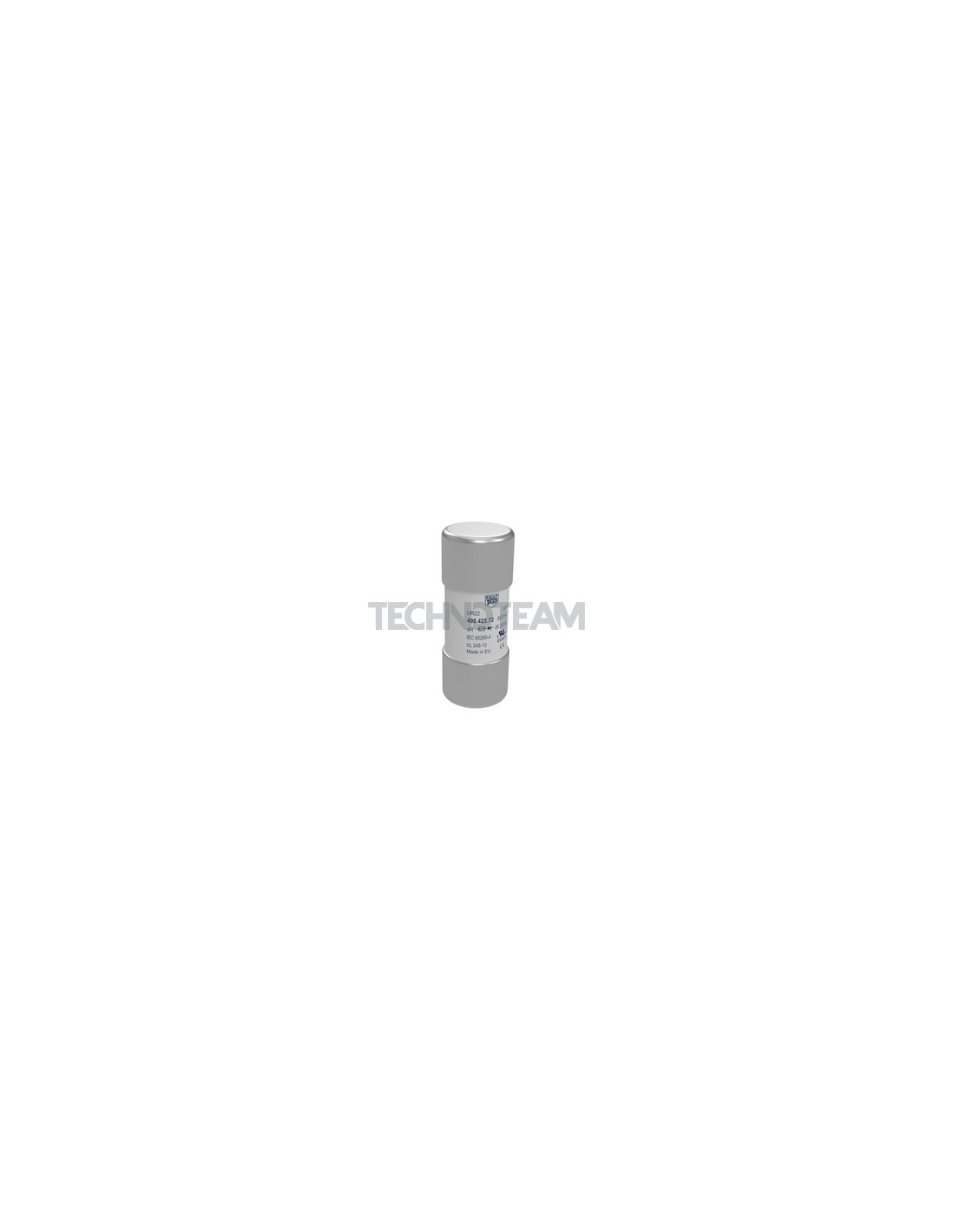

UR22 - Fuse 690V AC 22x58 cylindrical 25A
UR22 - Fuse 690V AC 22x58 cylindrical 25A

UR22 - Fuse 690V AC 22x58 cylindrical 25A

Reference: 399.213.34.0.0  -  Manufacturer: FAULTRAP
Product available on request
Ask for more information

Product Details

Class
aR
Rated current In (A)
25
Rated Voltage Un AC (V)
550
Applicable standards
IEC, UL
Power loss (W)
7,6
Series name
UR22
Fuse Dimension (mm)
22x58
Melting I²t value (A²s)
33
Fuse Connection/Terminal type
Cylindrical
Voltage of total clearing I2t test
550
Total clearing I²t @Un AC (A²s)
147
Rated breaking capacity I1 AC (kA)
200000
