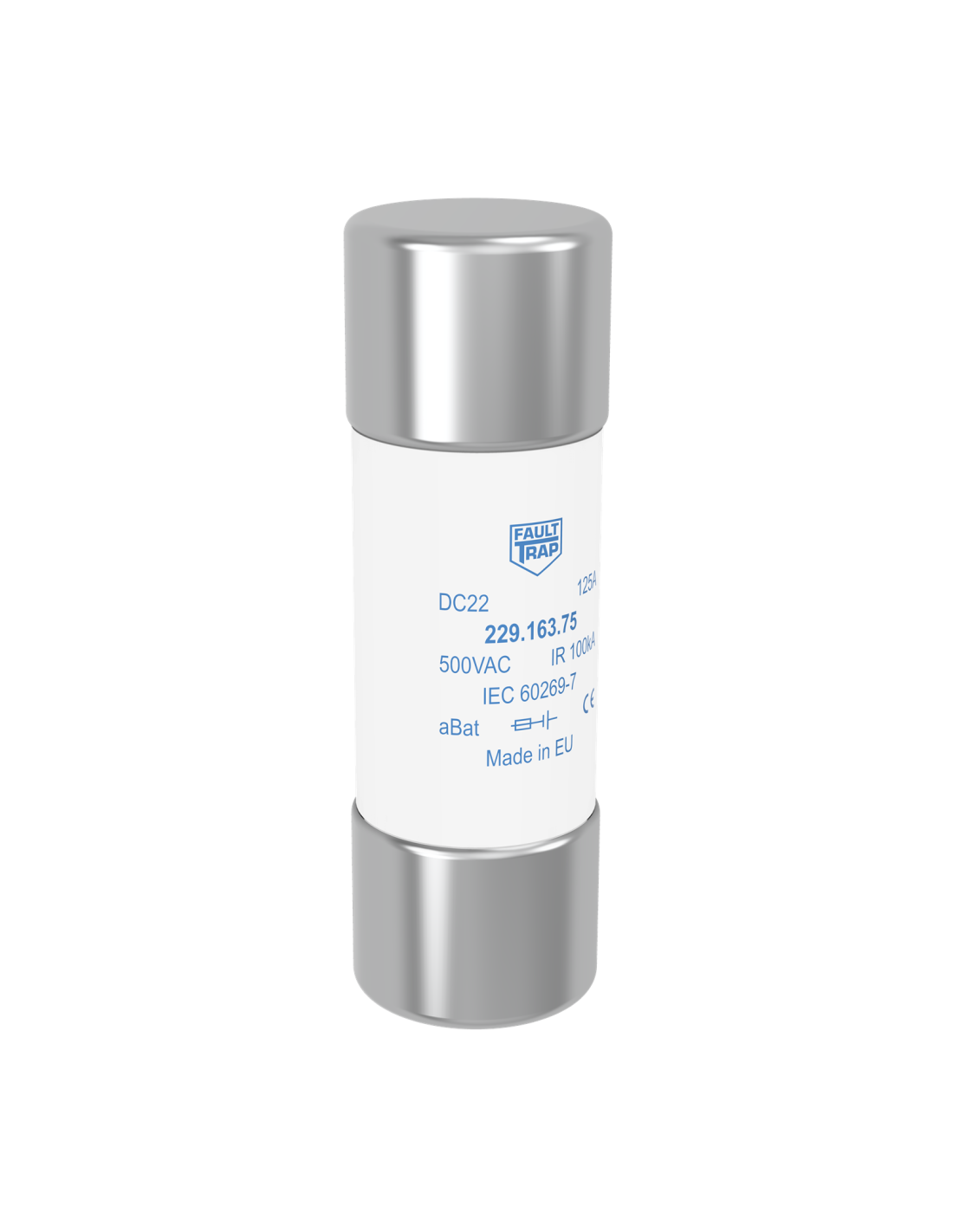

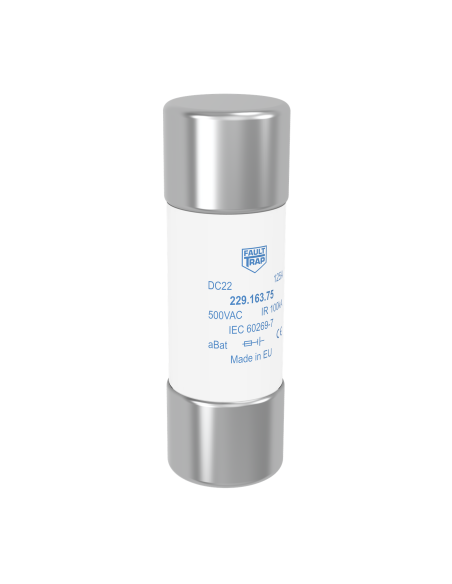

DC22 - Fuse 1000VDC aBat 22x65mm 80A
DC22 - Fuse 1000VDC aBat 22x65mm 80A

DC22 - Fuse 1000VDC aBat 22x65mm 80A

Reference: 616.545.00.0.0  -  Manufacturer: FAULTRAP
Product available on request
Ask for more information

Product Details

Class
aBat
Rated current In (A)
80
Applicable standards
IEC
Power loss (W)
16,3
Rated Voltage Un DC (V)
1000
Time costant L/R (ms)
1-3
Series name
DC22
Rated breaking capacity I1 DC (kA)
100
Fuse Dimension (mm)
22x65
Melting I²t value (A²s)
1350
Fuse Connection/Terminal type
Cylindrical
Total clearing I²t @Un DC (A²s)
5950
