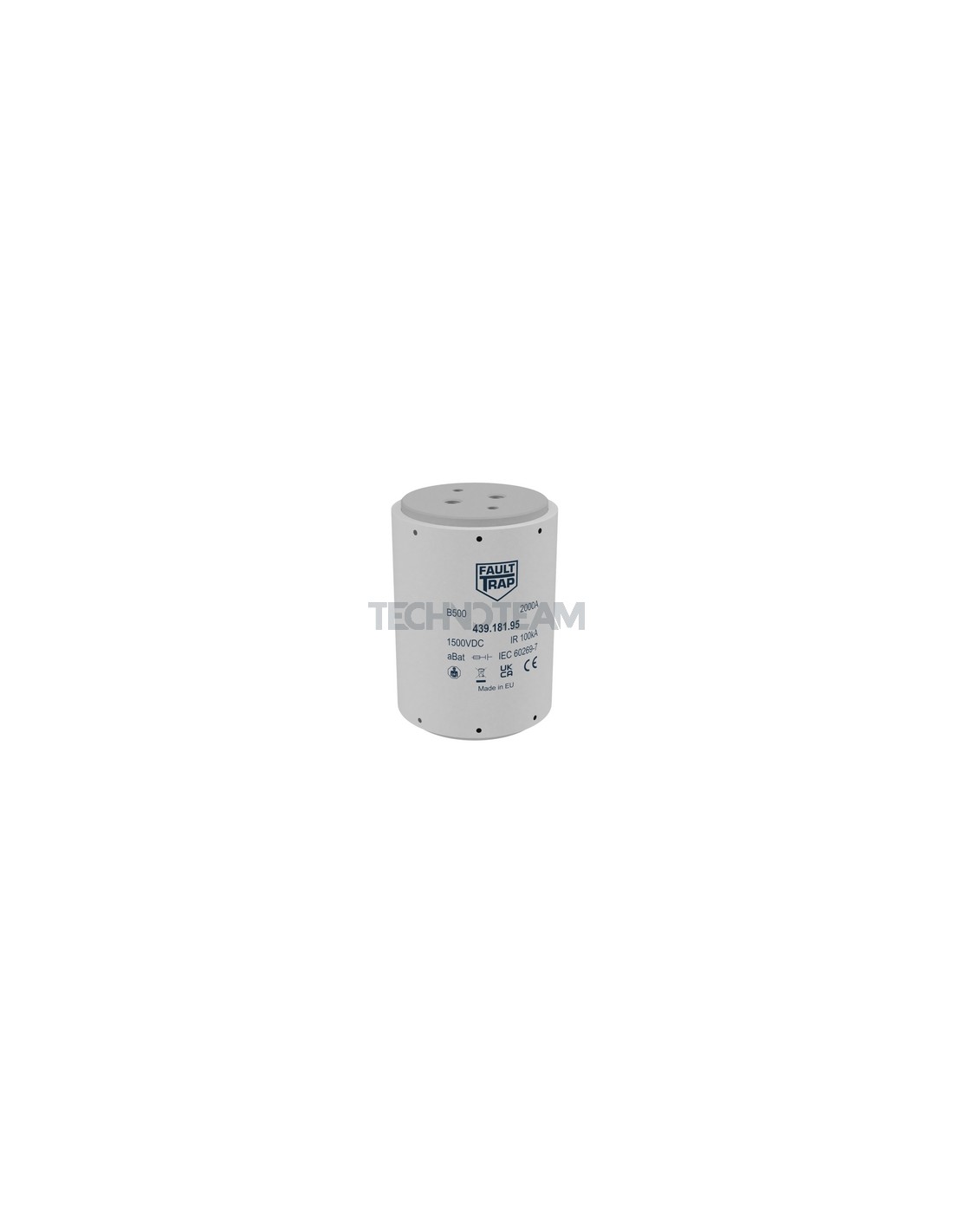

B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 1000A
B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 1000A

B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 1000A

Reference: 771.687.08.0.0  -  Manufacturer: FAULTRAP
Product available on request
Ask for more information

Product Details

Class
aBat
Rated current In (A)
1000
Applicable standards
IEC
Power loss (W)
260
Rated Voltage Un DC (V)
1500
Time costant L/R (ms)
3
Series name
B500
Rated breaking capacity I1 DC (kA)
250000
Fuse Dimension (mm)
103x144
Fixing dimensions
M12
Melting I²t value (A²s)
404000
Minimum breaking current (A)
11000
Fuse Connection/Terminal type
Screw fixing
Voltage of total clearing I2t test
1500
Total clearing I²t @Un AC (A²s)
2210000
