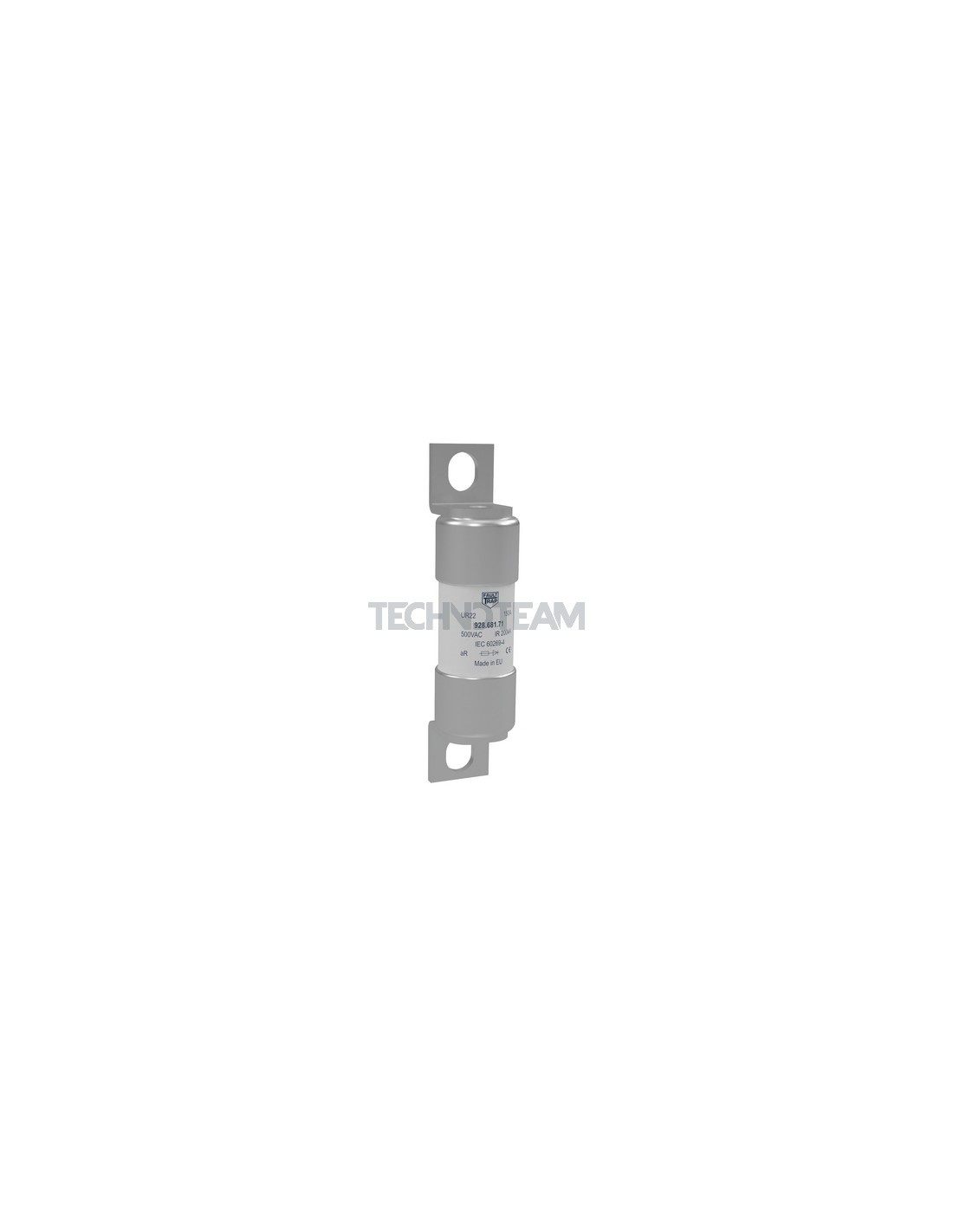

UR22 - Fuse 690V AC 22x58 fixing 80mm 32A
UR22 - Fuse 690V AC 22x58 fixing 80mm 32A

UR22 - Fuse 690V AC 22x58 fixing 80mm 32A

Reference: 677.334.80.0.0  -  Manufacturer: FAULTRAP
Product available on request
Ask for more information

Product Details

Class
aR
Rated current In (A)
32
Rated Voltage Un AC (V)
690
Applicable standards
IEC
Power loss (W)
9
Series name
UR22
Fuse Dimension (mm)
22x58
Melting I²t value (A²s)
65
Fuse Connection/Terminal type
Screw fixing
Voltage of total clearing I2t test
690
Total clearing I²t @Un AC (A²s)
330
Rated breaking capacity I1 AC (kA)
200000
