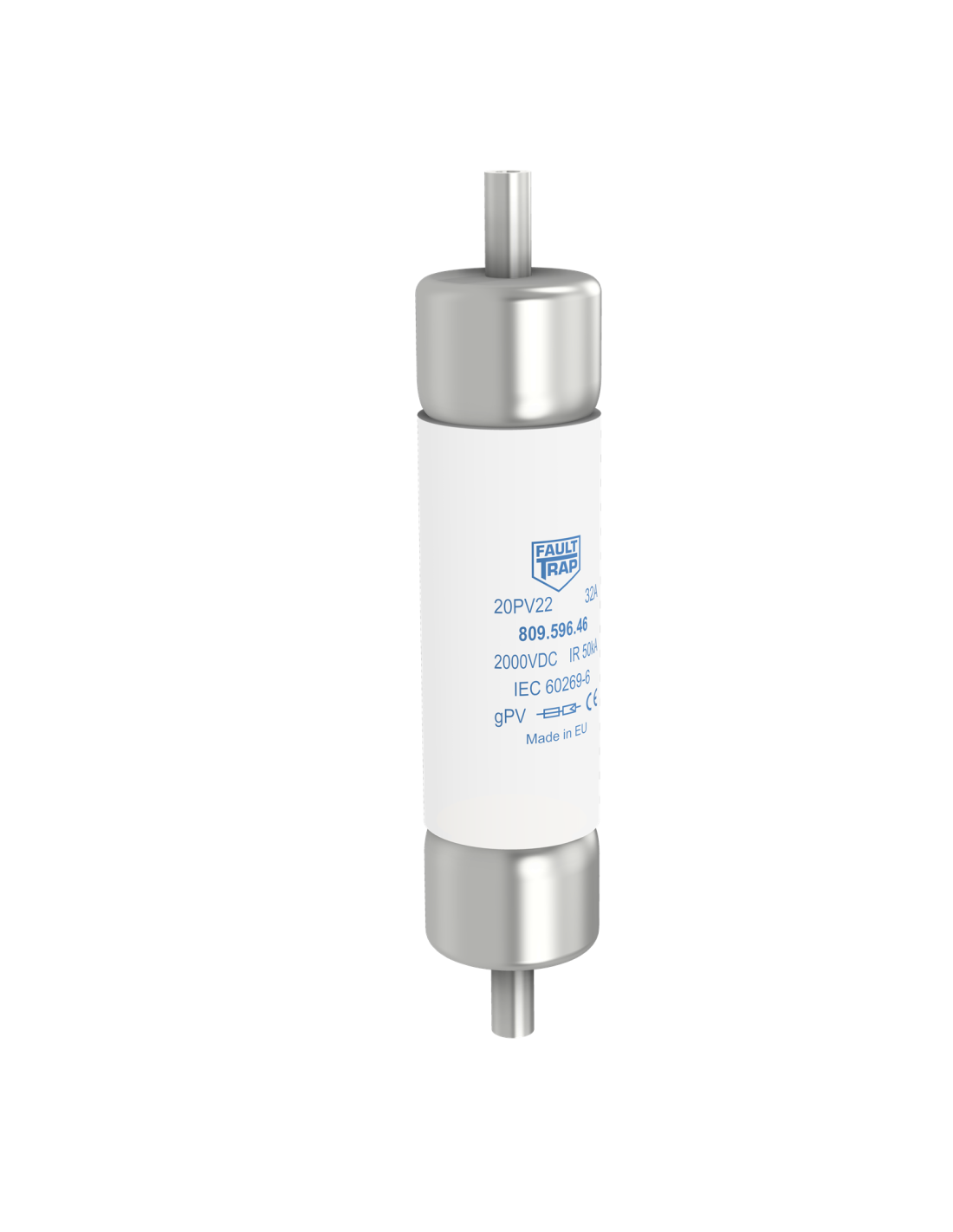

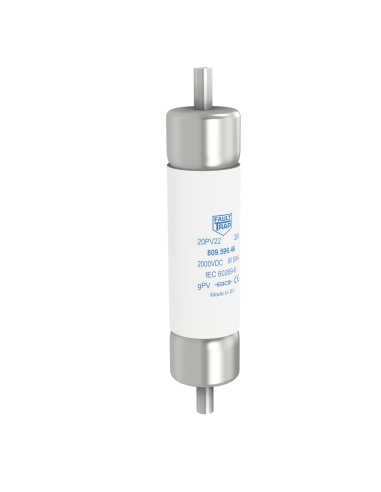

20PV22 - Fuse 2000VDC gPV 22x85mm inline copper 10/12AWG 12A
20PV22 - Fuse 2000VDC gPV 22x85mm inline copper 10/12AWG 12A

20PV22 - Fuse 2000VDC gPV 22x85mm inline copper 10/12AWG 12A

Reference: 773.810.27.0.0  -  Manufacturer: FAULTRAP
Product available on request
Ask for more information

Product Details

Class
gPV
Rated current In (A)
12
Applicable standards
IEC
Power loss (W)
4
Rated Voltage Un DC (V)
2000
Time costant L/R (ms)
1-3
Series name
20PV22
Rated breaking capacity I1 DC (kA)
50
Fuse Dimension (mm)
22x85
Melting I²t value (A²s)
23
Fuse Connection/Terminal type
Cylindrical
