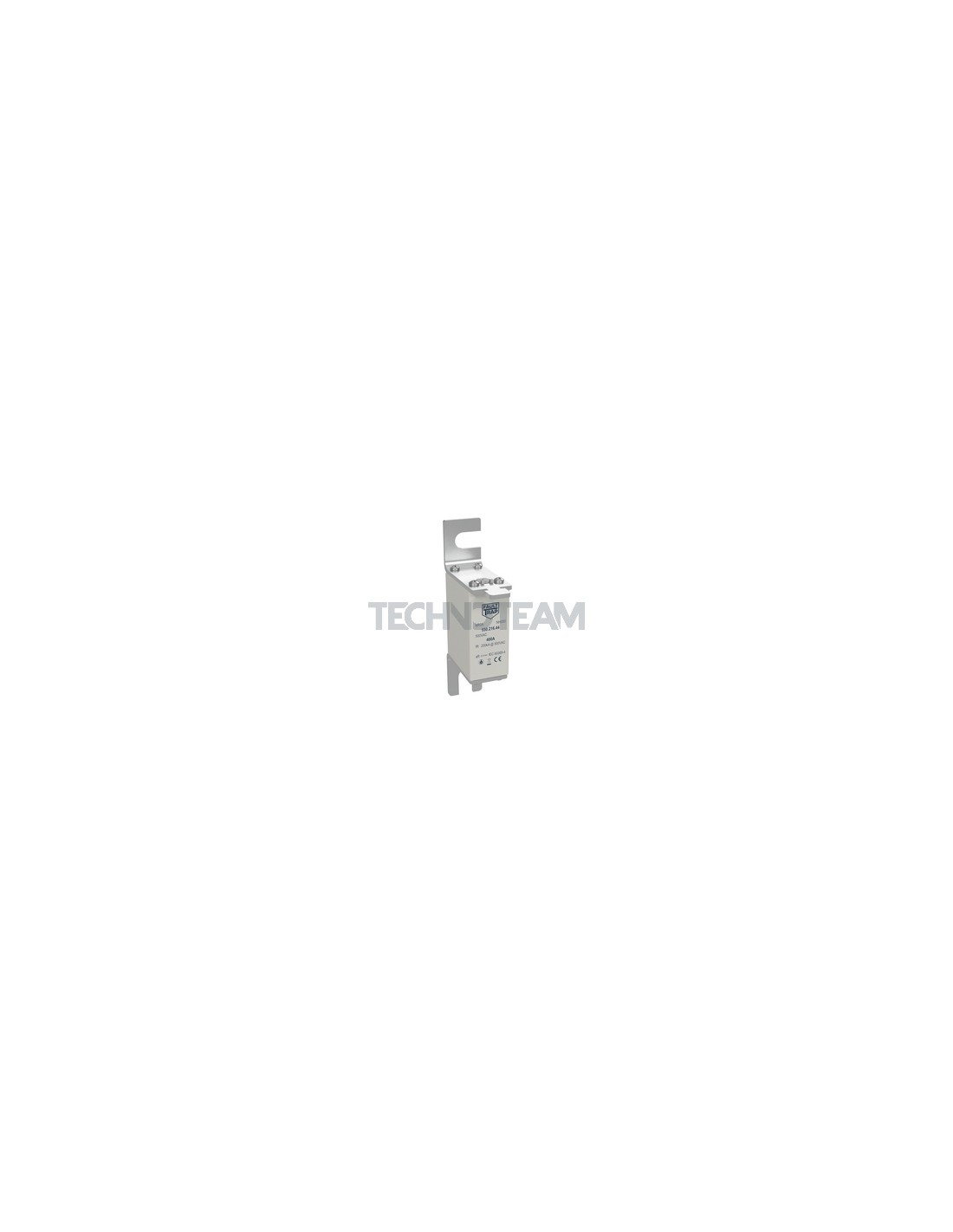

NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 315A
NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 315A

NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 315A

Reference: 712.042.86.0.0  -  Manufacturer: FAULTRAP
€62.83 /pc VAT excl.

Product Details

Class
aR
Rated current In (A)
315
Rated Voltage Un AC (V)
690
Dimension
000
Applicable standards
IEC, UL
Power loss (W)
70
Rated Voltage Un DC (V)
700
Time costant L/R (ms)
2
Series name
NR2B
Rated breaking capacity I1 DC (kA)
30000
Melting I²t value (A²s)
16450
Fuse Connection/Terminal type
Screw fixing
Fixing connection centres (mm)
80
Voltage of total clearing I2t test
700
Total clearing I²t @Un AC (A²s)
60000
Rated breaking capacity I1 AC (kA)
200000
