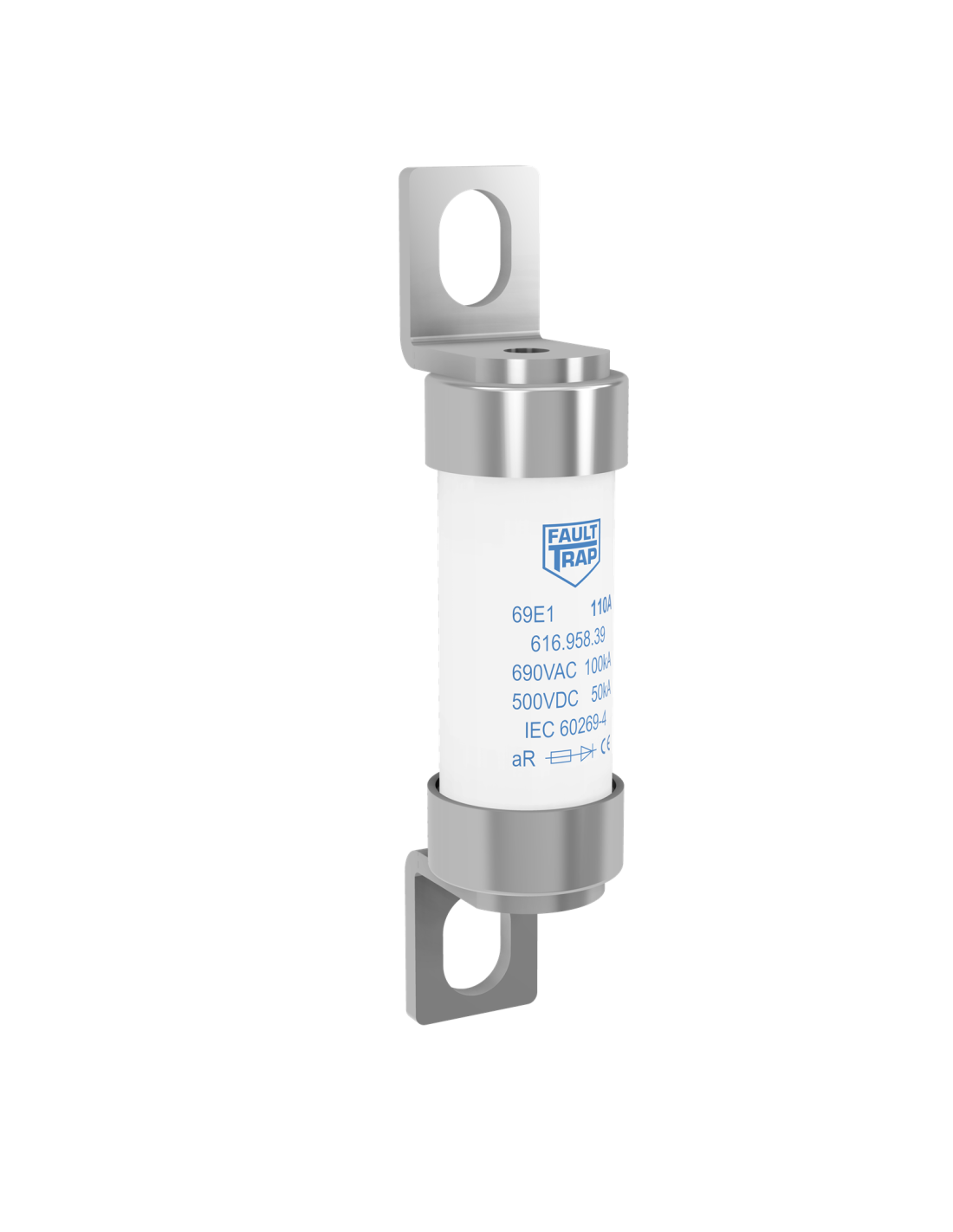

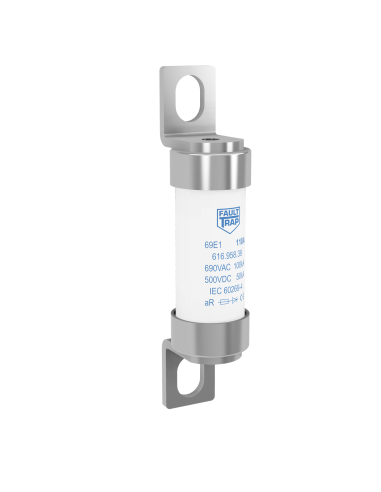

69E1 - Fuse BS 17,2x63,5 aR 690V 35A
69E1 - Fuse BS 17,2x63,5 aR 690V 35A

69E1 - Fuse BS 17,2x63,5 aR 690V 35A

Reference: 118.456.44.0.0  -  Manufacturer: FAULTRAP
€15.22 /pc VAT excl.

This product is only sold in boxes of 10 pcs

Product Details

Class
aR
Rated current In (A)
35
Rated Voltage Un AC (V)
690
Applicable standards
IEC
Power loss (W)
11,6
Rated Voltage Un DC (V)
500
Series name
69E1
Rated breaking capacity I1 DC (kA)
50
Fuse Dimension (mm)
17x77
Melting I²t value (A²s)
69
Fuse Connection/Terminal type
Screw fixing
Fixing connection centres (mm)
63.5
Total clearing I²t @Un AC (A²s)
286
Rated breaking capacity I1 AC (kA)
100
Weight (gr)
40,5
