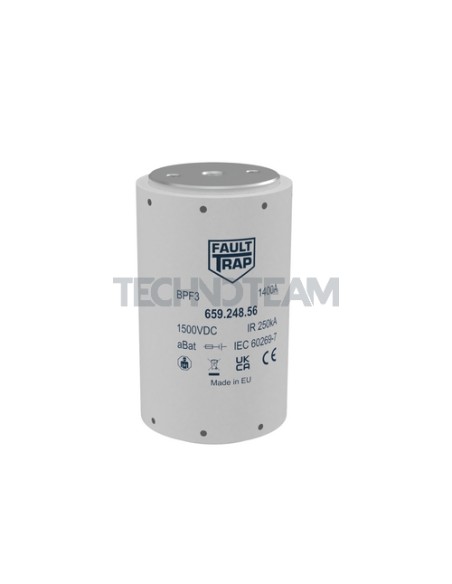

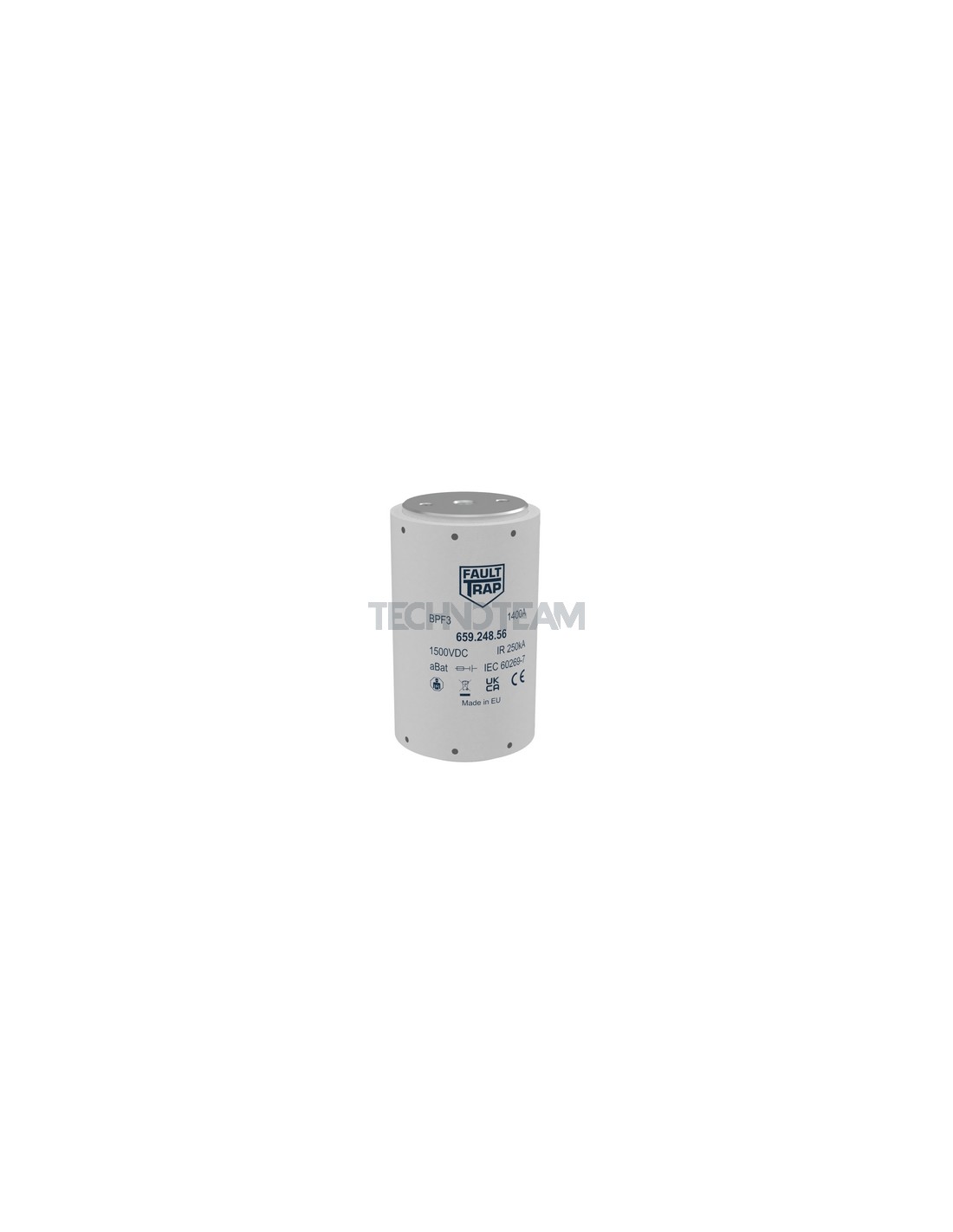

BPF3 - Fuse 1500VDC aBat M12 1100A
BPF3 - Fuse 1500VDC aBat M12 1100A

BPF3 - Fuse 1500VDC aBat M12 1100A

Reference: 811.782.46.0.0  -  Manufacturer: FAULTRAP
Product available on request
Ask for more information

Product Details

Class
aBat
Rated current In (A)
1100
Applicable standards
IEC
Power loss (W)
245
Rated Voltage Un DC (V)
1500
Time costant L/R (ms)
3
Series name
BPF3
Rated breaking capacity I1 DC (kA)
100000
Fuse Dimension (mm)
76x140
Fixing dimensions
M12
Melting I²t value (A²s)
790000
Fuse Connection/Terminal type
Screw fixing
Voltage of total clearing I2t test
1500
Total clearing I²t @Un AC (A²s)
4505000
