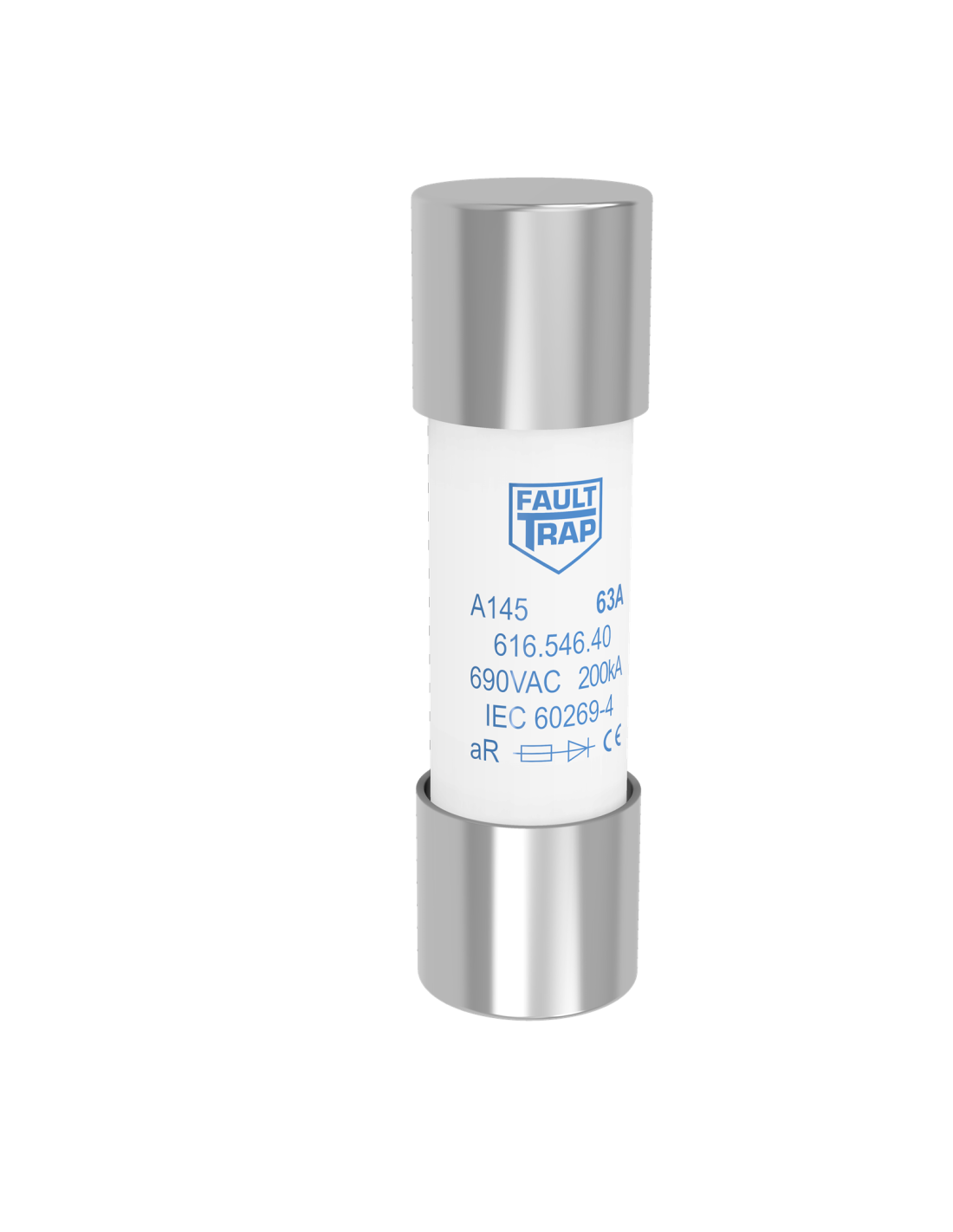

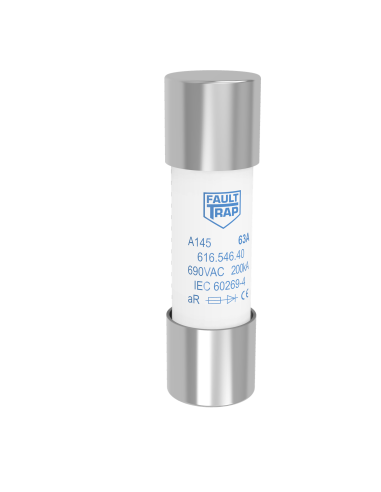

A145 - Fuse 14x51 500VAC aR 63A
A145 - Fuse 14x51 500VAC aR 63A

A145 - Fuse 14x51 500VAC aR 63A

Reference: 616.546.40.0.0  -  Manufacturer: FAULTRAP
Product available on request
Ask for more information

Product Details

Class
aR
Rated current In (A)
63
Rated Voltage Un AC (V)
690
Applicable standards
IEC
Power loss (W)
16
Series name
A145
Fuse Dimension (mm)
14x51
Melting I²t value (A²s)
408
Fuse Connection/Terminal type
Cylindrical
Total clearing I²t @Un AC (A²s)
2930
Rated breaking capacity I1 AC (kA)
200
