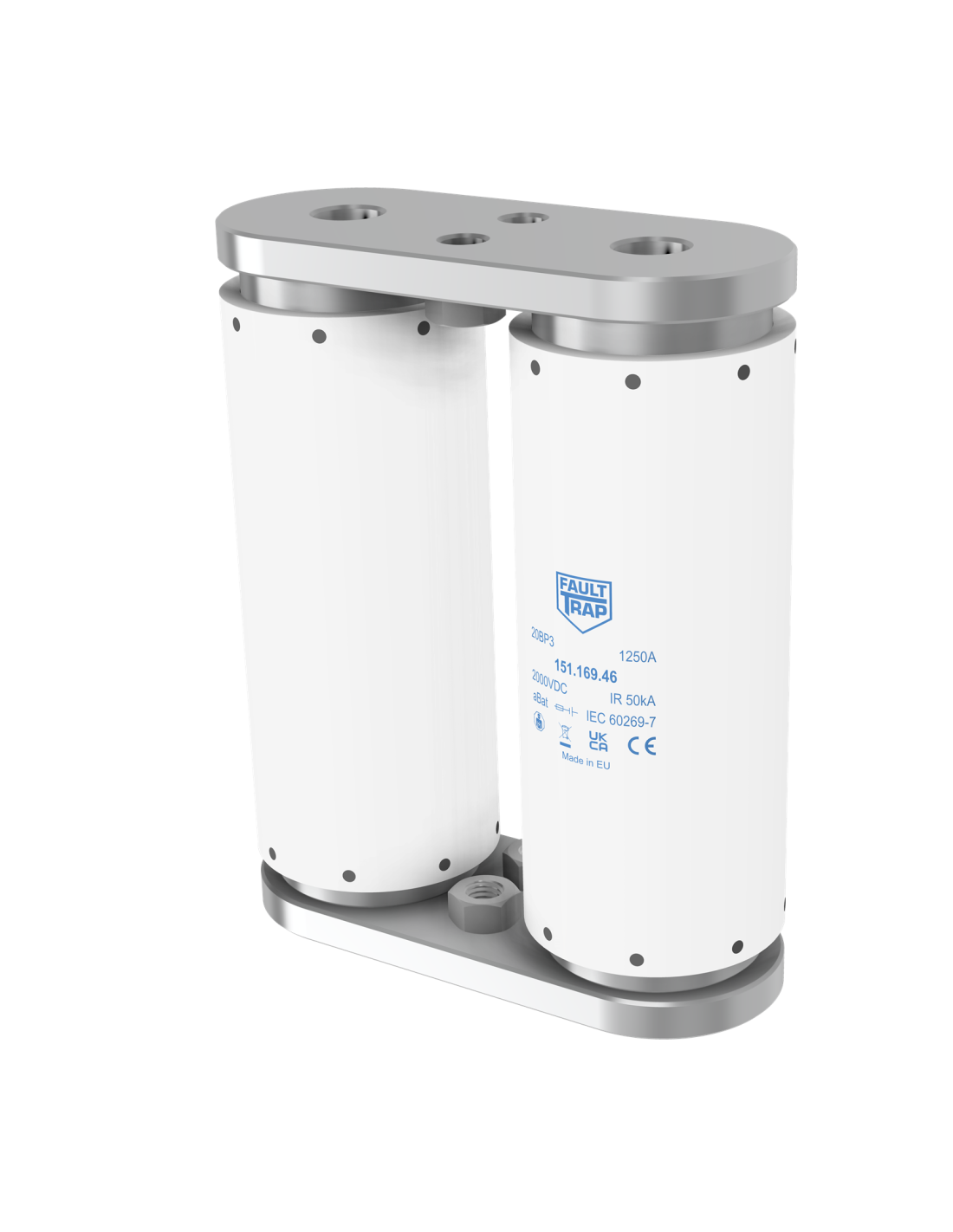

20BP3 - Fuse 2000VDC aBat 2x76x194mm Flush-End M12 1250A
20BP3 - Fuse 2000VDC aBat 2x76x194mm Flush-End M12 1250A

20BP3 - Fuse 2000VDC aBat 2x76x194mm Flush-End M12 1250A

Reference: 151.169.46.0.0  -  Manufacturer: FAULTRAP
Product available on request
Ask for more information

Product Details

Class
aBat
Rated current In (A)
1250
Applicable standards
IEC
Power loss (W)
278
Rated Voltage Un DC (V)
2000
Time costant L/R (ms)
1-3
Series name
20BP3
Rated breaking capacity I1 DC (kA)
50
Fuse Dimension (mm)
76x218
Fixing dimensions
M12
Melting I²t value (A²s)
1180000
Minimum breaking current (A)
12500
Fuse Connection/Terminal type
Screw fixing
