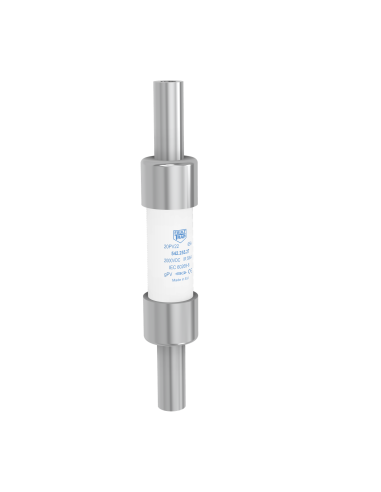

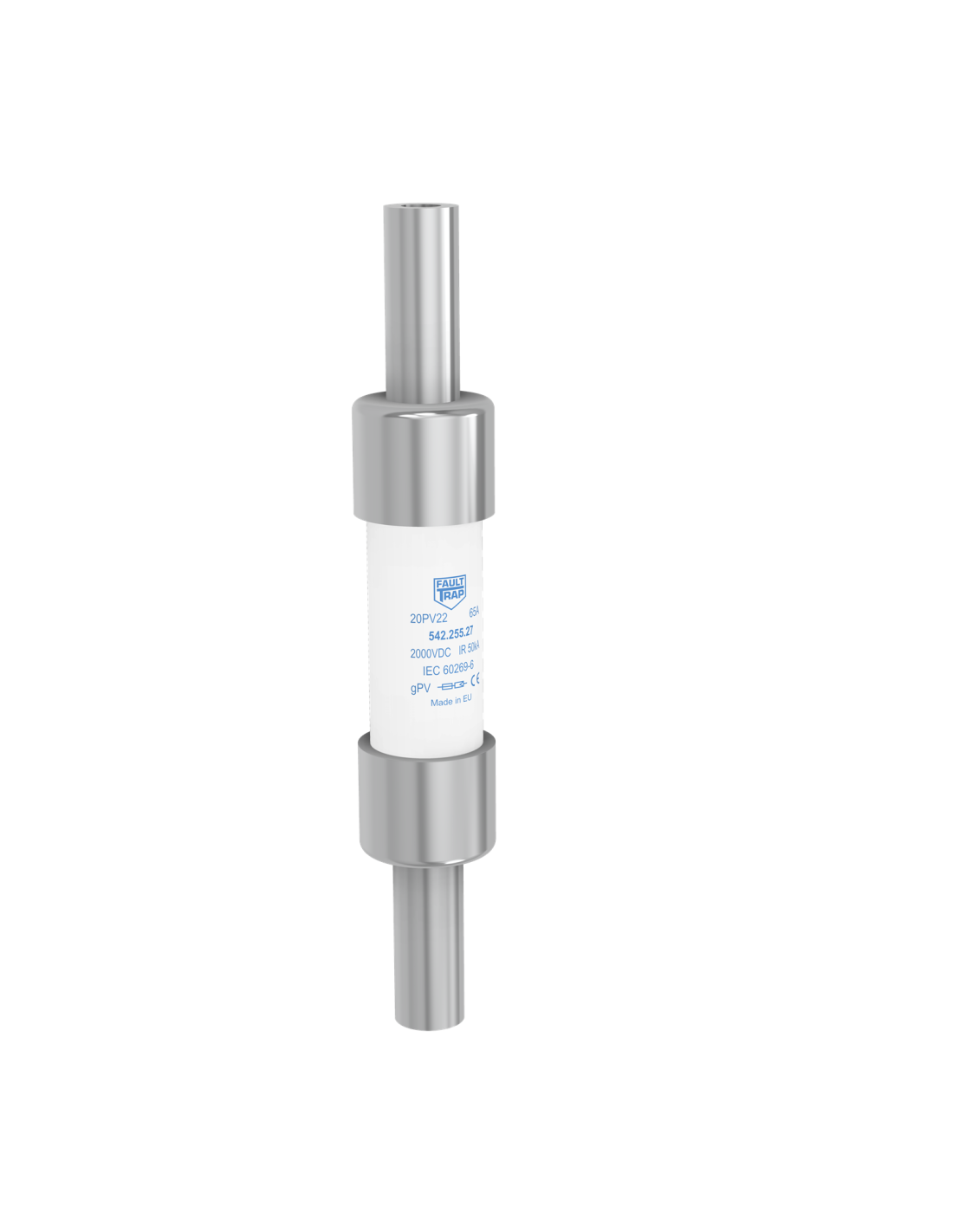

20PV22 - Fuse 2000VDC gPV 22x85mm inline aluminum 4AWG 55A
20PV22 - Fuse 2000VDC gPV 22x85mm inline aluminum 4AWG 55A

20PV22 - Fuse 2000VDC gPV 22x85mm inline aluminum 4AWG 55A

Reference: 929.282.47.0.0  -  Manufacturer: FAULTRAP
Product available on request
Ask for more information

Product Details

Class
gPV
Rated current In (A)
55
Applicable standards
IEC
Power loss (W)
13.5
Rated Voltage Un DC (V)
2000
Time costant L/R (ms)
1-3
Series name
20PV22
Rated breaking capacity I1 DC (kA)
50
Fuse Dimension (mm)
22x85
Melting I²t value (A²s)
1065
Fuse Connection/Terminal type
In-line for aluminum cable
