Surge protection devices and accessories

SPH-275-40-4(S) - SPD 275V T2 4+0 with microswitch

SPH-275-40-4(S) - SPD 275V T2 4+0 with microswitch

Reference E64.927.58.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 2
Protection level Up (kV) 1,5
Remote contact YES
Housing Plug-in modules
Series name SPH-275-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 275
Price List €156.49/pc
Quantity
lock Datasheet
SPH-275-40-1(S) - SPD 275V T2 1+0 with microswitch

SPH-275-40-1(S) - SPD 275V T2 1+0 with microswitch

Reference F11.007.28.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 2
Protection level Up (kV) 1,5
Remote contact YES
Housing Plug-in modules
Series name SPH-275-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 275
Price List €14.35/pc
Quantity
lock Datasheet
SPH-320-40-2(S) - SPD 320V T2 2+0 with microswitch

SPH-320-40-2(S) - SPD 320V T2 2+0 with microswitch

Reference G15.563.31.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 2
Protection level Up (kV) 1,6
Remote contact YES
Housing Plug-in modules
Series name SPH-320-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 320
Price List €143.45/pc
Quantity
lock Datasheet
SPH-75-40-2(S) - SPD 75V T2 2+0 with microswitch

SPH-75-40-2(S) - SPD 75V T2 2+0 with microswitch

Reference G21.180.61.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 60
Applicable standards IEC
Type 2
Protection level Up (kV) 0,4
Remote contact YES
Housing Plug-in modules
Series name SPH-75-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 75
Price List €191.27/pc
Quantity
lock Datasheet
SPK-150-12,5-1(S) - SPD 150V T1+2 2+0 with microswitch

SPK-150-12,5-1(S) - SPD 150V T1+2 2+0 with microswitch

Reference G67.919.20.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 120
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 150
Price List €239.95/pc
Quantity
lock Datasheet
SPK-320-12,5-1(S) - SPD 320V T1+2 3+1 with microswitch

SPK-320-12,5-1(S) - SPD 320V T1+2 3+1 with microswitch

Reference H65.531.10.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1,6
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 320
Price List €532.07/pc
Quantity
lock Datasheet
SPH-275-40-1(S)+1 - SPD 275V T2 1+1 with microswitch

SPH-275-40-1(S)+1 - SPD 275V T2 1+1 with microswitch

Reference H84.996.92.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 2
Protection level Up (kV) 1,5
Remote contact YES
Housing Plug-in modules
Series name SPH-275-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 275
Price List €95.63/pc
Quantity
lock Datasheet
SPH-440-40-2(S) - SPD 440V T2 2+0 with microswitch

SPH-440-40-2(S) - SPD 440V T2 2+0 with microswitch

Reference I64.960.37.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 400
Applicable standards IEC
Type 2
Protection level Up (kV) 2
Remote contact YES
Housing Plug-in modules
Series name SPH-440-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 440
Price List €191.27/pc
Quantity
lock Datasheet
SPH-150-40-3(S) - SPD 150V T2 3+0 with microswitch

SPH-150-40-3(S) - SPD 150V T2 3+0 with microswitch

Reference I81.647.20.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 120
Applicable standards IEC
Type 2
Protection level Up (kV) 1
Remote contact YES
Housing Plug-in modules
Series name SPH-150-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 150
Price List €278.21/pc
Quantity
lock Datasheet
SPH-275-40-2(S) - SPD 275V T2 2+0 with microswitch

SPH-275-40-2(S) - SPD 275V T2 2+0 with microswitch

Reference J18.058.75.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 2
Protection level Up (kV) 1,5
Remote contact YES
Housing Plug-in modules
Series name SPH-275-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 275
Price List €95.63/pc
Quantity
lock Datasheet
SPH-150-40-3(S)+1 - SPD 150V T2 3+1 with microswitch

SPH-150-40-3(S)+1 - SPD 150V T2 3+1 with microswitch

Reference J93.258.24.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 120
Applicable standards IEC
Type 2
Protection level Up (kV) 1
Remote contact YES
Housing Plug-in modules
Series name SPH-150-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 150
Price List €573.80/pc
Quantity
lock Datasheet
SPK-385-12,5-1(S) - SPD 385V T1+2 3+1 with microswitch

SPK-385-12,5-1(S) - SPD 385V T1+2 3+1 with microswitch

Reference K37.053.01.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1,8
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 385
Price List €532.07/pc
Quantity
lock Datasheet
SPK-320-12,5-1(S) - SPD 320V T1+2 1+1 with microswitch

SPK-320-12,5-1(S) - SPD 320V T1+2 1+1 with microswitch

Reference K63.607.84.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1,6
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 320
Price List €333.85/pc
Quantity
lock Datasheet
SPK-320-12,5-1(S) - SPD 320V T1+2 1+0 with microswitch

SPK-320-12,5-1(S) - SPD 320V T1+2 1+0 with microswitch

Reference L45.555.52.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1,6
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 320
Price List €156.49/pc
Quantity
lock Datasheet
SPH-385-40-1(S) - SPD 385V T2 1+0 with microswitch

SPH-385-40-1(S) - SPD 385V T2 1+0 with microswitch

Reference L56.499.39.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 2
Protection level Up (kV) 1,8
Remote contact YES
Housing Plug-in modules
Series name SPH-385-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 385
Price List €95.63/pc
Quantity
lock Datasheet
SPH-75-40-1(S)+1 - SPD 75V T2 1+1 with microswitch

SPH-75-40-1(S)+1 - SPD 75V T2 1+1 with microswitch

Reference M35.319.32.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 60
Applicable standards IEC
Type 2
Protection level Up (kV) 0,4
Remote contact YES
Housing Plug-in modules
Series name SPH-75-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 75
Price List €191.27/pc
Quantity
lock Datasheet
SPH-440-40-1(S)+1 - SPD 440V T2 1+1 with microswitch

SPH-440-40-1(S)+1 - SPD 440V T2 1+1 with microswitch

Reference M48.405.43.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 400
Applicable standards IEC
Type 2
Protection level Up (kV) 2
Remote contact YES
Housing Plug-in modules
Series name SPH-440-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 440
Price List €191.27/pc
Quantity
lock Datasheet
SPH-440-40-3(S)+1 - SPD 440V T2 3+1 with microswitch

SPH-440-40-3(S)+1 - SPD 440V T2 3+1 with microswitch

Reference M82.999.34.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 400
Applicable standards IEC
Type 2
Protection level Up (kV) 2
Remote contact YES
Housing Plug-in modules
Series name SPH-440-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 440
Price List €382.54/pc
Quantity
lock Datasheet
SPH-320-40-4(S) - SPD 320V T2 4+0 with microswitch

SPH-320-40-4(S) - SPD 320V T2 4+0 with microswitch

Reference N93.928.79.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 2
Protection level Up (kV) 1,6
Remote contact YES
Housing Plug-in modules
Series name SPH-320-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 320
Price List €273.86/pc
Quantity
lock Datasheet
SPK-75-12,5-1(S) - SPD 75V T1+2 2+0 with microswitch

SPK-75-12,5-1(S) - SPD 75V T1+2 2+0 with microswitch

Reference P03.543.65.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 60
Applicable standards IEC
Type 1+2
Protection level Up (kV) 0,7
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 75
Price List €239.95/pc
Quantity
lock Datasheet
SPK-75-12,5-1(S) - SPD 75V T1+2 1+1 with microswitch

SPK-75-12,5-1(S) - SPD 75V T1+2 1+1 with microswitch

Reference P49.824.92.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 60
Applicable standards IEC
Type 1+2
Protection level Up (kV) 0,7
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 75
Price List €278.21/pc
Quantity
lock Datasheet
SPK-440-12,5-1(S) - SPD 440V T1+2 2+0 with microswitch

SPK-440-12,5-1(S) - SPD 440V T1+2 2+0 with microswitch

Reference P78.030.82.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 400
Applicable standards IEC
Type 1+2
Protection level Up (kV) 2
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 440
Price List €299.94/pc
Quantity
lock Datasheet
SPH-385-40-2(S) - SPD 385V T2 2+0 with microswitch

SPH-385-40-2(S) - SPD 385V T2 2+0 with microswitch

Reference R59.193.53.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 2
Protection level Up (kV) 1,8
Remote contact YES
Housing Plug-in modules
Series name SPH-385-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 385
Price List €143.45/pc
Quantity
lock Datasheet
SPH-385-40-1(S)+1 - SPD 385V T2 1+1 with microswitch

SPH-385-40-1(S)+1 - SPD 385V T2 1+1 with microswitch

Reference R99.550.20.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 2
Protection level Up (kV) 1,8
Remote contact YES
Housing Plug-in modules
Series name SPH-385-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 385
Price List €191.27/pc
Quantity
lock Datasheet
SPH-385-40-3(S)+1 - SPD 385V T2 3+1 with microswitch

SPH-385-40-3(S)+1 - SPD 385V T2 3+1 with microswitch

Reference S71.823.34.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 2
Protection level Up (kV) 1,8
Remote contact YES
Housing Plug-in modules
Series name SPH-385-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 385
Price List €286.90/pc
Quantity
lock Datasheet
SPK-150-12,5-1(S) - SPD 150V T1+2 3+1 with microswitch

SPK-150-12,5-1(S) - SPD 150V T1+2 3+1 with microswitch

Reference T35.280.66.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 120
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 150
Price List €532.07/pc
Quantity
lock Datasheet
SPH-275-40-3(S) - SPD 275V T2 3+0 with microswitch

SPH-275-40-3(S) - SPD 275V T2 3+0 with microswitch

Reference T38.623.39.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 2
Protection level Up (kV) 1,5
Remote contact YES
Housing Plug-in modules
Series name SPH-275-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 275
Price List €119.23/pc
Quantity
lock Datasheet
SPK-150-12,5-1(S) - SPD 150V T1+2 1+1 with microswitch

SPK-150-12,5-1(S) - SPD 150V T1+2 1+1 with microswitch

Reference U46.817.57.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 120
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 150
Price List €278.21/pc
Quantity
lock Datasheet
SPK-320-12,5-1(S) - SPD 320V T1+2 3+0 with microswitch

SPK-320-12,5-1(S) - SPD 320V T1+2 3+0 with microswitch

Reference U51.981.79.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1,6
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 320
Price List €443.39/pc
Quantity
lock Datasheet
SPH-320-40-1(S)+1 - SPD 320V T2 1+1 with microswitch

SPH-320-40-1(S)+1 - SPD 320V T2 1+1 with microswitch

Reference U59.379.30.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 2
Protection level Up (kV) 1,6
Remote contact YES
Housing Plug-in modules
Series name SPH-320-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 320
Price List €191.27/pc
Quantity
lock Datasheet
SPK-385-12,5-1(S) - SPD 385V T1+2 2+0 with microswitch

SPK-385-12,5-1(S) - SPD 385V T1+2 2+0 with microswitch

Reference U64.255.90.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1,8
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 385
Price List €299.94/pc
Quantity
lock Datasheet
SPH-150-40-1(S) - SPD 150V T2 1+0 with microswitch

SPH-150-40-1(S) - SPD 150V T2 1+0 with microswitch

Reference U97.778.16.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 120
Applicable standards IEC
Type 2
Protection level Up (kV) 1
Remote contact YES
Housing Plug-in modules
Series name SPH-150-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 150
Price List €286.90/pc
Quantity
lock Datasheet
SPH-440-40-3(S) - SPD 440V T2 3+0 with microswitch

SPH-440-40-3(S) - SPD 440V T2 3+0 with microswitch

Reference V21.170.91.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 400
Applicable standards IEC
Type 2
Protection level Up (kV) 2
Remote contact YES
Housing Plug-in modules
Series name SPH-440-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 440
Price List €278.21/pc
Quantity
lock Datasheet
SPK-385-12,5-1(S) - SPD 385V T1+2 3+0 with microswitch

SPK-385-12,5-1(S) - SPD 385V T1+2 3+0 with microswitch

Reference V89.454.63.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1,8
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 385
Price List €443.39/pc
Quantity
lock Datasheet
SPH-275-40-3(S)+1 - SPD 275V T2 3+1 with microswitch

SPH-275-40-3(S)+1 - SPD 275V T2 3+1 with microswitch

Reference W11.013.73.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 2
Protection level Up (kV) 1,5
Remote contact YES
Housing Plug-in modules
Series name SPH-275-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 275
Price List €163.94/pc
Quantity
lock Datasheet
SPH-320-40-3(S)+1 - SPD 320V T2 3+1 with microswitch

SPH-320-40-3(S)+1 - SPD 320V T2 3+1 with microswitch

Reference W50.285.19.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 2
Protection level Up (kV) 1,6
Remote contact YES
Housing Plug-in modules
Series name SPH-320-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 320
Price List €286.90/pc
Quantity
lock Datasheet
SPH-320-40-3(S) - SPD 320V T2 3+0 with microswitch

SPH-320-40-3(S) - SPD 320V T2 3+0 with microswitch

Reference W71.047.16.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 2
Protection level Up (kV) 1,6
Remote contact YES
Housing Plug-in modules
Series name SPH-320-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 320
Price List €278.21/pc
Quantity
lock Datasheet
SPK-440-12,5-1(S) - SPD 440V T1+2 3+0 with microswitch

SPK-440-12,5-1(S) - SPD 440V T1+2 3+0 with microswitch

Reference X19.366.05.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 400
Applicable standards IEC
Type 1+2
Protection level Up (kV) 2
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 440
Price List €443.39/pc
Quantity
lock Datasheet
SPH-150-40-4(S) - SPD 150V T2 4+0 with microswitch

SPH-150-40-4(S) - SPD 150V T2 4+0 with microswitch

Reference X79.657.66.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 120
Applicable standards IEC
Type 2
Protection level Up (kV) 1
Remote contact YES
Housing Plug-in modules
Series name SPH-150-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 150
Price List €547.72/pc
Quantity
lock Datasheet
SPK-440-12,5-1(S) - SPD 440V T1+2 3+1 with microswitch

SPK-440-12,5-1(S) - SPD 440V T1+2 3+1 with microswitch

Reference X85.120.31.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 400
Applicable standards IEC
Type 1+2
Protection level Up (kV) 2
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 440
Price List €886.79/pc
Quantity
lock Datasheet
SPK-440-12,5-1(S) - SPD 440V T1+2 1+0 with microswitch

SPK-440-12,5-1(S) - SPD 440V T1+2 1+0 with microswitch

Reference X86.984.52.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 400
Applicable standards IEC
Type 1+2
Protection level Up (kV) 2
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 440
Price List €156.49/pc
Quantity
lock Datasheet
SPK-385-12,5-1(S) - SPD 385V T1+2 1+1 with microswitch

SPK-385-12,5-1(S) - SPD 385V T1+2 1+1 with microswitch

Reference X91.060.11.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1,8
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 385
Price List €333.85/pc
Quantity
lock Datasheet
SPH-150-40-1(S)+1 - SPD 150V T2 1+1 with microswitch

SPH-150-40-1(S)+1 - SPD 150V T2 1+1 with microswitch

Reference Y59.784.35.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 120
Applicable standards IEC
Type 2
Protection level Up (kV) 1
Remote contact YES
Housing Plug-in modules
Series name SPH-150-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 150
Price List €573.80/pc
Quantity
lock Datasheet
SPH-385-40-3(S) - SPD 385V T2 3+0 with microswitch

SPH-385-40-3(S) - SPD 385V T2 3+0 with microswitch

Reference Z55.784.89.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 2
Protection level Up (kV) 1,8
Remote contact YES
Housing Plug-in modules
Series name SPH-385-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 385
Price List €278.21/pc
Quantity
lock Datasheet
SPK-440-12,5-1(S) - SPD 440V T1+2 1+1 with microswitch

SPK-440-12,5-1(S) - SPD 440V T1+2 1+1 with microswitch

Reference B02.352.63.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 400
Applicable standards IEC
Type 1+2
Protection level Up (kV) 2
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 440
Price List €333.85/pc
Quantity
lock Datasheet
SPH-440-40-1(S) - SPD 440V T2 1+0 with microswitch

SPH-440-40-1(S) - SPD 440V T2 1+0 with microswitch

Reference B24.272.78.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 400
Applicable standards IEC
Type 2
Protection level Up (kV) 2
Remote contact YES
Housing Plug-in modules
Series name SPH-440-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 440
Price List €57.38/pc
Quantity
lock Datasheet
SPK-320-12,5-1(S) - SPD 320V T1+2 2+0 with microswitch

SPK-320-12,5-1(S) - SPD 320V T1+2 2+0 with microswitch

Reference B77.094.77.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1,6
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 320
Price List €299.94/pc
Quantity
lock Datasheet
SPH-320-40-1(S) - SPD 320V T2 1+0 with microswitch

SPH-320-40-1(S) - SPD 320V T2 1+0 with microswitch

Reference C55.398.16.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 2
Protection level Up (kV) 1,6
Remote contact YES
Housing Plug-in modules
Series name SPH-320-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 320
Price List €95.63/pc
Quantity
lock Datasheet
SPH-385-40-4(S) - SPD 385V T2 4+0 with microswitch

SPH-385-40-4(S) - SPD 385V T2 4+0 with microswitch

Reference D36.720.02.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 2
Protection level Up (kV) 1,8
Remote contact YES
Housing Plug-in modules
Series name SPH-385-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 385
Price List €273.86/pc
Quantity
lock Datasheet
SPH-440-40-4(S) - SPD 440V T2 4+0 with microswitch

SPH-440-40-4(S) - SPD 440V T2 4+0 with microswitch

Reference E04.536.50.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 400
Applicable standards IEC
Type 2
Protection level Up (kV) 2
Remote contact YES
Housing Plug-in modules
Series name SPH-440-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 440
Price List €365.15/pc
Quantity
lock Datasheet
SPH-75-40-1(S) - SPD 75V T2 1+0 with microswitch

SPH-75-40-1(S) - SPD 75V T2 1+0 with microswitch

Reference E29.788.98.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 60
Applicable standards IEC
Type 2
Protection level Up (kV) 400
Remote contact YES
Housing Plug-in modules
Series name SPH-75-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 75
Price List €143.45/pc
Quantity
lock Datasheet
SPH-150-40-2(S) - SPD 150V T2 2+0 with microswitch

SPH-150-40-2(S) - SPD 150V T2 2+0 with microswitch

Reference E63.462.18.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 120
Applicable standards IEC
Type 2
Protection level Up (kV) 1
Remote contact YES
Housing Plug-in modules
Series name SPH-150-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 150
Price List €286.90/pc
Quantity
lock Datasheet
SPD 1000V DC T2 EV chargers with microswitch

SPD 1000V DC T2 EV chargers with microswitch

Reference M36.465.73.0.0 - Manufacturer TechnoTeam
Applicable standards IEC
Type 2
Protection level Up (kV) 4000
Remote contact YES
Housing Pluggable Design
Series name SPH-1000EV(S)
Short circuit current rating Isccr kA 30
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Total dischiarge current kA (In 8/20us) 65
Maximum Continuous Operating Voltage DC Uc (V) 1000
Product available on request Ask for more information
SPD Ur:5kV Uc:4kV class1 10kA M12

SPD Ur:5kV Uc:4kV class1 10kA M12

Reference 63-811648-041.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 250
Height (mm) 136
Rated Voltage (kV) 5
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 4
Price List €33.72/pc
Quantity
SPD Ur:6,3kV Uc:5kV class1 10kA M12

SPD Ur:6,3kV Uc:5kV class1 10kA M12

Reference 63-811648-051.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 250
Height (mm) 136
Rated Voltage (kV) 6,3
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 5
Price List €35.60/pc
Quantity
SPD Ur:7,5kV Uc:6kV class1 10kA M12

SPD Ur:7,5kV Uc:6kV class1 10kA M12

Reference 63-811648-061.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 250
Height (mm) 136
Rated Voltage (kV) 7,5
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 6
Price List €39.25/pc
Quantity
SPD Ur:8,8kV Uc:7kV class1 10kA M12

SPD Ur:8,8kV Uc:7kV class1 10kA M12

Reference 63-811648-071.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 370
Height (mm) 186
Rated Voltage (kV) 8,8
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 7
Price List €38.84/pc
Quantity
SPD Ur:10kV Uc:8kV class1 10kA M12

SPD Ur:10kV Uc:8kV class1 10kA M12

Reference 63-811648-081.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 370
Height (mm) 186
Rated Voltage (kV) 10
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 8
Price List €40.64/pc
Quantity
SPD Ur:11,3kV Uc:9kV class1 10kA M12

SPD Ur:11,3kV Uc:9kV class1 10kA M12

Reference 63-811648-091.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 370
Height (mm) 186
Rated Voltage (kV) 11,3
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 9
Price List €42.09/pc
Quantity
SPD Ur:12,5kV Uc:10kV class1 10kA M12

SPD Ur:12,5kV Uc:10kV class1 10kA M12

Reference 63-811648-101.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 370
Height (mm) 186
Rated Voltage (kV) 12,5
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 10
Price List €48.50/pc
Quantity
SPD Ur:13,8kV Uc:11kV class1 10kA M12

SPD Ur:13,8kV Uc:11kV class1 10kA M12

Reference 63-811648-111.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 370
Height (mm) 186
Rated Voltage (kV) 13,8
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 11
Price List €48.50/pc
Quantity
SPD Ur:15kV Uc:12kV class1 10kA M12

SPD Ur:15kV Uc:12kV class1 10kA M12

Reference 63-811648-121.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 370
Height (mm) 186
Rated Voltage (kV) 15
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 12
Price List €96.25/pc
Quantity
SPD Ur:16,3kV Uc:13kV class1 10kA M12

SPD Ur:16,3kV Uc:13kV class1 10kA M12

Reference 63-811648-131.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 490
Height (mm) 236
Rated Voltage (kV) 16,3
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 13
Price List €50.04/pc
Quantity
SPD Ur:17,5kV Uc:14kV class1 10kA M12

SPD Ur:17,5kV Uc:14kV class1 10kA M12

Reference 63-811648-141.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 490
Height (mm) 236
Rated Voltage (kV) 17,5
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 14
Price List €50.04/pc
Quantity
SPD Ur:18,8kV Uc:15kV class1 10kA M12

SPD Ur:18,8kV Uc:15kV class1 10kA M12

Reference 63-811648-151.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 490
Height (mm) 236
Rated Voltage (kV) 18,8
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 15
Price List €53.28/pc
Quantity
SPD Ur:20kV Uc:16kV class1 10kA M12

SPD Ur:20kV Uc:16kV class1 10kA M12

Reference 63-811648-161.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 490
Height (mm) 236
Rated Voltage (kV) 20
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 16
Price List €53.28/pc
Quantity
SPD Ur:21,3kV Uc:17kV class1 10kA M12

SPD Ur:21,3kV Uc:17kV class1 10kA M12

Reference 63-811648-171.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 490
Height (mm) 236
Rated Voltage (kV) 21,3
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 17
Price List €54.65/pc
Quantity
SPD Ur:22,5kV Uc:18kV class1 10kA M12

SPD Ur:22,5kV Uc:18kV class1 10kA M12

Reference 63-811648-181.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 490
Height (mm) 236
Rated Voltage (kV) 22,5
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 18
Price List €54.65/pc
Quantity
SPD Ur:23,8kV Uc:19kV class1 10kA M12

SPD Ur:23,8kV Uc:19kV class1 10kA M12

Reference 63-811648-191.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 610
Height (mm) 286
Rated Voltage (kV) 23,8
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 19
Price List €56.53/pc
Quantity
SPD Ur:25kV Uc:20kV class1 10kA M12

SPD Ur:25kV Uc:20kV class1 10kA M12

Reference 63-811648-201.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 610
Height (mm) 286
Rated Voltage (kV) 25
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 20
Price List €59.00/pc
Quantity
SPD Ur:26,3kV Uc:21kV class1 10kA M12

SPD Ur:26,3kV Uc:21kV class1 10kA M12

Reference 63-811648-211.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 610
Height (mm) 286
Rated Voltage (kV) 26,3
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 21
Price List €62.67/pc
Quantity
SPD Ur:27,5kV Uc:22kV class1 10kA M12

SPD Ur:27,5kV Uc:22kV class1 10kA M12

Reference 63-811648-221.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 610
Height (mm) 286
Rated Voltage (kV) 27,5
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 22
Price List €63.61/pc
Quantity
SPD Ur:28,8kV Uc:23kV class1 10kA M12

SPD Ur:28,8kV Uc:23kV class1 10kA M12

Reference 63-811648-231.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 610
Height (mm) 286
Rated Voltage (kV) 28,8
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 23
Price List €65.48/pc
Quantity
SPD ASM24 Ur:30kV Uc:24kV class1 10kA M12

SPD ASM24 Ur:30kV Uc:24kV class1 10kA M12

Reference 63-811648-241.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 610
Height (mm) 286
Rated Voltage (kV) 30
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 24
Price List €65.44/pc
Quantity
SPD Ur:31,3kV Uc:25kV class1 10kA M12

SPD Ur:31,3kV Uc:25kV class1 10kA M12

Reference 63-811648-251.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 730
Height (mm) 336
Rated Voltage (kV) 31,3
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 25
Price List €66.94/pc
Quantity
SPD Ur:32,5kV Uc:26kV class1 10kA M12

SPD Ur:32,5kV Uc:26kV class1 10kA M12

Reference 63-811648-261.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 730
Height (mm) 336
Rated Voltage (kV) 32,5
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 26
Price List €74.91/pc
Quantity
SPD Ur:33,9kV Uc:27kV class1 10kA M12

SPD Ur:33,9kV Uc:27kV class1 10kA M12

Reference 63-811648-271.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 730
Height (mm) 336
Rated Voltage (kV) 33,9
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 27
Price List €69.33/pc
Quantity
SPD Ur:35kV Uc:28kV class1 10kA M12

SPD Ur:35kV Uc:28kV class1 10kA M12

Reference 63-811648-281.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 730
Height (mm) 336
Rated Voltage (kV) 35
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 28
Price List €70.61/pc
Quantity
SPD Ur:36,3kV Uc:29kV class1 10kA M12

SPD Ur:36,3kV Uc:29kV class1 10kA M12

Reference 63-811648-291.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 730
Height (mm) 336
Rated Voltage (kV) 36,3
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 29
Price List €71.55/pc
Quantity
SPD Ur:37,5kV Uc:30kV class1 10kA M12

SPD Ur:37,5kV Uc:30kV class1 10kA M12

Reference 63-811648-301.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 730
Height (mm) 336
Rated Voltage (kV) 37,5
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 30
Price List €97.08/pc
Quantity
SPD Ur:41,3kV Uc:33kV class1 10kA M12

SPD Ur:41,3kV Uc:33kV class1 10kA M12

Reference 63-811648-331.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 850
Height (mm) 386
Rated Voltage (kV) 41,3
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 33
Price List €119.37/pc
Quantity
SPD Ur:45kV Uc:36kV class1 10kA M12

SPD Ur:45kV Uc:36kV class1 10kA M12

Reference 63-811648-361.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 850
Height (mm) 386
Rated Voltage (kV) 45
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 36
Price List €120.57/pc
Quantity
SPS2 - SPD 60V DC D1 – C1 – C2 – C3 for telecom and data

SPS2 - SPD 60V DC D1 – C1 – C2 – C3 for telecom and data

Reference V66.557.07.0.0 - Manufacturer TechnoTeam
Rated Voltage Un DC (V) 60
Housing Modular design
Residual voltage (V) 160
Rated operating current IL (A) 1
Frequency f (Mhz) 30
Series name SPS2
Impulse Discharge Current kA (Iimp 10/350us) 5
Nominal Dischiarge current kA (In 8/20us) 10
Maximum Discharge Current kA (Imax 8/20μs) 20
Maximum Continuous Operating Voltage DC Uc (V) 64
Price List €156.49/pc
Quantity
lock Datasheet
SPS2 - SPD 5V DC D1 – C1 – C2 – C3 fortelecom and data

SPS2 - SPD 5V DC D1 – C1 – C2 – C3 fortelecom and data

Reference W34.231.33.0.0 - Manufacturer TechnoTeam
Rated Voltage Un DC (V) 5
Housing Modular design
Residual voltage (V) 22
Rated operating current IL (A) 1
Frequency f (Mhz) 30
Series name SPS2
Impulse Discharge Current kA (Iimp 10/350us) 5
Nominal Dischiarge current kA (In 8/20us) 10
Maximum Discharge Current kA (Imax 8/20μs) 20
Maximum Continuous Operating Voltage DC Uc (V) 6
Price List €156.49/pc
Quantity
lock Datasheet
SPK-950-8-3(S) - SPD 950V T1 2 3 0 with microswitch

SPK-950-8-3(S) - SPD 950V T1 2 3 0 with microswitch

Reference W51.083.69.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 900
Applicable standards IEC
Type 1+2
Protection level Up (kV) 4,4
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25000
Impulse Discharge Current kA (Iimp 10/350us) 8
Nominal Dischiarge current kA (In 8/20us) 20000
Maximum Discharge Current kA (Imax 8/20μs) 50000
Maximum Continuous Operating Voltage Uc (kV) 0,88
Price List €399.92/pc
Quantity
lock Datasheet

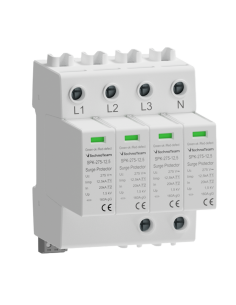

SPK-320-12,5-4(S) SPD 320V T1 2 4 0 with microswitch

SPK-320-12,5-4(S) SPD 320V T1 2 4 0 with microswitch

Reference X73.257.55.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1.6
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 320
Price List €586.85/pc
Quantity
lock Datasheet

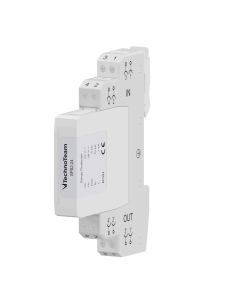

SPS2 - SPD 15V DC D1 – C1 – C2 – C3 for telecom and data

SPS2 - SPD 15V DC D1 – C1 – C2 – C3 for telecom and data

Reference Y19.976.96.0.0 - Manufacturer TechnoTeam
Rated Voltage Un DC (V) 15
Housing Modular design
Residual voltage (V) 48
Rated operating current IL (A) 1
Frequency f (Mhz) 30
Series name SPS2
Impulse Discharge Current kA (Iimp 10/350us) 5
Nominal Dischiarge current kA (In 8/20us) 10
Maximum Discharge Current kA (Imax 8/20μs) 20
Maximum Continuous Operating Voltage DC Uc (V) 18
Price List €156.49/pc
Quantity
lock Datasheet
SPK-275-12,5-4(S) - SPD 275V T1 2 4 0 with microswitch

SPK-275-12,5-4(S) - SPD 275V T1 2 4 0 with microswitch

Reference U30.395.37.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1,5
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 275
Price List €469.48/pc
Quantity
lock Datasheet

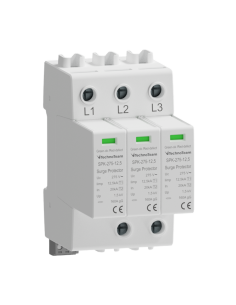

SPK-275-12,5-3(S) - SPD 275V T1 2 3 0 with microswitch

SPK-275-12,5-3(S) - SPD 275V T1 2 3 0 with microswitch

Reference S71.050.74.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1,5
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 275
Price List €354.72/pc
Quantity
lock Datasheet
SPK-385-12,5-4(S) SPD 385V T1 2 4 0 with microswitch

SPK-385-12,5-4(S) SPD 385V T1 2 4 0 with microswitch

Reference M52.256.41.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 1+2
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 385
Price List €586.85/pc
Quantity
lock Datasheet
SPK-275-12,5-1(S) - SPD 275V T1 2 1 0 with microswitch

SPK-275-12,5-1(S) - SPD 275V T1 2 1 0 with microswitch

Reference M98.704.47.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1,5
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 275
Price List €125.19/pc
Quantity
lock Datasheet
SPH-1500PV(S) - SPD 1500V DC T2 with microswitch

SPH-1500PV(S) - SPD 1500V DC T2 with microswitch

Reference N44.259.75.0.0 - Manufacturer TechnoTeam
Applicable standards IEC
Rated Voltage Un DC (V) 1500
Type 2
Protection level Up (kV) 5,2
Remote contact YES
Housing Plug-in modules
Series name SPH-1500PV(S)
Short circuit current rating Isccr kA 10
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Total dischiarge current kA (In 8/20us) 40
Maximum Continuous Operating Voltage DC Uc (V) 1500
Price List €273.86/pc
Quantity
lock Datasheet
SPK-600PV(S) - SPD 600V DC T1 2 with microswitch

SPK-600PV(S) - SPD 600V DC T1 2 with microswitch

Reference Q20.043.35.0.0 - Manufacturer TechnoTeam
Applicable standards IEC
Rated Voltage Un DC (V) 600
Type 1+2
Protection level Up (kV) 2,2
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 10
Impulse Discharge Current kA (Iimp 10/350us) 6,25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Total Discharge Current (10/350μs) 12.5
Maximum Continuous Operating Voltage DC Uc (V) 600
Price List €299.94/pc
Quantity
lock Datasheet
SPK-880-12,5-3(S) - SPD 880V T1 2 3 0 with microswitch

SPK-880-12,5-3(S) - SPD 880V T1 2 3 0 with microswitch

Reference Q98.994.05.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 800
Applicable standards IEC
Type 1+2
Protection level Up (kV) 4
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 880
Price List €299.94/pc
Quantity
lock Datasheet
SPH-1000PV(S) - SPD 1000V DC T2 with microswitch

SPH-1000PV(S) - SPD 1000V DC T2 with microswitch

Reference R01.316.78.0.0 - Manufacturer TechnoTeam
Applicable standards IEC
Type 2
Protection level Up (kV) 4
Remote contact YES
Housing Plug-in modules
Series name SPH-1000PV(S)
Short circuit current rating Isccr kA 10
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Total dischiarge current kA (In 8/20us) 40
Maximum Continuous Operating Voltage DC Uc (V) 1000
Price List €198.22/pc
Quantity
lock Datasheet
SPH-600PV(S) - SPD 600V DC T2 with microswitch

SPH-600PV(S) - SPD 600V DC T2 with microswitch

Reference R08.137.55.0.0 - Manufacturer TechnoTeam
Applicable standards IEC
Rated Voltage Un DC (V) 600
Type 2
Protection level Up (kV) 2,2
Remote contact YES
Housing Plug-in modules
Series name SPH-600PV(S)
Short circuit current rating Isccr kA 10
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Total dischiarge current kA (In 8/20us) 40
Maximum Continuous Operating Voltage DC Uc (V) 600
Price List €135.63/pc
Quantity
lock Datasheet
SPS2 - SPD 24V DC D1 – C1 – C2 – C3 for telecom and data

SPS2 - SPD 24V DC D1 – C1 – C2 – C3 for telecom and data

Reference L17.048.95.0.0 - Manufacturer TechnoTeam
Rated Voltage Un DC (V) 24
Housing Modular design
Residual voltage (V) 70
Rated operating current IL (A) 1
Frequency f (Mhz) 30
Series name SPS2
Impulse Discharge Current kA (Iimp 10/350us) 5
Nominal Dischiarge current kA (In 8/20us) 10
Maximum Discharge Current kA (Imax 8/20μs) 20
Maximum Continuous Operating Voltage DC Uc (V) 28
Price List €156.49/pc
Quantity
lock Datasheet
SPK-1500PV(S) - SPD 1500V DC T1 2 with microswitch

SPK-1500PV(S) - SPD 1500V DC T1 2 with microswitch

Reference L81.070.27.0.0 - Manufacturer TechnoTeam
Applicable standards IEC
Rated Voltage Un DC (V) 1500
Type 1+2
Protection level Up (kV) 5,2
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 10
Impulse Discharge Current kA (Iimp 10/350us) 6,25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Total dischiarge current kA (In 8/20us) 40
Total Discharge Current (10/350μs) 12,5
Maximum Continuous Operating Voltage DC Uc (V) 1500
Price List €370.36/pc
Quantity
lock Datasheet
SPS2 - SPD 48V DC D1 – C1 – C2 – C3 for telecom and data

SPS2 - SPD 48V DC D1 – C1 – C2 – C3 for telecom and data

Reference I10.776.31.0.0 - Manufacturer TechnoTeam
Rated Voltage Un DC (V) 48
Housing Modular design
Residual voltage (V) 140
Rated operating current IL (A) 1
Frequency f (Mhz) 30
Series name SPS2
Impulse Discharge Current kA (Iimp 10/350us) 5
Nominal Dischiarge current kA (In 8/20us) 10
Maximum Discharge Current kA (Imax 8/20μs) 20
Maximum Continuous Operating Voltage DC Uc (V) 52
Price List €156.49/pc
Quantity
lock Datasheet
SPH-2000PV(S) - SPD 2000VDC T2 with microswitch

SPH-2000PV(S) - SPD 2000VDC T2 with microswitch

Reference I41.015.52.0.0 - Manufacturer TechnoTeam
Applicable standards IEC
Type 2
Protection level Up (kV) 7,6
Remote contact YES
Housing Plug-in modules
Series name SPH-2000PV(S)
Short circuit current rating Isccr kA 10
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Total dischiarge current kA (In 8/20us) 40
Maximum Continuous Operating Voltage DC Uc (V) 2000
Price List €399.93/pc
Quantity
lock Datasheet
SPK-440-12,5-4(S) SPD 440V T1 2 4 0 with microswitch

SPK-440-12,5-4(S) SPD 440V T1 2 4 0 with microswitch

Reference I43.584.47.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 400
Applicable standards IEC
Type 1+2
Protection level Up (kV) 2
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 440
Price List €1,173.69/pc
Quantity
lock Datasheet
SPK-880-4-G-3(S) - SPD 880V T1 2 GDT with microswitch

SPK-880-4-G-3(S) - SPD 880V T1 2 GDT with microswitch

Reference J05.189.04.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 800
Applicable standards IEC
Type 1+2
Protection level Up (kV) 4,5
Remote contact YES
Housing Compact
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 4
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 70
Maximum Continuous Operating Voltage AC Uc (V) 880
Price List €1,147.61/pc
Quantity
lock Datasheet
SPK-150-12,5-3(S) – SPD 150V T1 2 3 0 with microswitch

SPK-150-12,5-3(S) – SPD 150V T1 2 3 0 with microswitch

Reference F05.716.17.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 120
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 150
Price List €354.72/pc
Quantity
lock Datasheet
SPK-1000PV(S) - SPD 1000V DC T1 2 with microswitch

SPK-1000PV(S) - SPD 1000V DC T1 2 with microswitch

Reference F06.895.13.0.0 - Manufacturer TechnoTeam
Applicable standards IEC
Rated Voltage Un DC (V) 1000
Type 1+2
Protection level Up (kV) 5,2
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 10
Impulse Discharge Current kA (Iimp 10/350us) 6,25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Total dischiarge current kA (In 8/20us) 40
Total Discharge Current (10/350μs) 12500
Maximum Continuous Operating Voltage DC Uc (V) 1000
Price List €354.72/pc
Quantity
lock Datasheet
SPK-275-12,5-1(S) 1 - SPD 275V T1 2 1 1 with microswitch

SPK-275-12,5-1(S) 1 - SPD 275V T1 2 1 1 with microswitch

Reference H29.661.32.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1,5
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 275
Price List €278.21/pc
Quantity
lock Datasheet
SPS2 - SPD 110V DC D1 – C1 – C2 – C3 for telecom and data

SPS2 - SPD 110V DC D1 – C1 – C2 – C3 for telecom and data

Reference H88.512.11.0.0 - Manufacturer TechnoTeam
Rated Voltage Un DC (V) 110
Housing Modular design
Residual voltage (V) 450
Rated operating current IL (A) 1
Frequency f (Mhz) 30
Series name SPS2
Impulse Discharge Current kA (Iimp 10/350us) 5
Nominal Dischiarge current kA (In 8/20us) 10
Maximum Discharge Current kA (Imax 8/20μs) 20
Maximum Continuous Operating Voltage DC Uc (V) 117
Price List €156.49/pc
Quantity
lock Datasheet
SPS2 - SPD 30V DC D1 – C1 – C2 – C3 for telecom and data

SPS2 - SPD 30V DC D1 – C1 – C2 – C3 for telecom and data

Reference C60.166.68.0.0 - Manufacturer TechnoTeam
Rated Voltage Un DC (V) 12
Housing Modular design
Residual voltage (V) 80
Rated operating current IL (A) 1
Frequency f (Mhz) 30
Series name SPS2
Impulse Discharge Current kA (Iimp 10/350us) 5
Nominal Dischiarge current kA (In 8/20us) 10
Maximum Discharge Current kA (Imax 8/20μs) 20
Maximum Continuous Operating Voltage DC Uc (V) 15
Price List €156.49/pc
Quantity
lock Datasheet
SPS2 - SPD 12V DC D1 – C1 – C2 – C3 for telecom and data

SPS2 - SPD 12V DC D1 – C1 – C2 – C3 for telecom and data

Reference C60.257.48.0.0 - Manufacturer TechnoTeam
Rated Voltage Un DC (V) 12
Housing Modular design
Residual voltage (V) 42
Rated operating current IL (A) 1
Frequency f (Mhz) 30
Series name SPS2
Impulse Discharge Current kA (Iimp 10/350us) 5
Nominal Dischiarge current kA (In 8/20us) 10
Maximum Discharge Current kA (Imax 8/20μs) 20
Maximum Continuous Operating Voltage DC Uc (V) 15
Price List €156.49/pc
Quantity
lock Datasheet
SPK-275-12,5-3(S) 1 - SPD 275V T1 2 3 1 with microswitch

SPK-275-12,5-3(S) 1 - SPD 275V T1 2 3 1 with microswitch

Reference D75.899.04.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1,5
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 275
Price List €532.07/pc
Quantity
lock Datasheet
SPK-275-12,5-2(S) - SPD 275V T1 2 2 0 with microswitch

SPK-275-12,5-2(S) - SPD 275V T1 2 2 0 with microswitch

Reference A23.751.95.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1,5
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 275
Price List €239.95/pc
Quantity
lock Datasheet
M12 screw terminal - f 10 mm

M12 screw terminal - f 10 mm

Reference 53-931127-003.0.0 - Manufacturer APATOR
Fixing dimensions M12
Price List €1.71/pc
Quantity
M12 screw terminal - f 20 mm

M12 screw terminal - f 20 mm

Reference 53-931127-004.0.0 - Manufacturer APATOR
Fixing dimensions M12
Price List €3.18/pc
Quantity
Steel bracket W1

Steel bracket W1

Reference 53-931128-001.0.0 - Manufacturer APATOR
Price List €11.88/pc
Quantity
Steel bracket W2

Steel bracket W2

Reference 53-931128-002.0.0 - Manufacturer APATOR
Price List €9.78/pc
Quantity
insulating bracket W4

insulating bracket W4

Reference 53-931128-003.0.0 - Manufacturer APATOR
Price List €9.32/pc
Quantity
Filter by
Manufacturer
Series name
Type
Max.contin.voltage AC Uc (V)
Max.contin.voltage DC Uc (V)
Rated Voltage (kV)
Remote contact
Applicable standards
Product added to compare.
Product added to wishlist
