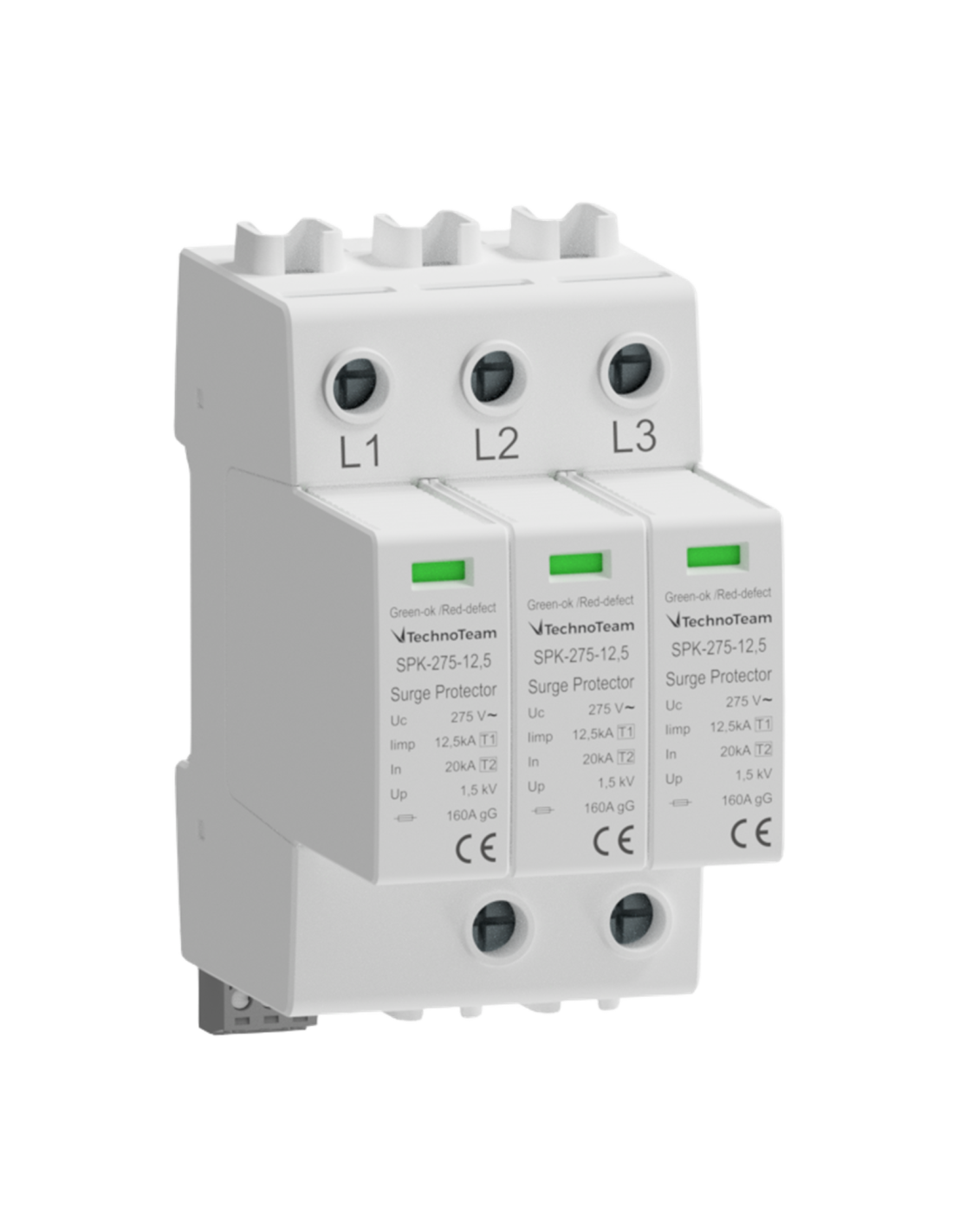

SPK-275-12,5-3(S) - SPD 275V T1 2 3 0 with microswitch
SPK-275-12,5-3(S) - SPD 275V T1 2 3 0 with microswitch

SPK-275-12,5-3(S) - SPD 275V T1 2 3 0 with microswitch

Reference: S71.050.74.0.0  -  Manufacturer: TechnoTeam
€354.72 /pc VAT excl.

Product Details

Rated Voltage Un AC (V)
230
Applicable standards
IEC
Type
1+2
Protection level Up (kV)
1,5
Remote contact
YES
Housing
Plug-in modules
Short circuit current rating Isccr kA
25
Impulse Discharge Current kA (Iimp 10/350us)
12,5
Nominal Dischiarge current kA (In 8/20us)
20
Maximum Discharge Current kA (Imax 8/20μs)
50
Maximum Continuous Operating Voltage AC Uc (V)
275
