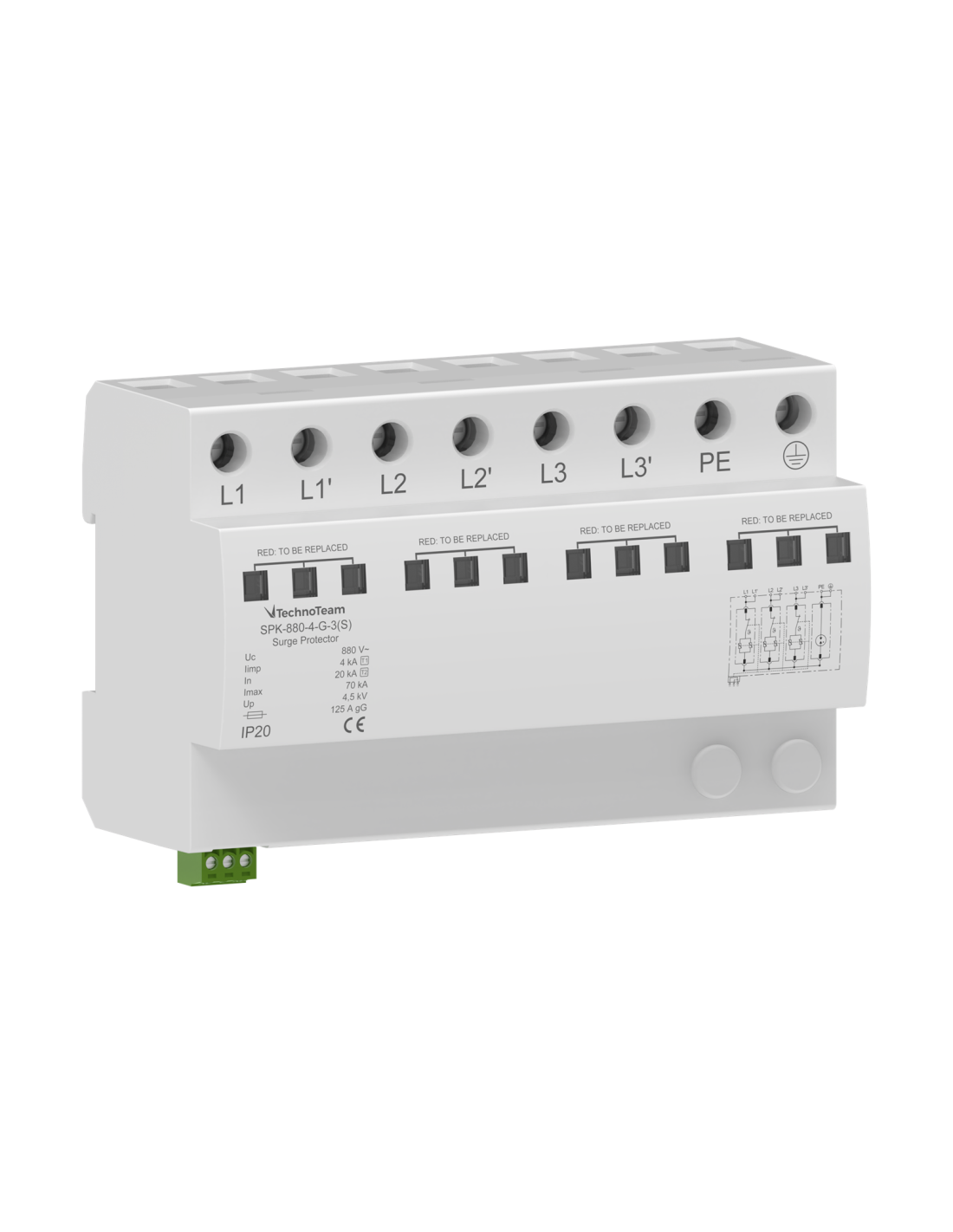

SPK-880-4-G-3(S) - SPD 880V T1 2 GDT with microswitch
SPK-880-4-G-3(S) - SPD 880V T1 2 GDT with microswitch

SPK-880-4-G-3(S) - SPD 880V T1 2 GDT with microswitch

Reference: J05.189.04.0.0  -  Manufacturer: TechnoTeam
€1,147.61 /pc VAT excl.

Product Details

Rated Voltage Un AC (V)
800
Applicable standards
IEC
Type
1+2
Protection level Up (kV)
4,5
Remote contact
YES
Housing
Compact
Short circuit current rating Isccr kA
25
Impulse Discharge Current kA (Iimp 10/350us)
4
Nominal Dischiarge current kA (In 8/20us)
20
Maximum Discharge Current kA (Imax 8/20μs)
70
Maximum Continuous Operating Voltage AC Uc (V)
880
Ask for more information
