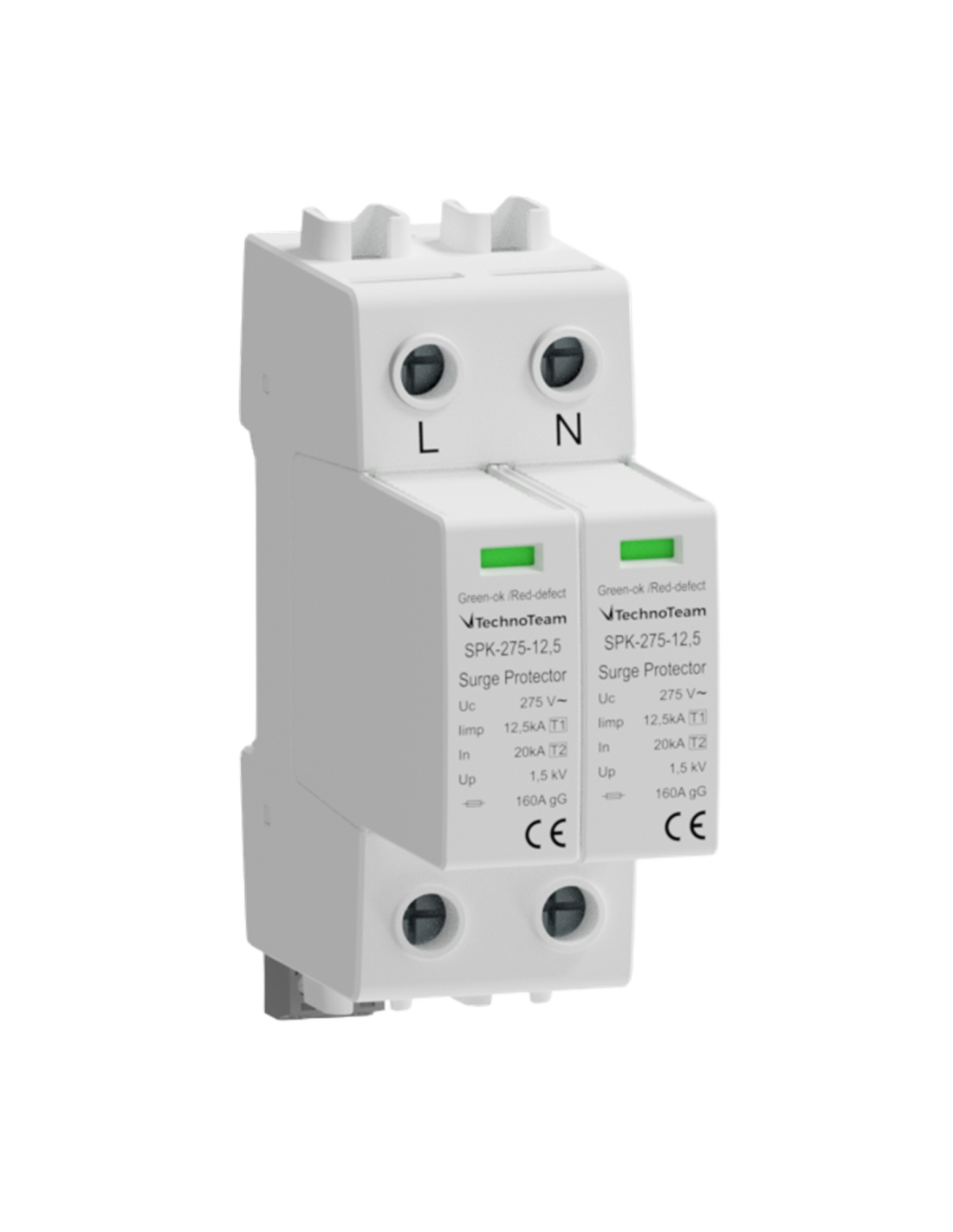

SPK-275-12,5-2(S) - SPD 275V T1 2 2 0 with microswitch
SPK-275-12,5-2(S) - SPD 275V T1 2 2 0 with microswitch

SPK-275-12,5-2(S) - SPD 275V T1 2 2 0 with microswitch

Reference: A23.751.95.0.0  -  Manufacturer: TechnoTeam
€239.95 /pc VAT excl.

Product Details

Rated Voltage Un AC (V)
230
Applicable standards
IEC
Type
1 2
Protection level Up (kV)
1,5
Short circuit current rating Isccr kA
25
Impulse Discharge Current kA (Iimp 10/350us)
12,5
Nominal Dischiarge current kA (In 8/20us)
20
Maximum Discharge Current kA (Imax 8/20μs)
50
Maximum Continuous Operating Voltage AC Uc (V)
275
