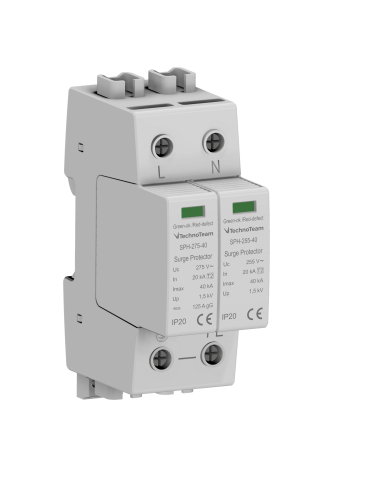

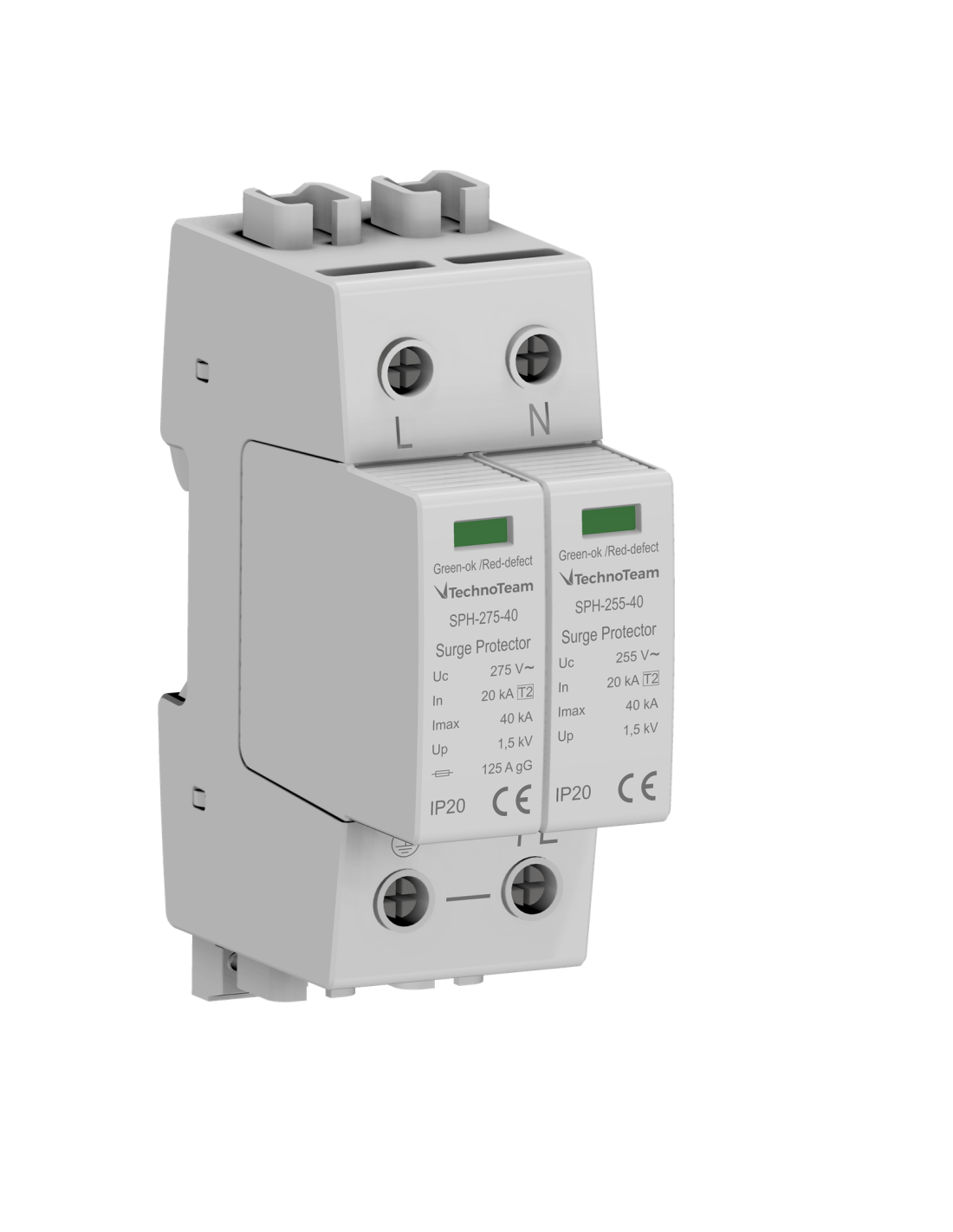

SPH-275-40-1(S)+1 - SPD 275V T2 1+1 with microswitch
SPH-275-40-1(S)+1 - SPD 275V T2 1+1 with microswitch

SPH-275-40-1(S)+1 - SPD 275V T2 1+1 with microswitch

Reference: H84.996.92.0.0  -  Manufacturer: TechnoTeam
$112.08 /pc VAT excl.

Product Details

Rated Voltage Un AC (V)
230
Applicable standards
IEC
Type
2
Protection level Up (kV)
1,5
Remote contact
YES
Housing
Plug-in modules
Series name
SPH-275-40
Short circuit current rating Isccr kA
25
Nominal Dischiarge current kA (In 8/20us)
20
Maximum Discharge Current kA (Imax 8/20μs)
40
Maximum Continuous Operating Voltage AC Uc (V)
275
