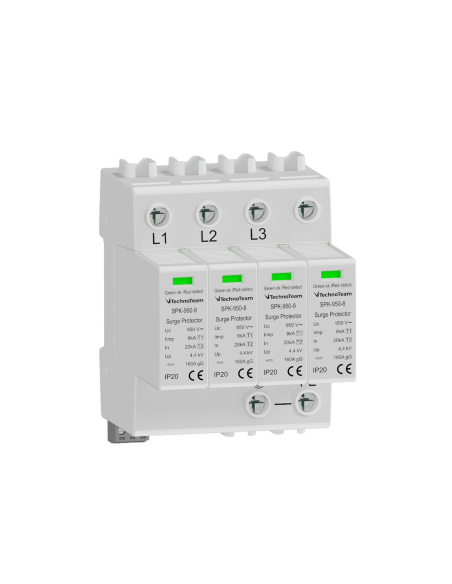

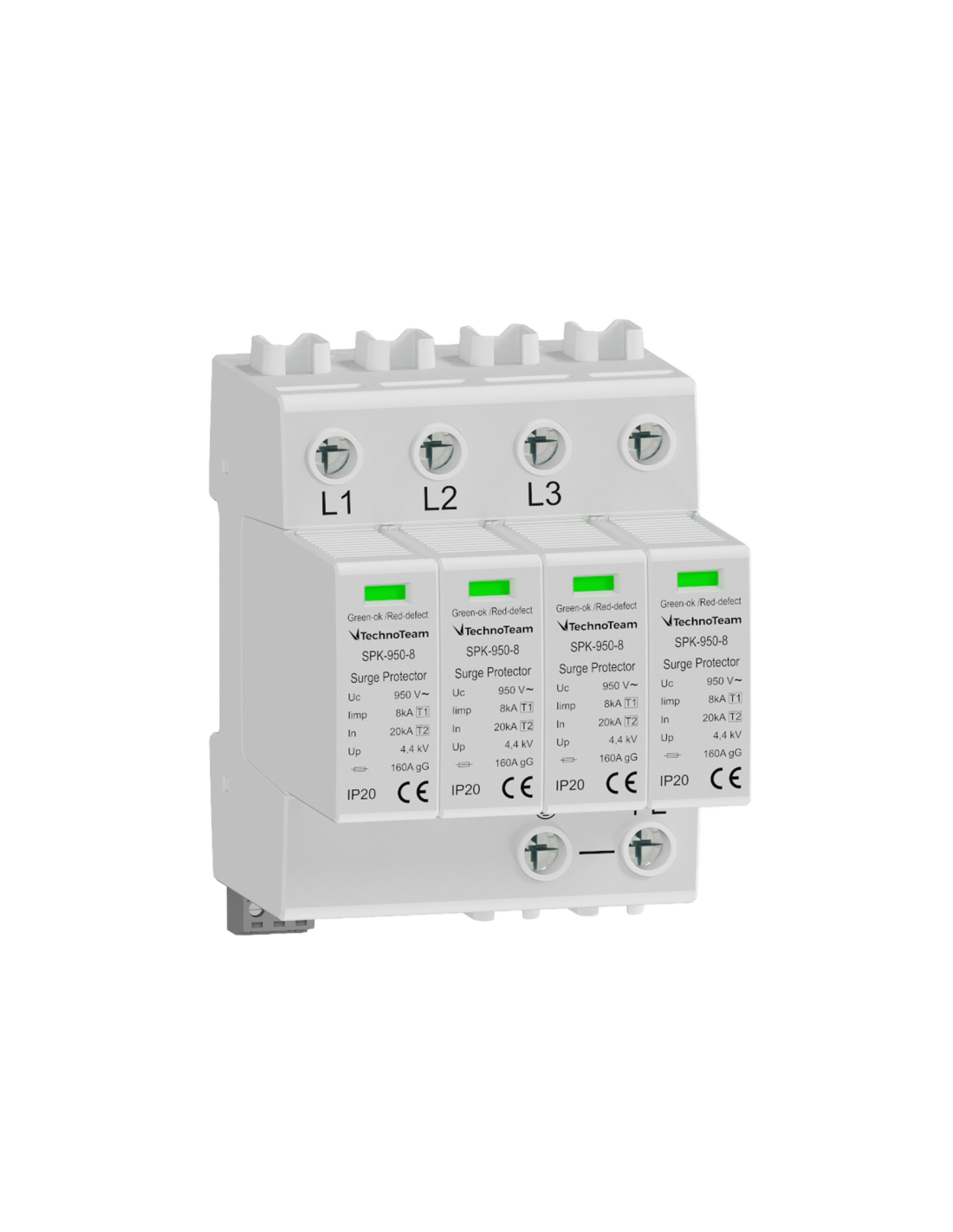

SPK-950-8-3(S) - SPD 950V T1 2 3 0 with microswitch
SPK-950-8-3(S) - SPD 950V T1 2 3 0 with microswitch

SPK-950-8-3(S) - SPD 950V T1 2 3 0 with microswitch

Reference: W51.083.69.0.0  -  Manufacturer: TechnoTeam
€399.92 /pc VAT excl.

Product Details

Rated Voltage Un AC (V)
900
Applicable standards
IEC
Type
1+2
Protection level Up (kV)
4,4
Remote contact
YES
Housing
Plug-in modules
Short circuit current rating Isccr kA
25000
Impulse Discharge Current kA (Iimp 10/350us)
8
Nominal Dischiarge current kA (In 8/20us)
20000
Maximum Discharge Current kA (Imax 8/20μs)
50000
Maximum Continuous Operating Voltage Uc (kV)
0,88
Ask for more information
