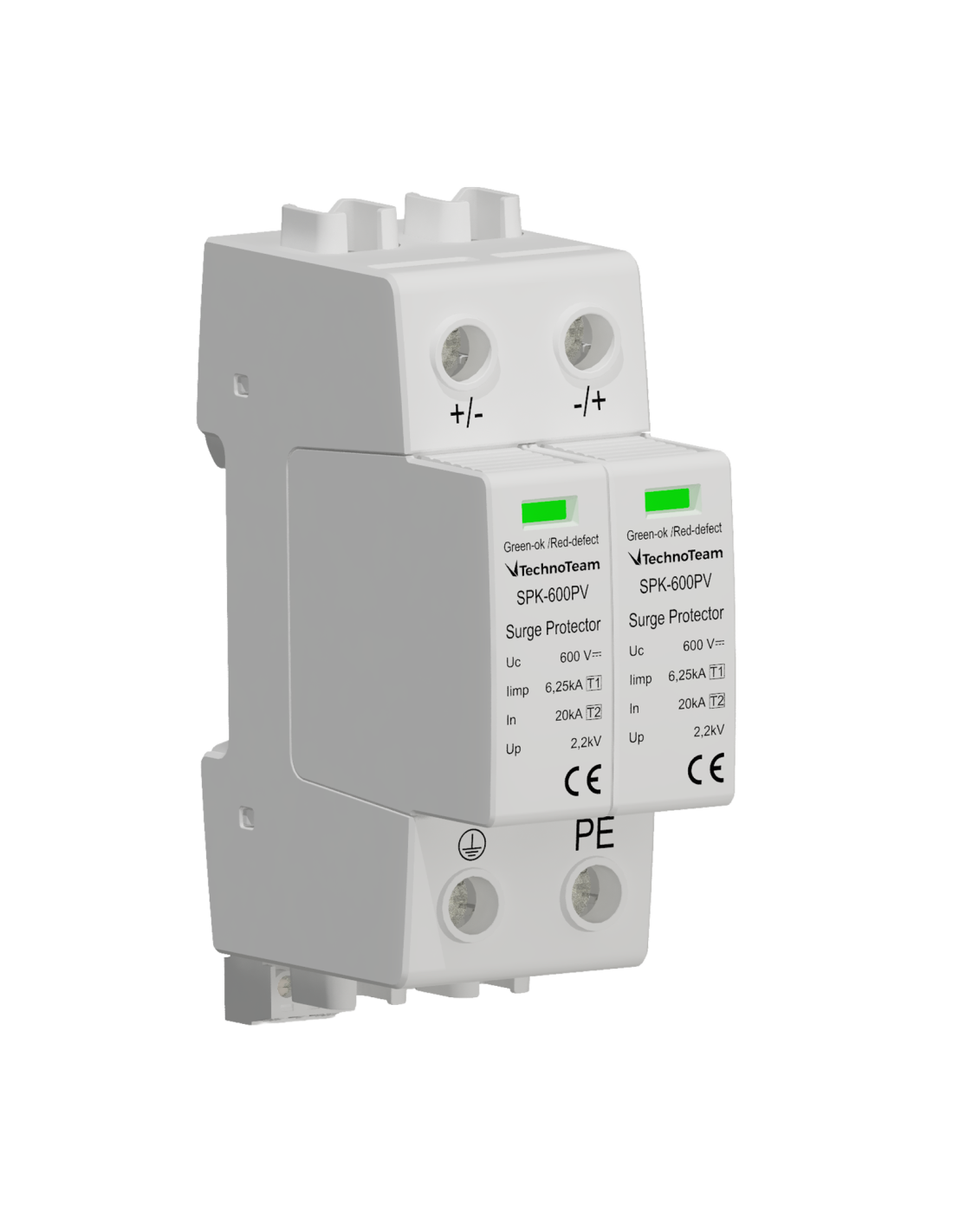

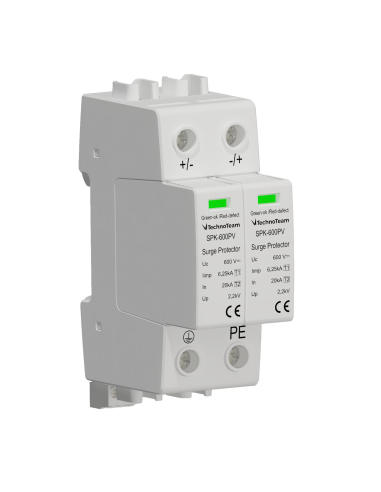

SPK-600PV(S) - SPD 600V DC T1 2 with microswitch
SPK-600PV(S) - SPD 600V DC T1 2 with microswitch

SPK-600PV(S) - SPD 600V DC T1 2 with microswitch

Reference: Q20.043.35.0.0  -  Manufacturer: TechnoTeam
€299.94 /pc VAT excl.

Product Details

Applicable standards
IEC
Rated Voltage Un DC (V)
600
Type
1+2
Protection level Up (kV)
2,2
Remote contact
YES
Housing
Plug-in modules
Short circuit current rating Isccr kA
10
Impulse Discharge Current kA (Iimp 10/350us)
6,25
Nominal Dischiarge current kA (In 8/20us)
20
Maximum Discharge Current kA (Imax 8/20μs)
40
Total Discharge Current (10/350μs)
12.5
Maximum Continuous Operating Voltage DC Uc (V)
600
