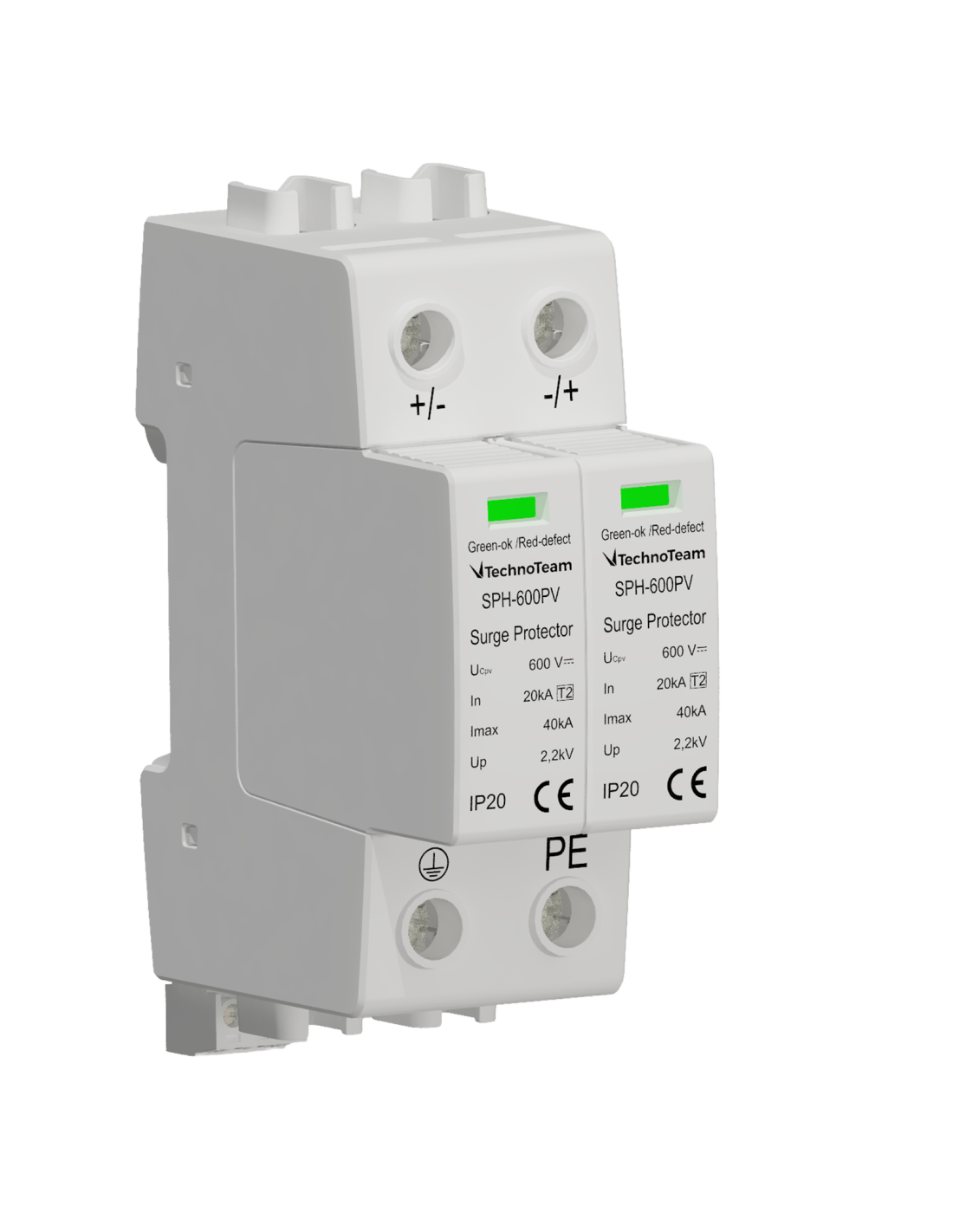

SPH-600PV(S) - SPD 600V DC T2 with microswitch
SPH-600PV(S) - SPD 600V DC T2 with microswitch

SPH-600PV(S) - SPD 600V DC T2 with microswitch

Reference: R08.137.55.0.0  -  Manufacturer: TechnoTeam
€135.63 /pc VAT excl.

Product Details

Applicable standards
IEC
Rated Voltage Un DC (V)
600
Type
2
Protection level Up (kV)
2,2
Remote contact
YES
Housing
Plug-in modules
Series name
SPH-600PV(S)
Short circuit current rating Isccr kA
10
Nominal Dischiarge current kA (In 8/20us)
20
Maximum Discharge Current kA (Imax 8/20μs)
40
Total dischiarge current kA (In 8/20us)
40
Maximum Continuous Operating Voltage DC Uc (V)
600
