Surge protection devices and accessories

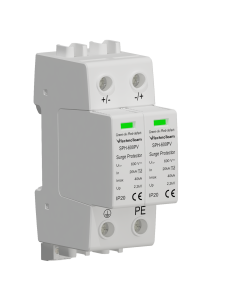

SPH-600PV(S) - SPD 600V DC T2 with microswitch

SPH-600PV(S) - SPD 600V DC T2 with microswitch

Reference R08.137.55.0.0 - Manufacturer TechnoTeam
Applicable standards IEC
Rated Voltage Un DC (V) 600
Type 2
Protection level Up (kV) 2,2
Remote contact YES
Housing Plug-in modules
Series name SPH-600PV(S)
Short circuit current rating Isccr kA 10
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Total dischiarge current kA (In 8/20us) 40
Maximum Continuous Operating Voltage DC Uc (V) 600
Price List €135.63/pc
Quantity
lock Datasheet
SPS2 - SPD 24V DC D1 – C1 – C2 – C3 for telecom and data

SPS2 - SPD 24V DC D1 – C1 – C2 – C3 for telecom and data

Reference L17.048.95.0.0 - Manufacturer TechnoTeam
Rated Voltage Un DC (V) 24
Housing Modular design
Residual voltage (V) 70
Rated operating current IL (A) 1
Frequency f (Mhz) 30
Series name SPS2
Impulse Discharge Current kA (Iimp 10/350us) 5
Nominal Dischiarge current kA (In 8/20us) 10
Maximum Discharge Current kA (Imax 8/20μs) 20
Maximum Continuous Operating Voltage DC Uc (V) 28
Price List €156.49/pc
Quantity
lock Datasheet
SPK-1500PV(S) - SPD 1500V DC T1 2 with microswitch

SPK-1500PV(S) - SPD 1500V DC T1 2 with microswitch

Reference L81.070.27.0.0 - Manufacturer TechnoTeam
Applicable standards IEC
Rated Voltage Un DC (V) 1500
Type 1+2
Protection level Up (kV) 5,2
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 10
Impulse Discharge Current kA (Iimp 10/350us) 6,25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Total dischiarge current kA (In 8/20us) 40
Total Discharge Current (10/350μs) 12,5
Maximum Continuous Operating Voltage DC Uc (V) 1500
Price List €370.36/pc
Quantity
lock Datasheet
SPS2 - SPD 48V DC D1 – C1 – C2 – C3 for telecom and data

SPS2 - SPD 48V DC D1 – C1 – C2 – C3 for telecom and data

Reference I10.776.31.0.0 - Manufacturer TechnoTeam
Rated Voltage Un DC (V) 48
Housing Modular design
Residual voltage (V) 140
Rated operating current IL (A) 1
Frequency f (Mhz) 30
Series name SPS2
Impulse Discharge Current kA (Iimp 10/350us) 5
Nominal Dischiarge current kA (In 8/20us) 10
Maximum Discharge Current kA (Imax 8/20μs) 20
Maximum Continuous Operating Voltage DC Uc (V) 52
Price List €156.49/pc
Quantity
lock Datasheet

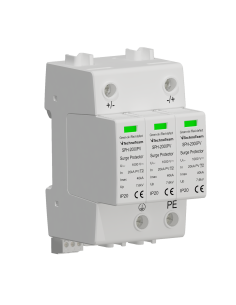

SPH-2000PV(S) - SPD 2000VDC T2 with microswitch

SPH-2000PV(S) - SPD 2000VDC T2 with microswitch

Reference I41.015.52.0.0 - Manufacturer TechnoTeam
Applicable standards IEC
Type 2
Protection level Up (kV) 7,6
Remote contact YES
Housing Plug-in modules
Series name SPH-2000PV(S)
Short circuit current rating Isccr kA 10
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Total dischiarge current kA (In 8/20us) 40
Maximum Continuous Operating Voltage DC Uc (V) 2000
Price List €399.93/pc
Quantity
lock Datasheet

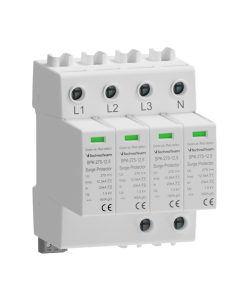

SPK-440-12,5-4(S) SPD 440V T1 2 4 0 with microswitch

SPK-440-12,5-4(S) SPD 440V T1 2 4 0 with microswitch

Reference I43.584.47.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 400
Applicable standards IEC
Type 1+2
Protection level Up (kV) 2
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 440
Price List €1,173.69/pc
Quantity
lock Datasheet

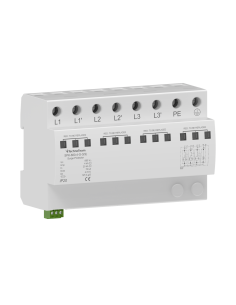

SPK-880-4-G-3(S) - SPD 880V T1 2 GDT with microswitch

SPK-880-4-G-3(S) - SPD 880V T1 2 GDT with microswitch

Reference J05.189.04.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 800
Applicable standards IEC
Type 1+2
Protection level Up (kV) 4,5
Remote contact YES
Housing Compact
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 4
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 70
Maximum Continuous Operating Voltage AC Uc (V) 880
Price List €1,147.61/pc
Quantity
lock Datasheet

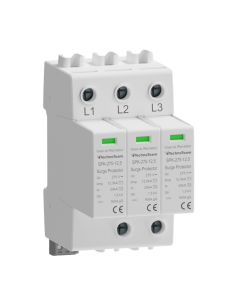

SPK-150-12,5-3(S) – SPD 150V T1 2 3 0 with microswitch

SPK-150-12,5-3(S) – SPD 150V T1 2 3 0 with microswitch

Reference F05.716.17.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 120
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 150
Price List €354.72/pc
Quantity
lock Datasheet

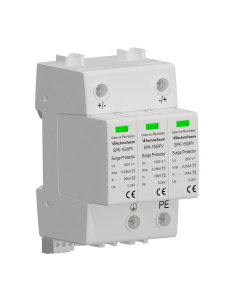

SPK-1000PV(S) - SPD 1000V DC T1 2 with microswitch

SPK-1000PV(S) - SPD 1000V DC T1 2 with microswitch

Reference F06.895.13.0.0 - Manufacturer TechnoTeam
Applicable standards IEC
Rated Voltage Un DC (V) 1000
Type 1+2
Protection level Up (kV) 5,2
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 10
Impulse Discharge Current kA (Iimp 10/350us) 6,25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Total dischiarge current kA (In 8/20us) 40
Total Discharge Current (10/350μs) 12500
Maximum Continuous Operating Voltage DC Uc (V) 1000
Price List €354.72/pc
Quantity
lock Datasheet
SPK-275-12,5-1(S) 1 - SPD 275V T1 2 1 1 with microswitch

SPK-275-12,5-1(S) 1 - SPD 275V T1 2 1 1 with microswitch

Reference H29.661.32.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1,5
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 275
Price List €278.21/pc
Quantity
lock Datasheet
SPS2 - SPD 110V DC D1 – C1 – C2 – C3 for telecom and data

SPS2 - SPD 110V DC D1 – C1 – C2 – C3 for telecom and data

Reference H88.512.11.0.0 - Manufacturer TechnoTeam
Rated Voltage Un DC (V) 110
Housing Modular design
Residual voltage (V) 450
Rated operating current IL (A) 1
Frequency f (Mhz) 30
Series name SPS2
Impulse Discharge Current kA (Iimp 10/350us) 5
Nominal Dischiarge current kA (In 8/20us) 10
Maximum Discharge Current kA (Imax 8/20μs) 20
Maximum Continuous Operating Voltage DC Uc (V) 117
Price List €156.49/pc
Quantity
lock Datasheet
SPS2 - SPD 30V DC D1 – C1 – C2 – C3 for telecom and data

SPS2 - SPD 30V DC D1 – C1 – C2 – C3 for telecom and data

Reference C60.166.68.0.0 - Manufacturer TechnoTeam
Rated Voltage Un DC (V) 12
Housing Modular design
Residual voltage (V) 80
Rated operating current IL (A) 1
Frequency f (Mhz) 30
Series name SPS2
Impulse Discharge Current kA (Iimp 10/350us) 5
Nominal Dischiarge current kA (In 8/20us) 10
Maximum Discharge Current kA (Imax 8/20μs) 20
Maximum Continuous Operating Voltage DC Uc (V) 15
Price List €156.49/pc
Quantity
lock Datasheet

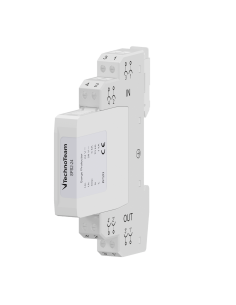

SPS2 - SPD 12V DC D1 – C1 – C2 – C3 for telecom and data

SPS2 - SPD 12V DC D1 – C1 – C2 – C3 for telecom and data

Reference C60.257.48.0.0 - Manufacturer TechnoTeam
Rated Voltage Un DC (V) 12
Housing Modular design
Residual voltage (V) 42
Rated operating current IL (A) 1
Frequency f (Mhz) 30
Series name SPS2
Impulse Discharge Current kA (Iimp 10/350us) 5
Nominal Dischiarge current kA (In 8/20us) 10
Maximum Discharge Current kA (Imax 8/20μs) 20
Maximum Continuous Operating Voltage DC Uc (V) 15
Price List €156.49/pc
Quantity
lock Datasheet

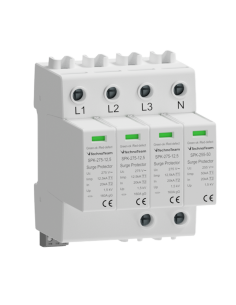

SPK-275-12,5-3(S) 1 - SPD 275V T1 2 3 1 with microswitch

SPK-275-12,5-3(S) 1 - SPD 275V T1 2 3 1 with microswitch

Reference D75.899.04.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1,5
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 275
Price List €532.07/pc
Quantity
lock Datasheet

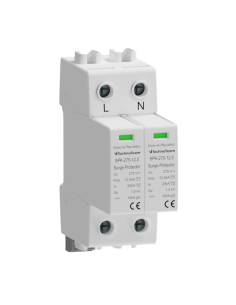

SPK-275-12,5-2(S) - SPD 275V T1 2 2 0 with microswitch

SPK-275-12,5-2(S) - SPD 275V T1 2 2 0 with microswitch

Reference A23.751.95.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 1+2
Protection level Up (kV) 1,5
Remote contact YES
Housing Plug-in modules
Short circuit current rating Isccr kA 25
Impulse Discharge Current kA (Iimp 10/350us) 12,5
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 50
Maximum Continuous Operating Voltage AC Uc (V) 275
Price List €239.95/pc
Quantity
lock Datasheet
M12 screw terminal - f 10 mm

M12 screw terminal - f 10 mm

Reference 53-931127-003.0.0 - Manufacturer APATOR
Fixing dimensions M12
Price List €1.71/pc
Quantity
M12 screw terminal - f 20 mm

M12 screw terminal - f 20 mm

Reference 53-931127-004.0.0 - Manufacturer APATOR
Fixing dimensions M12
Price List €3.18/pc
Quantity
Steel bracket W1

Steel bracket W1

Reference 53-931128-001.0.0 - Manufacturer APATOR
Price List €11.88/pc
Quantity
Steel bracket W2

Steel bracket W2

Reference 53-931128-002.0.0 - Manufacturer APATOR
Price List €9.78/pc
Quantity
insulating bracket W4

insulating bracket W4

Reference 53-931128-003.0.0 - Manufacturer APATOR
Price List €9.32/pc
Quantity
