Surge protection devices and accessories

SPH-385-40-4(S) - SPD 385V T2 4+0 with microswitch

SPH-385-40-4(S) - SPD 385V T2 4+0 with microswitch

Reference D36.720.02.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 230
Applicable standards IEC
Type 2
Protection level Up (kV) 1,8
Remote contact YES
Housing Plug-in modules
Series name SPH-385-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 385
Price List €273.86/pc
Quantity
lock Datasheet

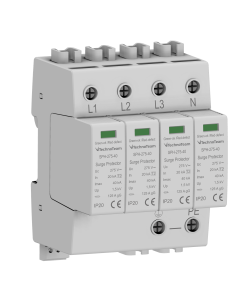

SPH-440-40-4(S) - SPD 440V T2 4+0 with microswitch

SPH-440-40-4(S) - SPD 440V T2 4+0 with microswitch

Reference E04.536.50.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 400
Applicable standards IEC
Type 2
Protection level Up (kV) 2
Remote contact YES
Housing Plug-in modules
Series name SPH-440-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 440
Price List €365.15/pc
Quantity
lock Datasheet

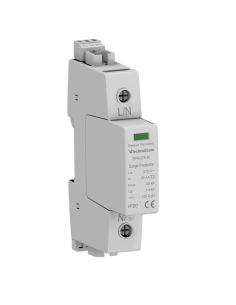

SPH-75-40-1(S) - SPD 75V T2 1+0 with microswitch

SPH-75-40-1(S) - SPD 75V T2 1+0 with microswitch

Reference E29.788.98.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 60
Applicable standards IEC
Type 2
Protection level Up (kV) 400
Remote contact YES
Housing Plug-in modules
Series name SPH-75-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 75
Price List €143.45/pc
Quantity
lock Datasheet

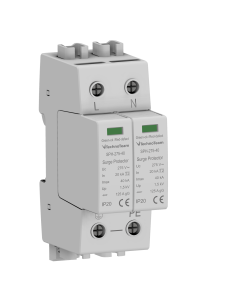

SPH-150-40-2(S) - SPD 150V T2 2+0 with microswitch

SPH-150-40-2(S) - SPD 150V T2 2+0 with microswitch

Reference E63.462.18.0.0 - Manufacturer TechnoTeam
Rated Voltage Un AC (V) 120
Applicable standards IEC
Type 2
Protection level Up (kV) 1
Remote contact YES
Housing Plug-in modules
Series name SPH-150-40
Short circuit current rating Isccr kA 25
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Maximum Continuous Operating Voltage AC Uc (V) 150
Price List €286.90/pc
Quantity
lock Datasheet
SPD 1000V DC T2 EV chargers with microswitch

SPD 1000V DC T2 EV chargers with microswitch

Reference M36.465.73.0.0 - Manufacturer TechnoTeam
Applicable standards IEC
Type 2
Protection level Up (kV) 4000
Remote contact YES
Housing Pluggable Design
Series name SPH-1000EV(S)
Short circuit current rating Isccr kA 30
Nominal Dischiarge current kA (In 8/20us) 20
Maximum Discharge Current kA (Imax 8/20μs) 40
Total dischiarge current kA (In 8/20us) 65
Maximum Continuous Operating Voltage DC Uc (V) 1000
Product available on request Ask for more information
SPD Ur:5kV Uc:4kV class1 10kA M12

SPD Ur:5kV Uc:4kV class1 10kA M12

Reference 63-811648-041.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 250
Height (mm) 136
Rated Voltage (kV) 5
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 4
Price List €33.72/pc
Quantity
SPD Ur:6,3kV Uc:5kV class1 10kA M12

SPD Ur:6,3kV Uc:5kV class1 10kA M12

Reference 63-811648-051.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 250
Height (mm) 136
Rated Voltage (kV) 6,3
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 5
Price List €35.60/pc
Quantity
SPD Ur:7,5kV Uc:6kV class1 10kA M12

SPD Ur:7,5kV Uc:6kV class1 10kA M12

Reference 63-811648-061.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 250
Height (mm) 136
Rated Voltage (kV) 7,5
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 6
Price List €39.25/pc
Quantity
SPD Ur:8,8kV Uc:7kV class1 10kA M12

SPD Ur:8,8kV Uc:7kV class1 10kA M12

Reference 63-811648-071.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 370
Height (mm) 186
Rated Voltage (kV) 8,8
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 7
Price List €38.84/pc
Quantity
SPD Ur:10kV Uc:8kV class1 10kA M12

SPD Ur:10kV Uc:8kV class1 10kA M12

Reference 63-811648-081.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 370
Height (mm) 186
Rated Voltage (kV) 10
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 8
Price List €40.64/pc
Quantity
SPD Ur:11,3kV Uc:9kV class1 10kA M12

SPD Ur:11,3kV Uc:9kV class1 10kA M12

Reference 63-811648-091.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 370
Height (mm) 186
Rated Voltage (kV) 11,3
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 9
Price List €42.09/pc
Quantity
SPD Ur:12,5kV Uc:10kV class1 10kA M12

SPD Ur:12,5kV Uc:10kV class1 10kA M12

Reference 63-811648-101.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 370
Height (mm) 186
Rated Voltage (kV) 12,5
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 10
Price List €48.50/pc
Quantity
SPD Ur:13,8kV Uc:11kV class1 10kA M12

SPD Ur:13,8kV Uc:11kV class1 10kA M12

Reference 63-811648-111.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 370
Height (mm) 186
Rated Voltage (kV) 13,8
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 11
Price List €48.50/pc
Quantity
SPD Ur:15kV Uc:12kV class1 10kA M12

SPD Ur:15kV Uc:12kV class1 10kA M12

Reference 63-811648-121.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 370
Height (mm) 186
Rated Voltage (kV) 15
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 12
Price List €96.25/pc
Quantity
SPD Ur:16,3kV Uc:13kV class1 10kA M12

SPD Ur:16,3kV Uc:13kV class1 10kA M12

Reference 63-811648-131.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 490
Height (mm) 236
Rated Voltage (kV) 16,3
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 13
Price List €50.04/pc
Quantity
SPD Ur:17,5kV Uc:14kV class1 10kA M12

SPD Ur:17,5kV Uc:14kV class1 10kA M12

Reference 63-811648-141.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 490
Height (mm) 236
Rated Voltage (kV) 17,5
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 14
Price List €50.04/pc
Quantity
SPD Ur:18,8kV Uc:15kV class1 10kA M12

SPD Ur:18,8kV Uc:15kV class1 10kA M12

Reference 63-811648-151.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 490
Height (mm) 236
Rated Voltage (kV) 18,8
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 15
Price List €53.28/pc
Quantity
SPD Ur:20kV Uc:16kV class1 10kA M12

SPD Ur:20kV Uc:16kV class1 10kA M12

Reference 63-811648-161.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 490
Height (mm) 236
Rated Voltage (kV) 20
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 16
Price List €53.28/pc
Quantity
SPD Ur:21,3kV Uc:17kV class1 10kA M12

SPD Ur:21,3kV Uc:17kV class1 10kA M12

Reference 63-811648-171.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 490
Height (mm) 236
Rated Voltage (kV) 21,3
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 17
Price List €54.65/pc
Quantity
SPD Ur:22,5kV Uc:18kV class1 10kA M12

SPD Ur:22,5kV Uc:18kV class1 10kA M12

Reference 63-811648-181.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 490
Height (mm) 236
Rated Voltage (kV) 22,5
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 18
Price List €54.65/pc
Quantity
SPD Ur:23,8kV Uc:19kV class1 10kA M12

SPD Ur:23,8kV Uc:19kV class1 10kA M12

Reference 63-811648-191.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 610
Height (mm) 286
Rated Voltage (kV) 23,8
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 19
Price List €56.53/pc
Quantity
SPD Ur:25kV Uc:20kV class1 10kA M12

SPD Ur:25kV Uc:20kV class1 10kA M12

Reference 63-811648-201.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 610
Height (mm) 286
Rated Voltage (kV) 25
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 20
Price List €59.00/pc
Quantity
SPD Ur:26,3kV Uc:21kV class1 10kA M12

SPD Ur:26,3kV Uc:21kV class1 10kA M12

Reference 63-811648-211.0.0 - Manufacturer APATOR
Type HV-Class1
Creepage distance (mm) 610
Height (mm) 286
Rated Voltage (kV) 26,3
Fixing dimensions M12
Maximum Continuous Operating Voltage AC Uc (V) 21
Price List €62.67/pc
Quantity
