Fuses

B300 - Fuse 1000V DC aBat DC 2xM12 1500A

B300 - Fuse 1000V DC aBat DC 2xM12 1500A

Reference 810.052.92.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1500
Applicable standards IEC
Power loss (W) 285
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B300
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 86x106
Fixing dimensions M12
Melting I²t value (A²s) 858600
Minimum breaking current (A) 15000
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un DC (A²s) 2576000
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 cylindrical 100A

UR22 - Fuse 690V AC 22x58 cylindrical 100A

Reference 810.153.18.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 100
Rated Voltage Un AC (V) 550
Applicable standards IEC, UL
Power loss (W) 19,1
Series name UR22
Melting I²t value (A²s) 2150
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 9345
Rated breaking capacity I1 AC (kA) 200
Price List €17.82/pc
Quantity
lock Datasheet
B025 - Fuse 1000VDC aBat 160A - 100,3mm - Tin Plated

B025 - Fuse 1000VDC aBat 160A - 100,3mm - Tin Plated

Reference 810.190.09.0.0 - Manufacturer FAULTRAP
Class aBat, aR
Rated current In (A) 160
Applicable standards IEC, UL
Power loss (W) 25.5
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B025
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 38x129
Melting I²t value (A²s) 5400
Minimum breaking current (A) 1280
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 100
Total clearing I²t @Un AC (A²s) 12000
Price List €82.15/pc
Quantity
lock Datasheet
BPF3 - Fuse 1500VDC aBat M12 1100A

BPF3 - Fuse 1500VDC aBat M12 1100A

Reference 811.782.46.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1100
Applicable standards IEC
Power loss (W) 245
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 3
Series name BPF3
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 76x140
Fixing dimensions M12
Melting I²t value (A²s) 790000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 4505000
Product available on request Ask for more information
EV65.1500 - Fuse 1500VDC 22x65 cylindrical 80A

EV65.1500 - Fuse 1500VDC 22x65 cylindrical 80A

Reference 812.048.37.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 80
Applicable standards UL
Power loss (W) 14,9
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 2,5
Series name EV65.1500
Rated breaking capacity I1 DC (kA) 25000
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 3000
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 14900
Product available on request Ask for more information
BPF1 - Fuse 1500VDC aBat d:50mm M8 315A

BPF1 - Fuse 1500VDC aBat d:50mm M8 315A

Reference 812.427.91.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 315
Applicable standards IEC
Power loss (W) 59,5
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 3
Series name BPF1
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 50x168
Melting I²t value (A²s) 37250
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 130400
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 630A - 152,7mm - Silver Plated

B100 - Fuse 1000VDC aBat 630A - 152,7mm - Silver Plated

Reference 812.809.96.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 630
Applicable standards IEC, UL
Power loss (W) 120
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B100
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 63,5x203,2
Melting I²t value (A²s) 108000
Minimum breaking current (A) 6300
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 324000
Product available on request Ask for more information
NRAB - Fuse 690V AC aR NH00 with indicator 200A

NRAB - Fuse 690V AC aR NH00 with indicator 200A

Reference 813.675.13.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 200
Rated Voltage Un AC (V) 690
Dimension NH00
Applicable standards IEC
Power loss (W) 48,5
Series name NRAB
Melting I²t value (A²s) 5370
Fuse Connection/Terminal type NH knife
Voltage of total clearing I2t test 770
Total clearing I²t @Un AC (A²s) 26200
Rated breaking capacity I1 AC (kA) 200000
Product available on request Ask for more information
BP22 -Fuse 22x65mm cylindrical 63A

BP22 -Fuse 22x65mm cylindrical 63A

Reference 820.572.76.0.0 - Manufacturer FAULTRAP
Class gBat, gR
Rated current In (A) 63
Applicable standards IEC, UL
Power loss (W) 1,6
Rated Voltage Un DC (V) 1000
Series name BP22
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 22x65
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 1660
Product available on request Ask for more information
M050 - Fuse 500V DC 10x38 20A

M050 - Fuse 500V DC 10x38 20A

Reference 825.200.32.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 20
Power loss (W) 6,8
Rated Voltage Un DC (V) 500
Series name M050
Fuse Dimension (mm) 10x38
Fuse Connection/Terminal type Cylindrical
Product available on request Ask for more information
10TD - Fuse 10x38 400VAC aM/aR 25A

10TD - Fuse 10x38 400VAC aM/aR 25A

Reference 828.304.38.0.0 - Manufacturer FAULTRAP
Class aM, aR
Rated current In (A) 25
Rated Voltage Un AC (V) 400
Applicable standards IEC, UL
Series name 10TD
Fuse Dimension (mm) 10x38
Melting I²t value (A²s) 1320
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 400
Total clearing I²t @Un AC (A²s) 3670
Rated breaking capacity I1 AC (kA) 50000
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 630A - 2xM12 - Silver Plated

B100 - Fuse 1000VDC aBat 630A - 2xM12 - Silver Plated

Reference 829.815.86.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 630
Applicable standards IEC, UL
Power loss (W) 120
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B100
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 63,5x106,5
Fixing dimensions M12
Melting I²t value (A²s) 108000
Minimum breaking current (A) 6300
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 324000
Product available on request Ask for more information

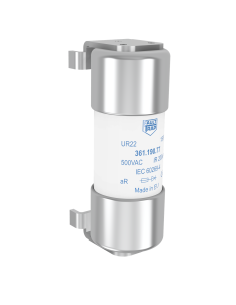

UR22 - Fuse 690V AC 22x58 fixing on pcb 20A

UR22 - Fuse 690V AC 22x58 fixing on pcb 20A

Reference 832.525.27.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 20
Rated Voltage Un AC (V) 690
Applicable standards IEC
Power loss (W) 6,1
Series name UR22
Melting I²t value (A²s) 21
Fuse Connection/Terminal type PCB Mount Terminals
Total clearing I²t @Un AC (A²s) 96
Rated breaking capacity I1 AC (kA) 200
Product available on request Ask for more information
P103 - Fuse 550V DC EV with pins 20 AMP

P103 - Fuse 550V DC EV with pins 20 AMP

Reference 833.004.58.0.0 - Manufacturer FAULTRAP
Rated current In (A) 20
Applicable standards IEC
Power loss (W) 3,9
Rated Voltage Un DC (V) 550
Time costant L/R (ms) 2
Series name P103
Rated breaking capacity I1 DC (kA) 20000
Fuse Dimension (mm) 10x38
Melting I²t value (A²s) 33
Voltage of total clearing I2t test 550
Total clearing I²t @Un AC (A²s) 140
Product available on request Ask for more information
20PV22 - Fuse 2000VDC gPV 22x85 12A

20PV22 - Fuse 2000VDC gPV 22x85 12A

Reference 833.361.58.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 12
Applicable standards IEC
Power loss (W) 4
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV22
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 22x85
Melting I²t value (A²s) 23
Fuse Connection/Terminal type Cylindrical
Product available on request Ask for more information
NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 315A

NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 315A

Reference 834.560.26.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 315
Rated Voltage Un AC (V) 690
Dimension 000
Applicable standards IEC
Power loss (W) 70
Rated Voltage Un DC (V) 700
Time costant L/R (ms) 2
Series name NR2A
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 16450
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Voltage of total clearing I2t test 700
Total clearing I²t @Un AC (A²s) 60000
Rated breaking capacity I1 AC (kA) 200000
Price List €27.32/pc
Quantity
lock Datasheet
A145 - Fuse 14x51 690VAC aR 25A

A145 - Fuse 14x51 690VAC aR 25A

Reference 836.007.31.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 25
Rated Voltage Un AC (V) 690
Applicable standards IEC
Power loss (W) 8.5
Series name A145
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 36
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 355
Rated breaking capacity I1 AC (kA) 200
Price List €4.16/pc
Quantity
lock Datasheet

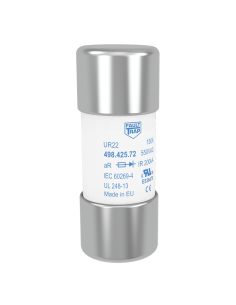

UR22 - Fuse 690V AC 22x58 cylindrical 20A

UR22 - Fuse 690V AC 22x58 cylindrical 20A

Reference 838.770.26.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 20
Rated Voltage Un AC (V) 550
Applicable standards IEC, UL
Power loss (W) 6,1
Series name UR22
Melting I²t value (A²s) 21
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 96
Rated breaking capacity I1 AC (kA) 200
Product available on request Ask for more information
C100 - Fuse 690V aR size 1 M8 630A

C100 - Fuse 690V aR size 1 M8 630A

Reference 840.651.02.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 630
Rated Voltage Un AC (V) 690
Dimension SQB2
Applicable standards IEC
Power loss (W) 96
Fixing dimensions M8
Melting I²t value (A²s) 48000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 320000
Rated breaking capacity I1 AC (kA) 100000
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 1250A

B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 1250A

Reference 841.376.18.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1250
Applicable standards IEC
Power loss (W) 300
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 3
Series name B500
Rated breaking capacity I1 DC (kA) 250000
Fuse Dimension (mm) 103x144
Fixing dimensions M10
Melting I²t value (A²s) 718000
Minimum breaking current (A) 14000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 3912000
Product available on request Ask for more information
69E1 - Fuse BS 17,2x63,5 aR 690V 75A

69E1 - Fuse BS 17,2x63,5 aR 690V 75A

Reference 841.422.80.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 75
Rated Voltage Un AC (V) 690
Applicable standards IEC
Power loss (W) 19.5
Rated Voltage Un DC (V) 500
Series name 69E1
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 17x77
Melting I²t value (A²s) 565
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 63.5
Total clearing I²t @Un AC (A²s) 2245
Rated breaking capacity I1 AC (kA) 100
Price List €5.11/pc
Quantity
lock Datasheet
B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 630A

B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 630A

Reference 842.982.93.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 630
Applicable standards IEC
Power loss (W) 170
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 3
Series name B500
Rated breaking capacity I1 DC (kA) 250000
Fuse Dimension (mm) 103x144
Fixing dimensions M10
Melting I²t value (A²s) 145000
Minimum breaking current (A) 6900
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 772800
Product available on request Ask for more information
Filter by
Manufacturer
Series name
Fuse size
Class
Fuse Connection/Terminal type
Rated current In (A)
Rated Voltage Un AC (V)
Rated Voltage Un DC (V)
Applicable standards
Product added to compare.
Product added to wishlist
