Fuses

AB22 - Fuse 22x65 1000VDC aBat 40A

AB22 - Fuse 22x65 1000VDC aBat 40A

Reference 873.361.63.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 40
Applicable standards IEC
Power loss (W) 8.5
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name AB22
Rated breaking capacity I1 DC (kA) 10
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 415
Minimum breaking current (A) 320
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un DC (A²s) 2300
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 250A - 118,85mm - Silver Plated

B050 - Fuse 1000VDC aBat 250A - 118,85mm - Silver Plated

Reference 874.107.39.0.0 - Manufacturer FAULTRAP
Class aBat, aR
Rated current In (A) 250
Applicable standards IEC, UL
Power loss (W) 36
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B050
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 50x141
Melting I²t value (A²s) 15000
Minimum breaking current (A) 2500
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 118
Total clearing I²t @Un DC (A²s) 40000
Product available on request Ask for more information
UR22 - Fuse 690V AC 22x58 fixing on pcb 50A

UR22 - Fuse 690V AC 22x58 fixing on pcb 50A

Reference 874.869.63.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Rated Voltage Un AC (V) 690
Applicable standards IEC
Power loss (W) 13,3
Series name UR22
Melting I²t value (A²s) 195
Fuse Connection/Terminal type PCB Mount Terminals
Total clearing I²t @Un AC (A²s) 955
Rated breaking capacity I1 AC (kA) 200
Product available on request Ask for more information
V108 - Fuse 10x85 1500VDC gPV UL 1A

V108 - Fuse 10x85 1500VDC gPV UL 1A

Reference 875.562.82.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 1
Applicable standards IEC, UL
Power loss (W) 1,72
Rated Voltage Un DC (V) 1500
Series name V108
Rated breaking capacity I1 DC (kA) 20000
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 3,18
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 4,5
Weight (gr) 12
Price List €1.93/pc
Quantity
lock Datasheet
B025 - Fuse 1000VDC aBat 160A - 100,3mm - Silver Plated

B025 - Fuse 1000VDC aBat 160A - 100,3mm - Silver Plated

Reference 876.179.40.0.0 - Manufacturer FAULTRAP
Class aBat, aR
Rated current In (A) 160
Applicable standards IEC, UL
Power loss (W) 25.5
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B025
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 38x129
Melting I²t value (A²s) 5400
Minimum breaking current (A) 1280
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 100
Total clearing I²t @Un AC (A²s) 12000
Product available on request Ask for more information
20PV3 - Fuse 2000VDC gPV 76x269mm axial terminals 225mm 400A

20PV3 - Fuse 2000VDC gPV 76x269mm axial terminals 225mm 400A

Reference 877.289.08.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 400
Applicable standards IEC
Power loss (W) 84.5
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV3
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 76x269
Melting I²t value (A²s) 119860
Minimum breaking current (A) 800
Fuse Connection/Terminal type Screw fixing
Product available on request Ask for more information
24E1 - Fuse BS 17,2x42 aR 240V 6A

24E1 - Fuse BS 17,2x42 aR 240V 6A

Reference 877.567.82.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 6
Rated Voltage Un AC (V) 240
Applicable standards IEC
Power loss (W) 1,9
Rated Voltage Un DC (V) 150
Series name 24E1
Rated breaking capacity I1 DC (kA) 20
Fuse Dimension (mm) 17x56
Melting I²t value (A²s) 2
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 9
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 29,5
Product available on request Ask for more information
20PV27 - Fuse 2000VDC gPV 27x85mm inline copper 4AWG 70A

20PV27 - Fuse 2000VDC gPV 27x85mm inline copper 4AWG 70A

Reference 880.064.47.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 70
Applicable standards IEC
Power loss (W) 20.2
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV27
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 27x85
Melting I²t value (A²s) 1400
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information
L226 - In-Line Rugged 22x65 Fuse + Holder 1500VDC 25A

L226 - In-Line Rugged 22x65 Fuse + Holder 1500VDC 25A

Reference 881.152.11.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 25
Applicable standards IEC
Power loss (W) 6
Rated Voltage Un DC (V) 1500
Series name L226
Rated breaking capacity I1 DC (kA) 10000
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 275
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 1500
Product available on request Ask for more information
UR22 - Fuse 500V AC 22x58 fixing 80mm 125A

UR22 - Fuse 500V AC 22x58 fixing 80mm 125A

Reference 881.999.47.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 125
Rated Voltage Un AC (V) 500
Applicable standards IEC
Power loss (W) 26
Series name UR22
Melting I²t value (A²s) 3100
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 15000
Rated breaking capacity I1 AC (kA) 200
Product available on request Ask for more information
C200 - Fuse 690VAC aR 630A size 2 61x52,4mm M10 flush end terminals, with microswitch adapter

C200 - Fuse 690VAC aR 630A size 2 61x52,4mm M10 flush end terminals, with microswitch adapter

Reference 880.498.35.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 630
Rated Voltage Un AC (V) 690
Dimension SQB2
Applicable standards IEC
Power loss (W) 84
Series name C200
Fixing dimensions M10
Melting I²t value (A²s) 55500
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 383000
Rated breaking capacity I1 AC (kA) 200
Product available on request Ask for more information
20PV22 - Fuse 2000VDC gPV 22x85 35A

20PV22 - Fuse 2000VDC gPV 22x85 35A

Reference 852.242.24.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 35
Applicable standards IEC
Power loss (W) 10.7
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV22
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 22x85
Melting I²t value (A²s) 265
Fuse Connection/Terminal type Cylindrical
Product available on request Ask for more information
20PV22 - Fuse 2000VDC gPV 32A 22x85 in-line copper 6/8 AWG

20PV22 - Fuse 2000VDC gPV 32A 22x85 in-line copper 6/8 AWG

Reference 869.193.43.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 32
Applicable standards IEC
Power loss (W) 9,7
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV22
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 22x85
Melting I²t value (A²s) 225
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information
EV38 - Fuse EV 950V DC 10x38mm 40A

EV38 - Fuse EV 950V DC 10x38mm 40A

Reference 862.809.13.0.0 - Manufacturer FAULTRAP
Rated current In (A) 40
Applicable standards IEC
Rated Voltage Un DC (V) 950
Series name EV38
Rated breaking capacity I1 DC (kA) 20
Fuse Dimension (mm) 10x38
Fuse Connection/Terminal type Screw fixing
Product available on request Ask for more information
V108 - Fuse 10x85 1500VDC gPV UL 15A

V108 - Fuse 10x85 1500VDC gPV UL 15A

Reference 803.035.83.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 15
Applicable standards IEC, UL
Power loss (W) 3,71
Rated Voltage Un DC (V) 1500
Series name V108
Rated breaking capacity I1 DC (kA) 20000
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 37,32
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 314
Weight (gr) 12
Price List €1.83/pc
Quantity
lock Datasheet
AR22 - EV Charger Fuse 1000VDC Screw fixing 32A

AR22 - EV Charger Fuse 1000VDC Screw fixing 32A

Reference 803.049.13.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 32
Applicable standards IEC
Power loss (W) 5.3
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name AR22
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 250
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 87
Total clearing I²t @Un DC (A²s) 2000
Product available on request Ask for more information

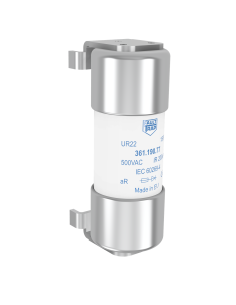

UR22 - Fuse 690V AC 22x58 fixing on pcb 12A

UR22 - Fuse 690V AC 22x58 fixing on pcb 12A

Reference 804.062.20.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 12
Rated Voltage Un AC (V) 690
Applicable standards IEC
Power loss (W) 3,5
Series name UR22
Melting I²t value (A²s) 8,5
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 37
Rated breaking capacity I1 AC (kA) 200
Product available on request Ask for more information
24E1 - Fuse BS 17,2x42 aR 240V 20A

24E1 - Fuse BS 17,2x42 aR 240V 20A

Reference 805.424.77.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 20
Rated Voltage Un AC (V) 240
Applicable standards IEC
Power loss (W) 3,8
Rated Voltage Un DC (V) 150
Series name 24E1
Rated breaking capacity I1 DC (kA) 20
Fuse Dimension (mm) 17x56
Melting I²t value (A²s) 29
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 116
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 29,5
Product available on request Ask for more information
AR22 - EV Charger Fuse 1000VDC 100A

AR22 - EV Charger Fuse 1000VDC 100A

Reference 807.873.30.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 100
Applicable standards IEC
Power loss (W) 17.7
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name AR22
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 6650
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un DC (A²s) 34700
Product available on request Ask for more information
20PV22 - Fuse 2000VDC gPV 22x85mm inline copper 10/12AWG 32A

20PV22 - Fuse 2000VDC gPV 22x85mm inline copper 10/12AWG 32A

Reference 809.596.46.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 32
Applicable standards IEC
Power loss (W) 9,7
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV22
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 22x85
Melting I²t value (A²s) 225
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information
