Fuses

M100 - Fuse 1000V DC 10x38 20A

M100 - Fuse 1000V DC 10x38 20A

Reference 745.673.47.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 20
Applicable standards UL
Power loss (W) 4,5
Rated Voltage Un DC (V) 1000
Series name M100
Fuse Dimension (mm) 10x38
Fixing dimensions M10
Fuse Connection/Terminal type Cylindrical
Product available on request Ask for more information
EV65.1000 - Fuse 1000VDC 22x65 cylindrical 60A

EV65.1000 - Fuse 1000VDC 22x65 cylindrical 60A

Reference 745.686.61.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 60
Applicable standards UL
Power loss (W) 12
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2,5
Series name EV65.1000
Rated breaking capacity I1 DC (kA) 25000
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 1220
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 4100
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 500A - 118,85mm - Silver Plated

B050 - Fuse 1000VDC aBat 500A - 118,85mm - Silver Plated

Reference 749.643.83.0.0 - Manufacturer FAULTRAP
Class aBat, aR
Rated current In (A) 500
Applicable standards IEC, UL
Power loss (W) 66
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B050
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 50x141
Melting I²t value (A²s) 78500
Minimum breaking current (A) 5000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 118
Total clearing I²t @Un DC (A²s) 204000
Product available on request Ask for more information
RL12 - Fuse 25x60mm 125VDC 20A

RL12 - Fuse 25x60mm 125VDC 20A

Reference 751.617.40.0.0 - Manufacturer FAULTRAP
Rated current In (A) 20
Power loss (W) 3
Rated Voltage Un DC (V) 125
Time costant L/R (ms) 3
Series name RL12
Rated breaking capacity I1 DC (kA) 10000
Melting I²t value (A²s) 30
Total clearing I²t @Un AC (A²s) 150
Price List €3.62/pc
Quantity
B400 - Fuse 1000V DC aBat DC 2xM12 1500A

B400 - Fuse 1000V DC aBat DC 2xM12 1500A

Reference 752.255.02.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1500
Applicable standards IEC
Power loss (W) 275
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B400
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 103x106,5
Fixing dimensions M12
Melting I²t value (A²s) 731600
Fuse Connection/Terminal type Screw fixing
Product available on request Ask for more information
V108 - Fuse 10x85 1500VDC gPV UL 20A

V108 - Fuse 10x85 1500VDC gPV UL 20A

Reference 752.519.86.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 20
Applicable standards IEC, UL
Power loss (W) 4,66
Rated Voltage Un DC (V) 1500
Series name V108
Rated breaking capacity I1 DC (kA) 20000
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 103,68
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 541
Weight (gr) 12
Price List €22.33/pc
Quantity
lock Datasheet
EV65.1000 - Fuse 1000VDC 22x65 cylindrical 70A

EV65.1000 - Fuse 1000VDC 22x65 cylindrical 70A

Reference 754.158.47.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 70
Applicable standards UL
Power loss (W) 13
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2,5
Series name EV65.1000
Rated breaking capacity I1 DC (kA) 25000
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 2010
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 6050
Product available on request Ask for more information

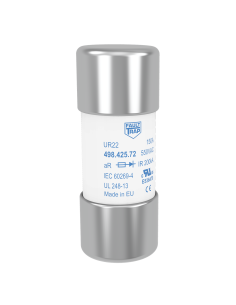

UR22 - Fuse 690V AC 22x58 cylindrical 12A

UR22 - Fuse 690V AC 22x58 cylindrical 12A

Reference 754.812.07.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 12
Rated Voltage Un AC (V) 550
Applicable standards IEC, UL
Power loss (W) 3,5
Series name UR22
Melting I²t value (A²s) 8,5
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 37
Rated breaking capacity I1 AC (kA) 200
Product available on request Ask for more information
BPF3 - Fuse 1500VDC aBat d:76mm axial 171mm 900A

BPF3 - Fuse 1500VDC aBat d:76mm axial 171mm 900A

Reference 755.769.25.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 900
Applicable standards IEC
Power loss (W) 210
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 3
Series name BPF3
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 76x171
Melting I²t value (A²s) 435000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 2480000
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 1100A - 132,7mm - Silver Plated

B100 - Fuse 1000VDC aBat 1100A - 132,7mm - Silver Plated

Reference 757.962.17.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1100
Applicable standards IEC, UL
Power loss (W) 180
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B100
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 63,5x167
Melting I²t value (A²s) 508000
Minimum breaking current (A) 11000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 1620000
Product available on request Ask for more information
BSDC - Fuse 38x73mm 1000VDC BS aBat 300A

BSDC - Fuse 38x73mm 1000VDC BS aBat 300A

Reference 760.312.32.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 300
Applicable standards IEC
Power loss (W) 52
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name BSDC
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 38x127
Melting I²t value (A²s) 46000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 99
Total clearing I²t @Un AC (A²s) 175000
Product available on request Ask for more information
P103 - Fuse 550V DC EV with pins 35 AMP

P103 - Fuse 550V DC EV with pins 35 AMP

Reference 761.166.28.0.0 - Manufacturer FAULTRAP
Rated current In (A) 35
Applicable standards IEC
Power loss (W) 6,8
Rated Voltage Un DC (V) 550
Time costant L/R (ms) 2
Series name P103
Rated breaking capacity I1 DC (kA) 20000
Fuse Dimension (mm) 10x38
Melting I²t value (A²s) 125
Voltage of total clearing I2t test 550
Total clearing I²t @Un AC (A²s) 395
Product available on request Ask for more information
L108 - In-Line Rugged 10x85 Fuse + Holder 1500VDC 10A

L108 - In-Line Rugged 10x85 Fuse + Holder 1500VDC 10A

Reference 762.472.30.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 10
Applicable standards IEC
Power loss (W) 2,85
Rated Voltage Un DC (V) 1500
Series name L108
Rated breaking capacity I1 DC (kA) 20000
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 9,2
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 104
Product available on request Ask for more information
V103 - Fuse 10x38 1000VDC gPV 5A

V103 - Fuse 10x38 1000VDC gPV 5A

Reference 762.911.81.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 5
Applicable standards IEC, UL
Power loss (W) 1,82
Rated Voltage Un DC (V) 1000
Series name V103
Rated breaking capacity I1 DC (kA) 20000
Fuse Dimension (mm) 10x38
Melting I²t value (A²s) 19,8
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 47,5
Price List €8.73/pc
Quantity
lock Datasheet
B400 - Fuse 1000V DC aBat DC 4xM10 1600A

B400 - Fuse 1000V DC aBat DC 4xM10 1600A

Reference 763.062.87.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1600
Applicable standards IEC
Power loss (W) 280
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B400
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 103x106,5
Fixing dimensions M10
Melting I²t value (A²s) 955600
Fuse Connection/Terminal type Screw fixing
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat double body 1400A - Silver Plated

B100 - Fuse 1000VDC aBat double body 1400A - Silver Plated

Reference 763.542.13.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 1400
Applicable standards IEC, UL
Power loss (W) 269
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B100
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 63,5x130,5
Melting I²t value (A²s) 574400
Minimum breaking current (A) 14000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 1724000
Product available on request Ask for more information
AR22 - EV Charger Fuse 1000VDC Screw fixing 50A

AR22 - EV Charger Fuse 1000VDC Screw fixing 50A

Reference 764.024.17.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Applicable standards IEC
Power loss (W) 9
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name AR22
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 737
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 87
Total clearing I²t @Un DC (A²s) 6600
Product available on request Ask for more information
M100 - Fuse 1000V DC 10x38 15A

M100 - Fuse 1000V DC 10x38 15A

Reference 764.033.13.0.0 - Manufacturer FAULTRAP
Class EV full
Rated current In (A) 15
Applicable standards UL
Power loss (W) 3,05
Rated Voltage Un DC (V) 1000
Series name M100
Fuse Dimension (mm) 10x38
Fixing dimensions M10
Fuse Connection/Terminal type Cylindrical
Product available on request Ask for more information
NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 40A

NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 40A

Reference 764.389.01.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 40
Rated Voltage Un AC (V) 690
Dimension 000
Applicable standards IEC
Power loss (W) 7,2
Rated Voltage Un DC (V) 700
Time costant L/R (ms) 2
Series name NR2A
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 230
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Voltage of total clearing I2t test 700
Total clearing I²t @Un AC (A²s) 840
Rated breaking capacity I1 AC (kA) 200000
Product available on request Ask for more information
20PV10 - Fuse 2000VDC gPV 10x85 10A

20PV10 - Fuse 2000VDC gPV 10x85 10A

Reference 765.329.01.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 10
Applicable standards IEC
Power loss (W) 2,6
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV10
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 400
Fuse Connection/Terminal type Cylindrical
Product available on request Ask for more information
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 32A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 32A

Reference 765.929.08.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Dimension 000
Applicable standards IEC
Power loss (W) 7
Rated Voltage Un DC (V) 700
Time costant L/R (ms) 2
Series name NR2A
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 80
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Voltage of total clearing I2t test 700
Total clearing I²t @Un AC (A²s) 300
Rated breaking capacity I1 AC (kA) 200000
Price List €9.98/pc
Quantity
lock Datasheet
Filter by
Manufacturer
Series name
Fuse size
Class
Fuse Connection/Terminal type
Rated current In (A)
Rated Voltage Un AC (V)
Rated Voltage Un DC (V)
Applicable standards
Product added to compare.
Product added to wishlist
