Fuses

A800 - Fuse 22x65 800V SPD protection 8/20 30kA 10/350 8kA

A800 - Fuse 22x65 800V SPD protection 8/20 30kA 10/350 8kA

Reference 721.081.58.0.0 - Manufacturer FAULTRAP
Rated Voltage Un AC (V) 800
Applicable standards IEC
Series name A800
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 36000
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 250000
Rated breaking capacity I1 AC (kA) 80
Price List €16.34/pc
Quantity
lock Datasheet
BPF1 - Fuse 1500VDC aBat d:50mm axial 168mm 400A

BPF1 - Fuse 1500VDC aBat d:50mm axial 168mm 400A

Reference 721.754.28.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 400
Applicable standards IEC
Power loss (W) 70,5
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 3
Series name BPF1
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 50x168
Melting I²t value (A²s) 73750
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 258150
Product available on request Ask for more information
20PV22 - Fuse 2000VDC gPV 22x85 30A

20PV22 - Fuse 2000VDC gPV 22x85 30A

Reference 722.450.52.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 30
Applicable standards IEC
Power loss (W) 8.8
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV22
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 22x85
Melting I²t value (A²s) 185
Fuse Connection/Terminal type Cylindrical
Product available on request Ask for more information
20PV10 - Fuse 2000VDC gPV 10x85 inline 2A

20PV10 - Fuse 2000VDC gPV 10x85 inline 2A

Reference 724.456.12.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 2
Applicable standards IEC
Power loss (W) 1,2
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV10
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 2
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information
DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 63A

DC22 - Fuse 1000VDC aBat 22x65mm bolted terminal 63A

Reference 725.960.68.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 63
Applicable standards IEC
Power loss (W) 12.5
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name DC22
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 750
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 87
Total clearing I²t @Un DC (A²s) 3305
Price List €26.43/pc
Quantity
lock Datasheet
S276 - Fuse 27x60mm 500VAC gS PCB 125A

S276 - Fuse 27x60mm 500VAC gS PCB 125A

Reference 727.422.00.0.0 - Manufacturer FAULTRAP
Class gRL, gS
Rated current In (A) 125
Rated Voltage Un AC (V) 500
Applicable standards IEC, UL
Power loss (W) 10
Series name S276
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 27x60
Melting I²t value (A²s) 10400
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 550
Total clearing I²t @Un AC (A²s) 55000
Product available on request Ask for more information
C315P - Fuse 150V AC aR 2800A size 3 with plate and microswi

C315P - Fuse 150V AC aR 2800A size 3 with plate and microswi

Reference 729.032.67.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 2800
Rated Voltage Un AC (V) 150
Applicable standards IEC
Power loss (W) 150
Series name C315P
Fixing dimensions M12
Melting I²t value (A²s) 1845000
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 5535000
Rated breaking capacity I1 AC (kA) 230
Product available on request Ask for more information
NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 315A

NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 315A

Reference 732.361.29.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 315
Rated Voltage Un AC (V) 690
Dimension 000
Applicable standards IEC, UL
Power loss (W) 70
Rated Voltage Un DC (V) 700
Time costant L/R (ms) 2
Series name NR2B
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 16450
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Voltage of total clearing I2t test 700
Total clearing I²t @Un AC (A²s) 60000
Rated breaking capacity I1 AC (kA) 200000
Product available on request Ask for more information
NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 180A

NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 180A

Reference 733.030.55.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 180
Rated Voltage Un AC (V) 690
Dimension 000
Applicable standards IEC, UL
Power loss (W) 42.5
Rated Voltage Un DC (V) 700
Time costant L/R (ms) 2
Series name NR2B
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 4120
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Voltage of total clearing I2t test 700
Total clearing I²t @Un AC (A²s) 15100
Rated breaking capacity I1 AC (kA) 200000
Product available on request Ask for more information
NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 100A

NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 100A

Reference 733.837.25.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 100
Rated Voltage Un AC (V) 690
Dimension 000
Applicable standards IEC, UL
Power loss (W) 19
Rated Voltage Un DC (V) 700
Time costant L/R (ms) 2
Series name NR2B
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 1340
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Voltage of total clearing I2t test 700
Total clearing I²t @Un AC (A²s) 5000
Rated breaking capacity I1 AC (kA) 200000
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat double body 2000A - Silver Plated

B100 - Fuse 1000VDC aBat double body 2000A - Silver Plated

Reference 735.676.55.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 2000
Applicable standards IEC, UL
Power loss (W) 368
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B100
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 63,5x130,5
Melting I²t value (A²s) 1494000
Minimum breaking current (A) 20000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 4380000
Product available on request Ask for more information
NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 160A

NR2A-Fuse 000/80 aR 700VDC/690VAC with ind. w/o lug 160A

Reference 736.402.52.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 160
Rated Voltage Un AC (V) 690
Dimension 000
Applicable standards IEC
Power loss (W) 37.5
Rated Voltage Un DC (V) 700
Time costant L/R (ms) 2
Series name NR2A
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 3020
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Voltage of total clearing I2t test 700
Total clearing I²t @Un AC (A²s) 11100
Rated breaking capacity I1 AC (kA) 200000
Price List €14.22/pc
Quantity
lock Datasheet
NR2A-Fuse 000/80 aR 500VAC with ind. w/o lug 350A

NR2A-Fuse 000/80 aR 500VAC with ind. w/o lug 350A

Reference 736.827.54.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 350
Rated Voltage Un AC (V) 500
Dimension 000
Applicable standards IEC
Power loss (W) 80
Time costant L/R (ms) 2
Series name NR2A
Melting I²t value (A²s) 21500
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Voltage of total clearing I2t test 700
Total clearing I²t @Un AC (A²s) 92500
Rated breaking capacity I1 AC (kA) 200000
Product available on request Ask for more information
G108 - Fuse 1000V AC gG 10x85mm 2A

G108 - Fuse 1000V AC gG 10x85mm 2A

Reference 737.739.33.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 2
Rated Voltage Un AC (V) 1000
Applicable standards IEC
Power loss (W) 0,85
Series name G108
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 5
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 90
Rated breaking capacity I1 AC (kA) 30000
Price List €1.97/pc
Quantity
lock Datasheet
V108 - Fuse 10x85 1500VDC gPV In-line 8A

V108 - Fuse 10x85 1500VDC gPV In-line 8A

Reference 740.292.26.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 8
Applicable standards IEC, UL
Power loss (W) 2,72
Rated Voltage Un DC (V) 1500
Series name V108
Rated breaking capacity I1 DC (kA) 20000
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 10,95
Fuse Connection/Terminal type Cylindrical In-line
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 48,5
Product available on request Ask for more information
NR2B - Fuse 00/80 aR 700VDC/690VACwith ind. w/o lug 80A

NR2B - Fuse 00/80 aR 700VDC/690VACwith ind. w/o lug 80A

Reference 740.833.15.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 80
Rated Voltage Un AC (V) 690
Dimension 000
Applicable standards IEC, UL
Power loss (W) 17
Rated Voltage Un DC (V) 700
Time costant L/R (ms) 2
Series name NR2B
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 750
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Voltage of total clearing I2t test 700
Total clearing I²t @Un AC (A²s) 2800
Rated breaking capacity I1 AC (kA) 200000
Product available on request Ask for more information
L108 - In-Line Rugged 10x85 Fuse + Holder 1500VDC 25A

L108 - In-Line Rugged 10x85 Fuse + Holder 1500VDC 25A

Reference 742.842.55.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 25
Applicable standards IEC
Power loss (W) 5,5
Rated Voltage Un DC (V) 1500
Series name L108
Rated breaking capacity I1 DC (kA) 20000
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 54,4
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 855
Product available on request Ask for more information
20PV14 - Fuse 2000VDC gPV 14x8 12A

20PV14 - Fuse 2000VDC gPV 14x8 12A

Reference 743.195.59 .0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 12
Applicable standards IEC
Power loss (W) 4
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV14
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 14x85
Melting I²t value (A²s) 23
Fuse Connection/Terminal type Cylindrical
Product available on request Ask for more information

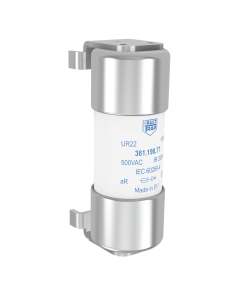

UR22 - Fuse 500V AC 22x58 fixing on pcb 125A

UR22 - Fuse 500V AC 22x58 fixing on pcb 125A

Reference 743.702.10.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 125
Rated Voltage Un AC (V) 500
Applicable standards IEC
Power loss (W) 26
Series name UR22
Melting I²t value (A²s) 3100
Fuse Connection/Terminal type PCB Mount Terminals
Total clearing I²t @Un AC (A²s) 15000
Rated breaking capacity I1 AC (kA) 200
Product available on request Ask for more information
G103 - Fuse 500V 10x38 gG 30A

G103 - Fuse 500V 10x38 gG 30A

Reference 744.660.77.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 30
Rated Voltage Un AC (V) 500
Applicable standards IEC
Power loss (W) 2,6
Fuse Dimension (mm) 10x38
Melting I²t value (A²s) 87
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 500
Total clearing I²t @Un AC (A²s) 564
Rated breaking capacity I1 AC (kA) 100000
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 800A

B500 - Fuse 1500VDC aBat 2xM12 with micro adapter 800A

Reference 745.237.55.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 800
Applicable standards IEC
Power loss (W) 213
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 3
Series name B500
Rated breaking capacity I1 DC (kA) 250000
Fuse Dimension (mm) 103x144
Fixing dimensions M12
Melting I²t value (A²s) 272000
Minimum breaking current (A) 9000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 1452000
Product available on request Ask for more information
Filter by
Manufacturer
Series name
Fuse size
Class
Fuse Connection/Terminal type
Rated current In (A)
Rated Voltage Un AC (V)
Rated Voltage Un DC (V)
Applicable standards
Product added to compare.
Product added to wishlist
