List of products by manufacturer SIBA

Fuse 6,3x32 F 250V glass 0,08A 7005960.0,08

Fuse 6,3x32 F 250V glass 0,08A 7005960.0,08

Reference 189000.0,08.0 - Manufacturer SIBA
Class F
Rated current In (A) 0,08
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,6
Voltage drop (mV) 5000
Fuse Dimension (mm) 6,3x32
Melting I²t value (A²s) 0,001
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 2
Price List €5.12/pc
Quantity
lock Datasheet
Fuse 22x65 aR/aBat 1000VDC UL with pins 63A

Fuse 22x65 aR/aBat 1000VDC UL with pins 63A

Reference 5026706.63.0 - Manufacturer SIBA
Class aBat, aR
Rated current In (A) 63
Applicable standards IEC, UL
Power loss (W) 12.5
Rated Voltage Un DC (V) 1000
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 740
Fuse Connection/Terminal type Screw fixing
Price List €189.30/pc
Quantity
Fuse 22x65 aR/aBat 1000VDC UL with terminals 100A

Fuse 22x65 aR/aBat 1000VDC UL with terminals 100A

Reference 5026906.100.0 - Manufacturer SIBA
Class aBat, aR
Rated current In (A) 100
Applicable standards IEC, UL
Power loss (W) 23
Rated Voltage Un DC (V) 1000
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 2050
Fuse Connection/Terminal type Cylindrical
Price List €179.04/pc
Quantity

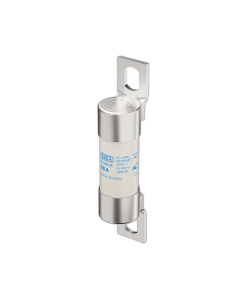

Fuse 22x65 aR/aBat 1000VDC UL with terminals 63A

Fuse 22x65 aR/aBat 1000VDC UL with terminals 63A

Reference 5026906.63.0 - Manufacturer SIBA
Class aBat, aR
Rated current In (A) 63
Applicable standards IEC, UL
Power loss (W) 12.5
Rated Voltage Un DC (V) 1000
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 740
Fuse Connection/Terminal type Cylindrical
Price List €179.04/pc
Quantity
Fuse 22x65 aR/aBat 1000VDC UL with terminals 80A

Fuse 22x65 aR/aBat 1000VDC UL with terminals 80A

Reference 5026906.80.0 - Manufacturer SIBA
Class aBat, aR
Rated current In (A) 80
Applicable standards IEC, UL
Power loss (W) 16,5
Rated Voltage Un DC (V) 1000
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 1300
Fuse Connection/Terminal type Cylindrical
Price List €179.04/pc
Quantity
Fuse holder 1000V AC/DC 22x65mm 1 pole

Fuse holder 1000V AC/DC 22x65mm 1 pole

Reference 5126505.1.0 - Manufacturer SIBA
Rated current In (A) 100
Rated Voltage Un AC (V) 1000
Applicable standards IEC, UL
Rated Voltage Un DC (V) 1000
Fuse Dimension (mm) 22x65
Fuse Connection/Terminal type Cylindrical
Number of poles 1
Price List €34.87/pc
Quantity
lock Datasheet
Fuse 14x65 1100VDC gPV UL2579 10A

Fuse 14x65 1100VDC gPV UL2579 10A

Reference 5023528.10.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 10
Applicable standards IEC, UL
Power loss (W) 4
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x65
Melting I²t value (A²s) 3
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 21
Weight (gr) 28
Product available on request Ask for more information
Fuse 14x65 1100VDC gPV UL2579 12A

Fuse 14x65 1100VDC gPV UL2579 12A

Reference 5023528.12.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 12
Applicable standards IEC, UL
Power loss (W) 4,1
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x65
Melting I²t value (A²s) 7,5
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 51
Weight (gr) 28
Product available on request Ask for more information
Fuse 14x65 1100VDC gPV UL2579 16A

Fuse 14x65 1100VDC gPV UL2579 16A

Reference 5023528.16.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 16
Applicable standards IEC, UL
Power loss (W) 4,6
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x65
Melting I²t value (A²s) 16
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 109
Weight (gr) 28
Product available on request Ask for more information
Fuse 14x65 1100VDC gPV UL2579 20A

Fuse 14x65 1100VDC gPV UL2579 20A

Reference 5023528.20.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 20
Applicable standards IEC, UL
Power loss (W) 4,6
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x65
Melting I²t value (A²s) 30
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 205
Weight (gr) 28
Product available on request Ask for more information
Fuse 14x65 1100VDC gPV UL2579 25A

Fuse 14x65 1100VDC gPV UL2579 25A

Reference 5023528.25.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 25
Applicable standards IEC, UL
Power loss (W) 5,9
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x65
Melting I²t value (A²s) 82
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 560
Weight (gr) 28
Product available on request Ask for more information
Fuse 14x65 1100VDC gPV UL2579 30A

Fuse 14x65 1100VDC gPV UL2579 30A

Reference 5023528.30.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 30
Applicable standards IEC, UL
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x65
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1100
Weight (gr) 28
Product available on request Ask for more information
Fuse 14x65 gPV 1100VDC with terminals distance 77,5mm 8A

Fuse 14x65 gPV 1100VDC with terminals distance 77,5mm 8A

Reference 5023726.8.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 8
Applicable standards IEC
Power loss (W) 2,6
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x65
Melting I²t value (A²s) 5
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 22
Weight (gr) 30
Product available on request Ask for more information
Fuse 14x65 with bolted contats 1100VDC gPV UL2579 10A

Fuse 14x65 with bolted contats 1100VDC gPV UL2579 10A

Reference 5023728.10.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 10
Applicable standards IEC, UL
Power loss (W) 4
Rated Voltage Un DC (V) 1100
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x65
Melting I²t value (A²s) 3
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1100
Total clearing I²t @Un AC (A²s) 21
Weight (gr) 30
Price List €301.29/pc
Quantity
Fuse 14x65 1500VDC gPV UL2579 12A

Fuse 14x65 1500VDC gPV UL2579 12A

Reference 5024028.12.0 - Manufacturer SIBA
Class gPV
Rated current In (A) 12
Applicable standards IEC, UL
Power loss (W) 4,2
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 3
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x65
Melting I²t value (A²s) 12
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 100
Weight (gr) 28
Price List €27.53/pc
Quantity
Fuse 14x65 gFP 1500VDC 2A

Fuse 14x65 gFP 1500VDC 2A

Reference 5024406.2.0 - Manufacturer SIBA
Class gFP
Rated current In (A) 2
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 2
Rated breaking capacity I1 DC (kA) 10000
Fuse Dimension (mm) 14x65
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Product available on request Ask for more information
Fuse 14x65 gFP 1500VDC 5A

Fuse 14x65 gFP 1500VDC 5A

Reference 5024406.5.0 - Manufacturer SIBA
Class gFP
Rated current In (A) 5
Applicable standards UL
Power loss (W) 3,5
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 2
Rated breaking capacity I1 DC (kA) 10000
Fuse Dimension (mm) 14x65
Melting I²t value (A²s) 20
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 150
Product available on request Ask for more information
Fuse 22x58 500V DC gBat with pins 80mm 100A

Fuse 22x58 500V DC gBat with pins 80mm 100A

Reference 5016236.100.0 - Manufacturer SIBA
Class gBat
Rated current In (A) 4600
Rated Voltage Un AC (V) 500
Applicable standards IEC
Power loss (W) 9,7
Rated Voltage Un DC (V) 100
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 22x58
Melting I²t value (A²s) 22000
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 500
Price List €228.71/pc
Quantity
Fuse 14x51 gRL/gS 690VAC/400VDC with striker 35A

Fuse 14x51 gRL/gS 690VAC/400VDC with striker 35A

Reference 5012634.35.0 - Manufacturer SIBA
Class gRL, gS
Rated current In (A) 35
Rated Voltage Un AC (V) 690
Applicable standards IEC, UL
Power loss (W) 4,2
Rated Voltage Un DC (V) 400
Rated breaking capacity I1 DC (kA) 30000
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 370
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 3150
Rated breaking capacity I1 AC (kA) 200000
Weight (gr) 22
Price List €8.03/pc
Quantity
lock Datasheet
Fuse 14x51 gR 690V (IEC) 3A

Fuse 14x51 gR 690V (IEC) 3A

Reference 5012406.3.0 - Manufacturer SIBA
Class gR
Rated current In (A) 3
Rated Voltage Un AC (V) 690
Applicable standards IEC
Power loss (W) 1,5
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 5
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 15
Rated breaking capacity I1 AC (kA) 200000
Product available on request Ask for more information
Fuse 22x58 500VAC gG 100A IEC - 500VAC gR 80A UL

Fuse 22x58 500VAC gG 100A IEC - 500VAC gR 80A UL

Reference 5006052.100.0 - Manufacturer SIBA
Class gG
Rated current In (A) 100
Rated Voltage Un AC (V) 690
Applicable standards IEC
Power loss (W) 9,2
Fuse Dimension (mm) 22x58
Melting I²t value (A²s) 14750
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 500
Total clearing I²t @Un AC (A²s) 50000
Rated breaking capacity I1 AC (kA) 100000
Product available on request Ask for more information
