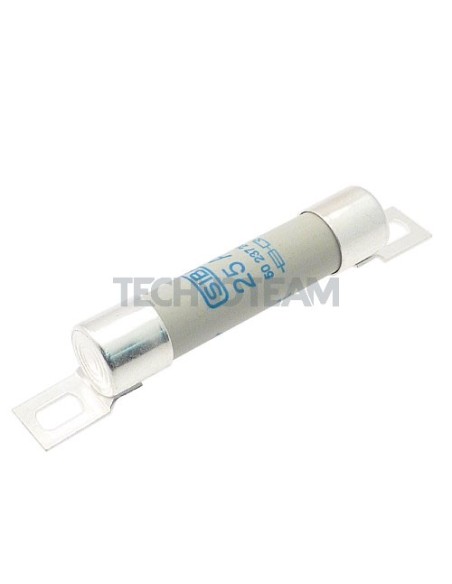

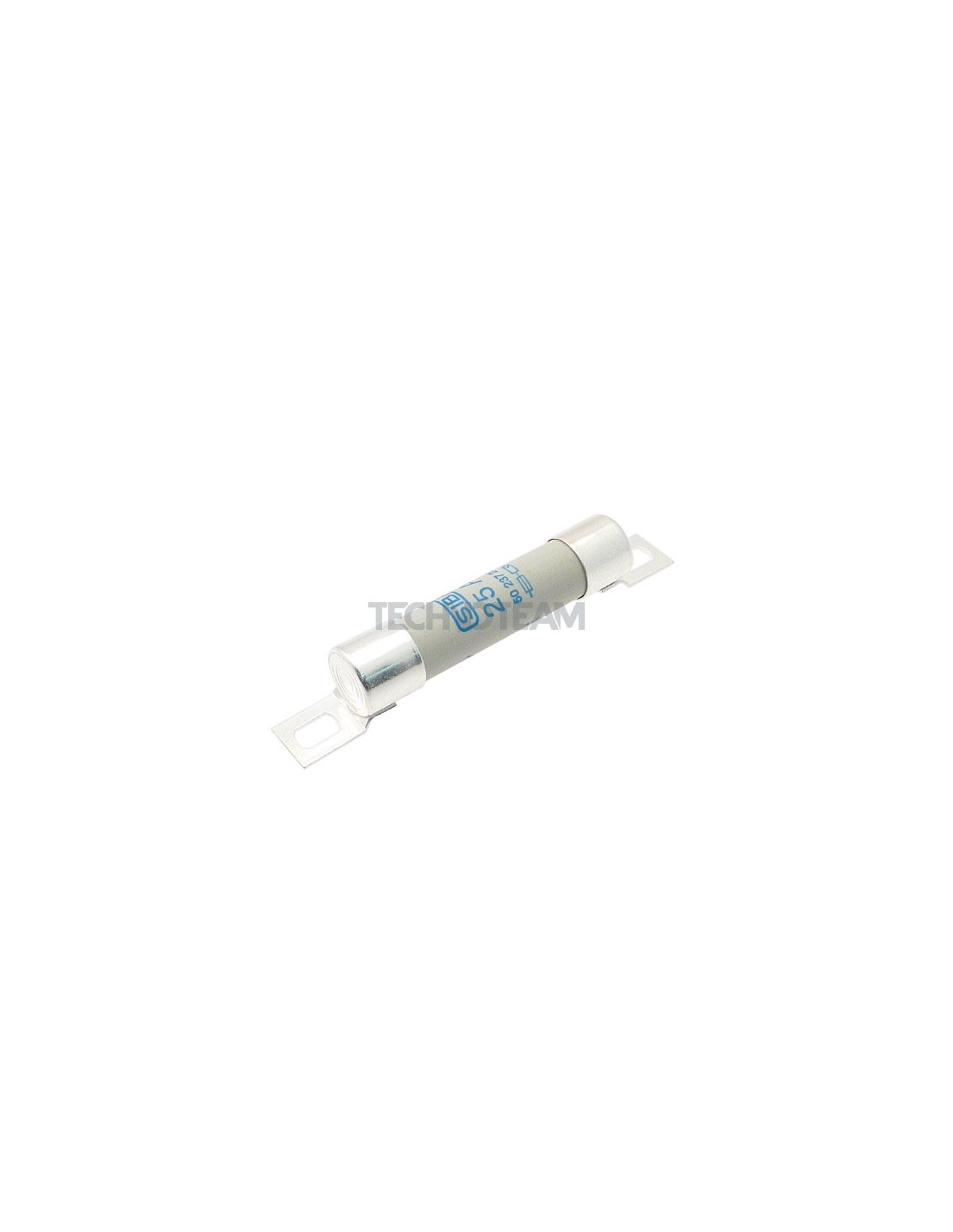

Fuse 14x65 gPV 1100VDC with terminals distance 77,5mm 8A
Fuse 14x65 gPV 1100VDC with terminals distance 77,5mm 8A

Fuse 14x65 gPV 1100VDC with terminals distance 77,5mm 8A

Reference: 5023726.8.0  -  Manufacturer: SIBA
Product available on request
Ask for more information

Product Details

Class
gPV
Rated current In (A)
8
Applicable standards
IEC
Power loss (W)
2,6
Rated Voltage Un DC (V)
1100
Rated breaking capacity I1 DC (kA)
30000
Fuse Dimension (mm)
14x65
Melting I²t value (A²s)
5
Fuse Connection/Terminal type
Screw fixing
Voltage of total clearing I2t test
1100
Total clearing I²t @Un AC (A²s)
22
Weight (gr)
30
