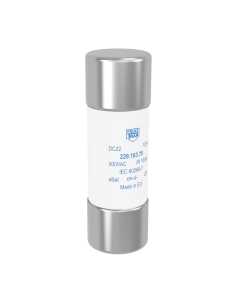

DC22 - Fuse 1000VDC aBat 22x65mm 80A

DC22 - Fuse 1000VDC aBat 22x65mm 80A

Reference 616.545.00.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 80
Applicable standards IEC
Power loss (W) 16,3
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name DC22
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 1350
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un DC (A²s) 5950
Product available on request Ask for more information
A145 - Fuse 14x51 500VAC aR 63A

A145 - Fuse 14x51 500VAC aR 63A

Reference 616.546.40.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 63
Rated Voltage Un AC (V) 690
Applicable standards IEC
Power loss (W) 16
Series name A145
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 408
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 2930
Rated breaking capacity I1 AC (kA) 200
Product available on request Ask for more information
20PV27 - Fuse 2000VDC gPV 27x85 75A

20PV27 - Fuse 2000VDC gPV 27x85mm 75A

Reference 618.698.55 .0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 75
Applicable standards IEC
Power loss (W) 19.7
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV27
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 27x85
Melting I²t value (A²s) 1900
Fuse Connection/Terminal type Cylindrical
Product available on request Ask for more information
A145 - Fuse 14x51 690VAC aR 32A

A145 - Fuse 14x51 690VAC aR 32A

Reference 591.013.43.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 32
Rated Voltage Un AC (V) 690
Applicable standards IEC
Power loss (W) 10
Series name A145
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 70
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 650
Rated breaking capacity I1 AC (kA) 200
Price List €8.81/pc
Quantity
lock Datasheet
20PV14 - Fuse 2000VDC gPV 14x85 inline 20A

20PV14 - Fuse 2000VDC gPV 14x85 inline 20A

Reference 592.796.46.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 20
Applicable standards IEC
Power loss (W) 6.4
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV14
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 14x85
Melting I²t value (A²s) 67
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information

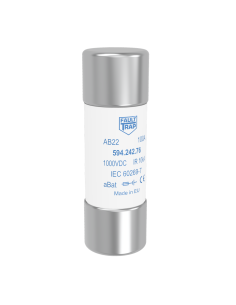

AB22 - Fuse 22x65 1000VDC aBat 100A

AB22 - Fuse 22x65 1000VDC aBat 100A

Reference 594.242.76.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 100
Applicable standards IEC
Power loss (W) 18
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name AB22
Rated breaking capacity I1 DC (kA) 10
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 4520
Minimum breaking current (A) 800
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un DC (A²s) 25000
Product available on request Ask for more information
AR22 - EV Charger Fuse 1000VDC 60A

AR22 - EV Charger Fuse 1000VDC 60A

Reference 595.927.40.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 60
Applicable standards IEC
Power loss (W) 9.5
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name AR22
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 1300
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un DC (A²s) 9800
Weight (gr) 60
Product available on request Ask for more information
20PV14 - Fuse 2000VDC gPV 14x8 30A

20PV14 - Fuse 2000VDC gPV 14x8 30A

Reference 597.293.07 .0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 30
Applicable standards IEC
Power loss (W) 8.8
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV14
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 14x85
Melting I²t value (A²s) 185
Fuse Connection/Terminal type Cylindrical
Product available on request Ask for more information

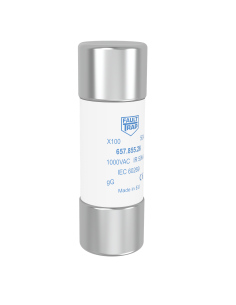

X100 - Fuse 22x65mm 1000VAC gG 4A

X100 - Fuse 22x65mm 1000VAC gG 4A

Reference 597.742.13.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 4
Rated Voltage Un AC (V) 1000
Applicable standards IEC
Power loss (W) 1,3
Series name X100
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 31
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 800
Rated breaking capacity I1 AC (kA) 50
Product available on request Ask for more information
A145 - Fuse 14x51 690VAC aR 20A

A145 - Fuse 14x51 690VAC aR 20A

Reference 599.888.65.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 20
Rated Voltage Un AC (V) 690
Applicable standards IEC
Power loss (W) 6.3
Series name A145
Fuse Dimension (mm) 14x51
Melting I²t value (A²s) 23
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 200
Rated breaking capacity I1 AC (kA) 200
Price List €4.16/pc
Quantity
lock Datasheet
24E1 - Fuse BS 17,2x42 aR 240V 35A

24E1 - Fuse BS 17,2x42 aR 240V 35A

Reference 600.633.93.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 35
Rated Voltage Un AC (V) 240
Applicable standards IEC
Power loss (W) 5,5
Rated Voltage Un DC (V) 150
Series name 24E1
Rated breaking capacity I1 DC (kA) 20
Fuse Dimension (mm) 17x56
Melting I²t value (A²s) 48.5
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 545
Rated breaking capacity I1 AC (kA) 100
Price List €11.85/pc
Quantity
lock Datasheet
20PV27 - Fuse 2000VDC gPV 27x85mm 110A

20PV27 - Fuse 2000VDC gPV 27x85mm 110A

Reference 567.692.54.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 110
Applicable standards IEC
Power loss (W) 21.8
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV27
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 27x85
Melting I²t value (A²s) 7790
Fuse Connection/Terminal type Cylindrical
Product available on request Ask for more information
