Fuse SMD 2,6x6,1 125VAC/DC T UL 4A 7016975.4

Fuse SMD 2,6x6,1 125VAC/DC T UL 4A 7016975.4

Reference 158000.4.0 - Manufacturer SIBA
Class T
Rated current In (A) 4
Rated Voltage Un AC (V) 125
Applicable standards UL
Voltage drop (mV) 100
Rated Voltage Un DC (V) 125
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 2,6x6,1
Melting I²t value (A²s) 44
Fuse Connection/Terminal type SMD
Voltage of total clearing I2t test 125
Rated breaking capacity I1 AC (kA) 50
Weight (gr) 1
Price List €0.68/pc
Quantity
lock Datasheet
Fuse SMD 2,6x6,1 125VAC/DC T UL 5A 7016975.5

Fuse SMD 2,6x6,1 125VAC/DC T UL 5A 7016975.5

Reference 158000.5.0 - Manufacturer SIBA
Class T
Rated current In (A) 5
Rated Voltage Un AC (V) 125
Applicable standards UL
Voltage drop (mV) 90
Rated Voltage Un DC (V) 125
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 2,6x6,1
Melting I²t value (A²s) 77
Fuse Connection/Terminal type SMD
Voltage of total clearing I2t test 125
Rated breaking capacity I1 AC (kA) 50
Weight (gr) 1
Price List €0.68/pc
Quantity
lock Datasheet
Fuse SMD 2,6x6,1 125VAC/DC T UL 6,3A 7016975.6,3

Fuse SMD 2,6x6,1 125VAC/DC T UL 6,3A 7016975.6,3

Reference 158000.6,3.0 - Manufacturer SIBA
Class T
Rated current In (A) 6,3
Rated Voltage Un AC (V) 125
Applicable standards UL
Voltage drop (mV) 80
Rated Voltage Un DC (V) 125
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 2,6x6,1
Melting I²t value (A²s) 130
Fuse Connection/Terminal type SMD
Voltage of total clearing I2t test 125
Rated breaking capacity I1 AC (kA) 50
Weight (gr) 1
Price List €0.68/pc
Quantity
lock Datasheet
Fuse SMD 4,5x8 T 250V UL 0,032A 7017373.0,032

Fuse SMD 4,5x8 T 250V UL 0,032A 7017373.0,032

Reference 160000.0,032.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,032
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 125
Voltage drop (mV) 1150
Fuse Dimension (mm) 4,5x8
Melting I²t value (A²s) 0,014
Fuse Connection/Terminal type SMD
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 1
Price List €2.48/pc
Quantity
lock Datasheet
Fuse SMD 4,5x8 T 250V UL 0,04A 7017373.0,04

Fuse SMD 4,5x8 T 250V UL 0,04A 7017373.0,04

Reference 160000.0,04.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,04
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 150
Voltage drop (mV) 860
Fuse Dimension (mm) 4,5x8
Melting I²t value (A²s) 0,013
Fuse Connection/Terminal type SMD
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 1
Price List €2.68/pc
Quantity
lock Datasheet
Fuse SMD 4,5x8 T 450V UL 0,05A 7017373.0,05

Fuse SMD 4,5x8 T 450V UL 0,05A 7017373.0,05

Reference 160000.0,05.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,05
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 155
Voltage drop (mV) 800
Fuse Dimension (mm) 4,5x8
Melting I²t value (A²s) 0,013
Fuse Connection/Terminal type SMD
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 1
Price List €1.79/pc
Quantity
lock Datasheet
Fuse SMD 4,5x8 T 250V UL 0,063A 7017373.0,063

Fuse SMD 4,5x8 T 250V UL 0,063A 7017373.0,063

Reference 160000.0,063.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,063
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 160
Voltage drop (mV) 580
Fuse Dimension (mm) 4,5x8
Melting I²t value (A²s) 0,02
Fuse Connection/Terminal type SMD
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 1
Price List €2.43/pc
Quantity
lock Datasheet
Fuse SMD 4,5x8 T 250V UL 0,08A 7017373.0,08

Fuse SMD 4,5x8 T 250V UL 0,08A 7017373.0,08

Reference 160000.0,08.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,08
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 165
Voltage drop (mV) 480
Fuse Dimension (mm) 4,5x8
Melting I²t value (A²s) 0,035
Fuse Connection/Terminal type SMD
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 1
Price List €2.43/pc
Quantity
lock Datasheet
Fuse SMD 4,5x8 T 250V UL 0,1A 7017373.0,1

Fuse SMD 4,5x8 T 250V UL 0,1A 7017373.0,1

Reference 160000.0,1.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,1
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 170
Voltage drop (mV) 350
Fuse Dimension (mm) 4,5x8
Melting I²t value (A²s) 0,06
Fuse Connection/Terminal type SMD
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 100
Price List €1.74/pc
Quantity
lock Datasheet
Fuse SMD 4,5x8 T 250V UL 0,125A 7017373.0,125

Fuse SMD 4,5x8 T 250V UL 0,125A 7017373.0,125

Reference 160000.0,125.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,125
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 180
Voltage drop (mV) 300
Fuse Dimension (mm) 4,5x8
Melting I²t value (A²s) 0,12
Fuse Connection/Terminal type SMD
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 1
Price List €1.74/pc
Quantity
lock Datasheet
Fuse SMD 4,5x8 T 250V UL 0,16A 7017373.0,16

Fuse SMD 4,5x8 T 250V UL 0,16A 7017373.0,16

Reference 160000.0,16.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,16
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 190
Voltage drop (mV) 280
Fuse Dimension (mm) 4,5x8
Melting I²t value (A²s) 0,21
Fuse Connection/Terminal type SMD
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 100
Price List €1.74/pc
Quantity
lock Datasheet
Fuse SMD 4,5x8 T 250V UL 0,2A 7017373.0,2

Fuse SMD 4,5x8 T 250V UL 0,2A 7017373.0,2

Reference 160000.0,2.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,2
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 200
Voltage drop (mV) 260
Fuse Dimension (mm) 4,5x8
Melting I²t value (A²s) 0,32
Fuse Connection/Terminal type SMD
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 100
Price List €0.80/pc
Quantity
lock Datasheet
Fuse SMD 4,5x8 T 250V UL 0,25A 7017373.0,25

Fuse SMD 4,5x8 T 250V UL 0,25A 7017373.0,25

Reference 160000.0,25.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,25
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 220
Voltage drop (mV) 240
Fuse Dimension (mm) 4,5x8
Melting I²t value (A²s) 0,5
Fuse Connection/Terminal type SMD
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 100
Price List €0.80/pc
Quantity
lock Datasheet
Fuse SMD 4,5x8 T 250V UL 0,315A 7017373.0,315

Fuse SMD 4,5x8 T 250V UL 0,315A 7017373.0,315

Reference 160000.0,315.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,315
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 250
Voltage drop (mV) 220
Fuse Dimension (mm) 4,5x8
Melting I²t value (A²s) 0,8
Fuse Connection/Terminal type SMD
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 100
Weight (gr) 1
Price List €1.08/pc
Quantity
lock Datasheet
Fuse SMD 4,5x8 T 250V UL 0,4A 7017373.0,4

Fuse SMD 4,5x8 T 250V UL 0,4A 7017373.0,4

Reference 160000.0,4.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,4
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 280
Voltage drop (mV) 200
Fuse Dimension (mm) 4,5x8
Melting I²t value (A²s) 1,1
Fuse Connection/Terminal type SMD
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 100
Price List €1.08/pc
Quantity
lock Datasheet
Fuse 5x20 F 250V ceramic 5A 7000733.5

Fuse 5x20 F 250V ceramic 5A 7000733.5

Reference 179021.5.0 - Manufacturer SIBA
Class F
Rated current In (A) 5
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 2,4
Voltage drop (mV) 150
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 19
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 1500
Weight (gr) 2
Price List €0.84/pc
Quantity
lock Datasheet

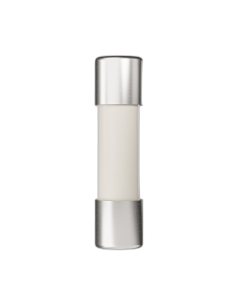

Fuse 5x20 F 250V ceramic 6,3A 7000733.6,3

Fuse 5x20 F 250V ceramic 6,3A 7000733.6,3

Reference 179021.6,3.0 - Manufacturer SIBA
Class F
Rated current In (A) 6,3
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 2,6
Voltage drop (mV) 130
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 32
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 1500
Weight (gr) 2
Price List €0.84/pc
Quantity
lock Datasheet
Fuse 5x20 F 250V ceramic 8A 7000733.8

Fuse 5x20 F 250V ceramic 8A 7000733.8

Reference 179021.8.0 - Manufacturer SIBA
Class F
Rated current In (A) 8
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 2,8
Voltage drop (mV) 100
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 120
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 1500
Weight (gr) 2
Price List €0.87/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL 0,032A 7000135.0,32

Fuse 5x20 T 250V glass UL 0,032A 7000135.0,32

Reference 179120.0,032.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,032
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,2
Voltage drop (mV) 3000
Resistance (ohm) 54
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,01
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 1
Price List €1.21/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL 0,04A 7000135.0,04

Fuse 5x20 T 250V glass UL 0,04A 7000135.0,04

Reference 179120.0,04.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,04
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,2
Voltage drop (mV) 2000
Resistance (ohm) 34
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,02
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 1
Price List €0.97/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL 0,05A 7000135.0,05

Fuse 5x20 T 250V glass UL 0,05A 7000135.0,05

Reference 179120.0,05.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,05
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,2
Voltage drop (mV) 1500
Resistance (ohm) 20,5
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,035
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 1
Price List €0.97/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL 0,063A 7000135.0,063

Fuse 5x20 T 250V glass UL 0,063A 7000135.0,063

Reference 179120.0,063.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,063
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,2
Voltage drop (mV) 1000
Resistance (ohm) 13
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,05
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Weight (gr) 1
Price List €0.95/pc
Quantity
lock Datasheet

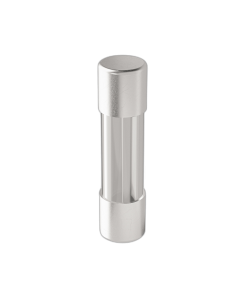

Fuse 5x20 T 250V glass UL-VDE 0,08A 7000135.0,08

Fuse 5x20 T 250V glass UL-VDE 0,08A 7000135.0,08

Reference 179120.0,08.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,08
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,2
Voltage drop (mV) 800
Resistance (ohm) 8
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,12
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Price List €1.19/pc
Quantity
lock Datasheet
Fuse 5x20 T 250V glass UL-VDE 0,1A 7000135.0,1

Fuse 5x20 T 250V glass UL-VDE 0,1A 7000135.0,1

Reference 179120.0,1.0 - Manufacturer SIBA
Class T
Rated current In (A) 0,1
Rated Voltage Un AC (V) 250
Applicable standards IEC
Power loss (W) 0,3
Voltage drop (mV) 700
Resistance (ohm) 6
Fuse Dimension (mm) 5x20
Melting I²t value (A²s) 0,16
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 250
Rated breaking capacity I1 AC (kA) 35
Price List €2.20/pc
Quantity
lock Datasheet
Filter by
Manufacturer
Series name
Class
Rated Voltage Un AC (V)
Rated Voltage Un DC (V)
Rated insultaion voltage AC (V)
Rated insulated voltage DC (V)
Applicable standards
Product added to compare.
Product added to wishlist
