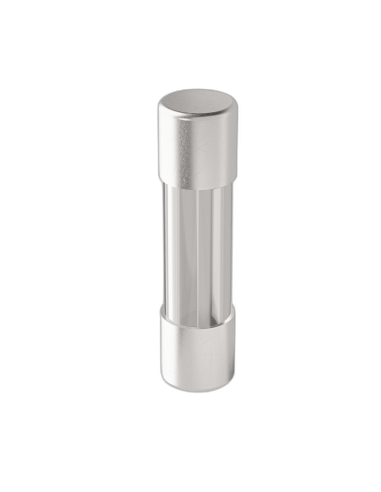

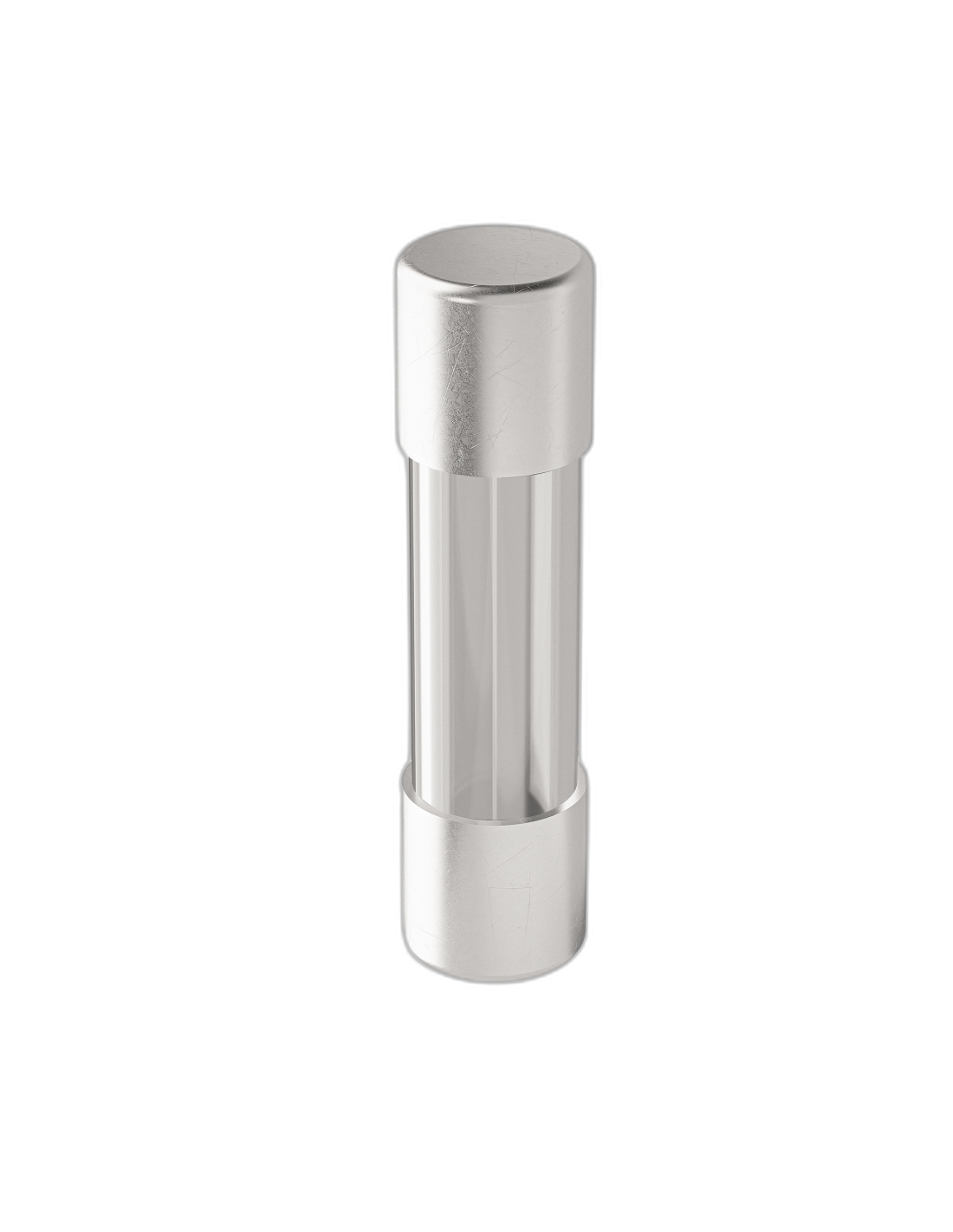

Fuse 5x20 T 250V glass UL 0,063A 7000135.0,063
Fuse 5x20 T 250V glass UL 0,063A 7000135.0,063

Fuse 5x20 T 250V glass UL 0,063A 7000135.0,063

Reference: 179120.0,063.0  -  Manufacturer: SIBA
€0.95 /pc VAT excl.

This product is only sold in boxes of 100 pcs

Product Details

Class
T
Rated current In (A)
0,063
Rated Voltage Un AC (V)
250
Applicable standards
IEC
Power loss (W)
0,2
Voltage drop (mV)
1000
Resistance (ohm)
13
Fuse Dimension (mm)
5x20
Melting I²t value (A²s)
0,05
Fuse Connection/Terminal type
Cylindrical
Voltage of total clearing I2t test
250
Rated breaking capacity I1 AC (kA)
35
Weight (gr)
1
lock Datasheet
