Fuses

B100 - Fuse 1000VDC aBat 700A - 132,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 700A - 132,7mm - Tin Plated

Reference 847.598.69.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 700
Applicable standards IEC, UL
Power loss (W) 128
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B100
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 63,5x167
Melting I²t value (A²s) 143600
Minimum breaking current (A) 7000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 431000
Price List €181.76/pc
Quantity
lock Datasheet
B100 - Fuse 1000VDC aBat 700A - 132,7mm - Silver Plated

B100 - Fuse 1000VDC aBat 700A - 132,7mm - Silver Plated

Reference 848.406.90.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 700
Applicable standards IEC, UL
Power loss (W) 128
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B100
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 63,5x167
Melting I²t value (A²s) 143600
Minimum breaking current (A) 7000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 431000
Product available on request Ask for more information
X100 - Fuse 22x65mm 1000VAC gG 10A

X100 - Fuse 22x65mm 1000VAC gG 10A

Reference 850.994.64.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 10
Rated Voltage Un AC (V) 1000
Applicable standards IEC
Power loss (W) 2.2
Series name X100
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 14
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 126
Rated breaking capacity I1 AC (kA) 50
Product available on request Ask for more information
B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 2000A

B500 - Fuse 1500VDC aBat 4xM10 with micro adapter 2000A

Reference 853.941.31.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 2000
Applicable standards IEC
Power loss (W) 445
Rated Voltage Un DC (V) 1500
Time costant L/R (ms) 3
Series name B500
Rated breaking capacity I1 DC (kA) 250000
Fuse Dimension (mm) 103x144
Fixing dimensions M10
Melting I²t value (A²s) 2798000
Minimum breaking current (A) 25000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 13650000
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 600A - 152,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 600A - 152,7mm - Tin Plated

Reference 855.334.24.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 600
Applicable standards IEC, UL
Power loss (W) 115
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B100
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 63,5x203,2
Melting I²t value (A²s) 93300
Minimum breaking current (A) 6000
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 281000
Price List €175.82/pc
Quantity
lock Datasheet
G276 - Fuse 500V AC gG /550V gR 27x60 PCB 160A

G276 - Fuse 500V AC gG /550V gR 27x60 PCB 160A

Reference 858.953.83.0.0 - Manufacturer FAULTRAP
Class gG, gR
Rated current In (A) 160
Rated Voltage Un AC (V) 500, 550
Applicable standards IEC, UL
Power loss (W) 12
Series name G276
Fuse Dimension (mm) 27x60
Melting I²t value (A²s) 74650
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 500
Total clearing I²t @Un AC (A²s) 265000
Rated breaking capacity I1 AC (kA) 100000
Product available on request Ask for more information
NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 50A

NR2B - Fuse DIN00 80mm aR 700VDC/690VAC with ind. lug 50A

Reference 859.192.76.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 50
Rated Voltage Un AC (V) 690
Dimension 000
Applicable standards IEC, UL
Power loss (W) 9
Rated Voltage Un DC (V) 700
Time costant L/R (ms) 2
Series name NR2B
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 330
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Voltage of total clearing I2t test 700
Total clearing I²t @Un AC (A²s) 1200
Rated breaking capacity I1 AC (kA) 200000
Product available on request Ask for more information
G103 - Fuse 500V 10x38 gG 40A

G103 - Fuse 500V 10x38 gG 40A

Reference 860.346.75.0.0 - Manufacturer FAULTRAP
Class gG
Rated current In (A) 40
Rated Voltage Un AC (V) 500
Applicable standards IEC
Power loss (W) 3
Fuse Dimension (mm) 10x38
Melting I²t value (A²s) 100
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 500
Total clearing I²t @Un AC (A²s) 638
Rated breaking capacity I1 AC (kA) 100000
Product available on request Ask for more information
20PV27 - Fuse 2000VDC gPV 27x85mm 70A

20PV27 - Fuse 2000VDC gPV 27x85mm 70A

Reference 861.527.78.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 70
Applicable standards IEC
Power loss (W) 20.2
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV27
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 27x85
Melting I²t value (A²s) 1400
Fuse Connection/Terminal type Cylindrical
Product available on request Ask for more information

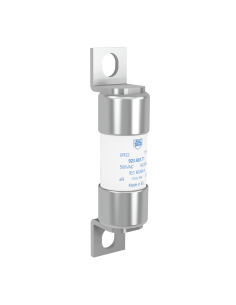

UR22 - Fuse 500V AC 22x58 fixing 80mm 135A

UR22 - Fuse 500V AC 22x58 fixing 80mm 135A

Reference 861.706.36.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 135
Rated Voltage Un AC (V) 500
Applicable standards IEC
Power loss (W) 28,6
Series name UR22
Melting I²t value (A²s) 3640
Fuse Connection/Terminal type Screw fixing
Total clearing I²t @Un AC (A²s) 17800
Rated breaking capacity I1 AC (kA) 200
Product available on request Ask for more information
BP22 -Fuse 22x65mm cylindrical 16A

BP22 -Fuse 22x65mm cylindrical 16A

Reference 862.304.66.0.0 - Manufacturer FAULTRAP
Class gBat, gR
Rated current In (A) 16
Applicable standards IEC, UL
Power loss (W) 3,6
Rated Voltage Un DC (V) 1000
Series name BP22
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 22x65
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un AC (A²s) 30
Product available on request Ask for more information
L226 - In-Line Rugged 22x65 Fuse + Holder 1500VDC 30A

L226 - In-Line Rugged 22x65 Fuse + Holder 1500VDC 30A

Reference 862.663.70.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 30
Applicable standards IEC
Power loss (W) 7
Rated Voltage Un DC (V) 1500
Series name L226
Rated breaking capacity I1 DC (kA) 10000
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 450
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 2000
Product available on request Ask for more information
10TD - Fuse 10x38 500VAC aM/aR 16A

10TD - Fuse 10x38 500VAC aM/aR 16A

Reference 863.903.84.0.0 - Manufacturer FAULTRAP
Class aM, aR
Rated current In (A) 16
Rated Voltage Un AC (V) 500
Applicable standards IEC, UL
Series name 10TD
Fuse Dimension (mm) 10x38
Melting I²t value (A²s) 560
Fuse Connection/Terminal type Cylindrical
Voltage of total clearing I2t test 500
Total clearing I²t @Un AC (A²s) 2060
Rated breaking capacity I1 AC (kA) 50000
Product available on request Ask for more information
20PV14 - Fuse 2000VDC gPV 14x85 inline 15A

20PV14 - Fuse 2000VDC gPV 14x85 inline 15A

Reference 864.160.53 .0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 15
Applicable standards IEC
Power loss (W) 4.8
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV14
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 14x85
Melting I²t value (A²s) 38
Fuse Connection/Terminal type In-line for copper cable
Product available on request Ask for more information
20PV3 - Fuse 2000VDC gPV 76x269mm axial terminals 225mm 315A

20PV3 - Fuse 2000VDC gPV 76x269mm axial terminals 225mm 315A

Reference 864.831.51.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 315
Applicable standards IEC
Power loss (W) 79
Rated Voltage Un DC (V) 2000
Time costant L/R (ms) 1-3
Series name 20PV3
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 76x269
Melting I²t value (A²s) 50200
Minimum breaking current (A) 630
Fuse Connection/Terminal type Screw fixing
Product available on request Ask for more information
B050 - Fuse 1000VDC aBat 600A - 97,6mm - Tin Plated

B050 - Fuse 1000VDC aBat 600A - 97,6mm - Tin Plated

Reference 865.632.53.0.0 - Manufacturer FAULTRAP
Class aBat, aR
Rated current In (A) 600
Applicable standards IEC, UL
Power loss (W) 79
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B050
Rated breaking capacity I1 DC (kA) 100
Fuse Dimension (mm) 50x129
Melting I²t value (A²s) 134000
Minimum breaking current (A) 6000
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 97
Total clearing I²t @Un DC (A²s) 350000
Price List €146.42/pc
Quantity
lock Datasheet
V108 - Fuse 10x85 1500VDC gPV In-line 6A

V108 - Fuse 10x85 1500VDC gPV In-line 6A

Reference 865.834.50.0.0 - Manufacturer FAULTRAP
Class gPV
Rated current In (A) 6
Applicable standards IEC, UL
Power loss (W) 2,5
Rated Voltage Un DC (V) 1500
Series name V108
Rated breaking capacity I1 DC (kA) 20000
Fuse Dimension (mm) 10x85
Melting I²t value (A²s) 9,33
Fuse Connection/Terminal type Cylindrical In-line
Voltage of total clearing I2t test 1500
Total clearing I²t @Un AC (A²s) 38
Product available on request Ask for more information
B100 - Fuse 1000VDC aBat 630A - 152,7mm - Tin Plated

B100 - Fuse 1000VDC aBat 630A - 152,7mm - Tin Plated

Reference 867.290.88.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 630
Applicable standards IEC, UL
Power loss (W) 120
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 2
Series name B100
Rated breaking capacity I1 DC (kA) 100000
Fuse Dimension (mm) 63,5x203,2
Melting I²t value (A²s) 108000
Minimum breaking current (A) 6300
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 1000
Total clearing I²t @Un AC (A²s) 324000
Product available on request Ask for more information
AR22 - EV Charger Fuse 1000VDC 32A

AR22 - EV Charger Fuse 1000VDC 32A

Reference 868.215.71.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 32
Applicable standards IEC
Power loss (W) 5.3
Rated Voltage Un DC (V) 1000
Time costant L/R (ms) 1-3
Series name AR22
Rated breaking capacity I1 DC (kA) 50
Fuse Dimension (mm) 22x65
Melting I²t value (A²s) 250
Fuse Connection/Terminal type Cylindrical
Total clearing I²t @Un DC (A²s) 2000
Weight (gr) 60
Product available on request Ask for more information
NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 180A

NR2B - Fuse 00/80 aR 700VDC/690VAC with ind. w/o lug 180A

Reference 868.707.36.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 180
Rated Voltage Un AC (V) 690
Dimension 000
Applicable standards IEC, UL
Power loss (W) 42.5
Rated Voltage Un DC (V) 700
Time costant L/R (ms) 2
Series name NR2B
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 4120
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Voltage of total clearing I2t test 700
Total clearing I²t @Un AC (A²s) 15100
Rated breaking capacity I1 AC (kA) 200000
Product available on request Ask for more information
E103 - Fuse 10x38 1000VDC aBAT 10A

E103 - Fuse 10x38 1000VDC aBAT 10A

Reference 869.033.78.0.0 - Manufacturer FAULTRAP
Class aBat
Rated current In (A) 10
Applicable standards IEC
Power loss (W) 2,5
Rated Voltage Un DC (V) 1000
Series name E103
Rated breaking capacity I1 DC (kA) 20000
Fuse Dimension (mm) 10x38
Fuse Connection/Terminal type Cylindrical
Product available on request Ask for more information
NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 63A

NR2A - Fuse DIN000 80mm aR 700VDC/690VAC no ind 63A

Reference 869.557.46.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 63
Rated Voltage Un AC (V) 690
Dimension 000
Applicable standards IEC
Power loss (W) 9.5
Rated Voltage Un DC (V) 700
Time costant L/R (ms) 2
Series name NR2A
Rated breaking capacity I1 DC (kA) 30000
Melting I²t value (A²s) 520
Fuse Connection/Terminal type Screw fixing
Fixing connection centres (mm) 80
Voltage of total clearing I2t test 700
Total clearing I²t @Un AC (A²s) 1900
Rated breaking capacity I1 AC (kA) 200000
Price List €10.23/pc
Quantity
lock Datasheet
C100 - Fuse 690V aR size 1 M8 63A

C100 - Fuse 690V aR size 1 M8 63A

Reference 872.796.60.0.0 - Manufacturer FAULTRAP
Class aR
Rated current In (A) 63
Rated Voltage Un AC (V) 690
Dimension SQB2
Applicable standards IEC
Power loss (W) 10
Fixing dimensions M8
Melting I²t value (A²s) 115
Fuse Connection/Terminal type Screw fixing
Voltage of total clearing I2t test 690
Total clearing I²t @Un AC (A²s) 760
Rated breaking capacity I1 AC (kA) 100000
Product available on request Ask for more information
Filter by
Manufacturer
Series name
Fuse size
Class
Fuse Connection/Terminal type
Rated current In (A)
Rated Voltage Un AC (V)
Rated Voltage Un DC (V)
Applicable standards
Product added to compare.
Product added to wishlist
