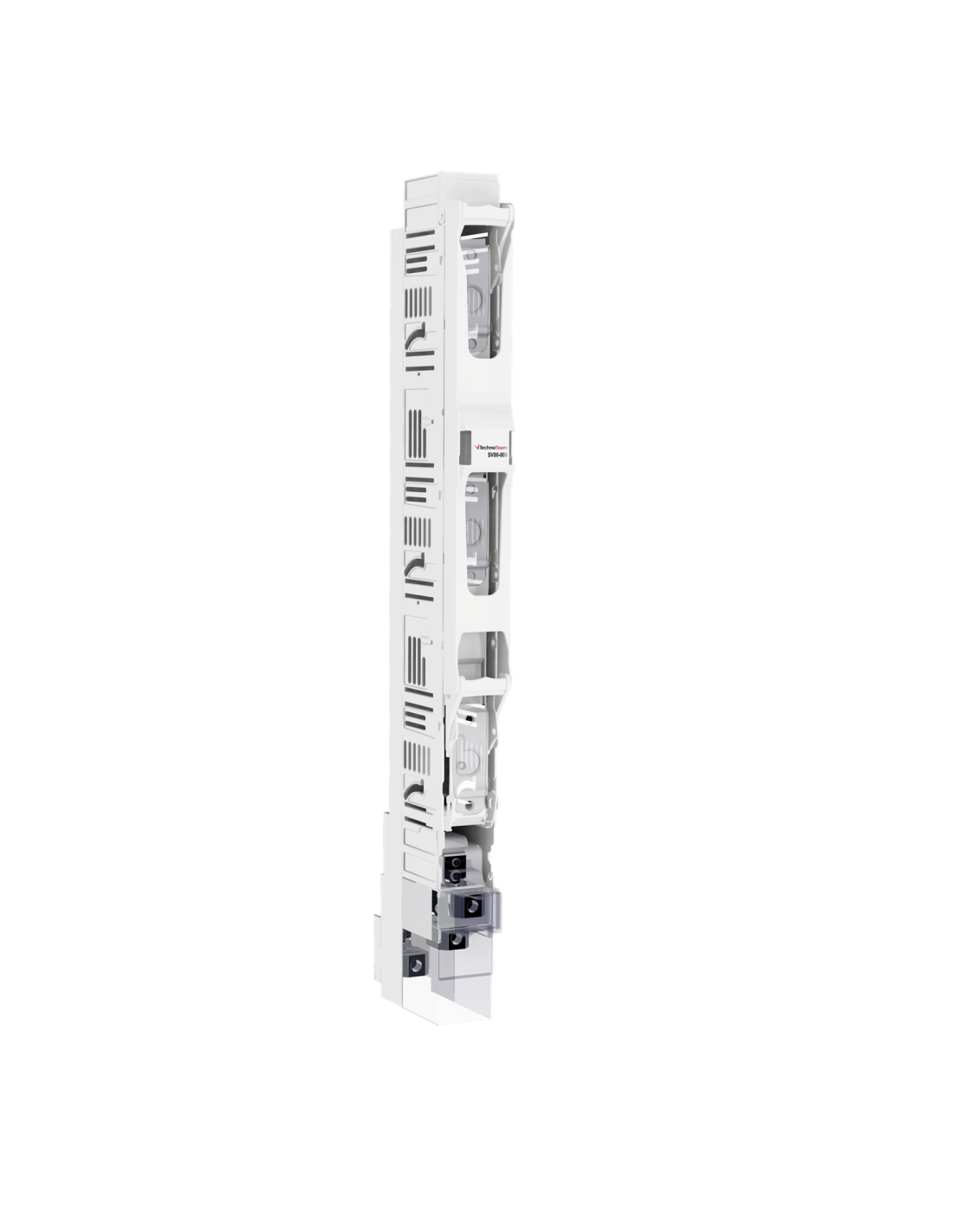

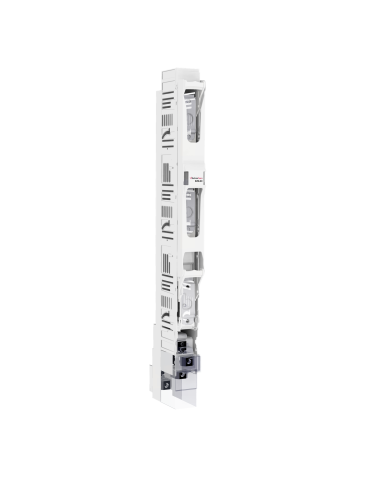

SV00-800-V Vertical disconnector NH00 800VAC V connection
SV00-800-V Vertical disconnector NH00 800VAC V connection

SV00-800-V Vertical disconnector NH00 800VAC V connection

Reference: X78.335.84.0.0  -  Manufacturer: TechnoTeam
€155.33 /pc VAT excl.

Product Details

Rated current In (A)
80
Rated Voltage Un AC (V)
800
Dimension
NH00, NH000
Applicable standards
IEC
Max power dissipation (W)
11
Series name
SV00-800-XX
Fuse Connection/Terminal type
NH knife contact
Busbar system (mm)
185
Cables connection
V-clamp
Utilization category
AC21B
Number of poles
3
