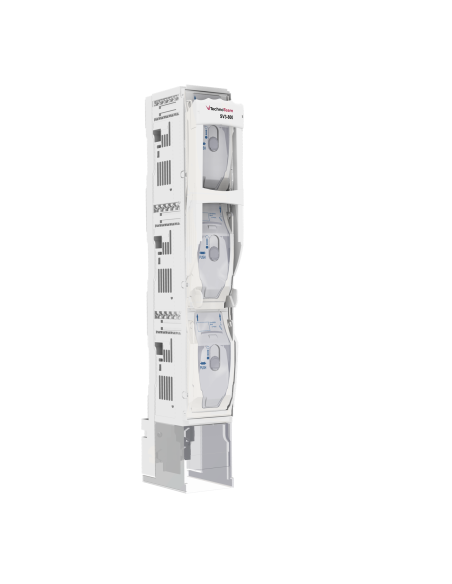

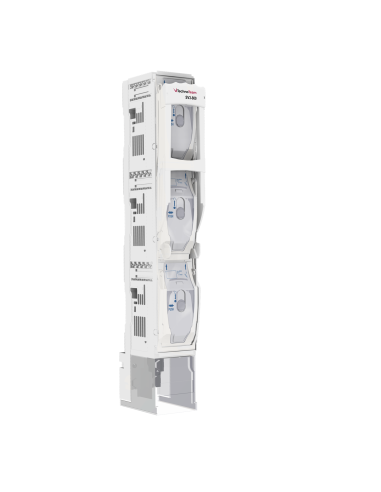

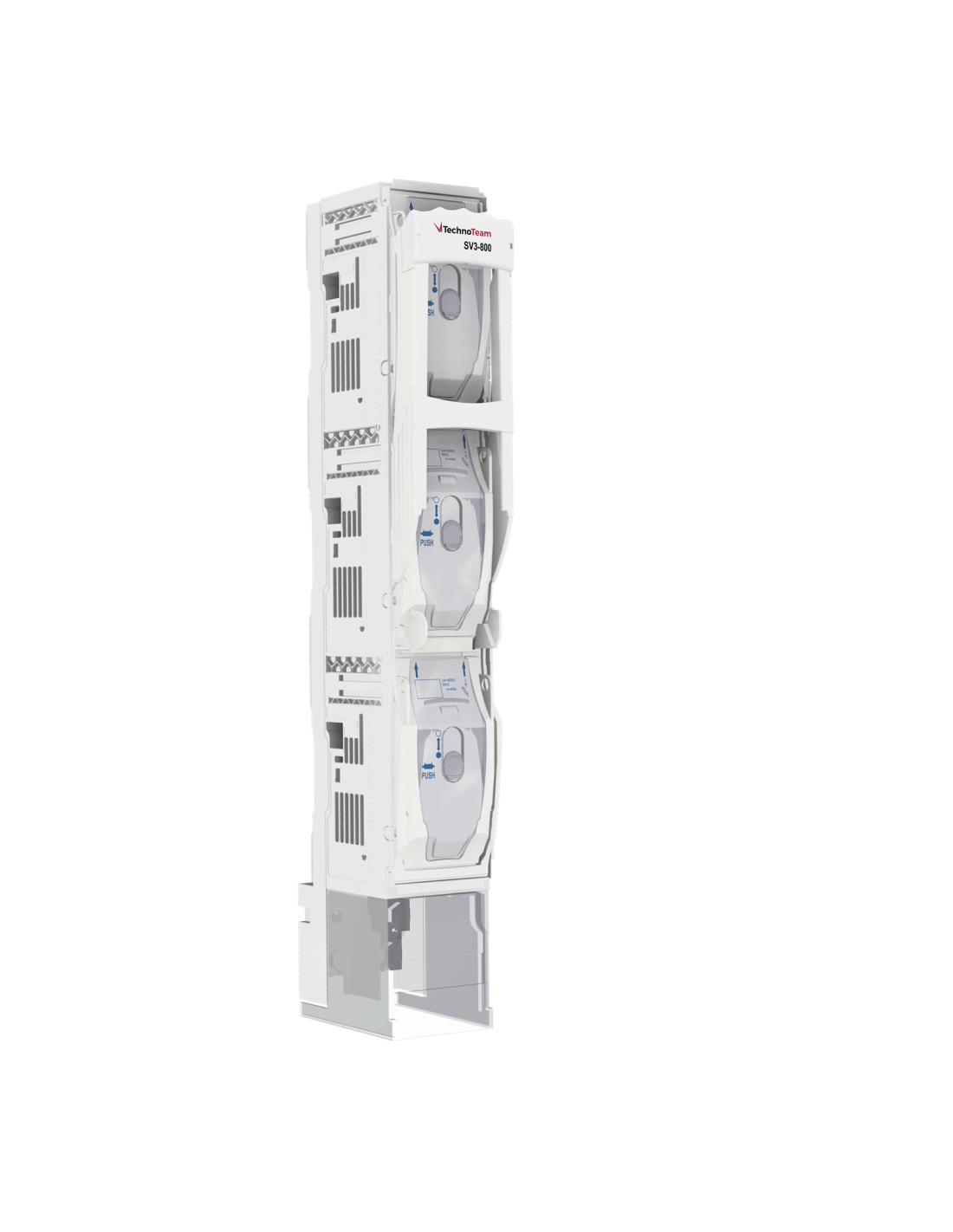

SV1-2-800-2V Vertical disconnector NH1-2 800VAC M12 conn.
SV1-2-800-2V Vertical disconnector NH1-2 800VAC M12 conn.

SV1-2-800-2V Vertical disconnector NH1-2 800VAC M12 conn.

Reference: W14.626.05.0.0  -  Manufacturer: TechnoTeam
€283.33 /pc VAT excl.

Product Details

Rated current In (A)
200
Rated Voltage Un AC (V)
800
Dimension
NH1
Applicable standards
IEC
Max power dissipation (W)
21
Series name
SV1-2-800
Fuse Connection/Terminal type
NH knife
Busbar system (mm)
185
Cables connection
2V-clamp
Utilization category
AC21B
Number of poles
3
Weight (gr)
6400
Ask for more information

Accessories
