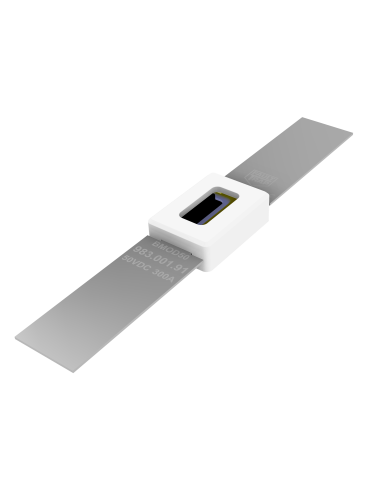

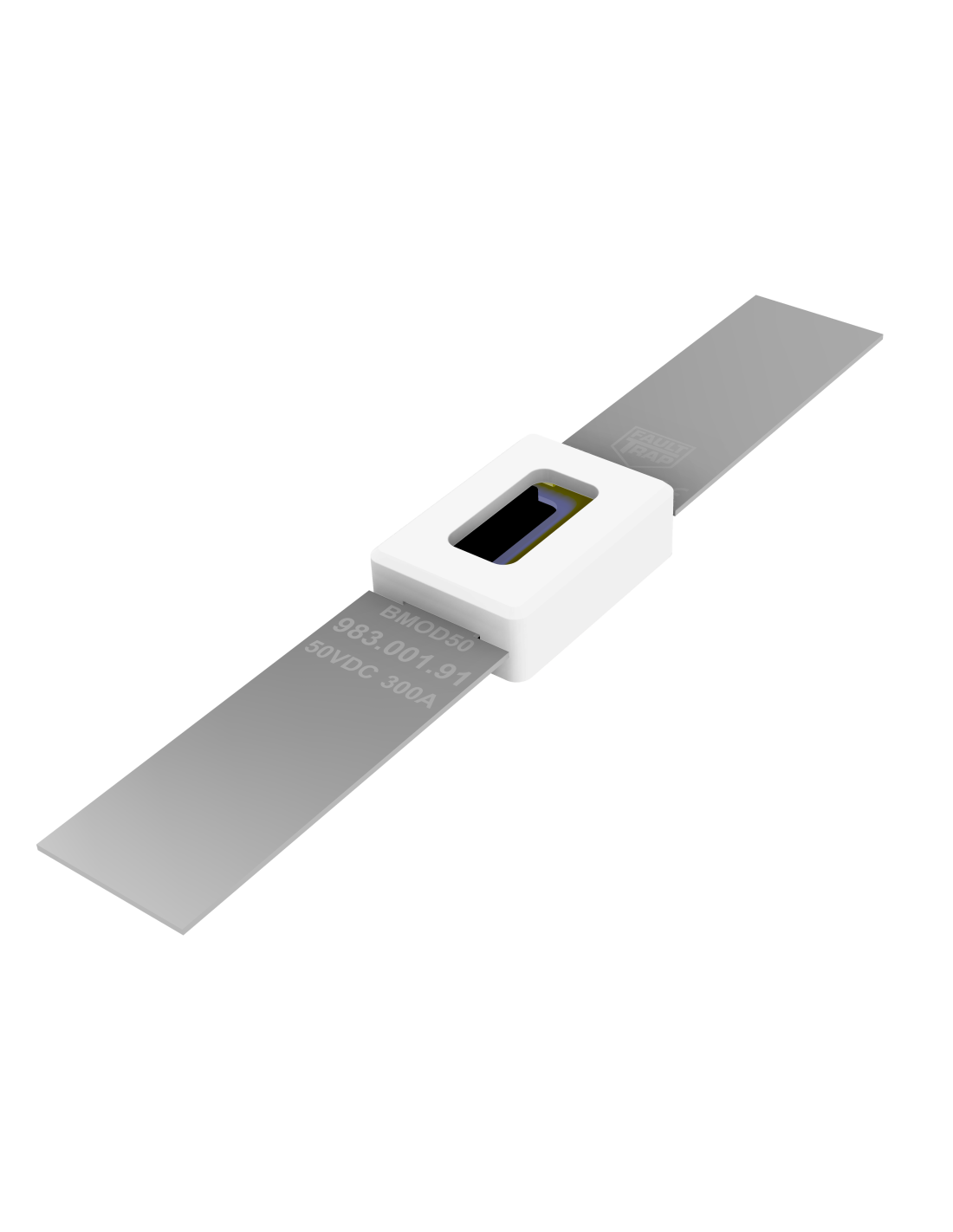

BMOD50 - Fuse 50VDC 31,8x22mm solderable terminals 200A
BMOD50 - Fuse 50VDC 31,8x22mm solderable terminals 200A

BMOD50 - Fuse 50VDC 31,8x22mm solderable terminals 200A

Reference: 296.664.33.0.0  -  Manufacturer: FAULTRAP
Product available on request
Ask for more information

Product Details

Class
Partial range
Rated current In (A)
200
Applicable standards
Company standard
Rated Voltage Un DC (V)
50
Time costant L/R (ms)
3
Max power dissipation (W)
11
Series name
BMOD50
Rated breaking capacity I1 DC (kA)
1200
Fuse Dimension (mm)
31.8x22
Melting I²t value (A²s)
410070
Cold Resistance
0.17
